Product Construction
| Backing material | PET fleece |
| Total thickness | 280 µm |
| Type of adhesive | rubber based |

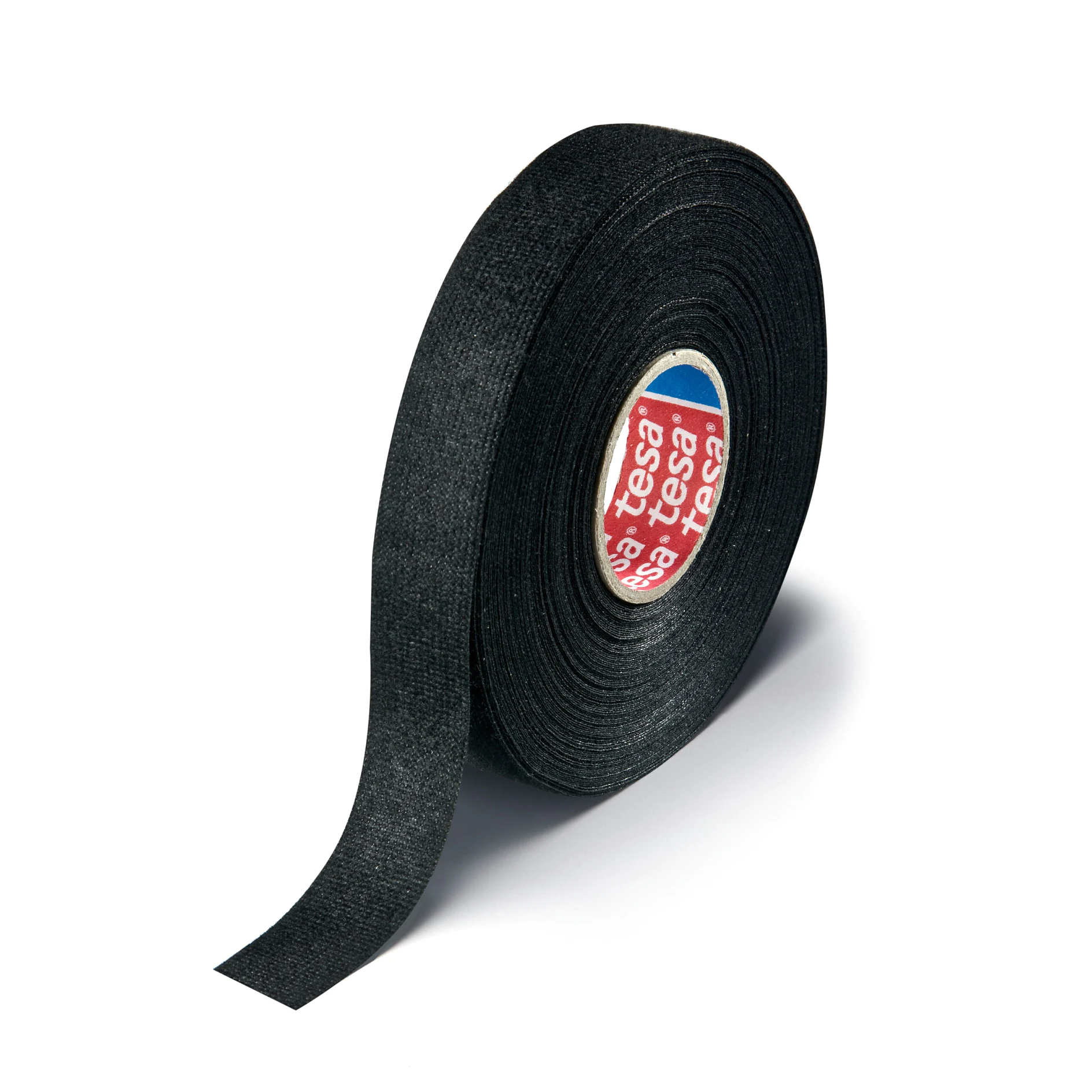

tesa® 51608
PET fleece tape for flexibility and noise damping
Product Features
- Noise dampening
- Abrasion resistant
- Flexible and smooth
Product description
tesa® 51608 is the universal tape for wire harness bundling in the passenger compartment. It combines important features as noise dampening, abrasion resistance, and bundling strength while keeping harnesses flexible supporting an easy harness assembly process at the OEM. tesa® 51608 a PET fleece wire harness tape with a rubber based adhesive that is optimized for manual application.
Product details and specifications
Product Features
- Noise dampening
- Abrasion resistant
- Flexible and smooth
- Tear resistant
- Stable unwind force
- Age-resistant
- Strong adhesion
- Hand-tearable
Application Fields
tesa® 51608 is designed for the passenger compartment, providing flexibility and noise damping.
Product Construction
| Backing material | PET fleece |
| Total thickness | 280 µm |
| Type of adhesive | rubber based |
Properties / Performance Values
| Elongation at break | 20 % |
| Tensile strength | 40 N/cm |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
| Noise damping (LV312) | Class C |
| Temperature resistance max. | 105 °C |
| Unwind force (roll width ≤ 9mm) | 9 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 9 N/roll (30 m/min) |
| Temperature resistance min. | -40 °C |
Properties / Performance Values
| Elongation at break | 20 % |
| Tensile strength | 40 N/cm |
| Abrasion resistance (5mm mandrel, LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class B |
| Noise damping (LV312) | Class C |
| Temperature resistance max. | 105 °C |
| Unwind force (roll width ≤ 9mm) | 9 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 9 N/roll (30 m/min) |
| Temperature resistance min. | -40 °C |
Adhesion to Values
| Adhesion to Steel | 3 N/cm |
Adhesion to Values
| Adhesion to Steel | 3 N/cm |
Additional Info
- Standard widths: 9, 19, 25, 32 mm
- Standard length: 25 m
- Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
