Electrically Conductive Adhesive Tape (ECT) is used for sensitive applications such as automotive, aerospace, defense, medical, and telecom products. ECT is designed with conductive pressure-sensitive adhesives and a variety of different conductive backings. By offering a broad assortment of filled acrylic adhesive systems with a balance between electrical conductivity and adhesive properties, we are able to provide the best solution for your requirements.
Our double-sided tape is available with two different backings. The woven backing offers a higher tear resistance, very good dimensional stability, and better reworkability, while the nonwoven backing provides faster wetting, excellent conformability, and very good die cuttability.
| tesa® product1 | Type and backing | Type of adhesive | Thickness [µ] | Color | Log m/mm | Liner & thickness | Peel adhesion to SUS (initial/ultimate) [N/cm] | Contact resistance [mΩ.inch2] | Surface resistance [mΩ.inch2] | Shielding effectiveness [dB] |
|---|---|---|---|---|---|---|---|---|---|---|
Double sided; Non-woven | Conductive Acrylic | 30 | Black | 100 x 1.040 | PET 50µ | 3.5 / 5.1 | 0.01 | 0.1 | >60 | |
Double sided; Non-woven | Conductive Acrylic | 50 | Black | 100 x 1.040 | PET 50µ | 4.3 / 5.6 | 0.01 | 0.1 | >60 | |
Double sided; Non-woven | Conductive Acrylic | 100 | Black | 50 x 1.040 | PET 50µ | 5.7 / 8.5 | 0.01 | 0.1 | >60 | |
| tesa® 60252 | Double sided; Woven | Conductive Acrylic | 55 | Grey | 50 x 1.040 | PE Paper 120µ | 5.5 / 8.5 | 0.05 | 0.2 | >50 |
| tesa® 60253 | Double sided; Woven | Conductive Acrylic | 70 | Grey | 50 x 1.040 | PCK 120µ | 4.8 / 9.7 | 0.05 | 0.2 | >50 |
| tesa® 60254 | Double sided; Woven | Conductive Acrylic | 100 | Grey | 50 x 1.220 | PCK 120µ | 6.6 / 10.4 | 0.05 | 0.2 | >50 |
| tesa® 60255 | Double sided; Woven | Conductive Acrylic | 150 | Grey | 50 x 1.040 | PCK 120µ | 4.5 / 10.5 | 0.05 | 0.2 | >50 |
1 All valid product data is available on the product page.

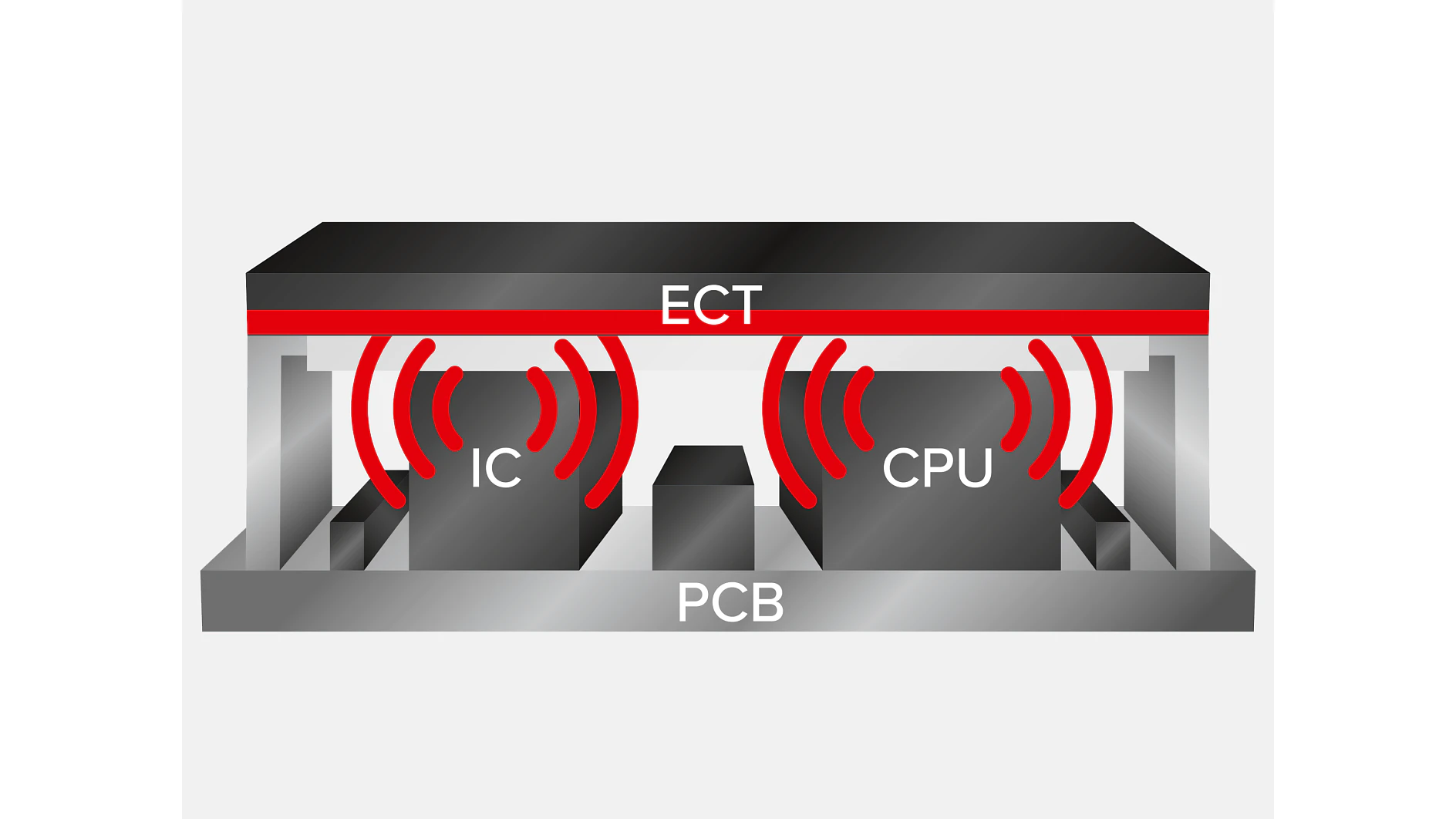

Not only in the automotive industry, stringent electromagnetic interference (EMI) requirements are necessary for safety but create design challenges for engineers as many components in power electronics systems produce nodes and high loops during high-frequency switching.

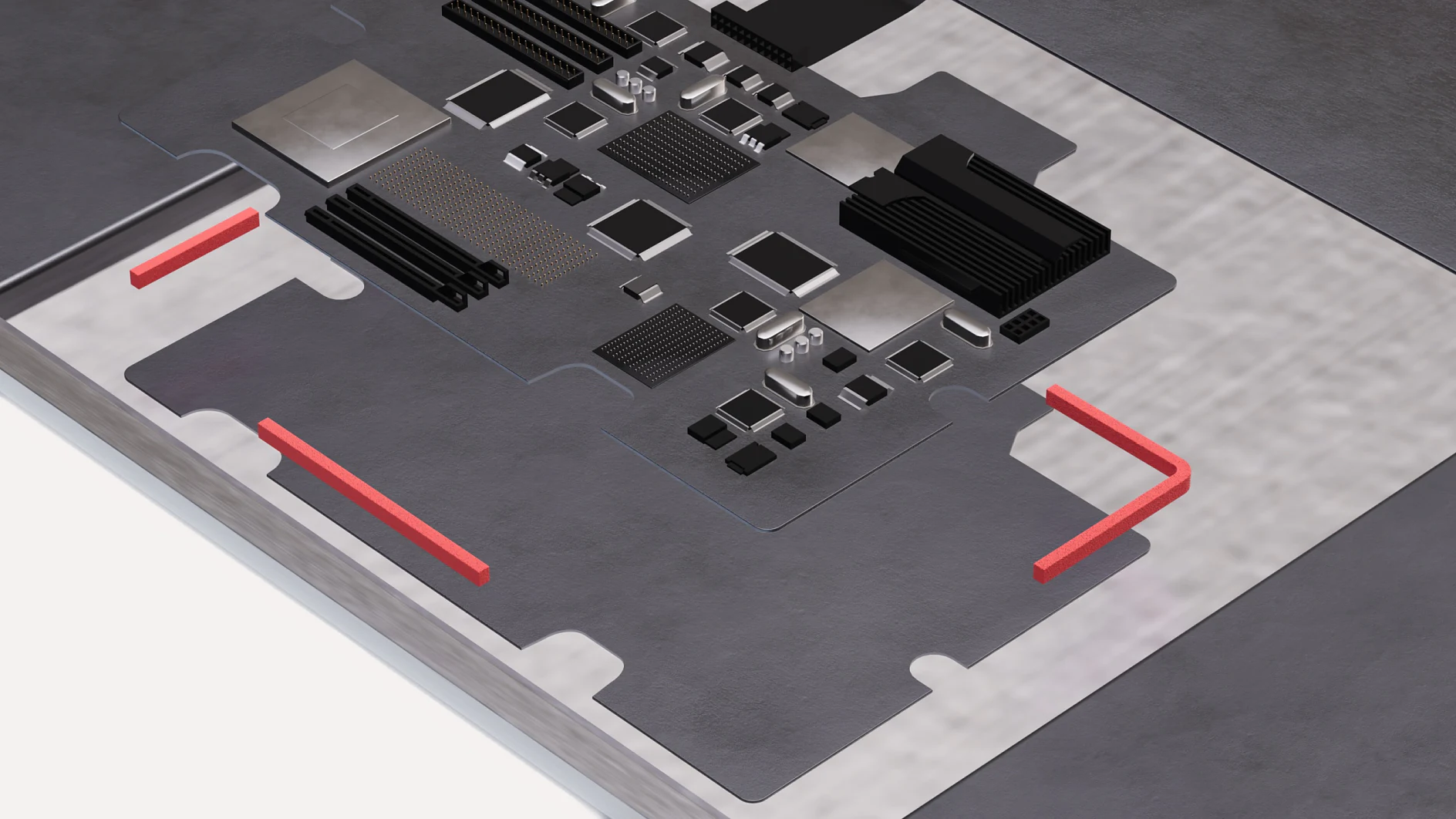

One important application of EMI tape is gasketing, in which vents, through holes, or conduits are sealed with gaskets made from materials that offer high shielding effectiveness. Thick tape varieties often include conductive nonwovens, wovens or foams or an electrically conductive or insulating adhesive that affixes to internal faces of enclosures around the gasketed punch-out's.
| tesa® product1 | Type & backing | Type of adhesive | Thickness [µ] | Color | Log m/mm | Liner & thickness | Peel adhesion to SUS (initial/ultimate) [N/cm] | Contact resistance [mΩ.inch2] | Surface resistance [mΩ.inch2] | Shielding effectiveness [dB] |
|---|---|---|---|---|---|---|---|---|---|---|
Single sided; Copper | Conductive Acrylic | 30 | Copper | 50 x 1.020 | PET 50µ | 6,3 / 7,5 | 0.05 | 0.2 | >70 | |
Single sided; Copper | Conductive Acrylic | 50 | Copper | 50 x 1.020 | PET 50µ | 6,4 / 7,7 | 0.05 | 0.2 | >70 | |
| tesa® 4386 | Single sided; Aluminum | Conductive Acrylic | 85 | Silver | 50 x 1.000 | Paper 65µ | / 3,0 | - | 0.2 | - |
1 All valid product data is available on the product page.

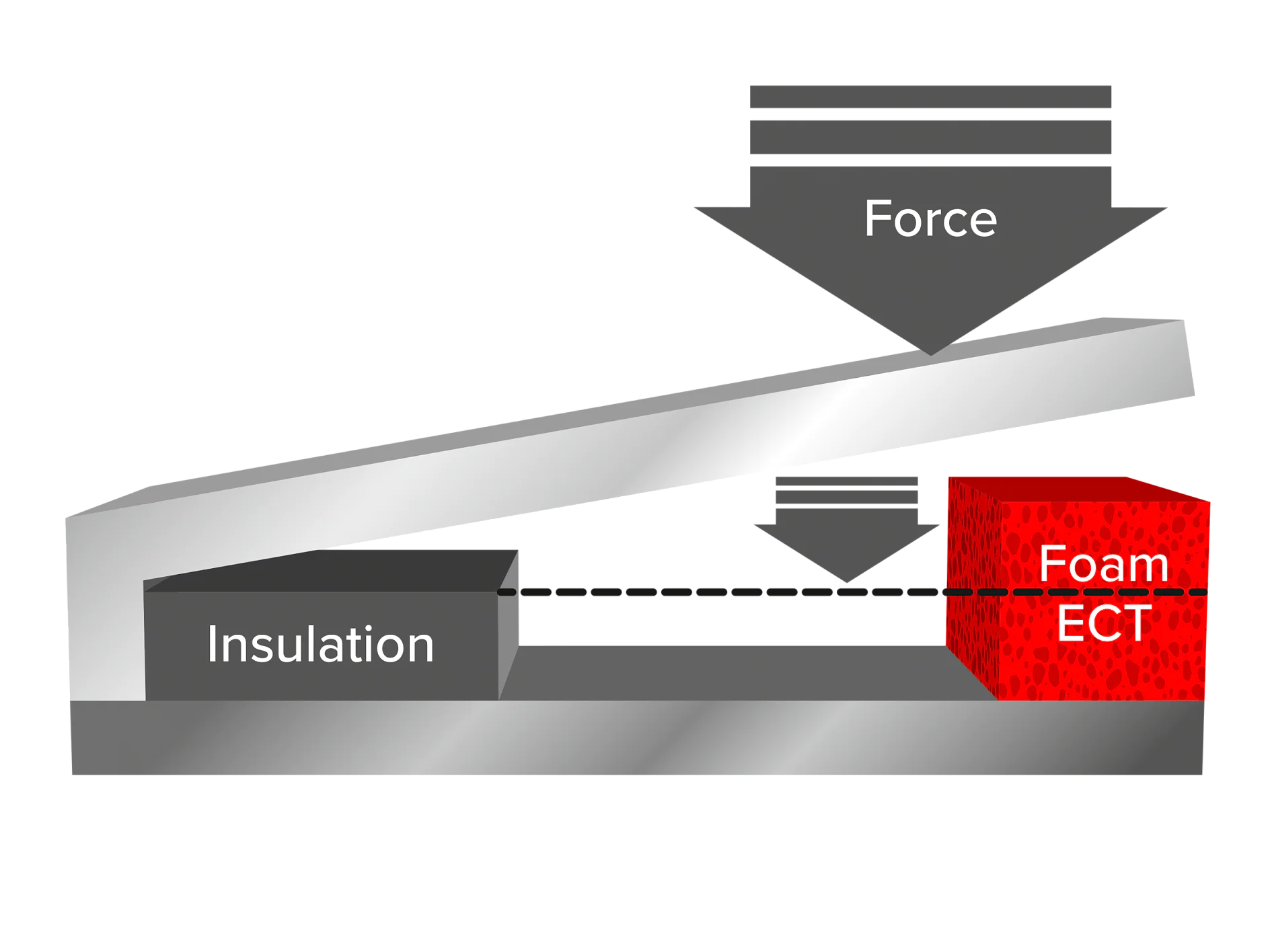

Our single-sided electrically conductive foam tape can be used for shielding, grounding, and filling gaps. It provides either outstanding conformability and recovery properties or very high abrasion resistance, depending on the foam material chosen. All series in this assortment have very good shock-absorbing and cushioning properties.
| tesa® product1 | Type & backing | Type of adhesive | Thickness [µ] | Color | Log m/mm | Liner & thickness | Peel adhesion to SUS (initial/ultimate) [N/cm] | Contact resistance [mΩ.inch2] | Surface resistance [mΩ.inch2] | Shielding effectiveness [dB] |
|---|---|---|---|---|---|---|---|---|---|---|
Single sided foam | Conductive Acrylic | 300 | Gray | 40 x 1.030 | PCK 120µ | 4.8 / 6.3 | 0.03 | 0.2 | >70 | |
| Single sided foam | Conductive Acrylic | 500 | Gray | 30 x 1.030 | PCK 120µ | 4.8 / 6.3 | 0.03 | 0.2 | >70 | |
| Single sided foam | Conductive Acrylic | 1500 | Gray | 30 x 1.000 | PCK 120µ | / 8,5 | 0.03 | 0.2 | >70 | |
| tesa® 60218 | Single sided foam | Conductive Acrylic | 2000 | Gray | 20 x 1.000 | PCK 120µ | / 8,5 | 0.03 | 0.2 | >70 |
1 All valid product data is available on the product page.
