Product Construction
Backing material | PP film |
Color | white |
Color of liner | brown |
Thickness of liner | 70 µm |
Total thickness | 185 µm |
Type of adhesive | synthetic rubber |
Type of liner | glassine |
Weight of liner | 78 g/m² |

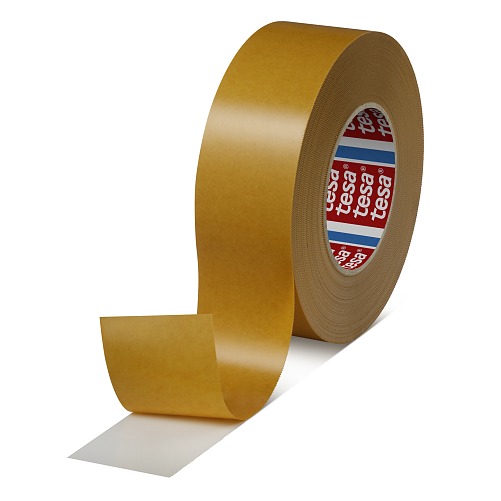

tesa® 64620
tesa® 64620 is a double-sided self-adhesive tape, consisting of a white PP-carrier and a synthetic rubber adhesive mass system (hotmelt). With the hotmelt adhesive, tesa® 64620 is solvent free and offers a high tack.
tesa® 64620 is protected by a siliconized paper liner.
Backing material | PP film |
Color | white |
Color of liner | brown |
Thickness of liner | 70 µm |
Total thickness | 185 µm |
Type of adhesive | synthetic rubber |
Type of liner | glassine |
Weight of liner | 78 g/m² |
Backing material | PP film |
Color | white |
Color of liner | brown |
Thickness of liner | 70 µm |
Total thickness | 185 µm |
Type of adhesive | synthetic rubber |
Type of liner | glassine |
Weight of liner | 78 g/m² |
Elongation at break | 700 % |
Tensile strength | 30 N/cm |
Fogging | very good |
Temperature resistance short term | 80 °C |
Temperature resistance long term | 40 °C |
Static shear resistance at 70°C | medium |
Tack | very good |
Ageing resistance (UV) | low |
Static shear resistance at 40°C | good |
Elongation at break | 700 % |
Tensile strength | 30 N/cm |
Fogging | very good |
Temperature resistance short term | 80 °C |
Temperature resistance long term | 40 °C |
Static shear resistance at 70°C | medium |
Tack | very good |
Ageing resistance (UV) | low |
Static shear resistance at 40°C | good |
Adhesion to PE (initial) | 5 N/cm |
Adhesion to PE (after 14 days) | 8 N/cm |
Adhesion to PP (initial) | 8.5 N/cm |
Adhesion to PP (after 14 days) | 12.5 N/cm |
Adhesion to PVC (initial) | 7.5 N/cm |
Adhesion to PVC (after 14 days) | 10 N/cm |
Adhesion to Steel (initial) | 9.5 N/cm |
Adhesion to Steel (after 14 days) | 14.5 N/cm |
Adhesion to Steel (covered side, initial) | 10.5 N/cm |
Adhesion to PE (initial) | 5 N/cm |
Adhesion to PE (after 14 days) | 8 N/cm |
Adhesion to PP (initial) | 8.5 N/cm |
Adhesion to PP (after 14 days) | 12.5 N/cm |
Adhesion to PVC (initial) | 7.5 N/cm |
Adhesion to PVC (after 14 days) | 10 N/cm |
Adhesion to Steel (initial) | 9.5 N/cm |
Adhesion to Steel (after 14 days) | 14.5 N/cm |
Adhesion to Steel (covered side, initial) | 10.5 N/cm |
Download the files below for more technical details and information on this product.
