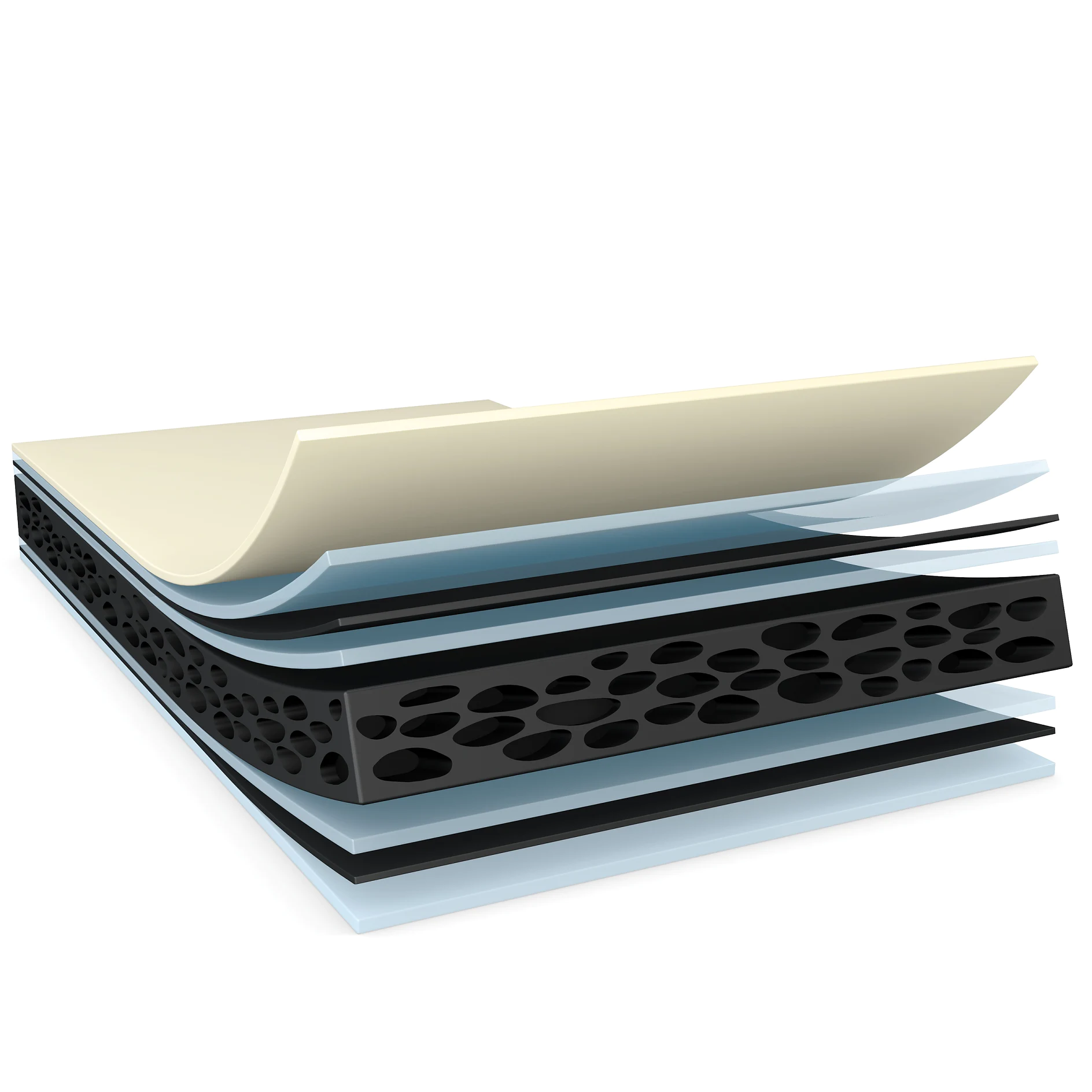

Product Construction
Adhesive Type | modified acrylic |
Backing material | Acrylic |
Color | black |
Color of liner | transparent |
Liner Type | PET |
Thickness of liner | 50 µm |
Total thickness | 150 µm |
Weight of liner | 72 g/m² |
Adhesive Type | modified acrylic |
Backing material | Acrylic |
Color | black |
Color of liner | transparent |
Liner Type | PET |
Thickness of liner | 50 µm |
Total thickness | 150 µm |
Weight of liner | 72 g/m² |
Adhesive Type | modified acrylic |
Backing material | Acrylic |
Color | black |
Color of liner | transparent |
Liner Type | PET |
Thickness of liner | 50 µm |
Total thickness | 150 µm |
Weight of liner | 72 g/m² |
Temperature resistance long term | 90 °C |
Transmittance (380 - 780nm) < | 0.1 % |
Static shear resistance at 23°C | good |
Temperature resistance short term | 140 °C |
Static shear resistance at 40°C | good |
Ageing resistance (UV) | very good |
Temperature resistance long term | 90 °C |
Transmittance (380 - 780nm) < | 0.1 % |
Static shear resistance at 23°C | good |
Temperature resistance short term | 140 °C |
Static shear resistance at 40°C | good |
Ageing resistance (UV) | very good |
Adhesion to Aluminium (initial) | 9 N/cm |
Adhesion to Aluminium (after 3 days) | 12.1 N/cm |
Adhesion to Glass (initial) | 14.5 N/cm |
Adhesion to Glass (after 3 days) | 14.6 N/cm |
Adhesion to PC (initial) | 14.4 N/cm |
Adhesion to PC (after 3 days) | 16.6 N/cm |
Adhesion to Steel (initial) | 14.1 N/cm |
Adhesion to Steel (after 3 days) | 15.6 N/cm |
Adhesion to Aluminium (initial) | 9 N/cm |
Adhesion to Aluminium (after 3 days) | 12.1 N/cm |
Adhesion to Glass (initial) | 14.5 N/cm |
Adhesion to Glass (after 3 days) | 14.6 N/cm |
Adhesion to PC (initial) | 14.4 N/cm |
Adhesion to PC (after 3 days) | 16.6 N/cm |
Adhesion to Steel (initial) | 14.1 N/cm |
Adhesion to Steel (after 3 days) | 15.6 N/cm |
Download the files below for more technical details and information on this product.
