- Elastic and viscous characteristics provide the strength for a permanent bond
- Constant product features over time even in outdoor conditions
- Acrylic foam tapes can compensate static loads over the entire bond's duration of the product life cycle
Acrylic foam tapes
that perform strongly
Applications
Acrylic foam tapes with strong performance
Bonding components or substrates can be very challenging. Our acrylic foam tape assortment has been developed over the years to meet the extreme demands of industrial applications. Today, our acrylic foam tapes’ strong bonding capabilities are relied upon by manufacturers worldwide.
Acrylic foam tapes are widely used in many different industries including the automotive, building components, appliances, and electronics sectors. In manufacturing, acrylic foam tapes can replace mechanical fasteners and liquid adhesives. As there is no need to drill into material or use screws, nuts, or bolts, faster assembly time can be realized, potentially at a lower cost and without damaging the materials used. Overall, acrylic foam tapes offer greater design flexibility and, with no raised fastener heads, improved aesthetics.

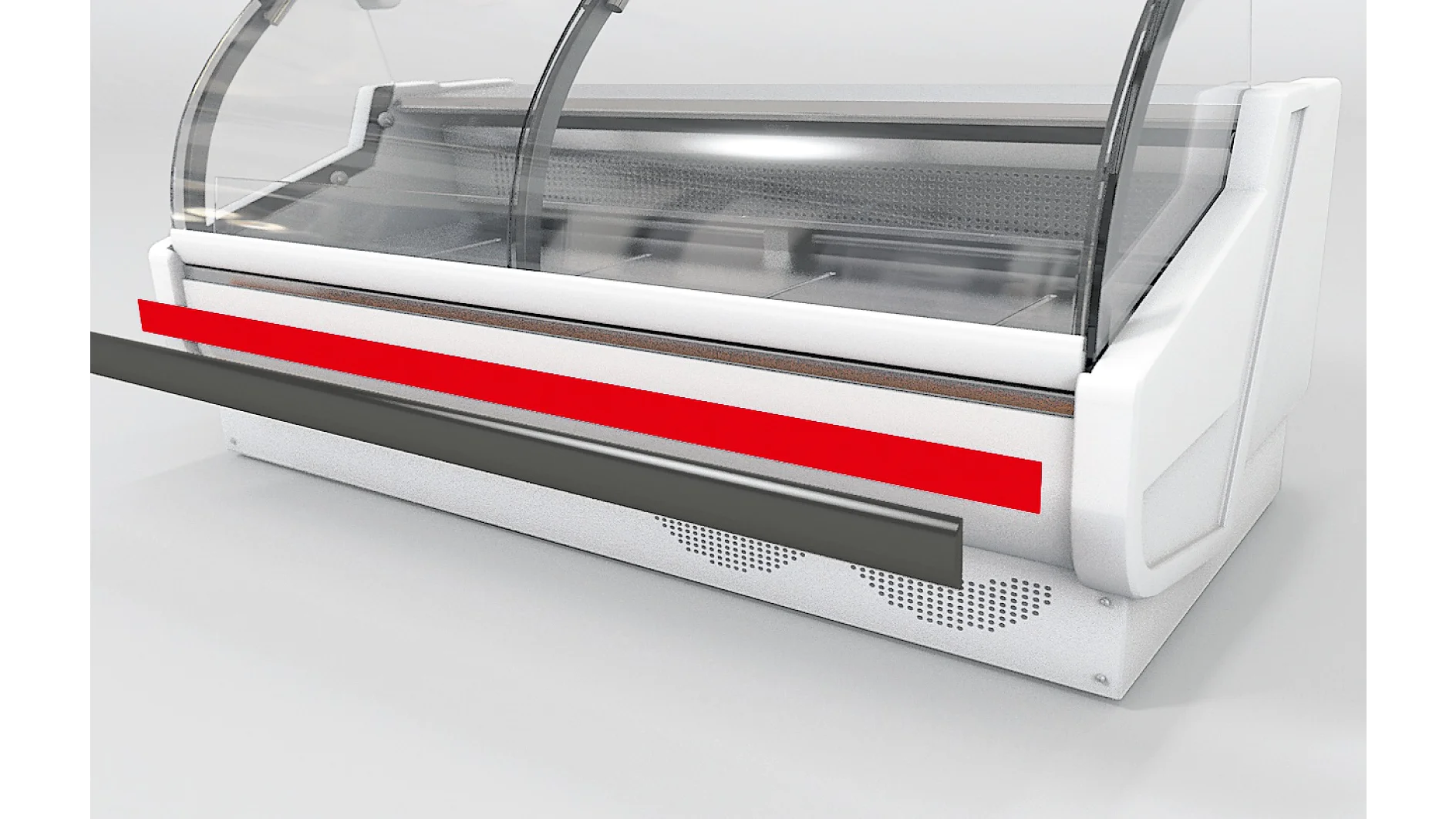

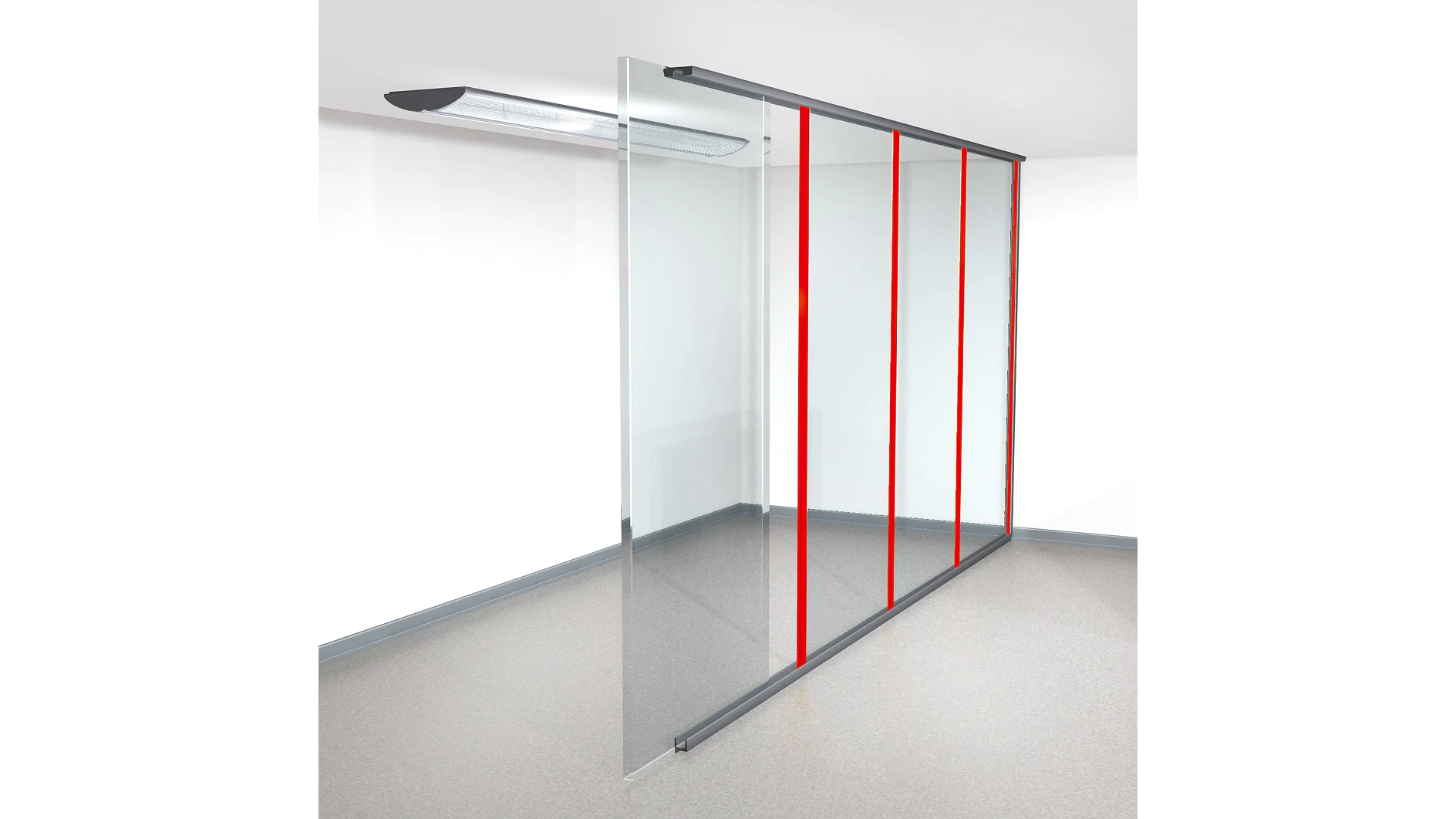

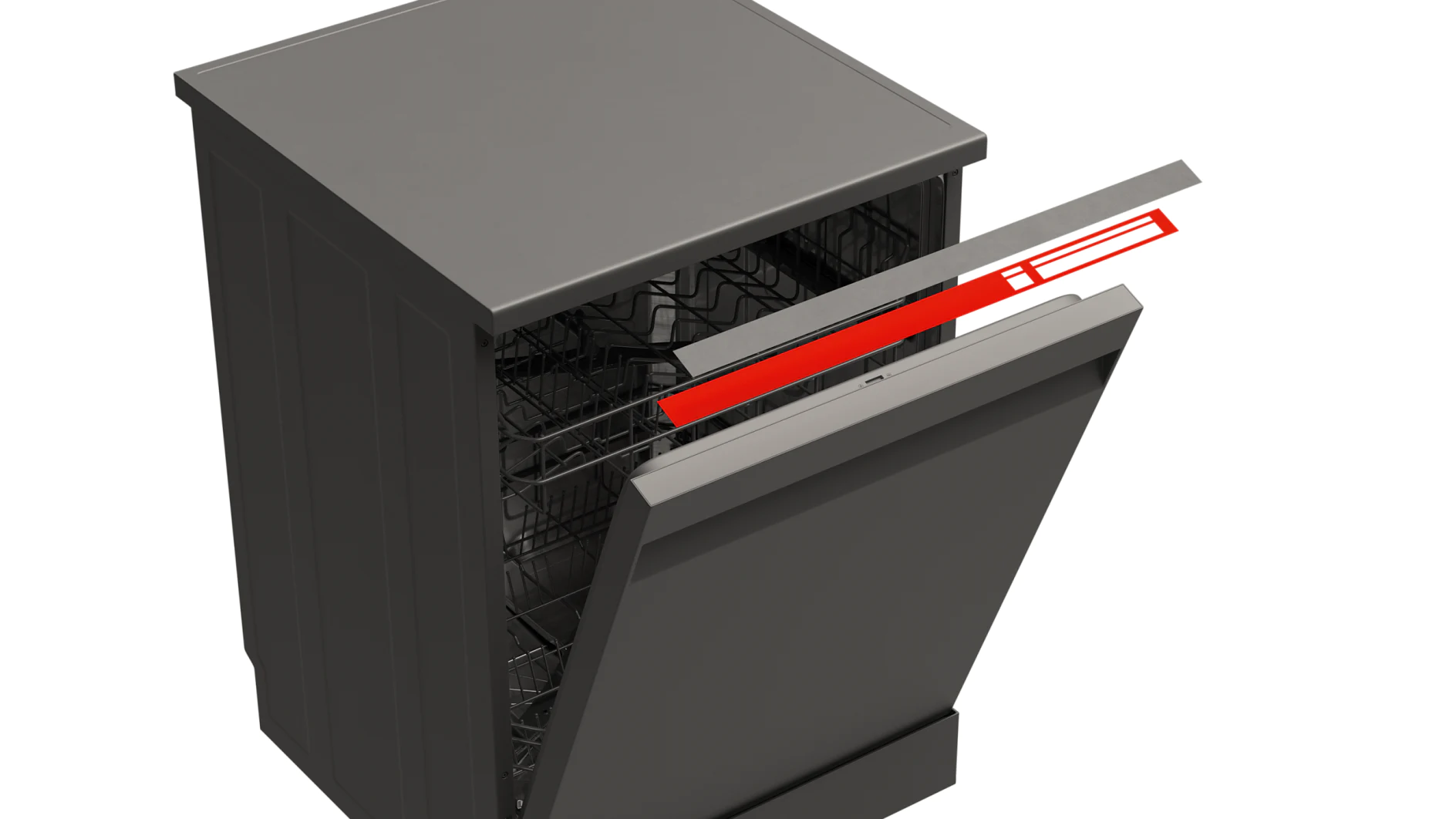

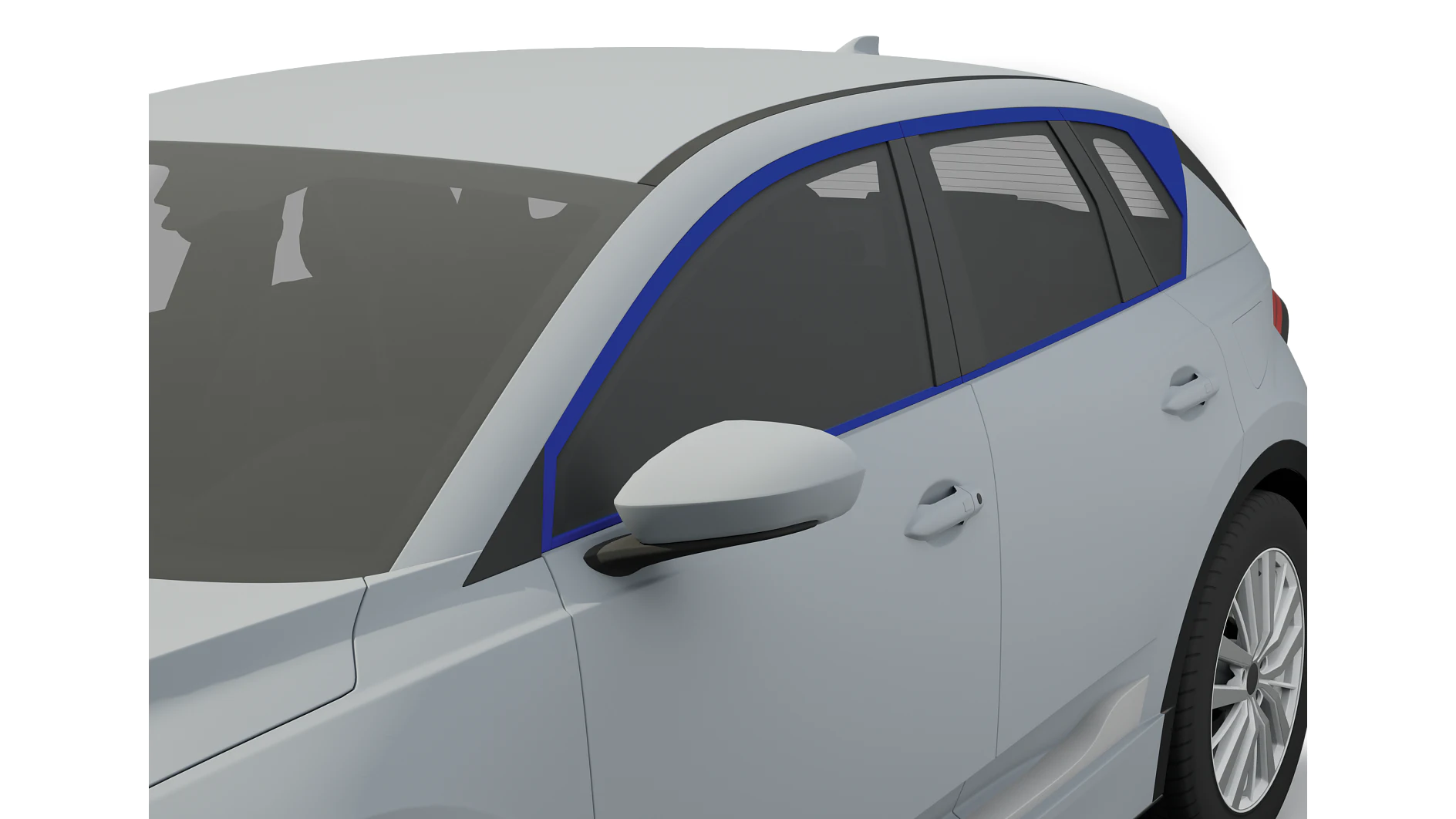

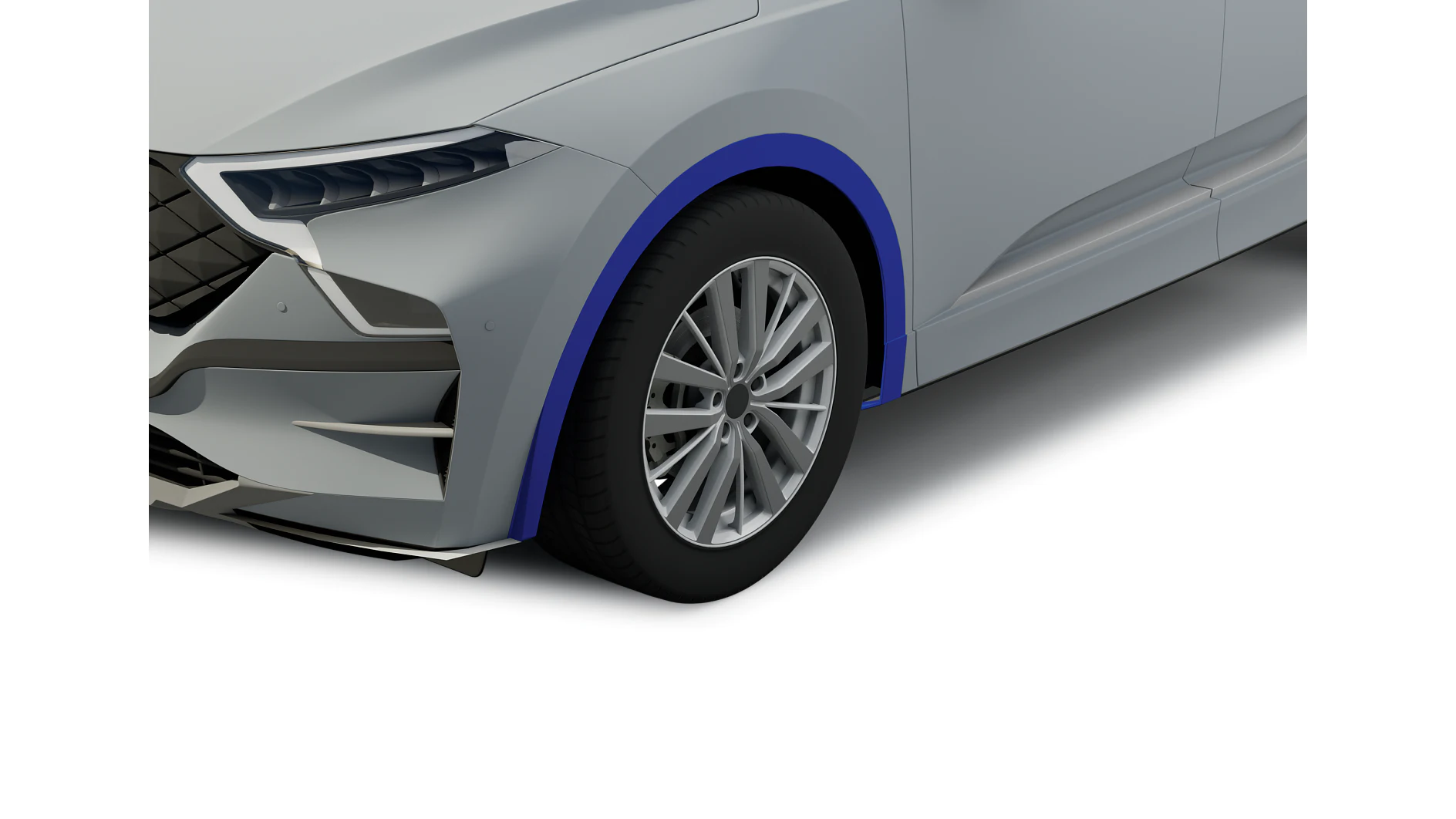

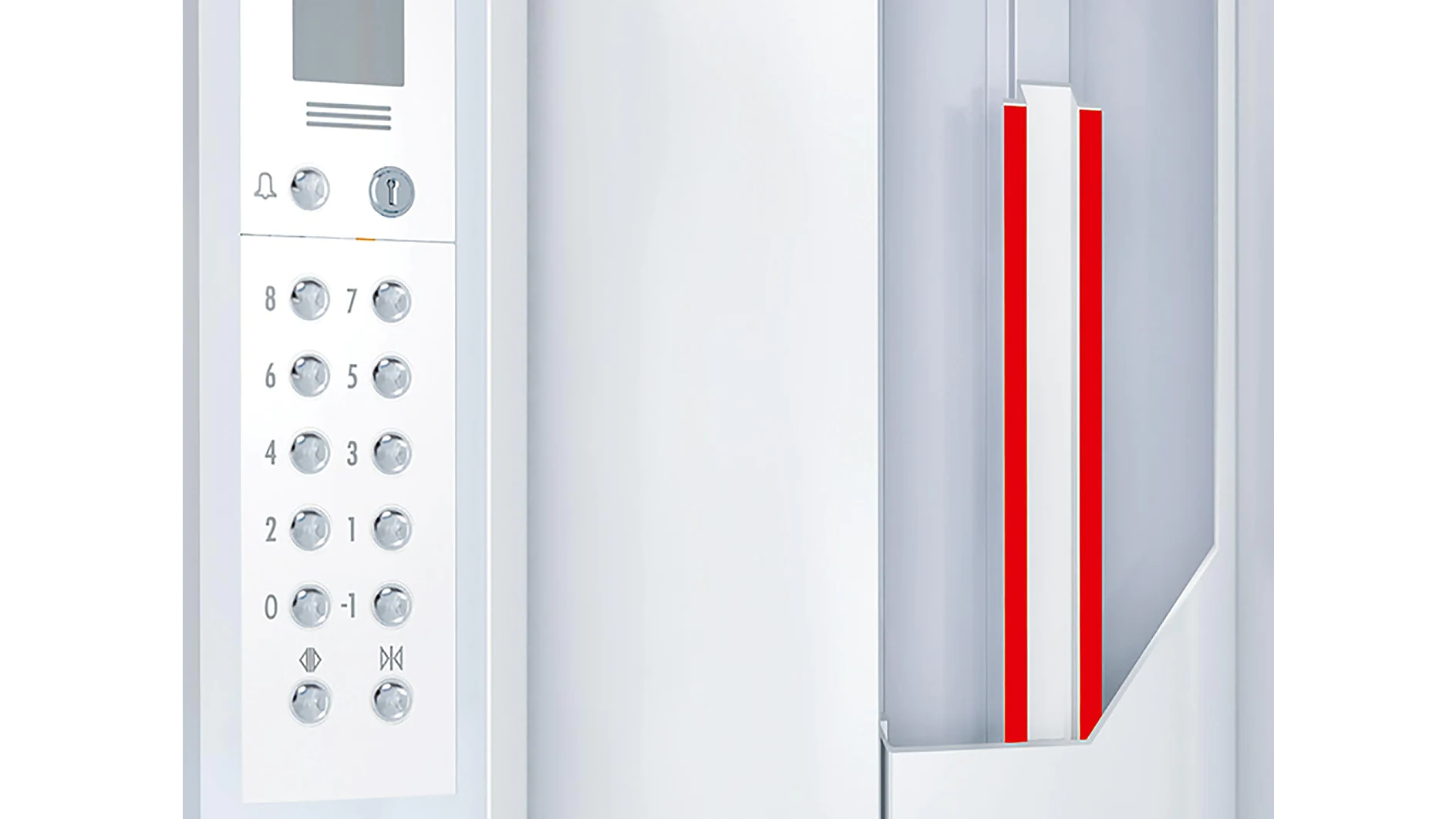

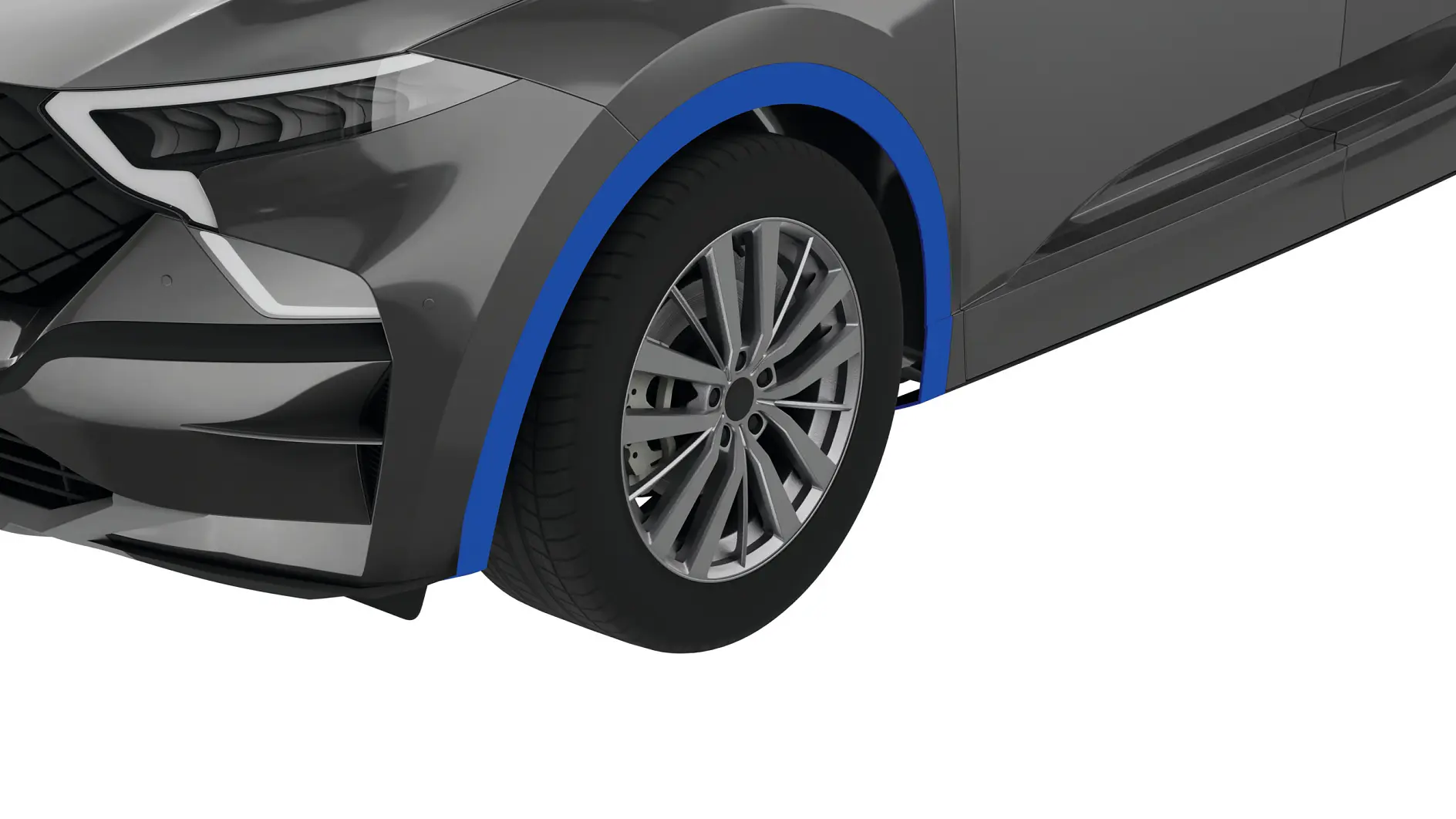

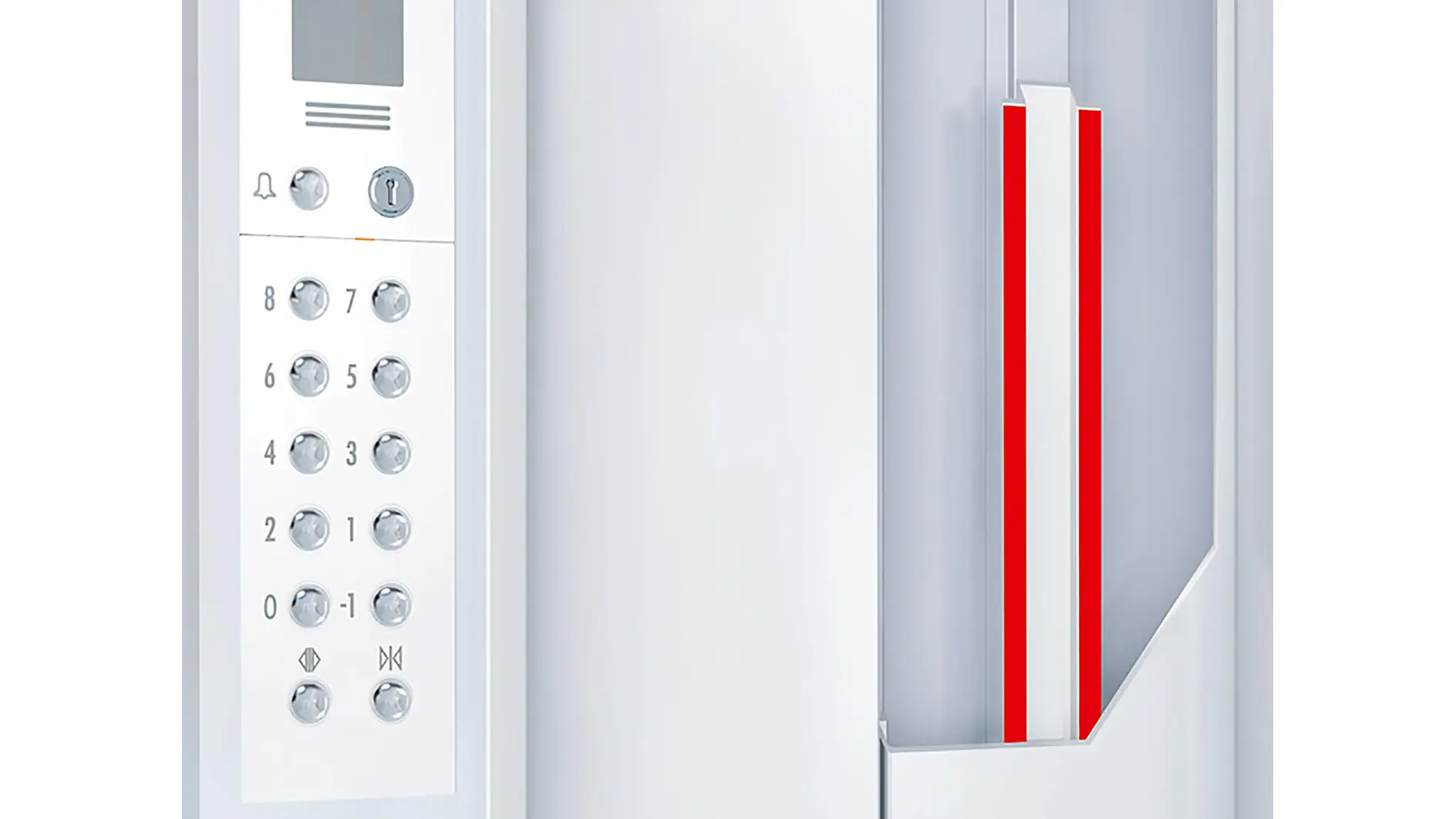

Exemplary applications in various industries
Features
Key features of our acrylic foam tape series
To achieve their strong bonding performance, our acrylic foam tapes rely on our own innovative technologies and special acrylic adhesive systems. The high performance of our acrylic foam tapes is based on a special feature: viscoelasticity.
Viscoelasticity describes a material performance which is defined by both elastic and viscous characteristics. The elastic restoring forces provide inner strength while the viscous part of the material behavior leads to relaxation of mechanical stresses. tesa® ACXplus employs a special acrylic adhesive system that combines both effects in an outstanding way.
Inner core strength
Stress dissipation
- Our acrylic foam tapes compensate for thermal elongation of different materials
- Dynamic stresses are optimally dissipated for a secure bond
Together with the viscoelastic nature of acrylic foams, the tapes provide several advantages:
Products
Complete acrylic foam tape assortment for all application requirements
Our wide product range fulfills all application requirements. For example, we offer our products in different thicknesses to fulfill design gap requirements or compensate for rough and uneven surfaces.
Our acrylic foam tapes are used in many markets, such as appliances, electronics, automtotive, and building components.

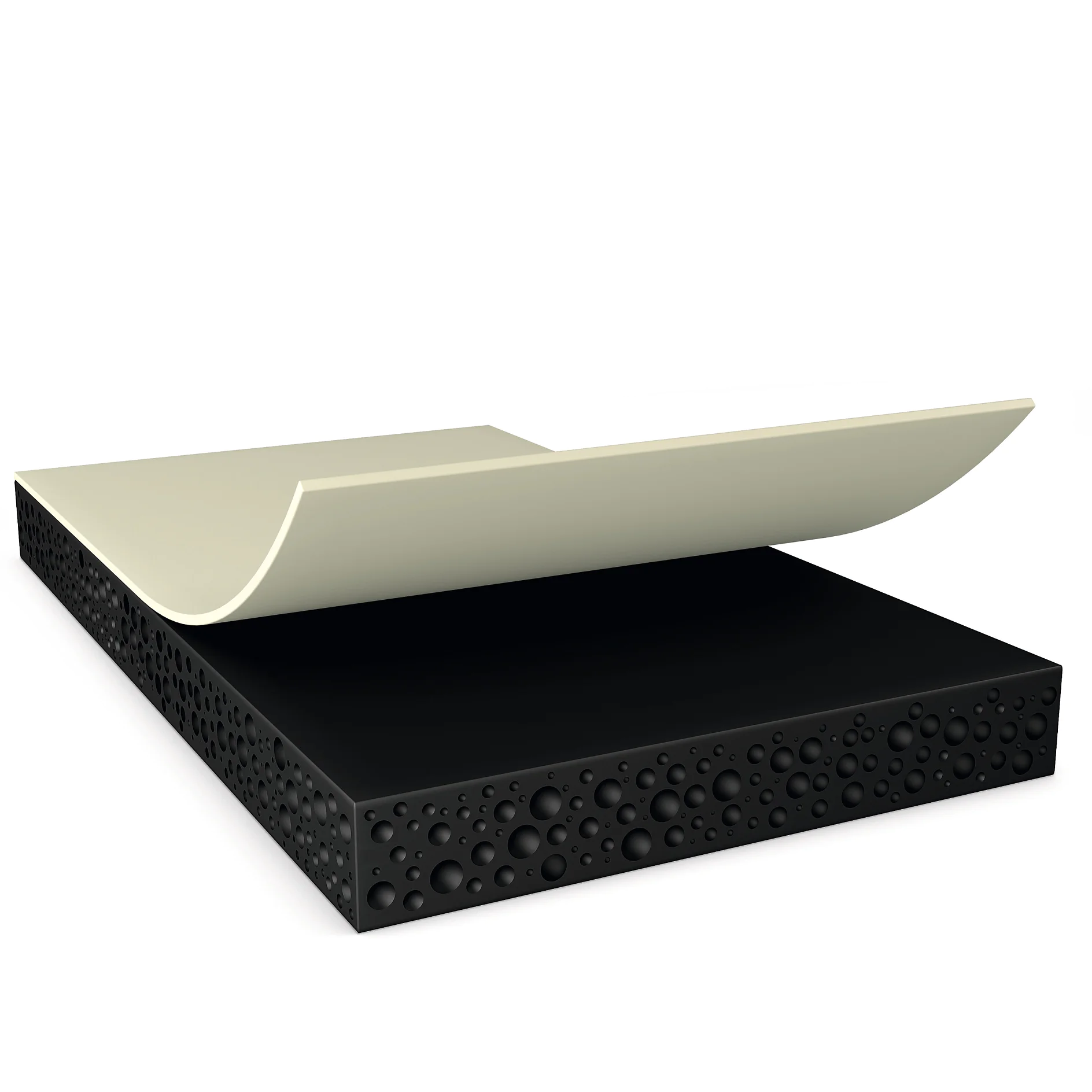

Our tesa® ACXplus acrylic foam tapes
With our tesa® ACXplus tape assortment, you can easily and quickly create a long-lasting bond of different materials. These high performing double-sided acrylic foam tapes offer you new options for aesthetically pleasing, secure, fast and permanent bonding applications. Rethink your design options and get inspired by watching our tesa® ACXplus video.
tesa® ACXplus assortment
01tesa® ACXplus 704x
The acrylic core tape is available in gray and white, and is recommended for indoor applications. Both color options adapt very well to metal and plastic surfaces and avoid reflections on translucent and decorative elements.
02tesa® ACXplus 705x
This product is a highly transparent acrylic core tape and ideal for bonding of transparent or translucent materials, such as glass or acrylic. It is suitable for indoor, as well as outdoor applications.
03tesa® ACXplus 706x
Our black foam tape combines high adhesion levels on hard-to-bond substrates with resistance to plasticizer migration and is recommended for indoor applications.
04tesa® ACXplus 707x
An outstanding cold shock performance down to –40 °C is one of the key features of this black acrylic foam tape. A secure and durable bond, even in outdoor conditions, is achieved in combination with our adhesion promoters.
05tesa® flameXtinct 4506x
This product is a double-sided acrylic core tape with proven flame retardent characteristics. The white product is halogen-free and UL94 and FMVSS 302 compliant and recommended for indoor and outdoor applications.
06tesa® ACXplus Multi Purpose (MP)
This is our acrylic foam tape family for converters and industrial distributos with converting equipment. The products are recommended for indoor multi-purpose applications and are available in three colors: transparent, gray & black.
Acrylic foam tapes for low thickness applications

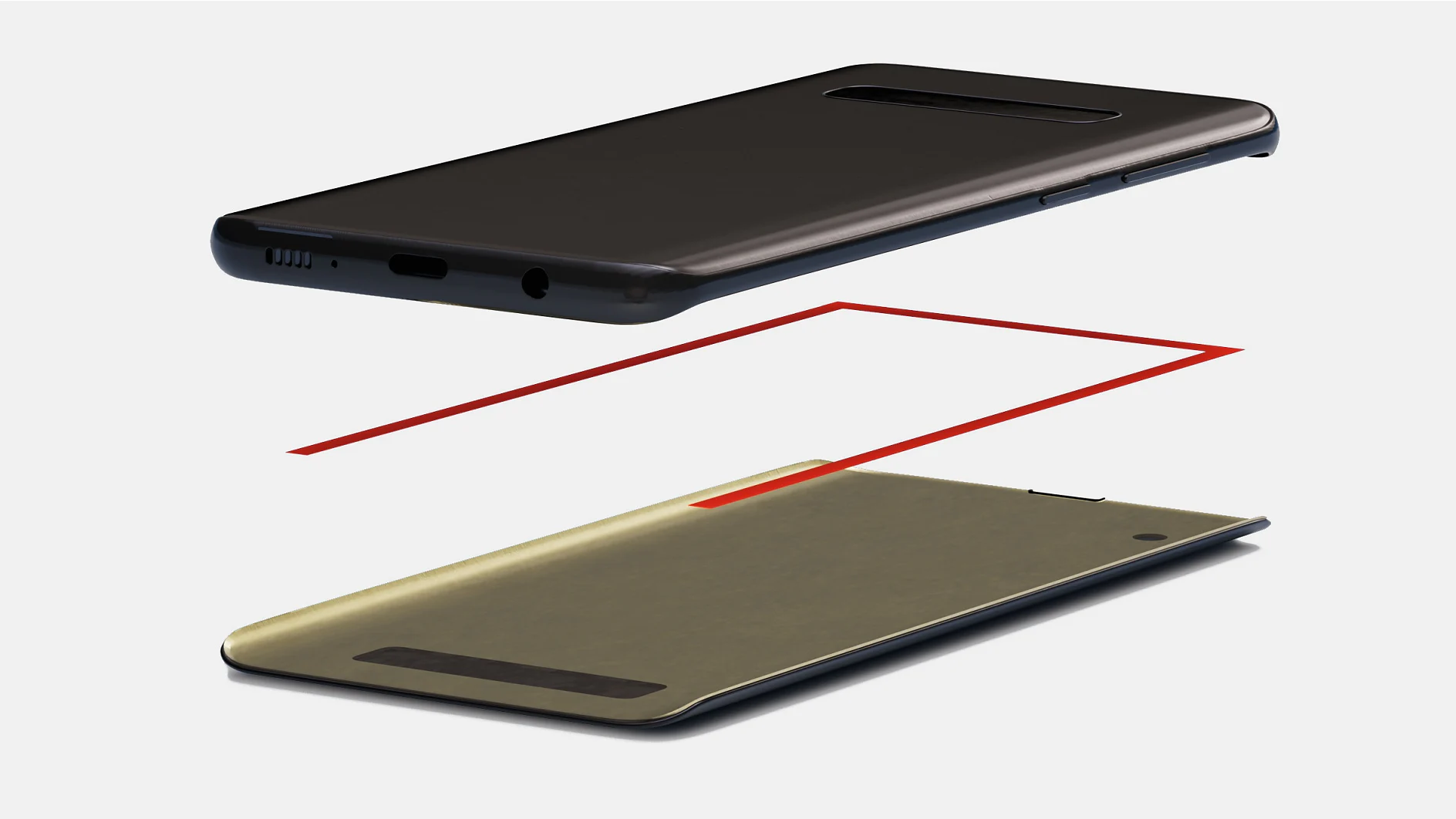

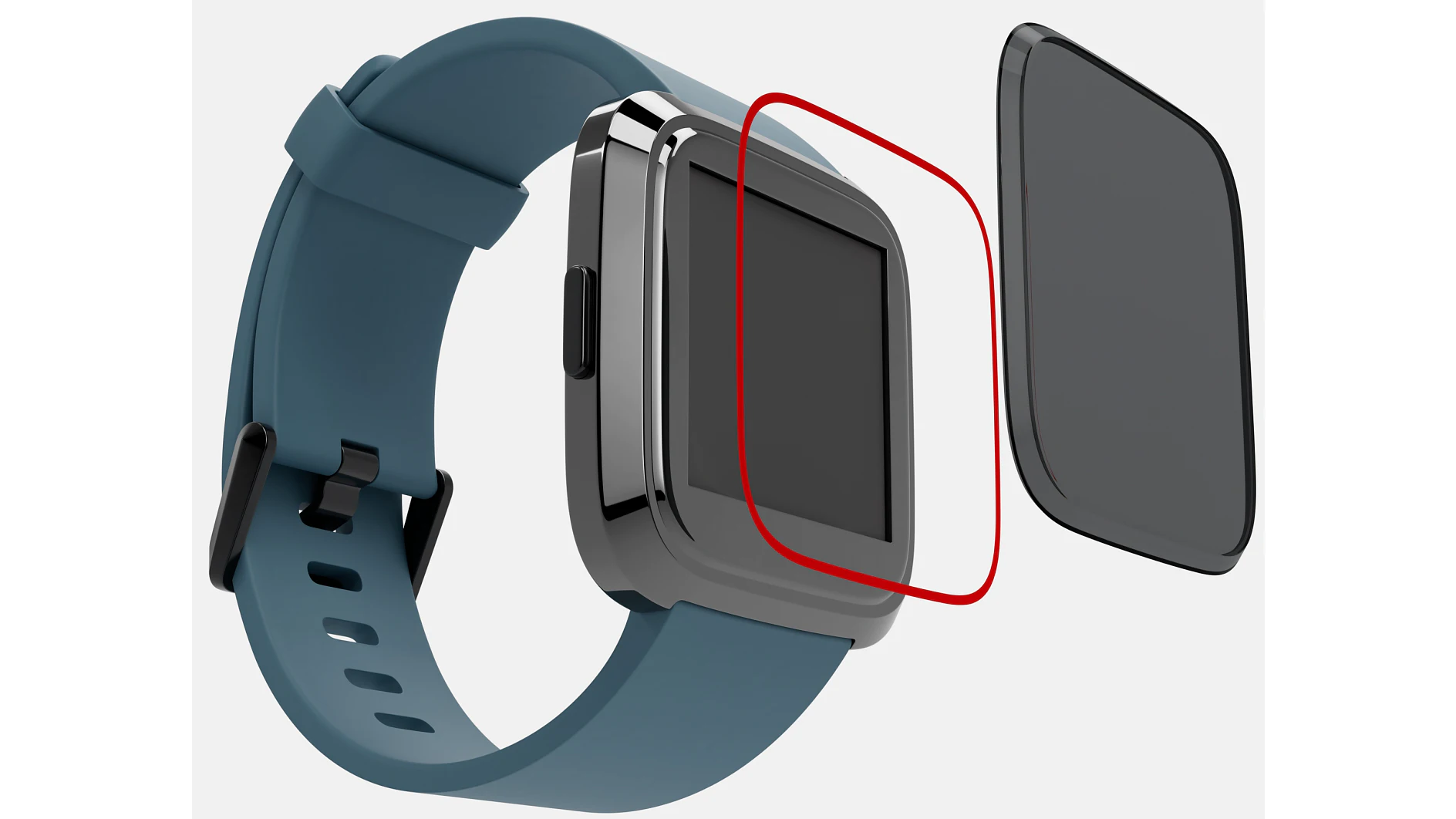

The bonding of substrates in electronic devices can be very challenging as the components are characterized by complex geometries and design gaps often require low thickness adhesive solutions. We have you covered with our high-performance acrylic foam tapes specifically developed for the consumer electronics industry.
01tesa® 754xx/756xx acrylic foam tapes
This series combines outstanding adhesion properties on a wide range of surfaces with a high level of conformability. When assembling electronic devices, these acrylic foam tapes attach perfectly to curves and corners, providing a permanent seal against water and dust.

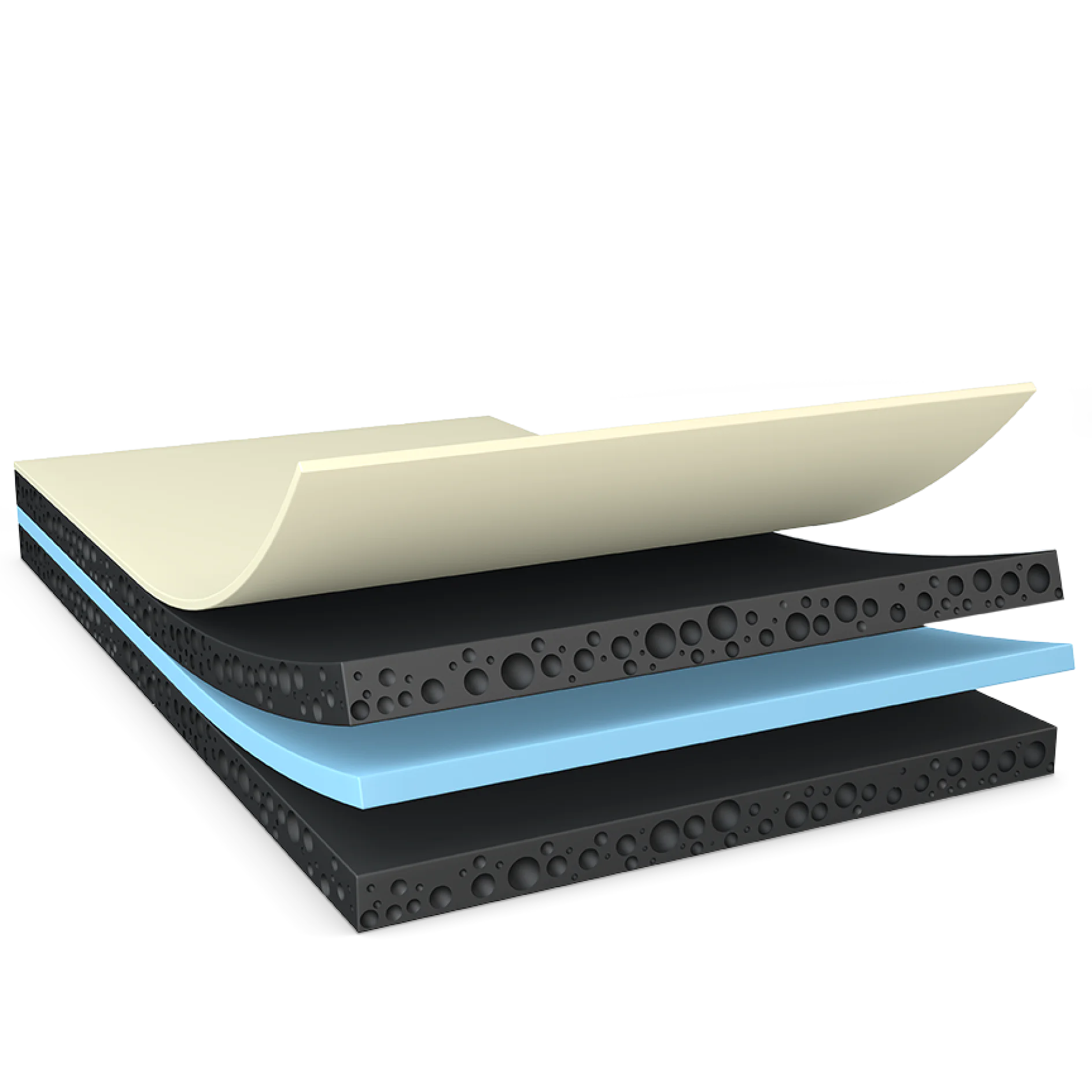

02tesa® 757xx acrylic foam tapes
The advanced acrylic adhesive system featured in this series enables good wetting, creating a powerful bond even on different substrates. What’s more, a PET film reinforcement allows these tapes to be easily reworked and die-cut.
03tesa® 7588x acrylic foam tapes
In addition to offering the standard features of acrylic foam tapes, this series provides superior resistance against a variety of chemicals thanks to its unique adhesive formulation developed by us.
Discover more about our acrylic foam tapes assortment by using our product finder.
Industry Form Product finder
Thank You for Your Message
<p>We'll get back to you within two business days.</p>
<p> </p>
<p>Best regards</p>
<p>tesa tape Asia Pacific Pte. Ltd.</p>
Something went wrong. Please try again later.
Downloads
Downloads
Complete package for high performance bonding
tesa® ACXplus assortment brochure
PDF 1,011.9 kB
Properties and performance characteristics
tesa® ACXplus technical information sheet
PDF 1.2 MB

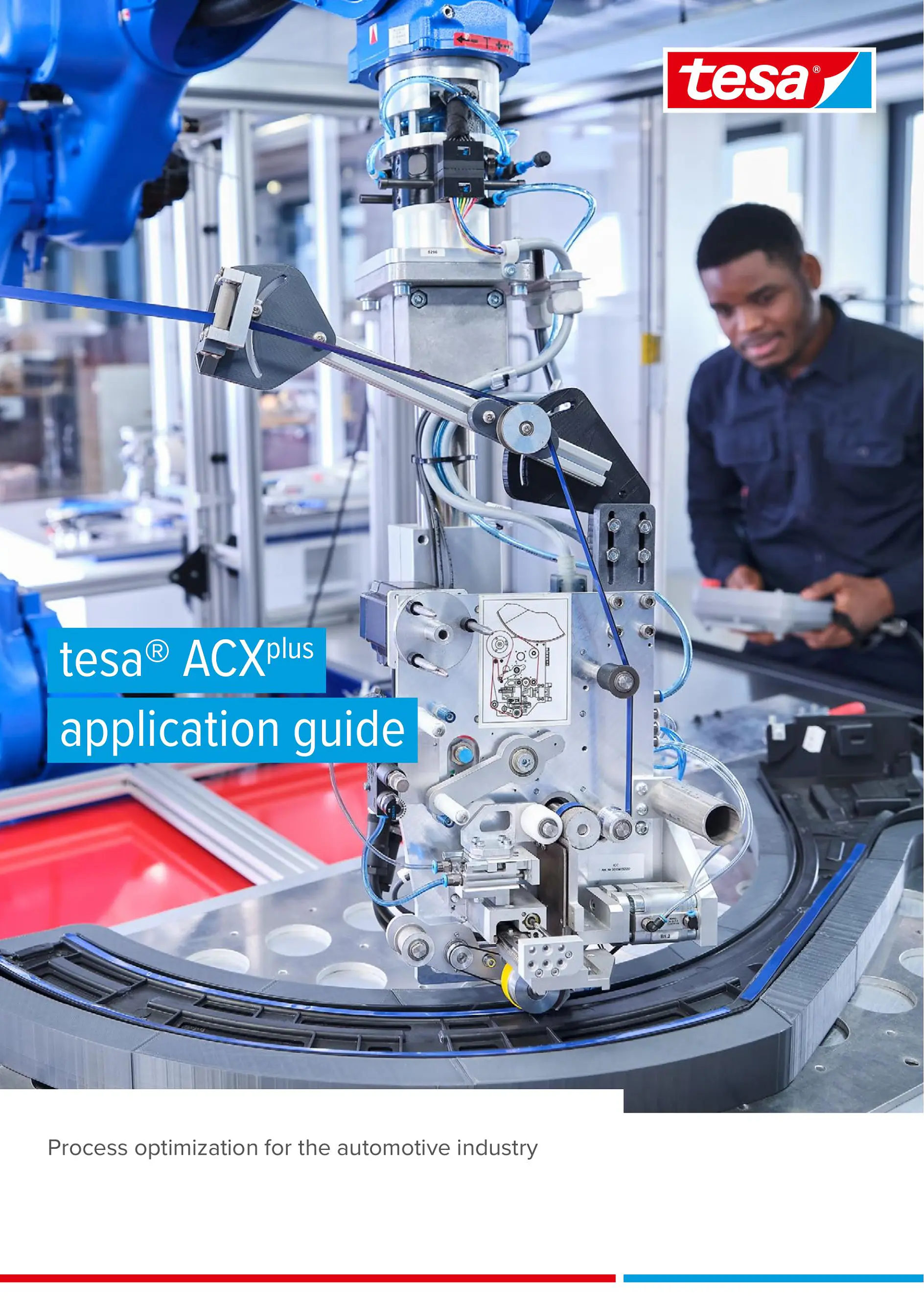

tesa® ACXplus for the Automotive Industry
Guide – Automotive Industry
PDF 1.3 MB

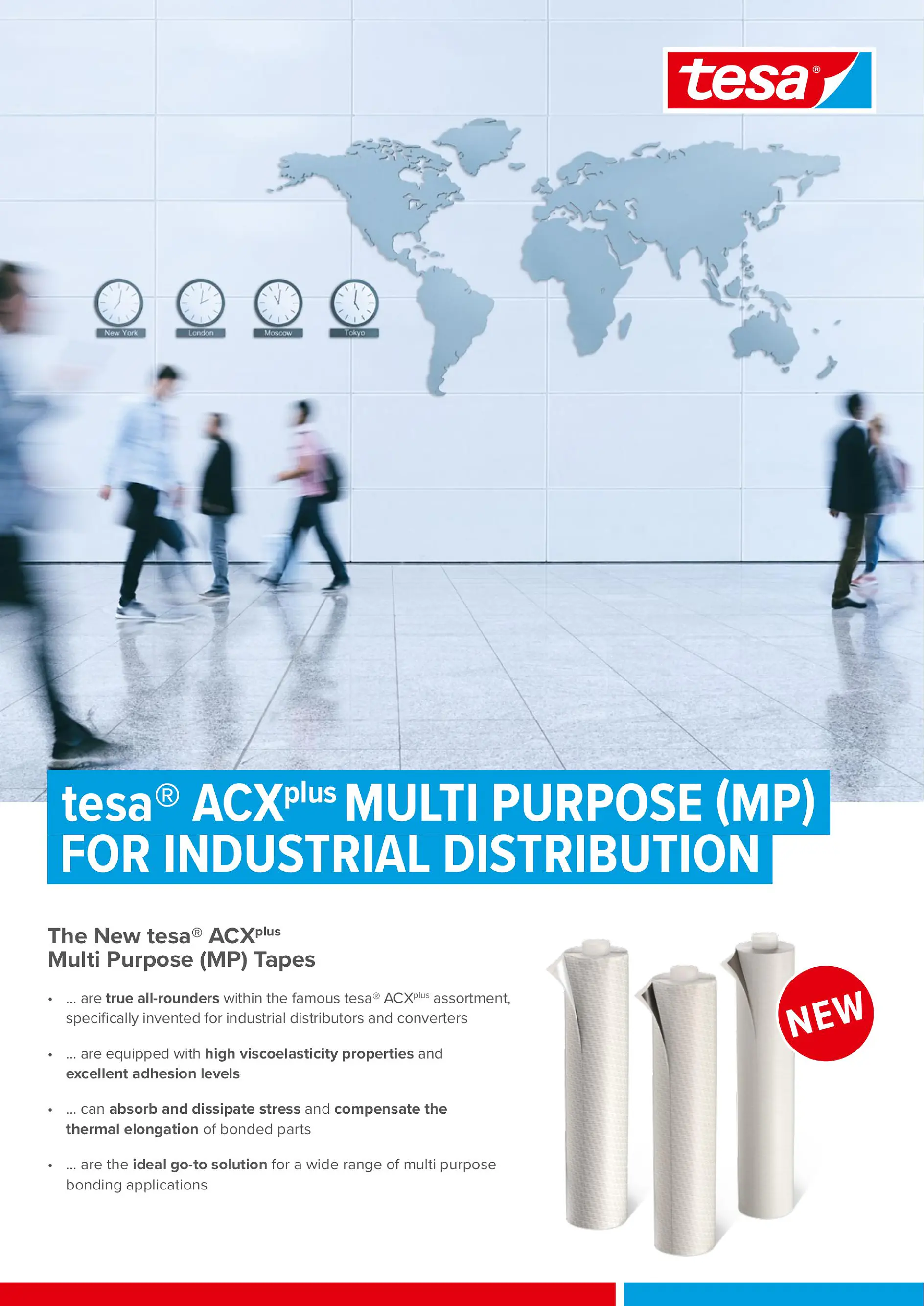

tesa® ACXPlus Multi Purpose for Industrial Distribution Flyer
