Product Construction
| Bahan penyangga | foamed acrylic |
| Jenis Perekat | pure acrylic |
| Ketebalan total | 1500 µm |
| Warna | black |

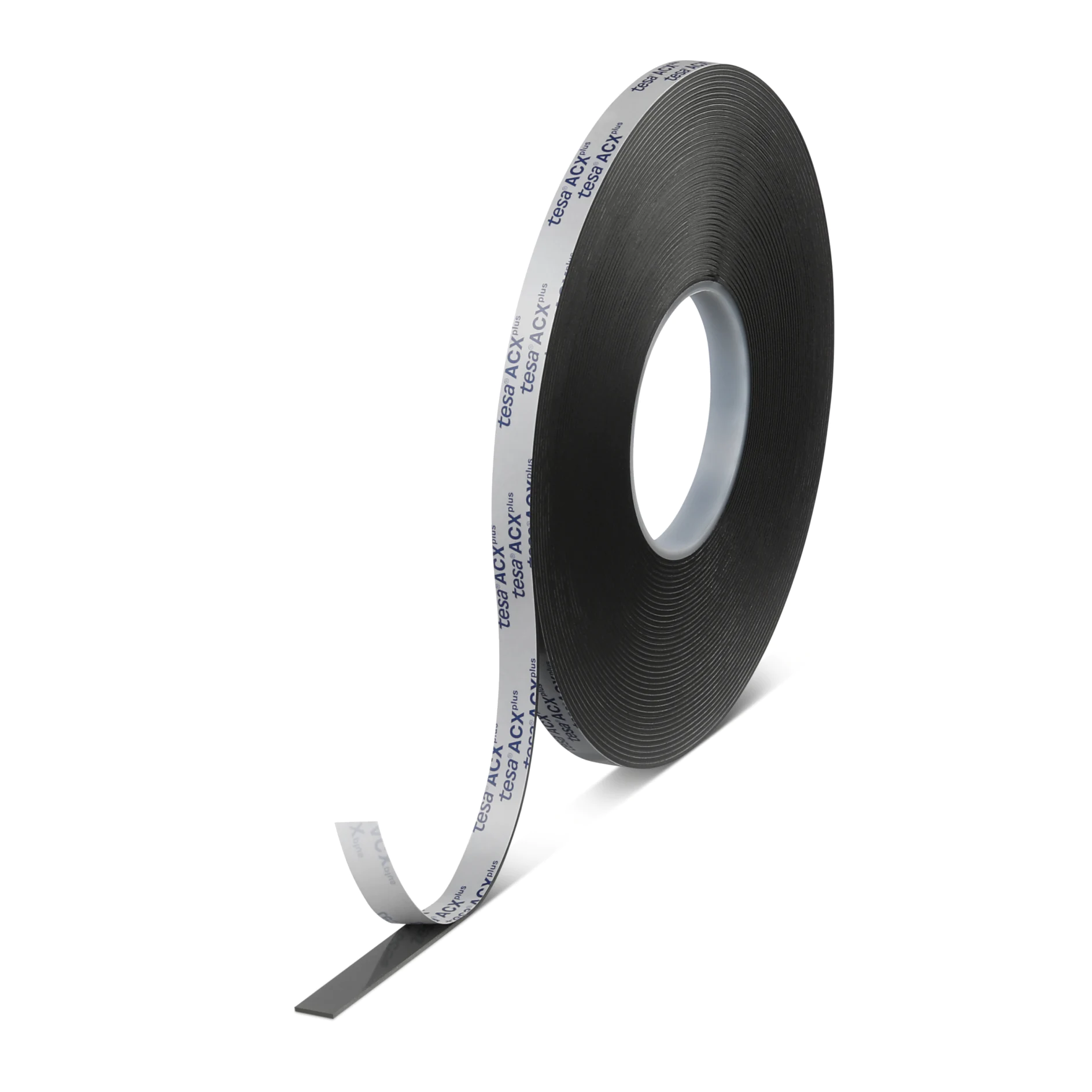

tesa® ACXplus 7076
1500 µm double-sided acrylic foam tape
produk fitur
- Outstanding cold shock performance down to -40 °C
- In combination with out adhesion promoters a secure and reliable bond in outdoor conditions
Product description
The tesa® ACXplus 707x series is suitable for a wide range of bonding applications. For powerful long-lasting bonds, even on material with different surface characteristics. The viscoelastic core compensates thermal elongations of bonded components during the life cycle of the final product, with temperature ranges from -20 °C to 80 °C. tesa® ACXplus 707x series is a high-performance acrylic foam tape for permanent indoor and outdoor mounting applications.
Detail Produk dan Spesifikasi
produk fitur
- Outstanding cold shock performance down to -40 °C
- In combination with out adhesion promoters a secure and reliable bond in outdoor conditions
Application Fields
Exemplary mounting applications in different industries (e.g. windows & doors, elevator, transportation, appliances, interior fit-out) include:
- Reinforcement Bars / Stiffener Bars
- Muntin Bars
- Flush Design
- Interior Cladding
- DryGlazing
Product Construction
| Bahan penyangga | foamed acrylic |
| Jenis Perekat | pure acrylic |
| Ketebalan total | 1500 µm |
| Warna | black |
Properties / Performance Values
| Durasi ketahanan suhu jangka pendek | 220 °C |
| Durasi ketahanan suhu jangka panjang | 120 °C |
Properties / Performance Values
| Durasi ketahanan suhu jangka pendek | 220 °C |
| Durasi ketahanan suhu jangka panjang | 120 °C |
Adhesion to Values
| Daya rekat ke Baja (setelah 3 hari) | 33 N/cm |
Adhesion to Values
| Daya rekat ke Baja (setelah 3 hari) | 33 N/cm |
Additional Info
To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation. Please note for outdoor applications we recommend using tesa® Adhesion Promoter as a surface pre-treatment. It leads to a significant improvement in adhesion levels, avoids moisture infiltration, and promotes long term resistance against harsh environmental factors. For more technical data please refer to our technical information sheet in tesa.com/ACXplus.
Liner options:
Liner options:
- PV22: White paper liner - branded
- PV24: Blue film liner - unbranded
- tesa® ACXplus 7076 is recognized according to UL Standard 746C. UL File QOQW2.E309290
- Qualified for a credit according to LEED
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
