Flame retardant according to UL510 and DIN EN 60454-2 (VDE 0340-2):2008-05, clause 20
Flexible soft PVC backing for excellent conformability
Good adhesion to a wide variety of surfaces
All product featuresProduct description

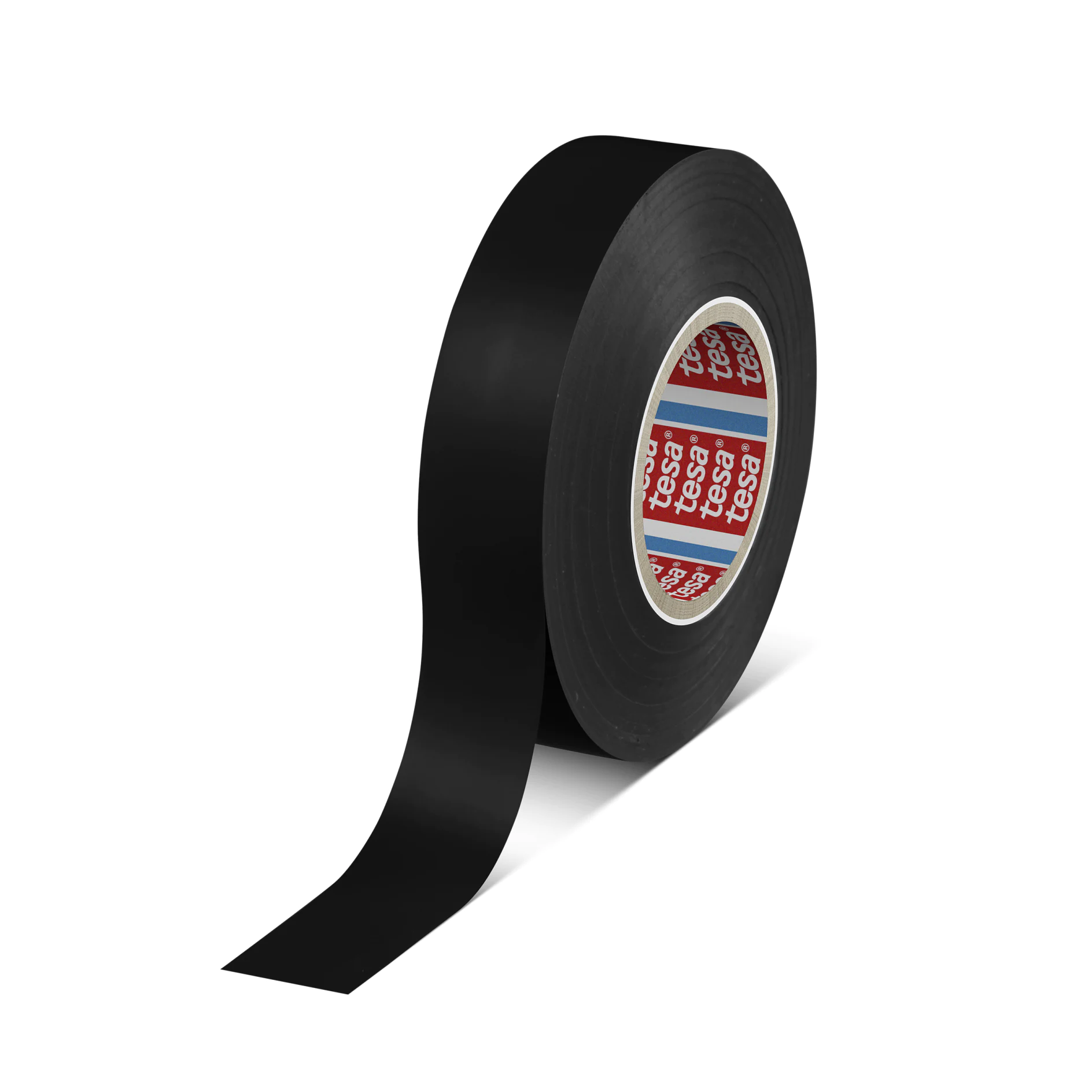

tesa® 4163 is a specially formulated soft PVC tape with good film flexibility and an UV- and weathering-stable acrylic adhesive. tesa® 4163 is universally applicable, though it is exceptionally qualified for applications in electric installation work, repairing, splicing, or bundling. The PVC-backing makes for high durability strength, and the acrylic adhesive ensures a high adhesion to various surfaces. Furthermore, the tape conforms to US safety standard 302. tesa® 4163 is available in many colors: black, white, grey, blue, yellow, red and green. Typical widths are 12 mm and 19 mm (more available) and are offered in 33 meter length.
Product details and specifications
Product Features
Flame retardant according to UL510 and DIN EN 60454-2 (VDE 0340-2):2008-05, clause 20
Flexible soft PVC backing for excellent conformability
Good adhesion to a wide variety of surfaces
tesa® 4163 conforms to US safety standard 302
Application Fields
The premium multipurpose soft PVC Tape is suitable for electric installation work, repairing, splicing, or bundling
Available in multiple bright colors, tesa® 4163 can also be used for marking and color-coding
Isogenogrey color for installation of e.g. water or heating pipes
Product Construction
Backing material
soft PVC
Total thickness
126 µm
Type of adhesive
acrylic
Product Construction
Backing material
soft PVC
Total thickness
126 µm
Type of adhesive
acrylic
Properties / Performance Values
Elongation at break
295 %
Tensile strength
30 N/cm
Dielectric breakdown voltage
7000 V
Properties / Performance Values
Elongation at break
295 %
Tensile strength
30 N/cm
Dielectric breakdown voltage
7000 V
Adhesion to Values
Adhesion to Steel
1.8 N/cm
Adhesion to Values
Adhesion to Steel
1.8 N/cm
Additional Info
tesa® 4163 conforms to US safety standard 302.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
