Product Construction
| Backing material | PE foam |
| Color | black/white |
| Total thickness | 500 µm |
| Type of adhesive | tackified acrylic |

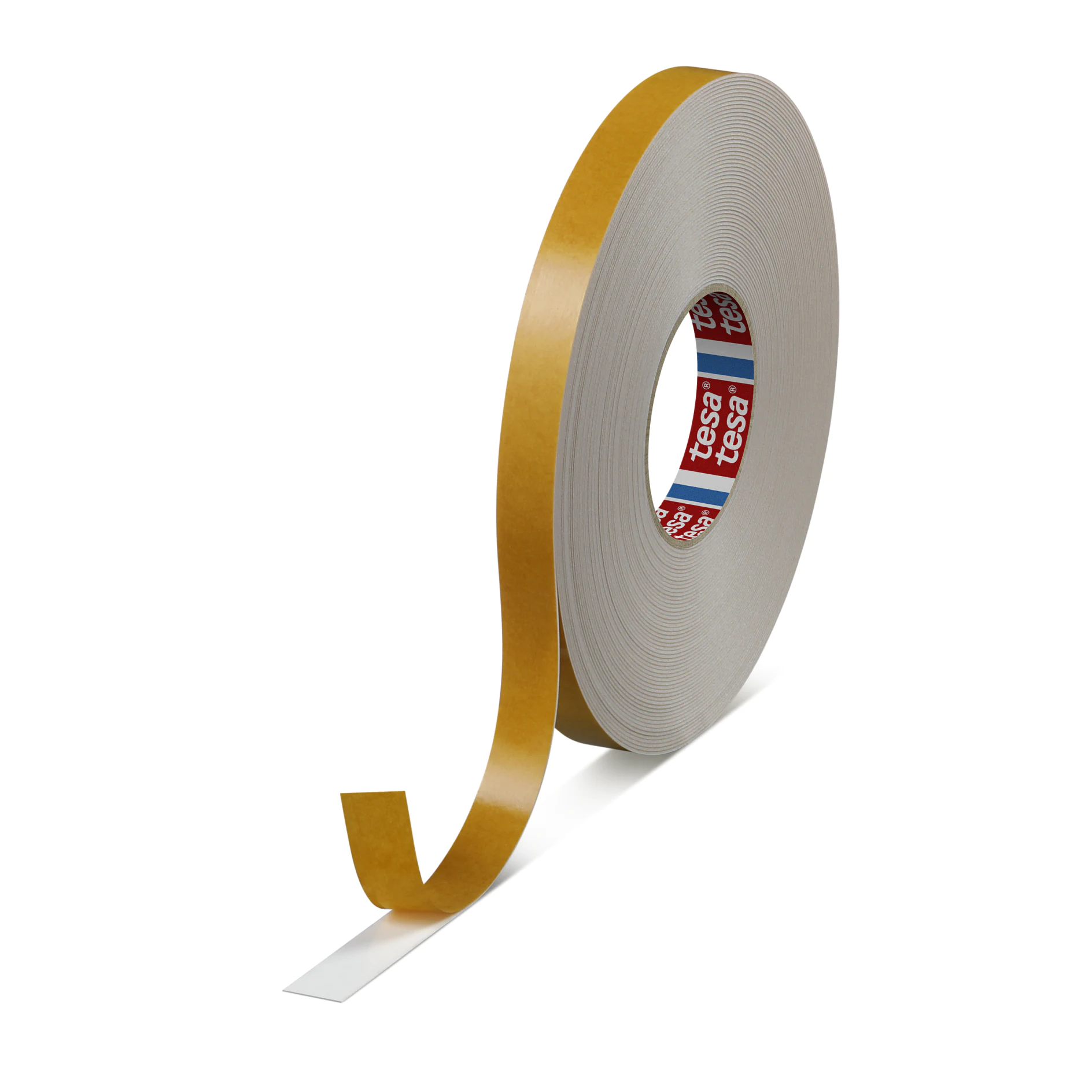

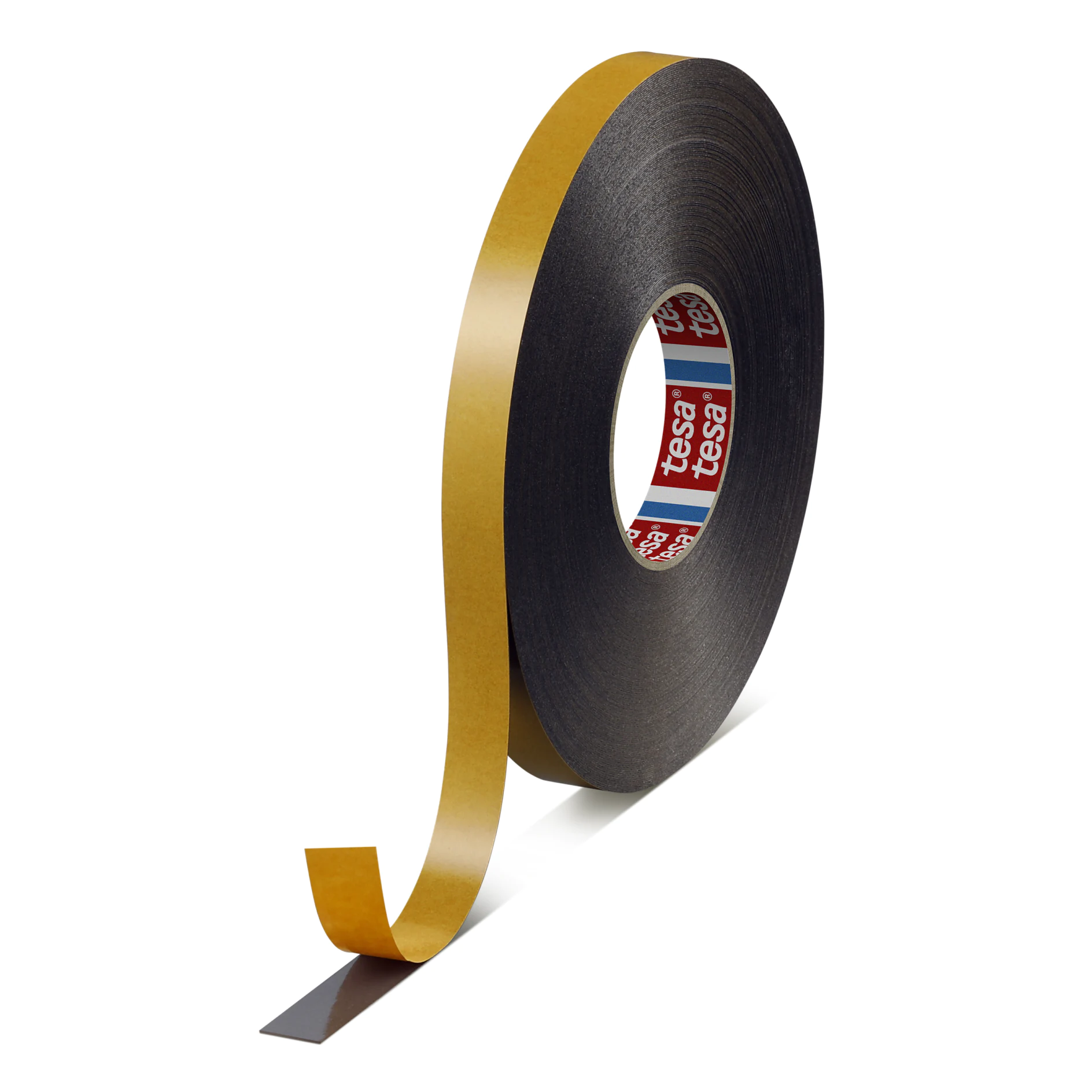

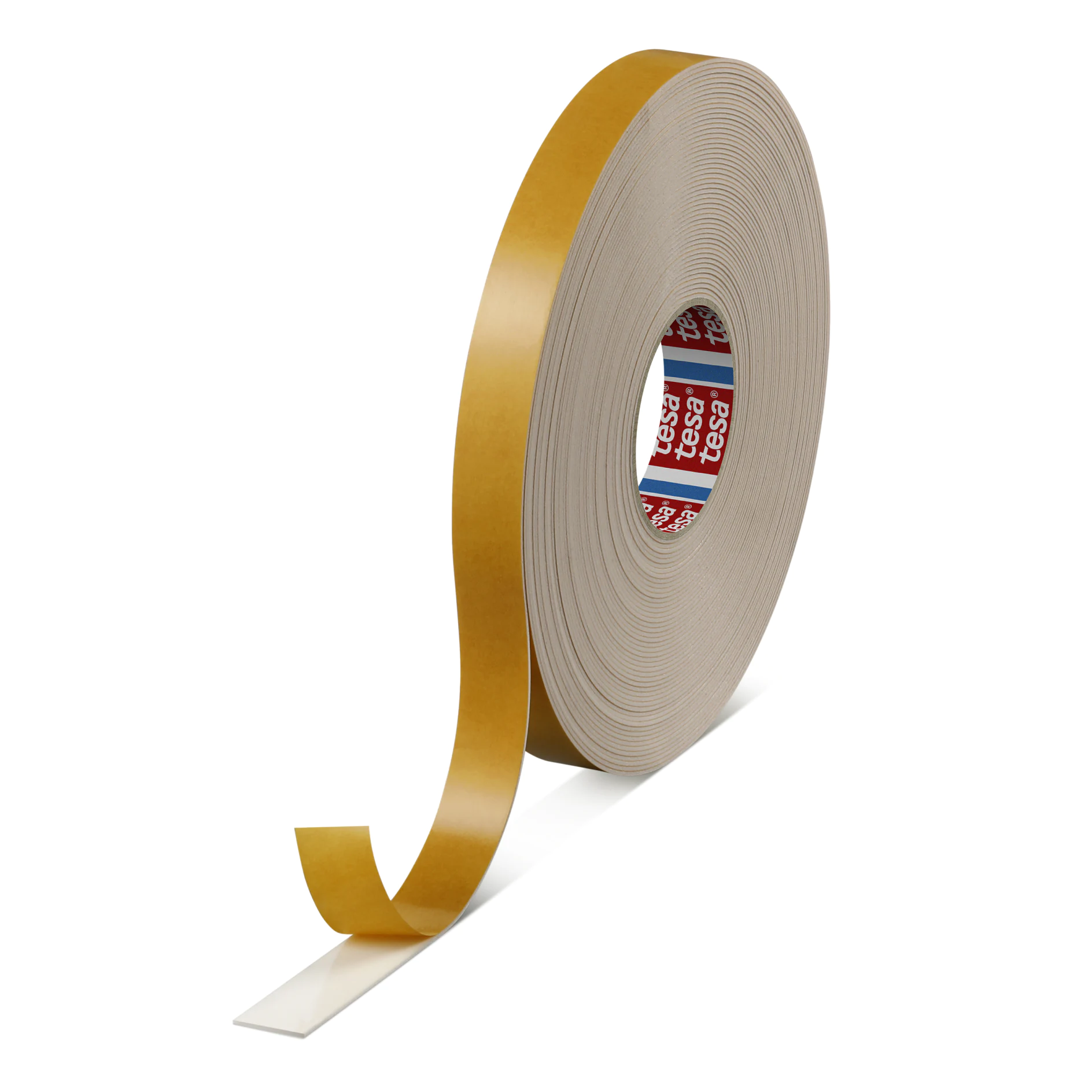

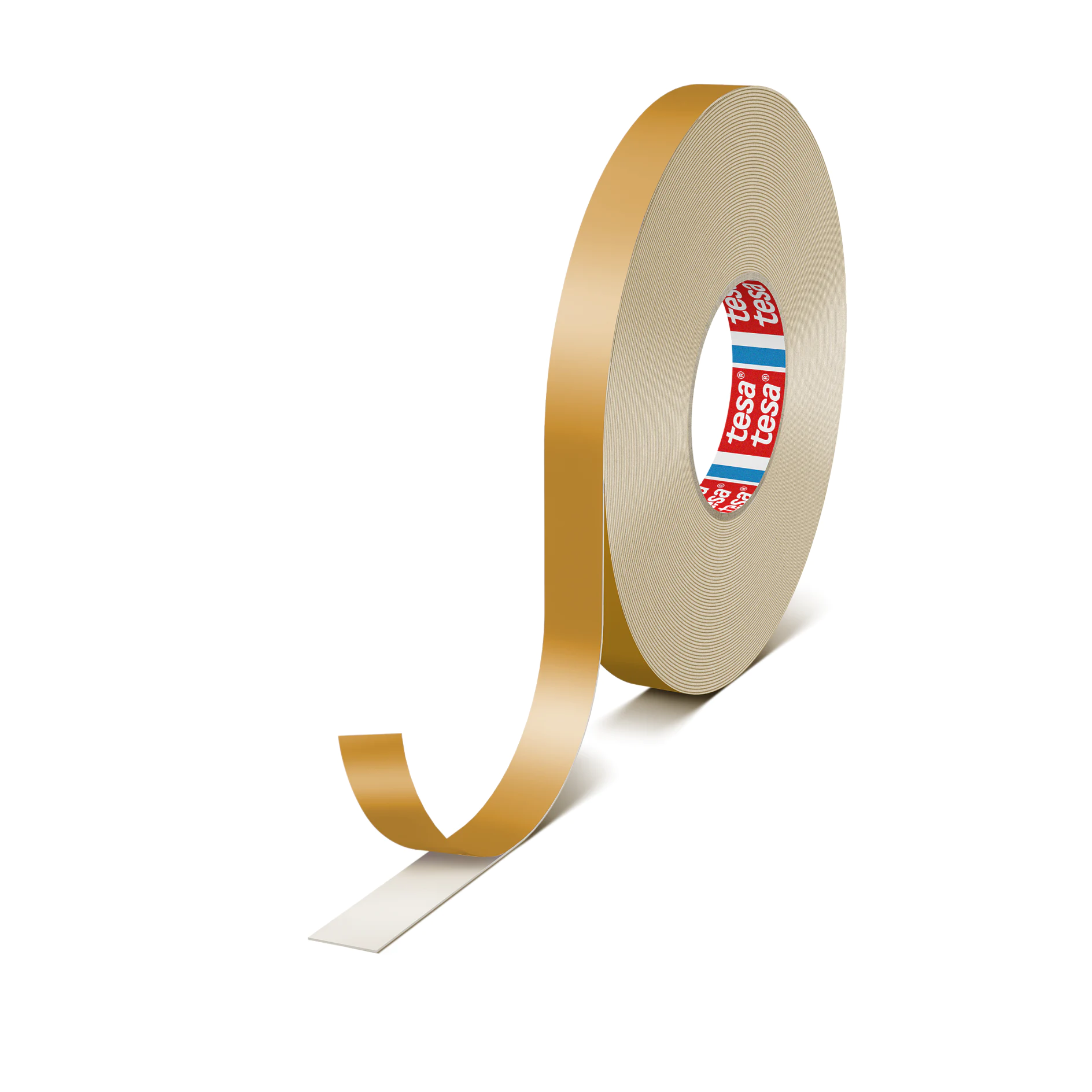

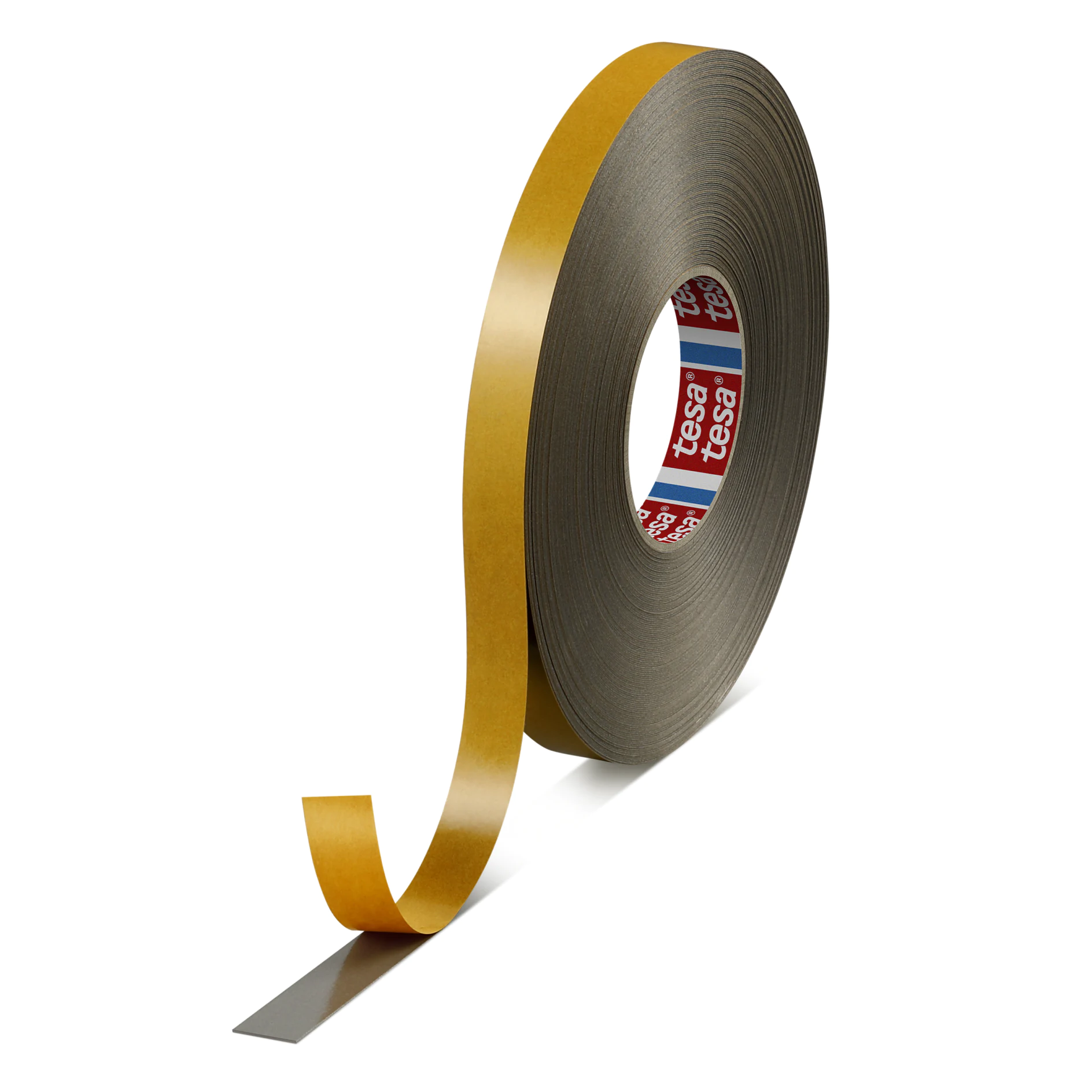

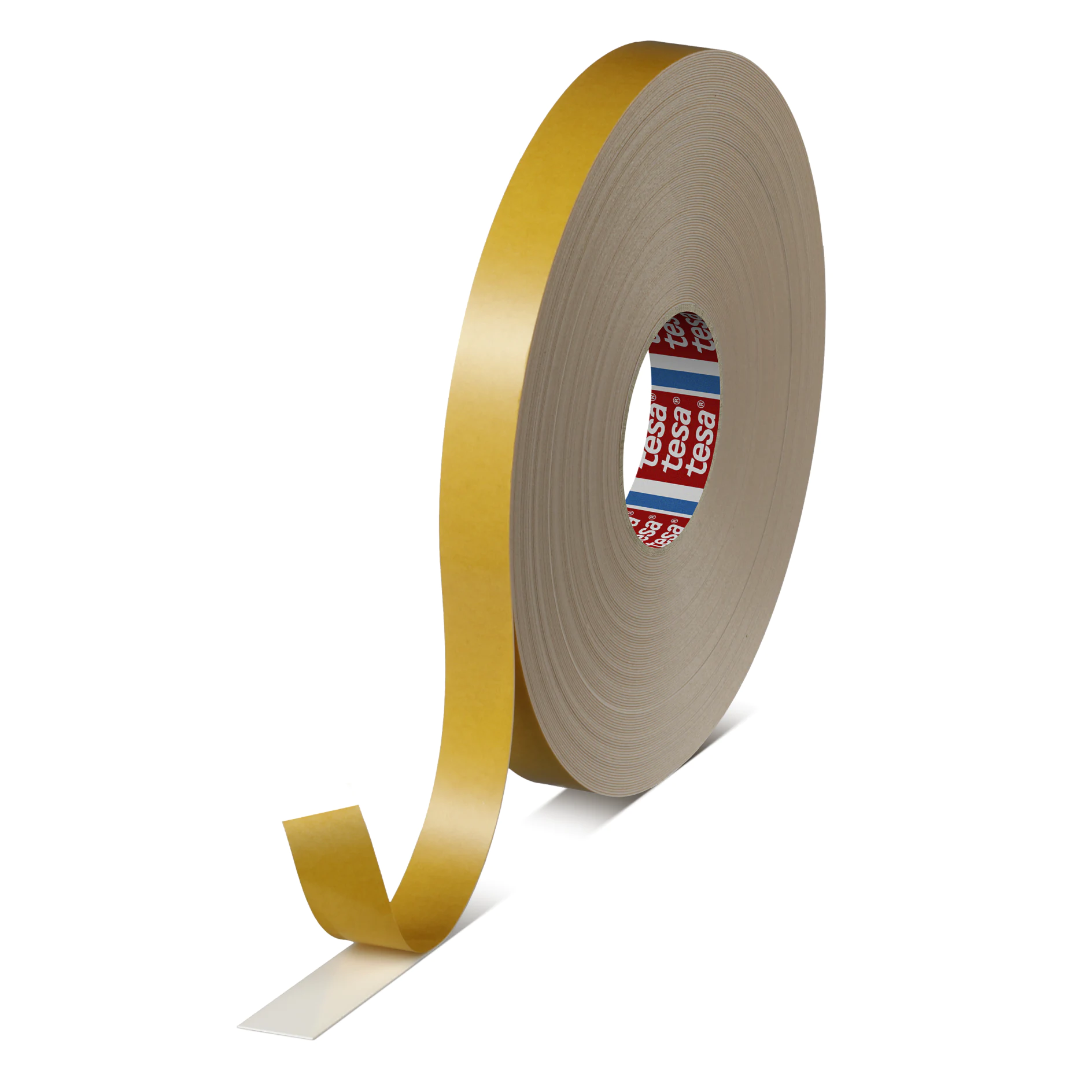

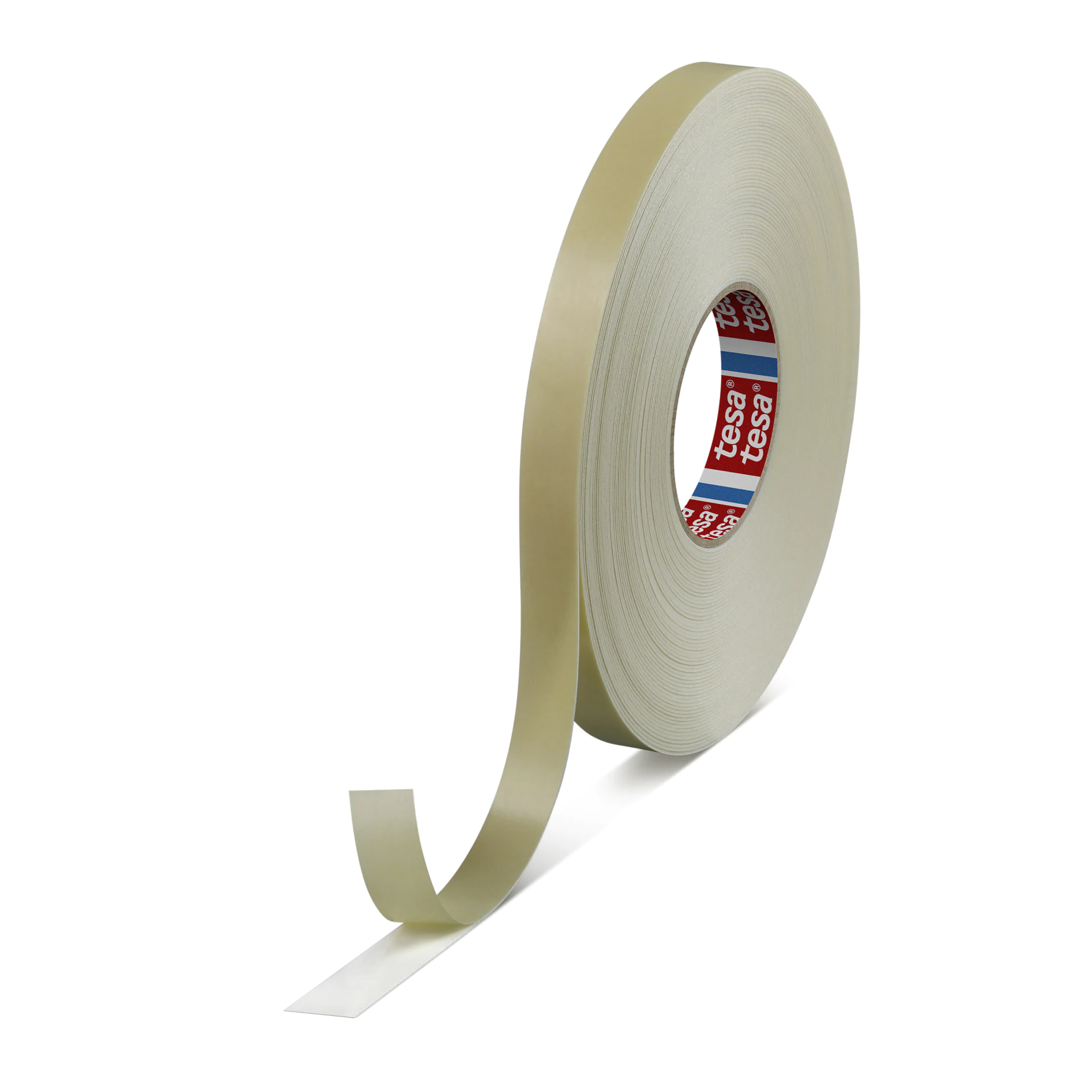

tesa® 62932
500 µm double sided PE foam tape
Product Features
- Thin foam backing for a small design gap
- Versatile adhesive for high immediate adhesion on numerous substrates
- High ultimate adhesion level for a secure bonding performance
Product description
tesa® 62932 is a double sided PE foam tape for constructive mounting applications. It consists of a conformable PE foam backing and a tackified acrylic adhesive.
Product details and specifications
Product Features
- Thin foam backing for a small design gap
- Versatile adhesive for high immediate adhesion on numerous substrates
- High ultimate adhesion level for a secure bonding performance
- Fully outdoor suitable: UV, water and ageing resistant
- High immediate bonding strength even at low bonding pressure
- Very good cold shock absorbtion
Application Fields
- Decorative aluminium cover screens on brown goods
- Doorhandles in kitchen furniture
- Moulded decorative profiles for refrigerators or freezers
- Glass and mirror panels
Product Construction
| Backing material | PE foam |
| Color | black/white |
| Total thickness | 500 µm |
| Type of adhesive | tackified acrylic |
Properties / Performance Values
| Elongation at break | 270 % |
| Tensile strength | 8 N/cm |
| Static shear resistance at 23°C | good |
| Ageing resistance (UV) | good |
| Temperature resistance long term | 80 °C |
| Humidity resistance | very good |
| Temperature resistance short term | 80 °C |
| Tack | good |
| Static shear resistance at 40°C | good |
| Chemical resistance | good |
| Softener resistance | medium |
Properties / Performance Values
| Elongation at break | 270 % |
| Tensile strength | 8 N/cm |
| Static shear resistance at 23°C | good |
| Ageing resistance (UV) | good |
| Temperature resistance long term | 80 °C |
| Humidity resistance | very good |
| Temperature resistance short term | 80 °C |
| Tack | good |
| Static shear resistance at 40°C | good |
| Chemical resistance | good |
| Softener resistance | medium |
Adhesion to Values
| Adhesion to ABS (initial) | 14 N/cm |
| Adhesion to ABS (after 14 days) | 17 N/cm |
| Adhesion to Aluminium (initial) | 13 N/cm |
| Adhesion to Aluminium (after 14 days) | 17 N/cm |
| Adhesion to PC (initial) | 9 N/cm |
| Adhesion to PC (after 14 days) | 17 N/cm |
| Adhesion to PE (initial) | 1.7 N/cm |
| Adhesion to PE (after 14 days) | 3 N/cm |
| Adhesion to PET (initial) | 12.5 N/cm |
| Adhesion to PET (after 14 days) | 17 N/cm |
| Adhesion to PP (initial) | 1.8 N/cm |
| Adhesion to PP (after 14 days) | 3.3 N/cm |
| Adhesion to PS (initial) | 10.5 N/cm |
| Adhesion to PS (after 14 days) | 17 N/cm |
| Adhesion to PVC (initial) | 14.5 N/cm |
| Adhesion to PVC (after 14 days) | 17 N/cm |
| Adhesion to Steel (initial) | 13 N/cm |
| Adhesion to Steel (after 14 days) | 17 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 14 N/cm |
| Adhesion to ABS (after 14 days) | 17 N/cm |
| Adhesion to Aluminium (initial) | 13 N/cm |
| Adhesion to Aluminium (after 14 days) | 17 N/cm |
| Adhesion to PC (initial) | 9 N/cm |
| Adhesion to PC (after 14 days) | 17 N/cm |
| Adhesion to PE (initial) | 1.7 N/cm |
| Adhesion to PE (after 14 days) | 3 N/cm |
| Adhesion to PET (initial) | 12.5 N/cm |
| Adhesion to PET (after 14 days) | 17 N/cm |
| Adhesion to PP (initial) | 1.8 N/cm |
| Adhesion to PP (after 14 days) | 3.3 N/cm |
| Adhesion to PS (initial) | 10.5 N/cm |
| Adhesion to PS (after 14 days) | 17 N/cm |
| Adhesion to PVC (initial) | 14.5 N/cm |
| Adhesion to PVC (after 14 days) | 17 N/cm |
| Adhesion to Steel (initial) | 13 N/cm |
| Adhesion to Steel (after 14 days) | 17 N/cm |
Additional Info

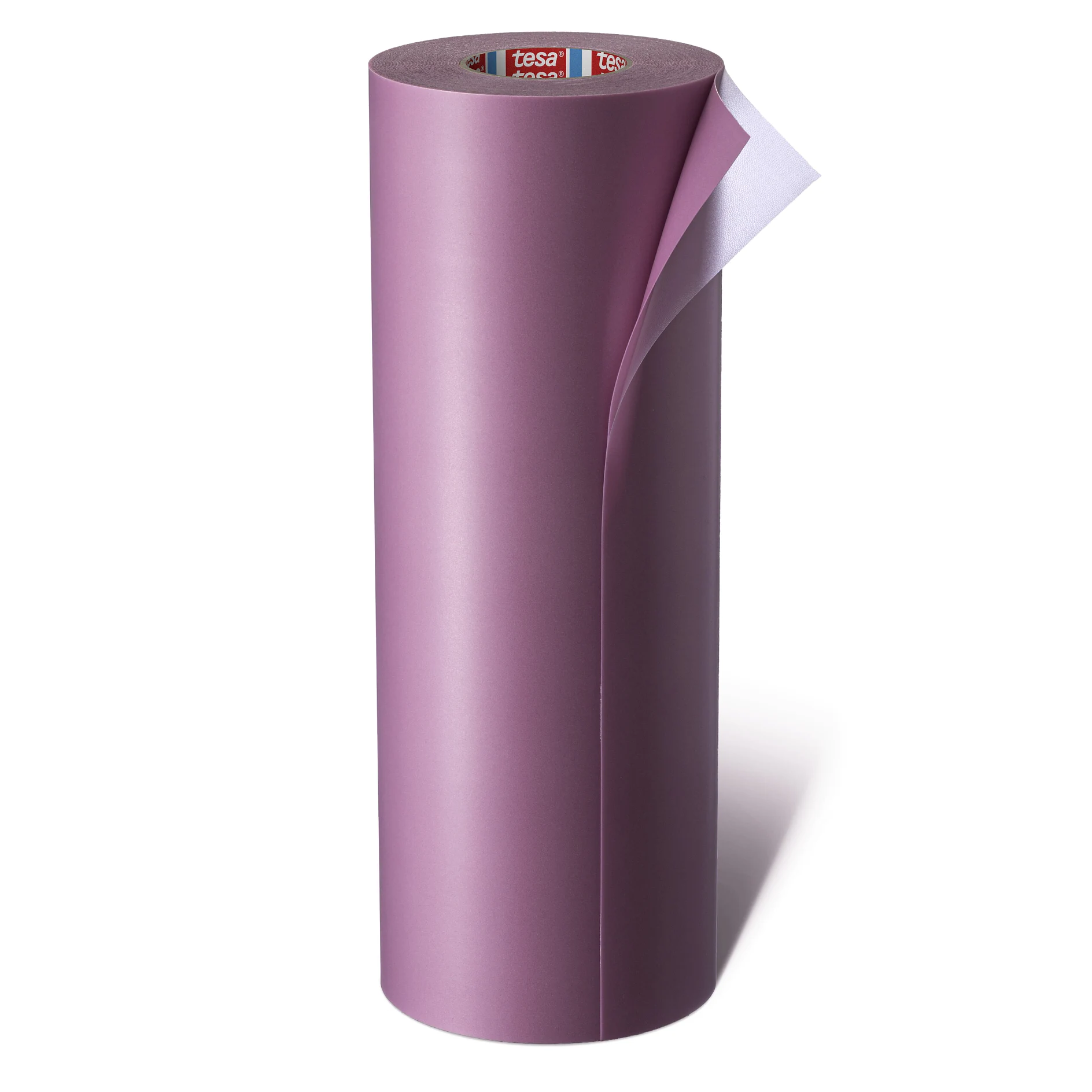

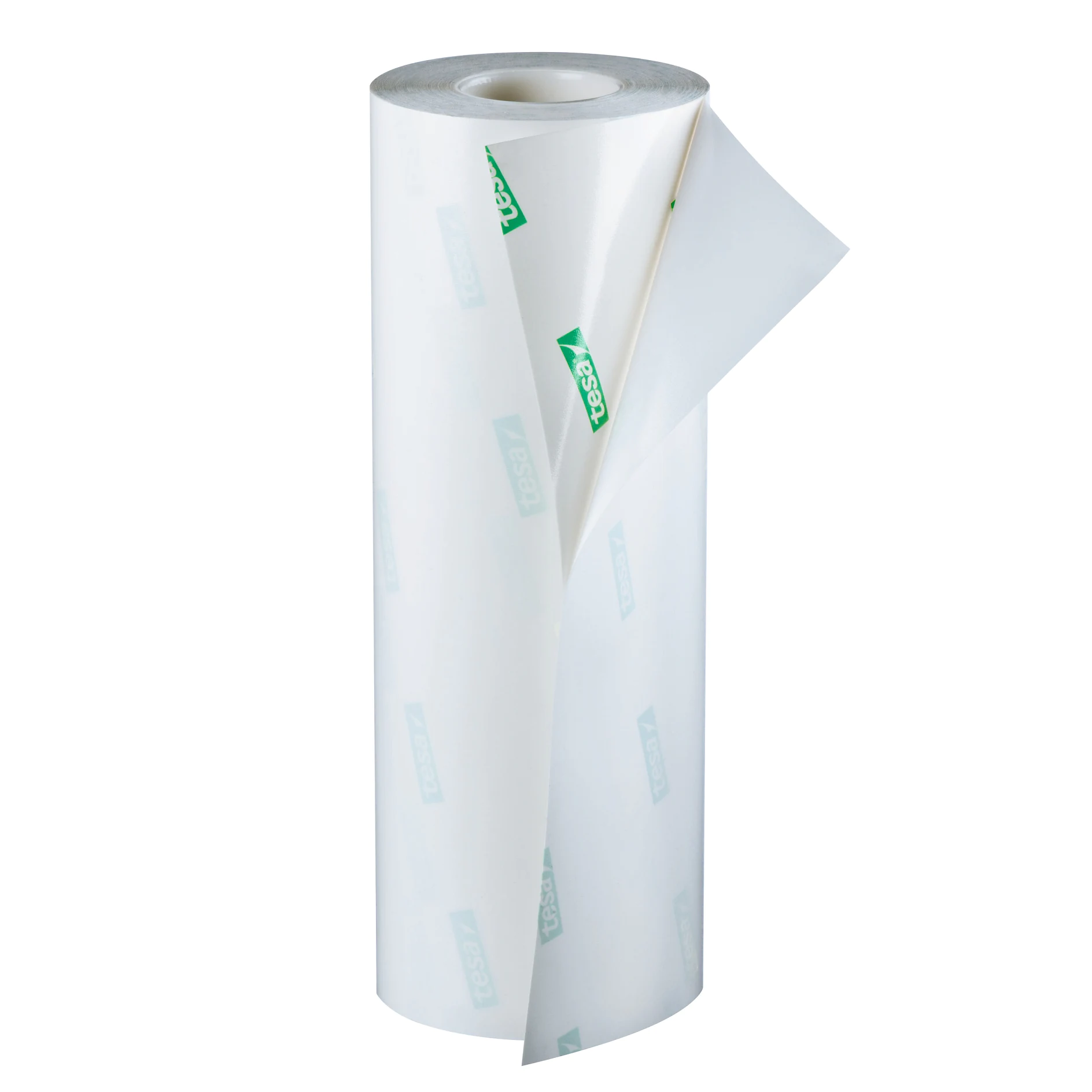

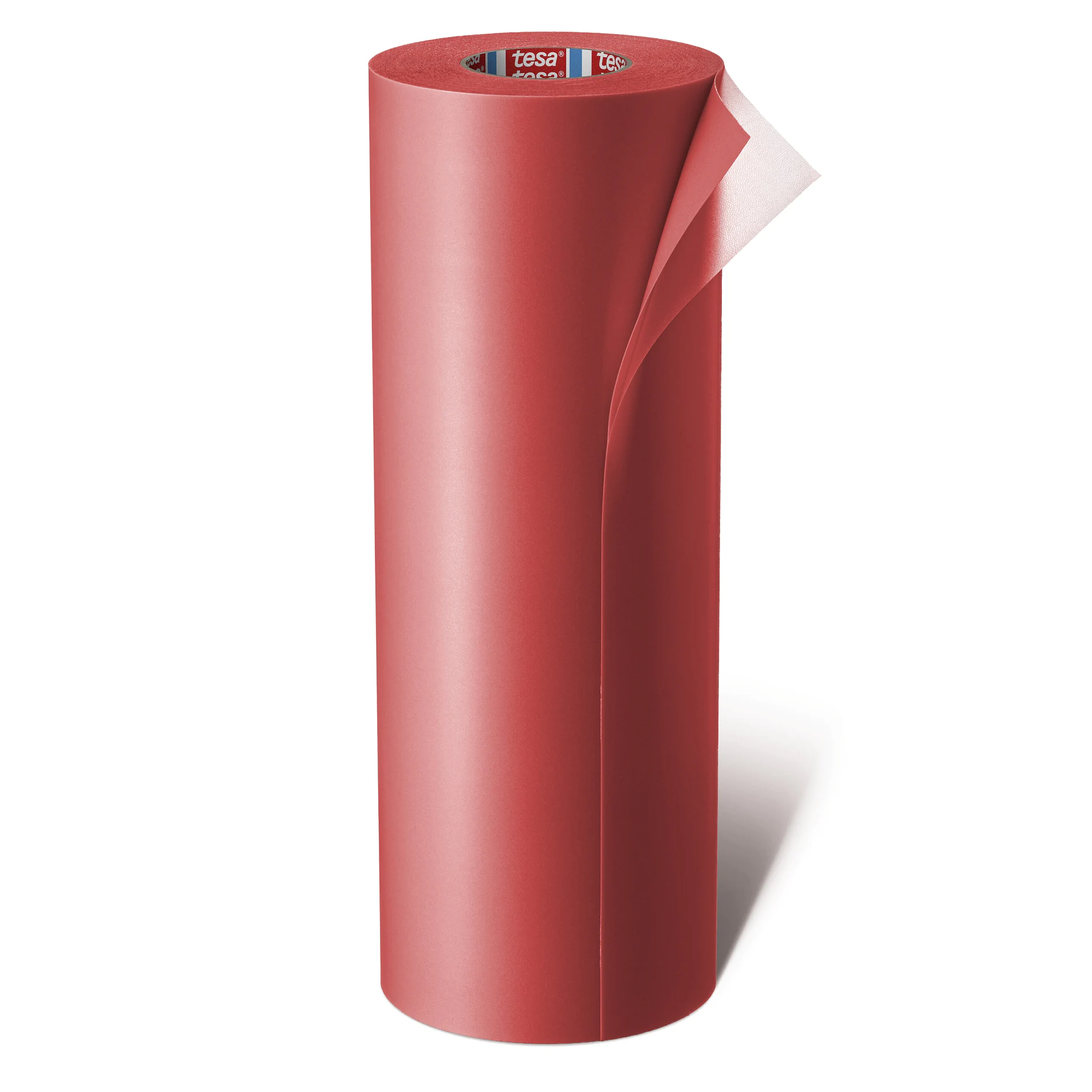

Liner variants:
Peel Adhesion:
UL Certificates:
- PV0 brown glassine paper (71 µm)
- PV10 redtransparent PP film(120 µm)
- PV14 PE coated paper (122 µm)
- PV15 blue PE film (100 µm)
Peel Adhesion:
- after 14 days: foam splitting on Steel, Aluminium, ABS, PC, PS, PET, PVC
UL Certificates:
- check out our UL certification by clicking on the following link - https://iq.ulprospector.com/en/profile?e=131668
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
