Product Construction
| Backing material | PVC film |
| Total thickness | 168 µm |
| Type of adhesive | natural rubber |

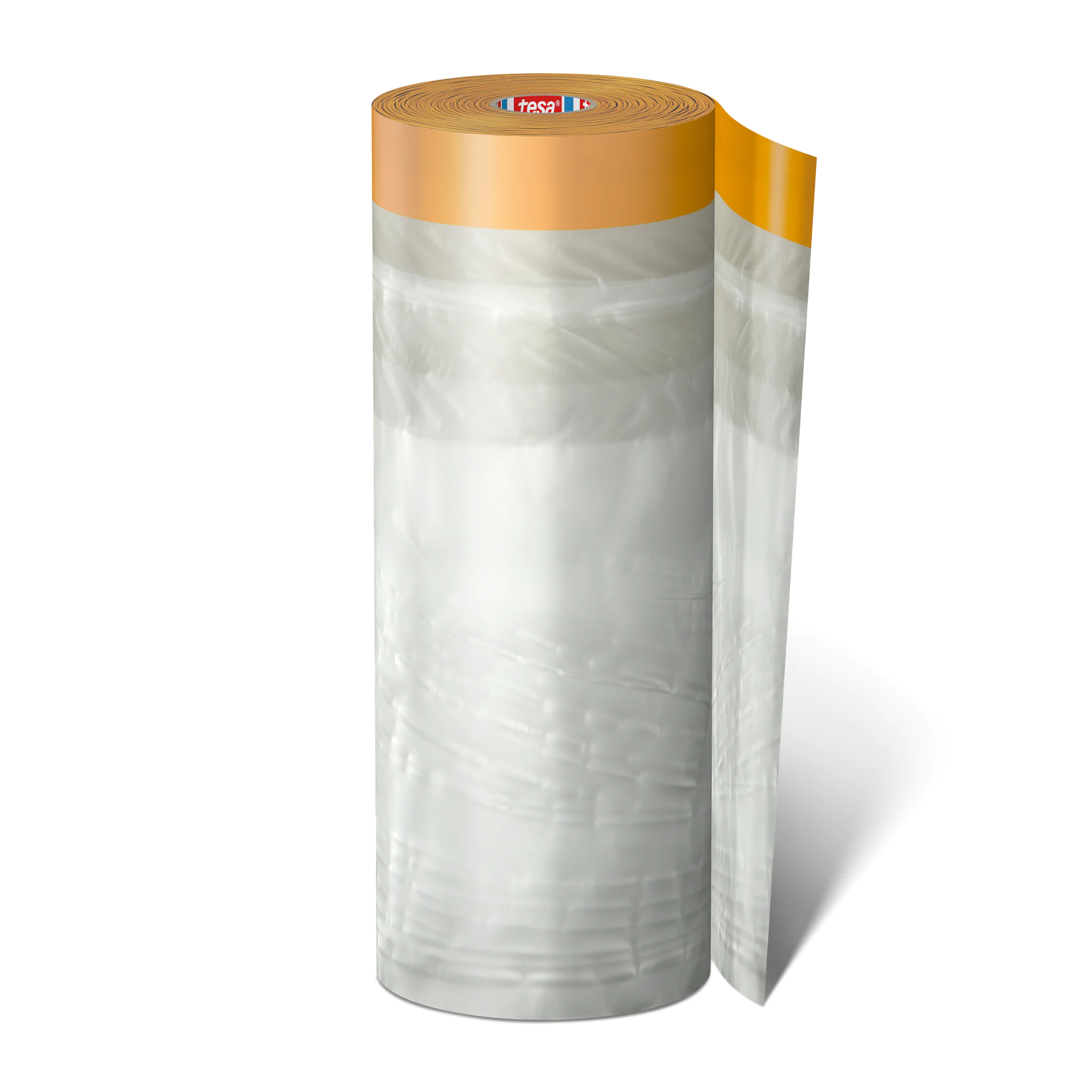

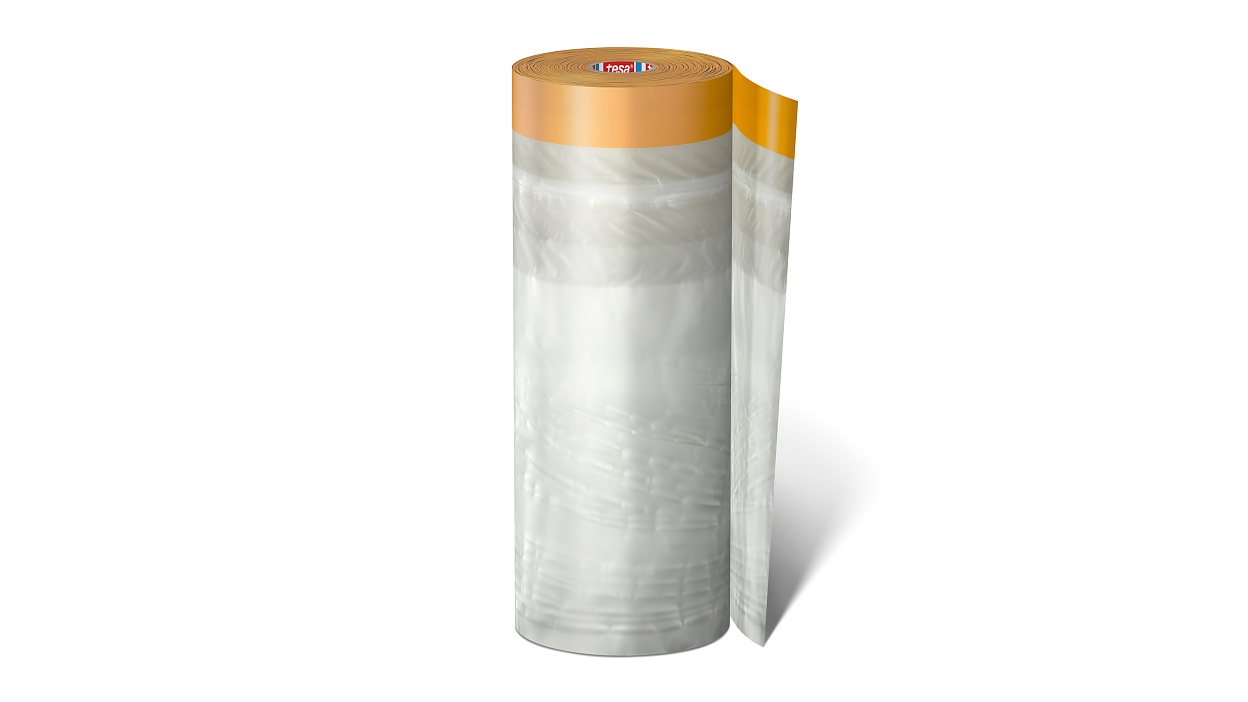

tesa® 7140 Roll Masker
Efficient overmasking solution for automotive two-tone painting at high temperatures
Product Features
- Highly temperature resistant material up to 170°C
- High tear resistant tape to avoid tearing during demasking
- Risk of overspray and paint deformation are eliminated through static film loading
Product description

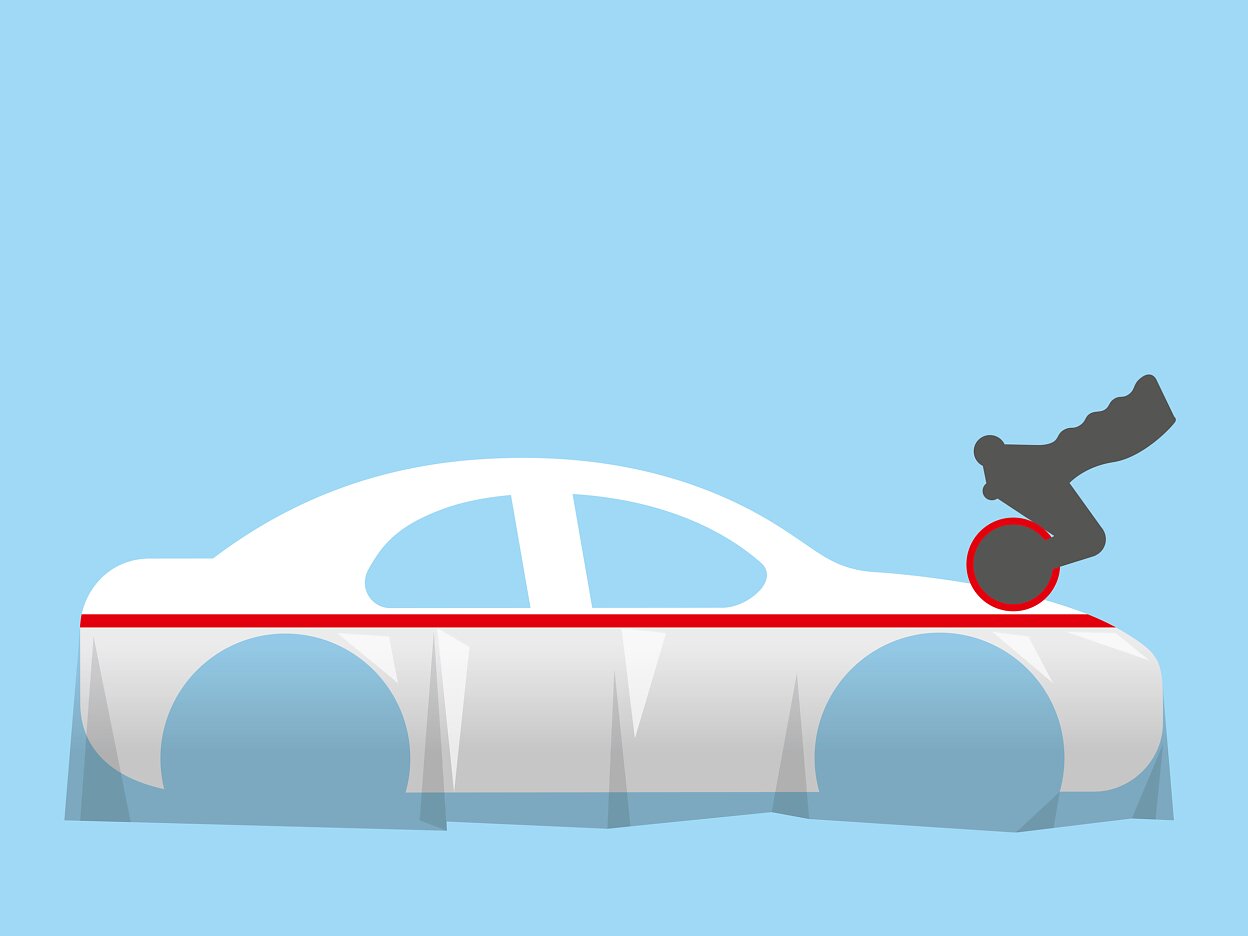

tesa® 7140 RollMasker is a combination of tesa® 7140 fineline tape and tesa® high temperature film for large area masking during two-tone car painting in the paint shop at automotive OEMs.
The combination of tape and film reduces process times and material waste at the OEM compared to a stand-alone filmic hood.

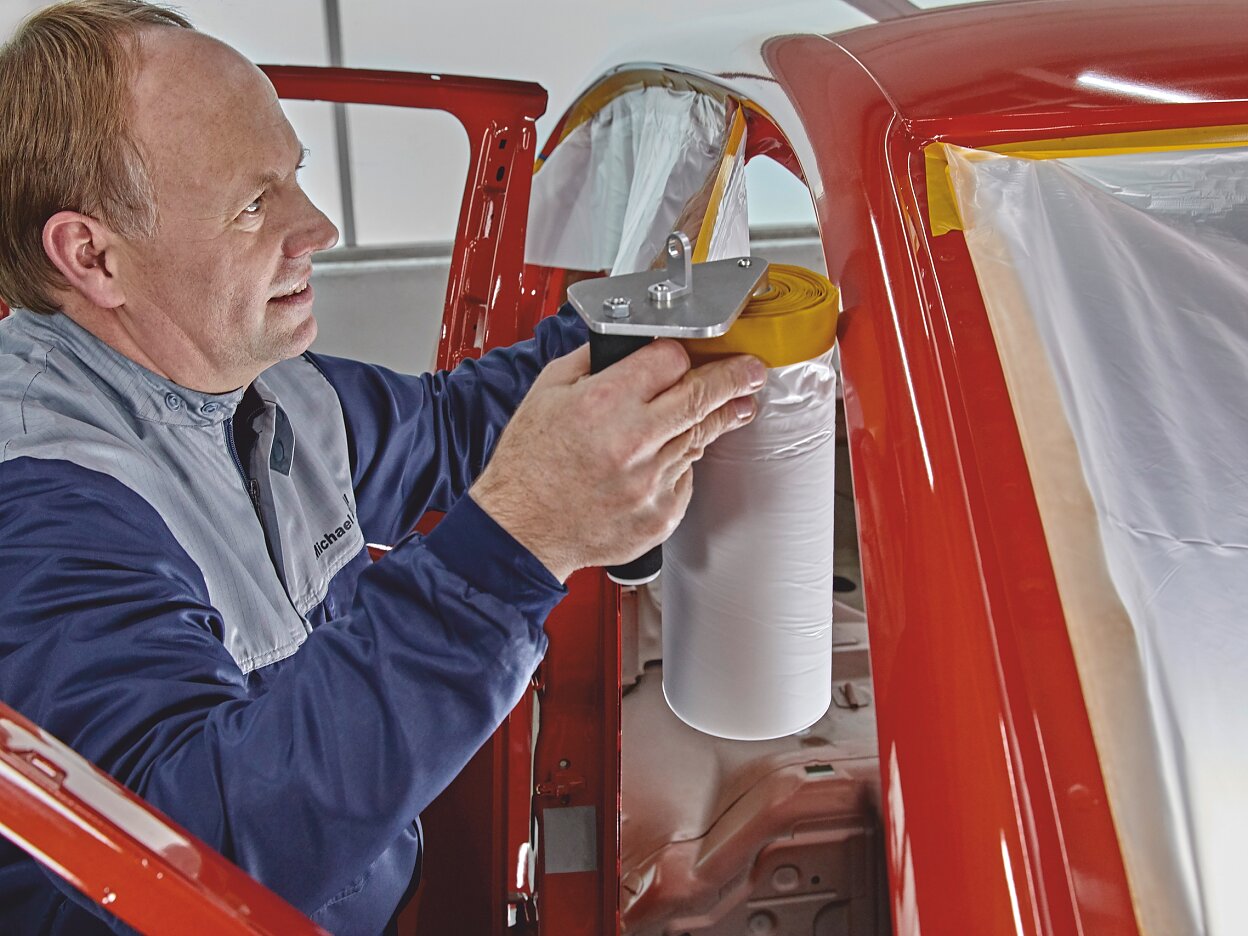

Standardized and customized applicators for tesa® 7140 RollMasker are available to ensure efficient tape application.
Product details and specifications
Product Features
- Highly temperature resistant material up to 170°C
- High tear resistant tape to avoid tearing during demasking
- Risk of overspray and paint deformation are eliminated through static film loading
- It ensures efficient and reliable masking application with a maximum temperature resistance of up to 170°C/1h, thus allowing dry demasking processes.
Application Fields

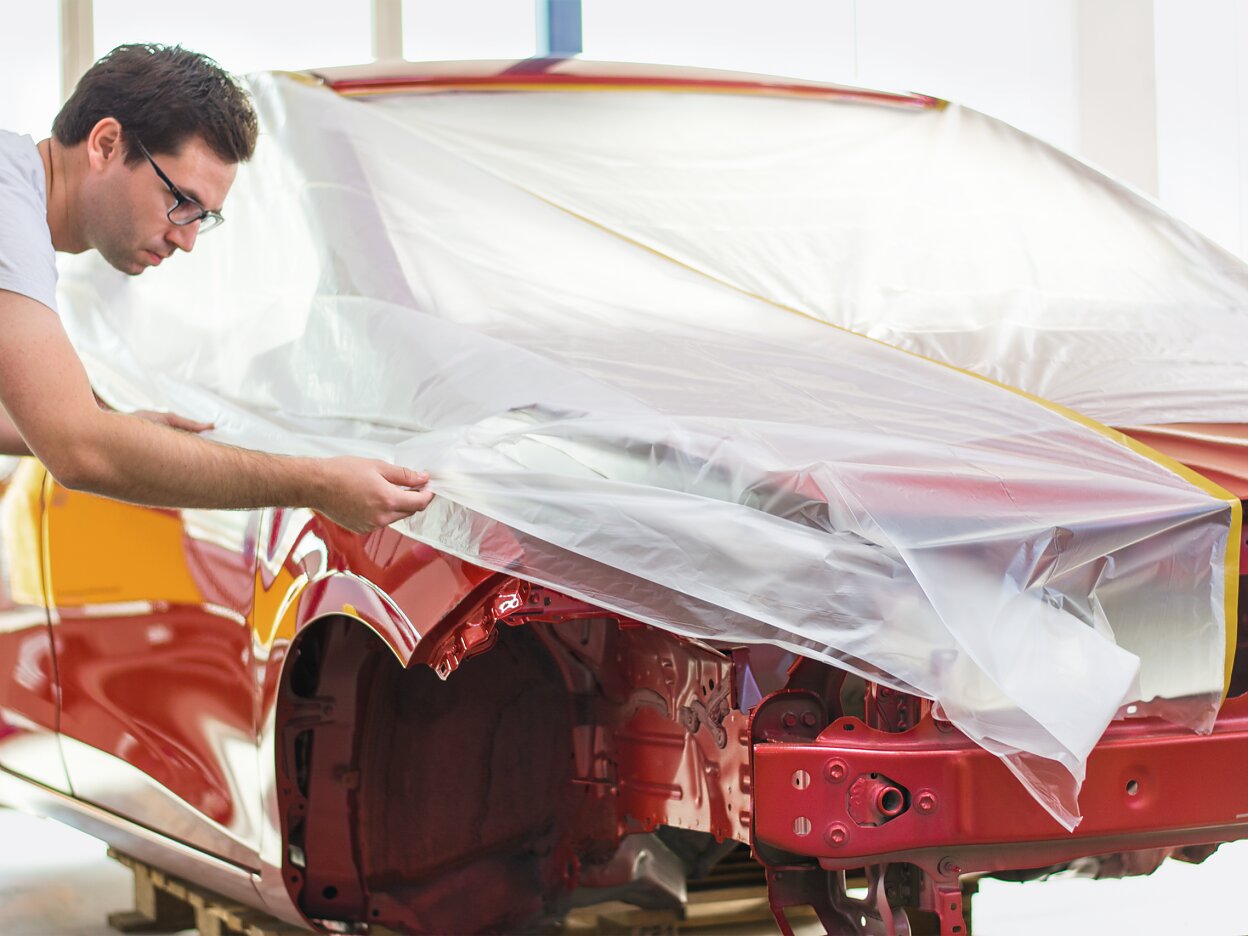

tesa® 7140 RollMasker is suitable for high temperature two-tone car body masking.
Example applications are:
To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.
Example applications are:
- Two-tone car body painting
- Two-tone inline masking
- Masking with dry demasking processes
- Large area masking at high drying temperatures
- Efficient overmasking
To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.
Product Construction
| Backing material | PVC film |
| Total thickness | 168 µm |
| Type of adhesive | natural rubber |
Properties / Performance Values
| Elongation at break | 130 % |
| Tensile strength | 73 N/cm |
| Thickness of masking coverage | 30 µm |
| Material of masking coverage | HDPE |
Properties / Performance Values
| Elongation at break | 130 % |
| Tensile strength | 73 N/cm |
| Thickness of masking coverage | 30 µm |
| Material of masking coverage | HDPE |
Adhesion to Values
| Adhesion to Steel | 4 N/cm |
Adhesion to Values
| Adhesion to Steel | 4 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
