Product Construction
| Backing material | PE foam with film lamination |
| Color | blue |
| Total thickness | 550 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PP |

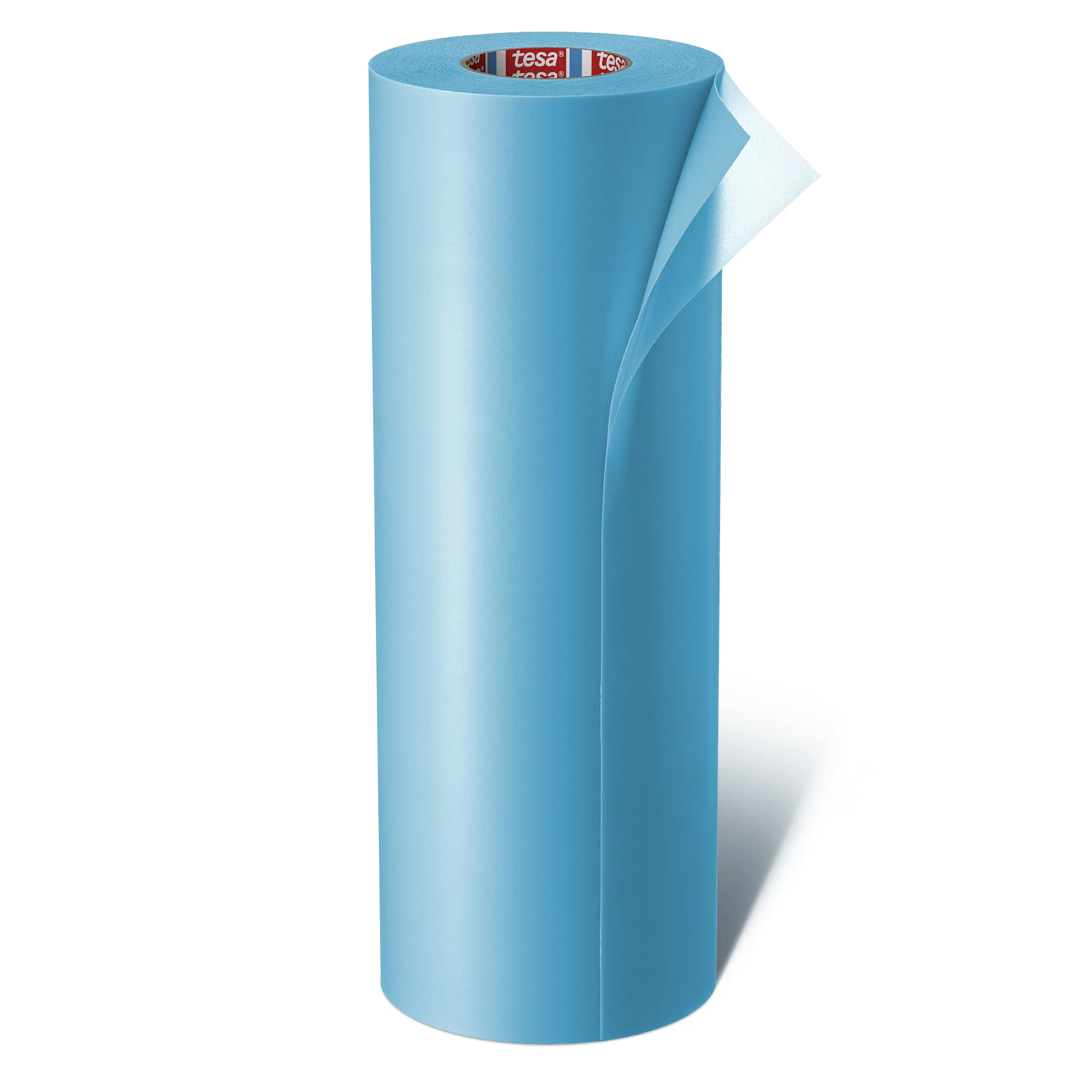

tesa® Softprint 73326 TP-X, Medium-Hard
Foam plate mounting tape: FLEX Product Design
Product Features
- Foam properties: Long lasting, constant recovery characteristics. Low thickness tolerance.
- Adhesive properties: Medium tack surface characteristics. Sufficient plate bonding. Easy plate demounting. Excellent tape bonding towards sleeve side.
- Flexible PE reinforcement film to compensate for the expansion of thin-walled sleeves.
Product description
Double-sided foam tape
Product details and specifications
Product Features
- Foam properties: Long lasting, constant recovery characteristics. Low thickness tolerance.
- Adhesive properties: Medium tack surface characteristics. Sufficient plate bonding. Easy plate demounting. Excellent tape bonding towards sleeve side.
- Flexible PE reinforcement film to compensate for the expansion of thin-walled sleeves.
Application Fields
Mounting of 1,14 mm (0,045'') and 1,70 mm (0,067'') flexographic printing plates onto steel /alu /PU and glassine cylinders
Product Construction
| Backing material | PE foam with film lamination |
| Color | blue |
| Total thickness | 550 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PP |
Properties / Performance Values
| Color of foam | blue |
| Hardness | medium-hard |
| Thickness category | 500 |
Properties / Performance Values
| Color of foam | blue |
| Hardness | medium-hard |
| Thickness category | 500 |
Additional Info
Available liner options:
- PV0: White embossed PP-liner
- PV21: Transparent structured easy application (EA) PET liner for excellent air removal during plate and tape mounting
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
