Product Construction
| Backing material | aluminium foil |
| Total thickness | 125 µm |
| Type of adhesive | acrylic |
| Type of liner | none |
tesa® 60670
Robust aluminum tape - 75µ foil
Product description
tesa® 60670 is a robust aluminum tape based on a 75 µm (3 mil) aluminum foil and a transparent acrylic adhesive
Features:
- Mechanical stable
- Easy to unwind
- Suitable for permanent applications
- Barrier against moisture, gases and vapors
- Electrically and thermally conductive
- Aging resistant
- Heat and light reflective
- Flame retardant according to DIN 4102, class B1
- Flame retardant according to the requirements in UL 510A
- Meets requirements of UL723
Product details and specifications
Application Fields
- Repairs on trucks and trailers

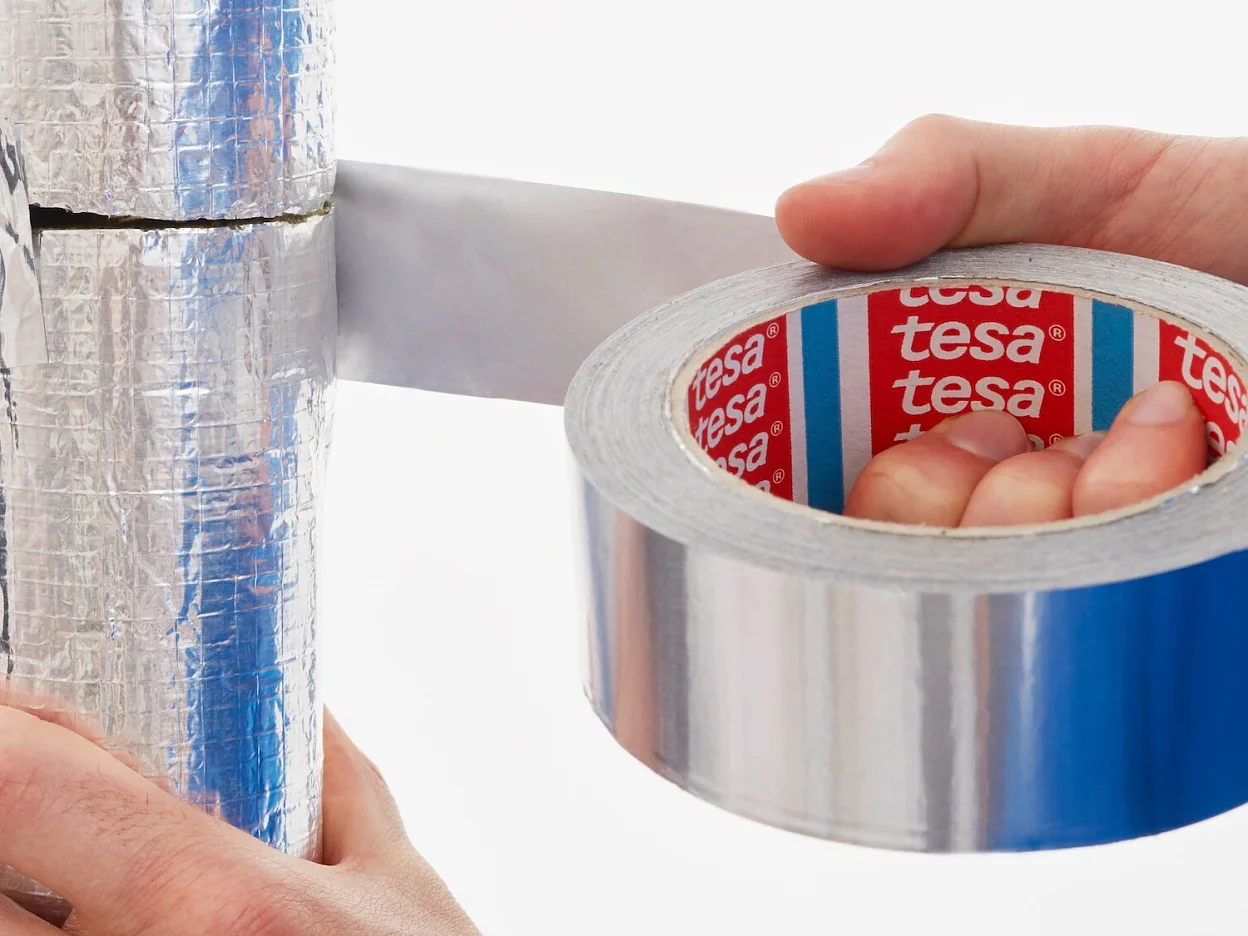

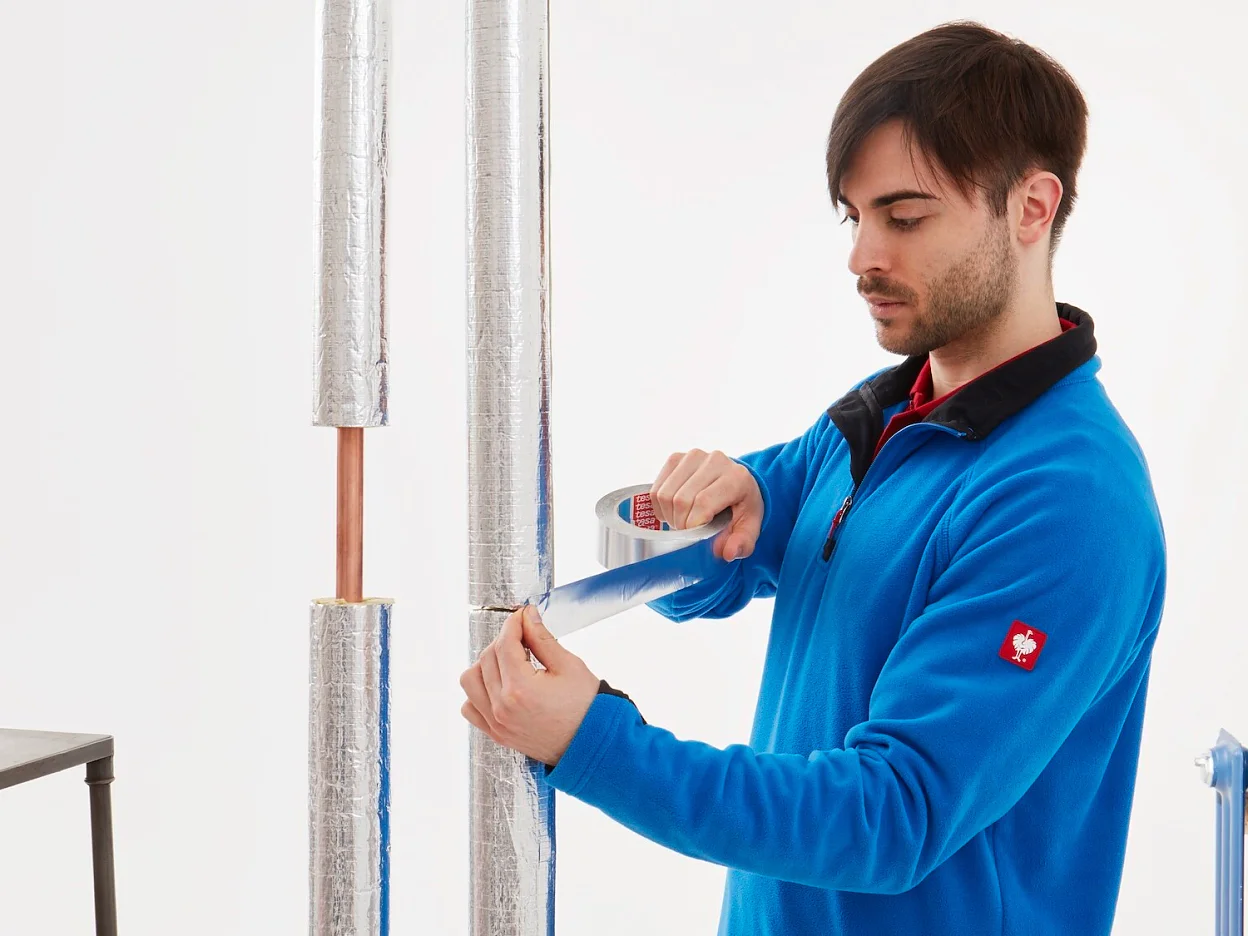

- Joining and sealing of thermal insulation, ducts and pipes
- To make substrates electrically and thermally conductive
- To reflect heat radiation
Product Construction
| Backing material | aluminium foil |
| Total thickness | 125 µm |
| Type of adhesive | acrylic |
| Type of liner | none |
Properties / Performance Values
| Elongation at break | 8 % |
| Tensile strength | 60 N/cm |
| Easy to remove | no |
| Water resistance | very good |
| Temperature resistance min. | -40 °C |
| Operation temperature up to | 160 °C |
| Backing appearance (visual) | reflective |
| Abrasion resistance | very good |

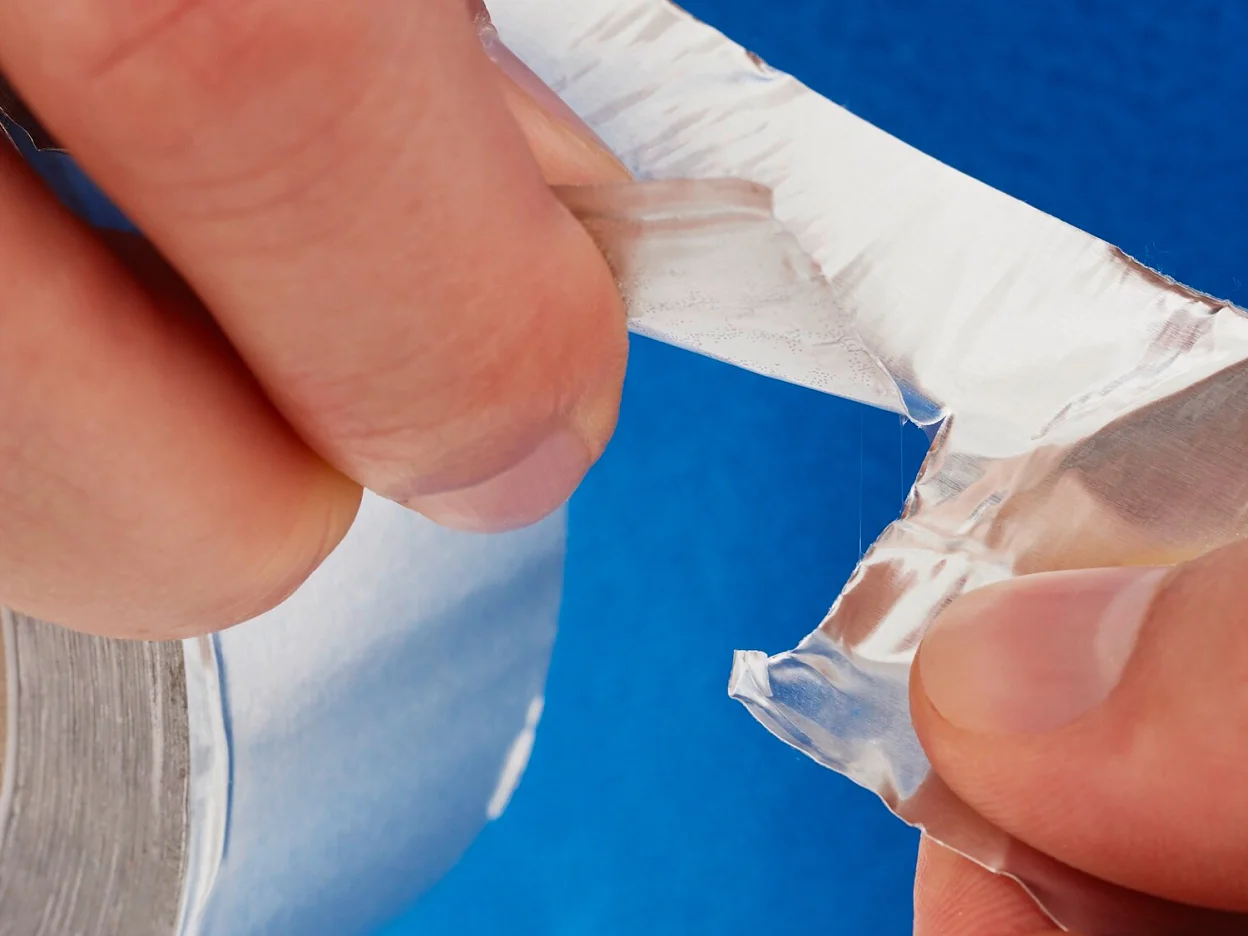

| Hand tearability | very good |
| Operation temperature from | -40 °C |
| Suitable for die cutting | no |
Properties / Performance Values
| Elongation at break | 8 % |
| Tensile strength | 60 N/cm |
| Easy to remove | no |
| Water resistance | very good |
| Temperature resistance min. | -40 °C |
| Operation temperature up to | 160 °C |
| Backing appearance (visual) | reflective |
| Abrasion resistance | very good |
| Hand tearability | very good |
| Operation temperature from | -40 °C |
| Suitable for die cutting | no |
Adhesion to Values
| Adhesion to Glass (initial) | 10 N/cm |
| Adhesion to PE (initial) | 5.5 N/cm |
| Adhesion to PVC (initial) | 7 N/cm |
| Adhesion to steel | 10 N/cm |
Adhesion to Values
| Adhesion to Glass (initial) | 10 N/cm |
| Adhesion to PE (initial) | 5.5 N/cm |
| Adhesion to PVC (initial) | 7 N/cm |
| Adhesion to steel | 10 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
