Product Construction
Backing material | PET film |
Color | transparent |
Color of liner | white/red logo |
Thickness of liner | 2.8 mils
71 µm |
Total thickness | 1.18 mils
30 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: glassine |
30μm d/s filmic removable tape

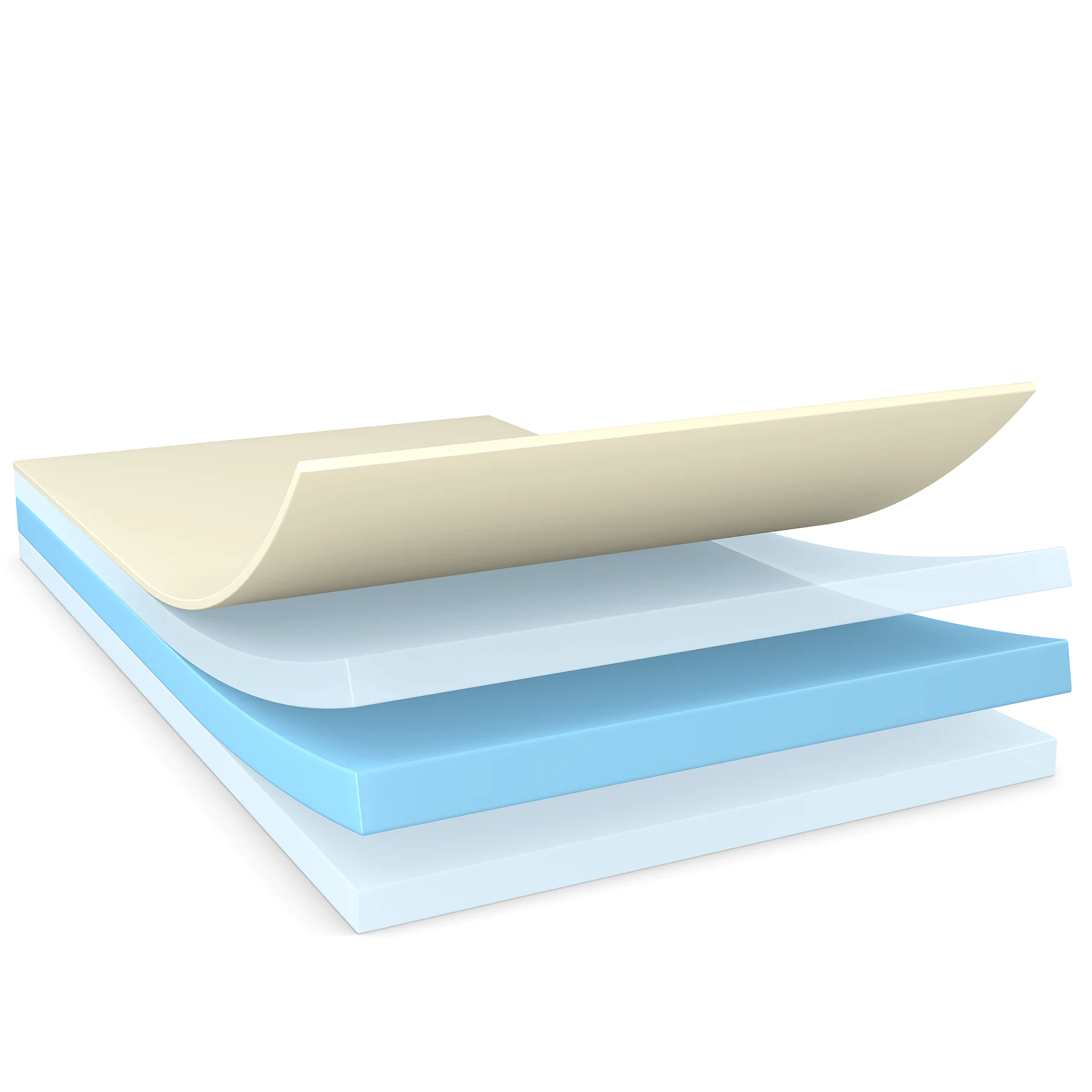

tesa® 68560 is a double-sided self-adhesive tape consisting of a transparent PET backing with a special removable adhesive on cover side and a tackified acrylic adhesive on open side.
tesa® 68560 features:
Backing material | PET film |
Color | transparent |
Color of liner | white/red logo |
Thickness of liner | 2.8 mils
71 µm |
Total thickness | 1.18 mils
30 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: glassine |
Backing material | PET film |
Color | transparent |
Color of liner | white/red logo |
Thickness of liner | 2.8 mils
71 µm |
Total thickness | 1.18 mils
30 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: glassine |
Ageing resistance (UV) | very good |
Softener resistance | very good |
Humidity resistance | medium |
Ageing resistance (UV) | very good |
Softener resistance | very good |
Humidity resistance | medium |
Adhesion to ABS (initial) | 2.17 lbs/in
3.8 N/cm |
Adhesion to ABS (after 14 days) | 2.8 lbs/in
4.9 N/cm |
Adhesion to ABS (covered side, initial) | 0.46 lbs/in
0.8 N/cm |
Adhesion to ABS (covered side, after 14 days) | 0.46 lbs/in
0.8 N/cm |
Adhesion to Glass (initial) | 2.68 lbs/in
4.7 N/cm |
Adhesion to Glass (after 14 days) | 3.03 lbs/in
5.3 N/cm |
Adhesion to Glass (covered side, initial) | 0.29 lbs/in
0.5 N/cm |
Adhesion to Glass (covered side, after 14 days) | 0.34 lbs/in
0.6 N/cm |
Adhesion to PC (initial) | 2.46 lbs/in
4.3 N/cm |
Adhesion to PC (after 14 days) | 3.43 lbs/in
6 N/cm |
Adhesion to PC (covered side, after 14 days) | 0.4 lbs/in
0.7 N/cm |
Adhesion to PC (covered side, initial) | 0.4 lbs/in
0.7 N/cm |
Adhesion to Steel (initial) | 2.4 lbs/in
4.2 N/cm |
Adhesion to Steel (after 14 days) | 3.08 lbs/in
5.4 N/cm |
Adhesion to Steel (covered side, after 14 days) | 0.34 lbs/in
0.6 N/cm |
Adhesion to Steel (covered side, initial) | 0.23 lbs/in
0.4 N/cm |
Adhesion to ABS (initial) | 2.17 lbs/in
3.8 N/cm |
Adhesion to ABS (after 14 days) | 2.8 lbs/in
4.9 N/cm |
Adhesion to ABS (covered side, initial) | 0.46 lbs/in
0.8 N/cm |
Adhesion to ABS (covered side, after 14 days) | 0.46 lbs/in
0.8 N/cm |
Adhesion to Glass (initial) | 2.68 lbs/in
4.7 N/cm |
Adhesion to Glass (after 14 days) | 3.03 lbs/in
5.3 N/cm |
Adhesion to Glass (covered side, initial) | 0.29 lbs/in
0.5 N/cm |
Adhesion to Glass (covered side, after 14 days) | 0.34 lbs/in
0.6 N/cm |
Adhesion to PC (initial) | 2.46 lbs/in
4.3 N/cm |
Adhesion to PC (after 14 days) | 3.43 lbs/in
6 N/cm |
Adhesion to PC (covered side, after 14 days) | 0.4 lbs/in
0.7 N/cm |
Adhesion to PC (covered side, initial) | 0.4 lbs/in
0.7 N/cm |
Adhesion to Steel (initial) | 2.4 lbs/in
4.2 N/cm |
Adhesion to Steel (after 14 days) | 3.08 lbs/in
5.4 N/cm |
Adhesion to Steel (covered side, after 14 days) | 0.34 lbs/in
0.6 N/cm |
Adhesion to Steel (covered side, initial) | 0.23 lbs/in
0.4 N/cm |
Download the files below for more technical details and information on this product.
