Product Construction
| Backing material | aluminium foil |
| Color of liner | white |
| Thickness of liner | 65 µm |
| Total thickness | 90 µm |
| Type of adhesive | acrylic |
| Type of liner | paper |

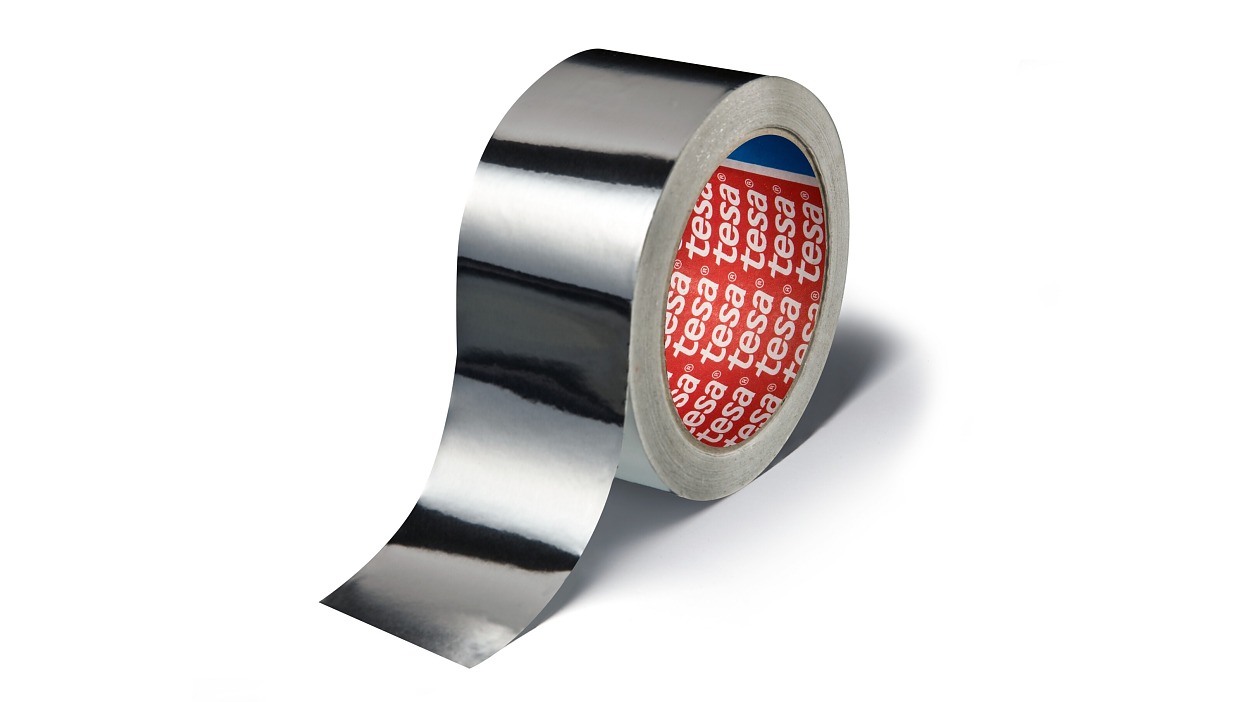

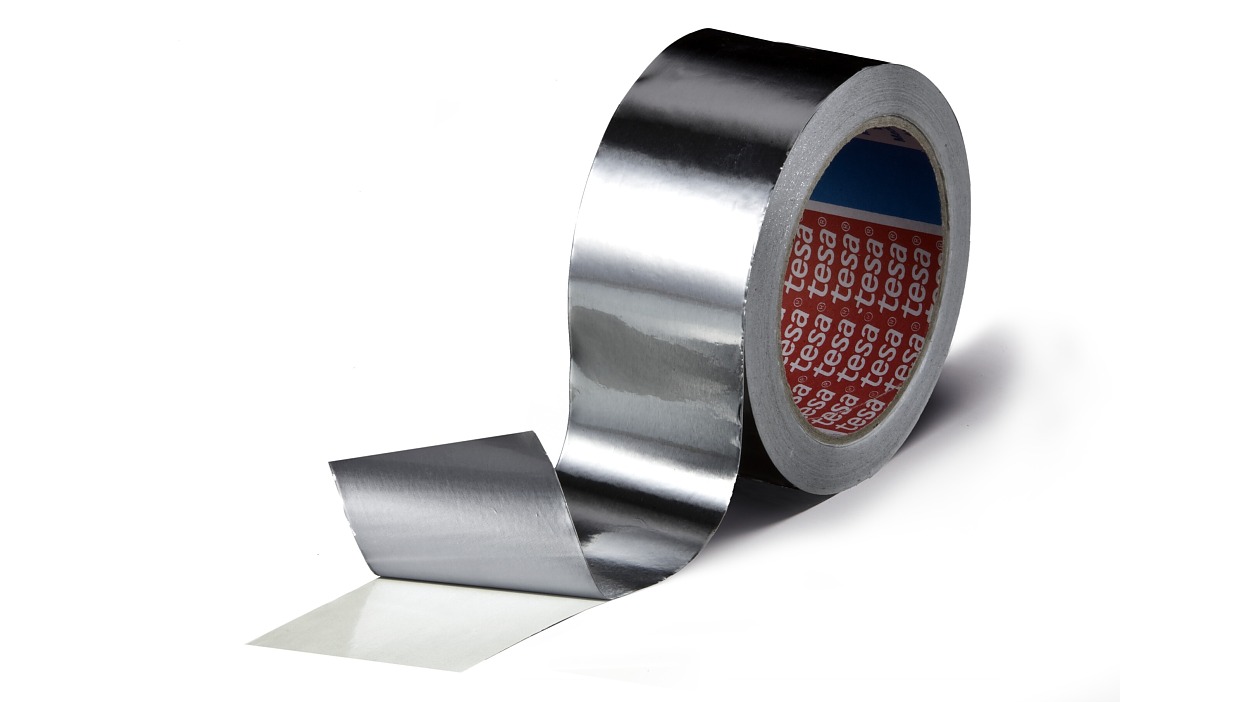

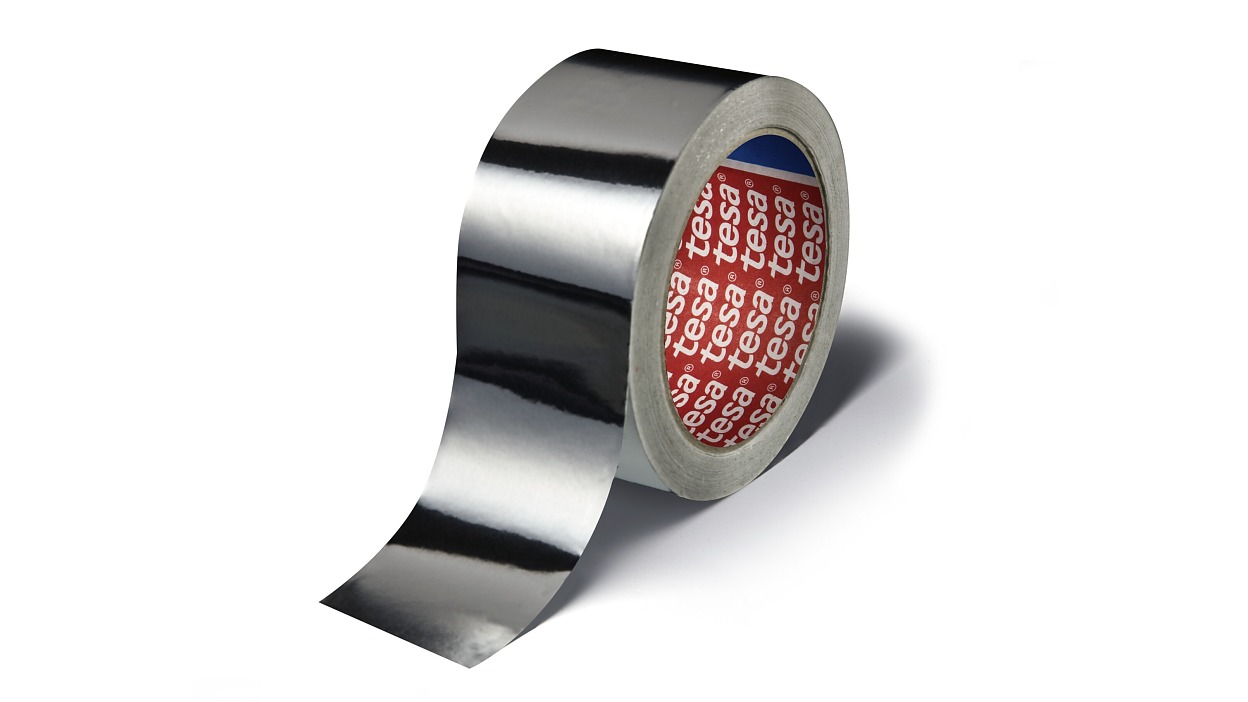

tesa® 50565
Strong 50µm aluminium tape with and without liner (PV1 and PV0)
Product Features
- Moisture resistant and vapor barrier
- Thermally conductive and ageing-resistant product design
- Available without liner (PV0) and with liner (PV1)
Product description
tesa® 50565 is a strong aluminium tape, based on a 50µm aluminium foil and an acrylic adhesive. It is mainly used in the appliance industry and also for a wide range of other applications. The production version PV1 comes with paper liner.
Product details and specifications
Product Features
- Moisture resistant and vapor barrier
- Thermally conductive and ageing-resistant product design
- Available without liner (PV0) and with liner (PV1)
- Flame retardant (according to UL510A)
Application Fields
- Mounting of cooling coils in refrigerator production
- Sealing of ducts or joints of insulation material
- Masking, protecting, repairing, closing
Product Construction
| Backing material | aluminium foil |
| Color of liner | white |
| Thickness of liner | 65 µm |
| Total thickness | 90 µm |
| Type of adhesive | acrylic |
| Type of liner | paper |
Properties / Performance Values
| Elongation at break | 8 % |
| Tensile strength | 35 N/cm |
| Suitable for die cutting | yes |
| Hand tearability | good |
| Abrasion resistance | good |
| Backing appearance (visual) | reflective |
| Water resistance | very good |
| Operation temperature from | -40 °C |
| Operation temperature up to | 160 °C |
| Temperature resistance min. | -40 °C |
Properties / Performance Values
| Elongation at break | 8 % |
| Tensile strength | 35 N/cm |
| Suitable for die cutting | yes |
| Hand tearability | good |
| Abrasion resistance | good |
| Backing appearance (visual) | reflective |
| Water resistance | very good |
| Operation temperature from | -40 °C |
| Operation temperature up to | 160 °C |
| Temperature resistance min. | -40 °C |
Adhesion to Values
| Adhesion to Steel | 6 N/cm |
Adhesion to Values
| Adhesion to Steel | 6 N/cm |
Additional Info
Both product versions, with liner (PV1) and without liner (PV0), are certified flame retardant by UL under category OANZ2 file E332429
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
