Product Construction
| Backing material | PET fleece |
| Colour | white |
| Colour of liner | yellow |
| Thickness of liner | 70 µm |
| Thickness of tape | 570 µm |
| Type of adhesive | acrylic |
| Type of liner | glassine |
| Weight of liner | 90 g/m² |

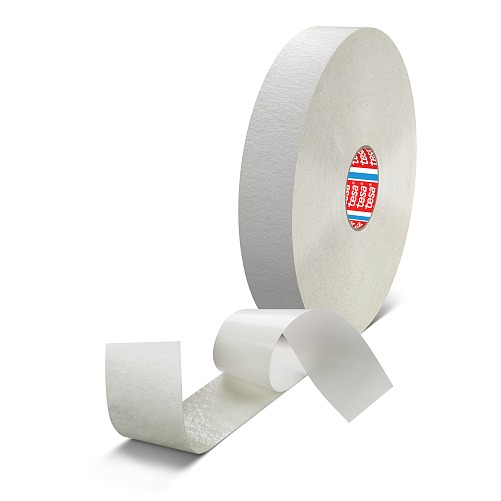

tesa® 50118 PV0 Ultra Low VOC
570 µm water-based acrylic adhesive with PET fleece backing for mounting application in automotive interiors
Product description
tesa® 50118 PV0 is a 570 µm PET fleece tape with a water-based acrylic adhesive. This tape has been designed for a wide range of automotive interior applications like cable mounting and BSR prevention (buzz, squeak, and rattle prevention). Due to its low VOC property it is particularly designed to meet automotive interior requirements.
This tape is characterized by a high adhesion strength on critical surfaces like nonpolar and rough substrates.
tesa® 50118 PV0 is available as a die-cut solution and is suitable for automatic dispensers.
Main features:
- Excellent damping properties
- Low VOC (according to GB 27630) – no critical substances detectable
- High peel resistance on irregular, rough, and nonpolar surfaces
- High shear strength
- Tear resistant
- Suitable for automatic tape dispensers
Product details and specifications
Application Fields
tesa® 50118 PV0 is suitable for mounting cables and wire harnesses on different components inside a car. It ensures quick and secure fixation of flat and round cables with excellent damping properties (BSR prevention).
Example applications are:
To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.
Example applications are:
- Mounting cables to headliners
- BSR prevention in inner doors, dashboards, display frames, seat belt buckles, and other things
To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.
Product Construction
| Backing material | PET fleece |
| Colour | white |
| Colour of liner | yellow |
| Thickness of liner | 70 µm |
| Thickness of tape | 570 µm |
| Type of adhesive | acrylic |
| Type of liner | glassine |
| Weight of liner | 90 g/m² |
Properties / Performance Values
| Elongation at break | 43 % |
| Tensile strength | 35 N/cm |
| Tack | good |
| Suitable for rough surfaces | good |
| Static shear resistance | very good |
| Temperature resistance short term duration | 160 °C |
| Hand tearability | low |
| Noise damping (LV312) | Class C |
| Low VOC | very good |
Properties / Performance Values
| Elongation at break | 43 % |
| Tensile strength | 35 N/cm |
| Tack | good |
| Suitable for rough surfaces | good |
| Static shear resistance | very good |
| Temperature resistance short term duration | 160 °C |
| Hand tearability | low |
| Noise damping (LV312) | Class C |
| Low VOC | very good |
Adhesion to Values
| Adhesion to PET (initial) | 10.1 N/cm |
| Adhesion to PET fleece surface (after 3 days) | 2.5 N/cm |
| Adhesion to PET fleece Headliner A (after 3 days) | 3.4 N/cm |
| Adhesion to PET (after 3 days) | 11.3 N/cm |
| Adhesion to PET fleece Headliner A (initial) | 3.1 N/cm |
| Adhesion to PET fleece surface (initial) | 1.9 N/cm |
Adhesion to Values
| Adhesion to PET (initial) | 10.1 N/cm |
| Adhesion to PET fleece surface (after 3 days) | 2.5 N/cm |
| Adhesion to PET fleece Headliner A (after 3 days) | 3.4 N/cm |
| Adhesion to PET (after 3 days) | 11.3 N/cm |
| Adhesion to PET fleece Headliner A (initial) | 3.1 N/cm |
| Adhesion to PET fleece surface (initial) | 1.9 N/cm |
Additional Info
- Kiss-cut solutions or die-cuts are available under tesa® 54118
tesa’s automation and application department provides customized equipment and self-designed application tools to enhance productivity.
Adhesion values to:
PET
PET fleece surface
PET fleece Headliner A
are not part of the product specification
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
