Product Construction
| Backing material | polyolefinic film |
| Total thickness | 4200 µm |
| Type of adhesive | EVA |
tesa® 50540 Assemblyguard
Temporary protection tape for freshly painted car bodies
Product description
tesa® Assemblyguard 50540 is a premium grade self-adhesive tape that has been developed for the protection of delicate surfaces, e.g. painted metal surfaces during automotive assembly.

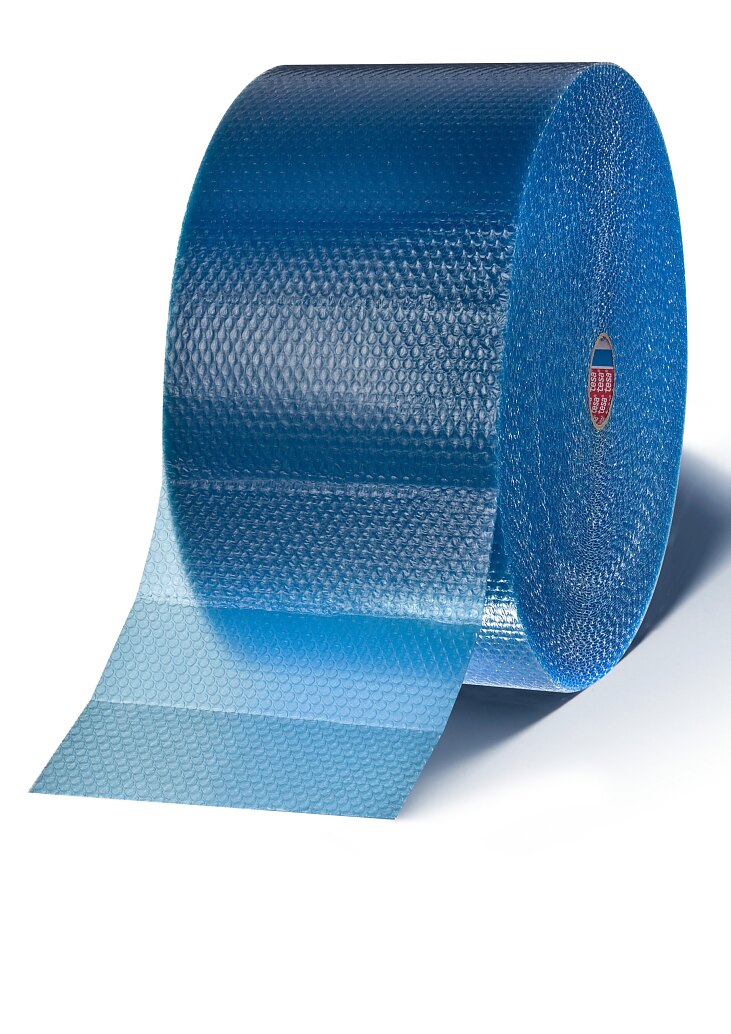

The product consists of an air bubble film coated with a paint compatible adhesive. Applied after the painting process, tesa® Assemblyguard 50540 provides reliable protection for painted surfaces susceptible to damage during the assembly process. Due the cross perforation of the product it is easily hand tearable without using any cutting devices.
tesa® Assemblyguard 50540 is recommended for indoor applications only.
Product details and specifications
Application Fields
- Surface protection of painted metal surfaces such as car bodies, commercial vehicles and escalators during assembly.
Product Construction
| Backing material | polyolefinic film |
| Total thickness | 4200 µm |
| Type of adhesive | EVA |
Properties / Performance Values
| Suitable for die cutting | yes |
| Easy to remove | yes |
| Chemical resistance | good |
Properties / Performance Values
| Suitable for die cutting | yes |
| Easy to remove | yes |
| Chemical resistance | good |
Adhesion to Values
| Adhesion to steel | 0.5 N/cm |
Adhesion to Values
| Adhesion to steel | 0.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
