Product Construction
| Backing material | conductive woven |
| Colour | grey |
| Colour of liner | white/blue logo |
| Thickness of liner | 120 µm |
| Total thickness | 100 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PE-coated paper |
tesa® 60254
100µm double sided grey electrically conductive woven tape
Product Features
- Thickness: 100µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- Good adhesion level even at harsh environmental conditions
Product description

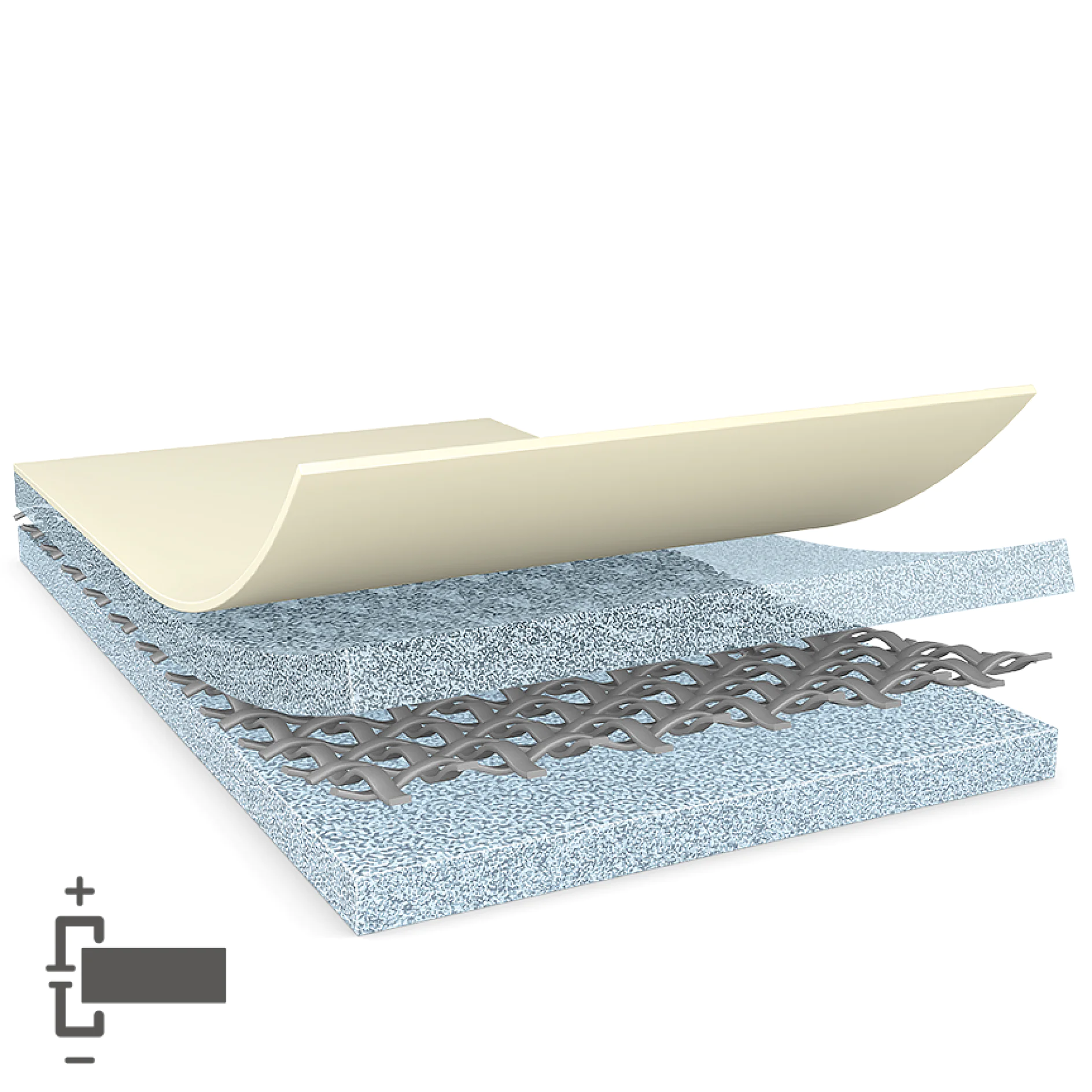

tesa® 60254 is a grey double sided electrically conductive self adhesive tape. It consists of an electrically conductive woven backing and an electrically conductive acrylic adhesive.
Product details and specifications
Product Features
- Thickness: 100µm
- Excellent electrical conductivity in XYZ-direction even at high temperatures and humidity
- Good adhesion level even at harsh environmental conditions
- Tear resistant backing which provides very good dimensional stability
Application Fields
- EMC applications, such as grounding
- Electrostatic discharge applications
Product Construction
| Backing material | conductive woven |
| Colour | grey |
| Colour of liner | white/blue logo |
| Thickness of liner | 120 µm |
| Total thickness | 100 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PE-coated paper |
Properties / Performance Values
| Temperature resistance short term duration | 160 °C |
| Release of liner | easy |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
| Static shear resistance at 23°C | medium |
| Surface resistance x-y-direction (adhesive) | 0.2 Ohm / square |
| Static shear resistance at 40°C | low |
Properties / Performance Values
| Temperature resistance short term duration | 160 °C |
| Release of liner | easy |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
| Static shear resistance at 23°C | medium |
| Surface resistance x-y-direction (adhesive) | 0.2 Ohm / square |
| Static shear resistance at 40°C | low |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 10.4 N/cm |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 10.4 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
