Product Construction
| Backing material | conductive non-woven |
| Colour | black |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 30 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PET |
tesa® 60371
30µm double sided black electrically conductive non-woven tape
Product Features
- Enhanced electrical conductivity in XYZ-direction
- Highly reliable and stable conductivity even after damp heat conditions
- Good bonding strength
Product description

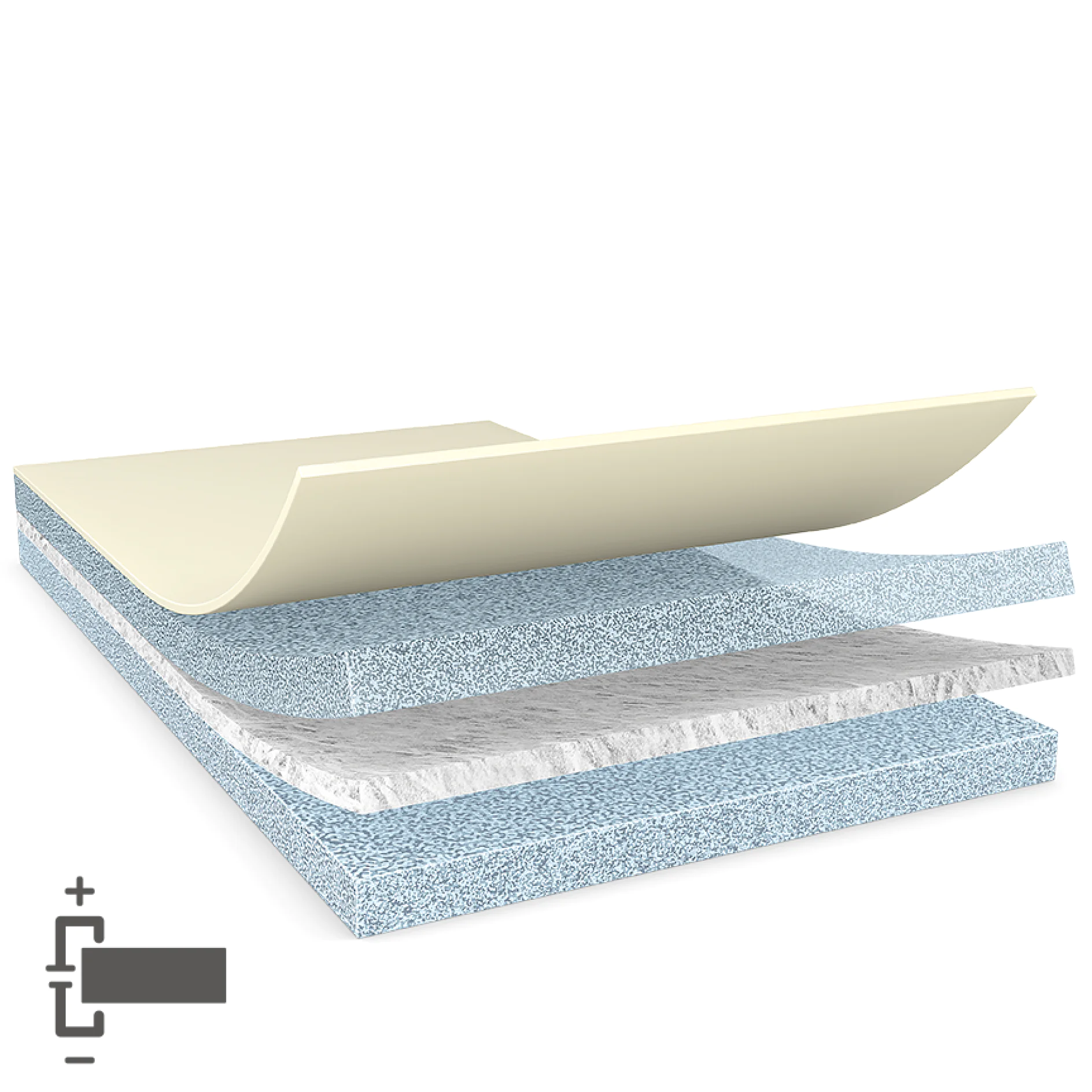

tesa® 60371 is a black double sided electrically conductive self adhesive tape. It consists of an electrically conductive non-woven backing and an electrically conductive acrylic adhesive.
Black color
Product details and specifications
Product Features
- Enhanced electrical conductivity in XYZ-direction
- Highly reliable and stable conductivity even after damp heat conditions
- Good bonding strength
- Great conformability and adjustment to uneven surfaces
- Excellent grounding performance at small bonding area
Application Fields
- EMC applications
- Main board, FPC grounding
- Antenna grounding
- Electrostatic discharge applications
Product Construction
| Backing material | conductive non-woven |
| Colour | black |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 30 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PET |
Properties / Performance Values
| Surface resistance x-y-direction | 0.1 Ohm / square |
| Temperature resistance short term duration | 200 °C |
| Contact resistance z-direction (initial) | 0.01 Ohm / square inch |
| Static shear resistance at 40°C | very good |
| Release of liner | easy |
Properties / Performance Values
| Surface resistance x-y-direction | 0.1 Ohm / square |
| Temperature resistance short term duration | 200 °C |
| Contact resistance z-direction (initial) | 0.01 Ohm / square inch |
| Static shear resistance at 40°C | very good |
| Release of liner | easy |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 5.1 N/cm |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 5.1 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
