Product Construction
| Backing material | conductive woven |
| Colour | grey |
| Colour of liner | transparent |
| Thickness of liner | 23 µm |
| Total thickness | 100 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PET |
tesa® 60384
100µm double sided gray electrically conductive woven tape
Product Features
- High bonding performance with very high peel adhesion level
- Excellent anti-repulsion performance
- Good electrical conductivity in XYZ-direction even at high temperatures and humidity
Product description

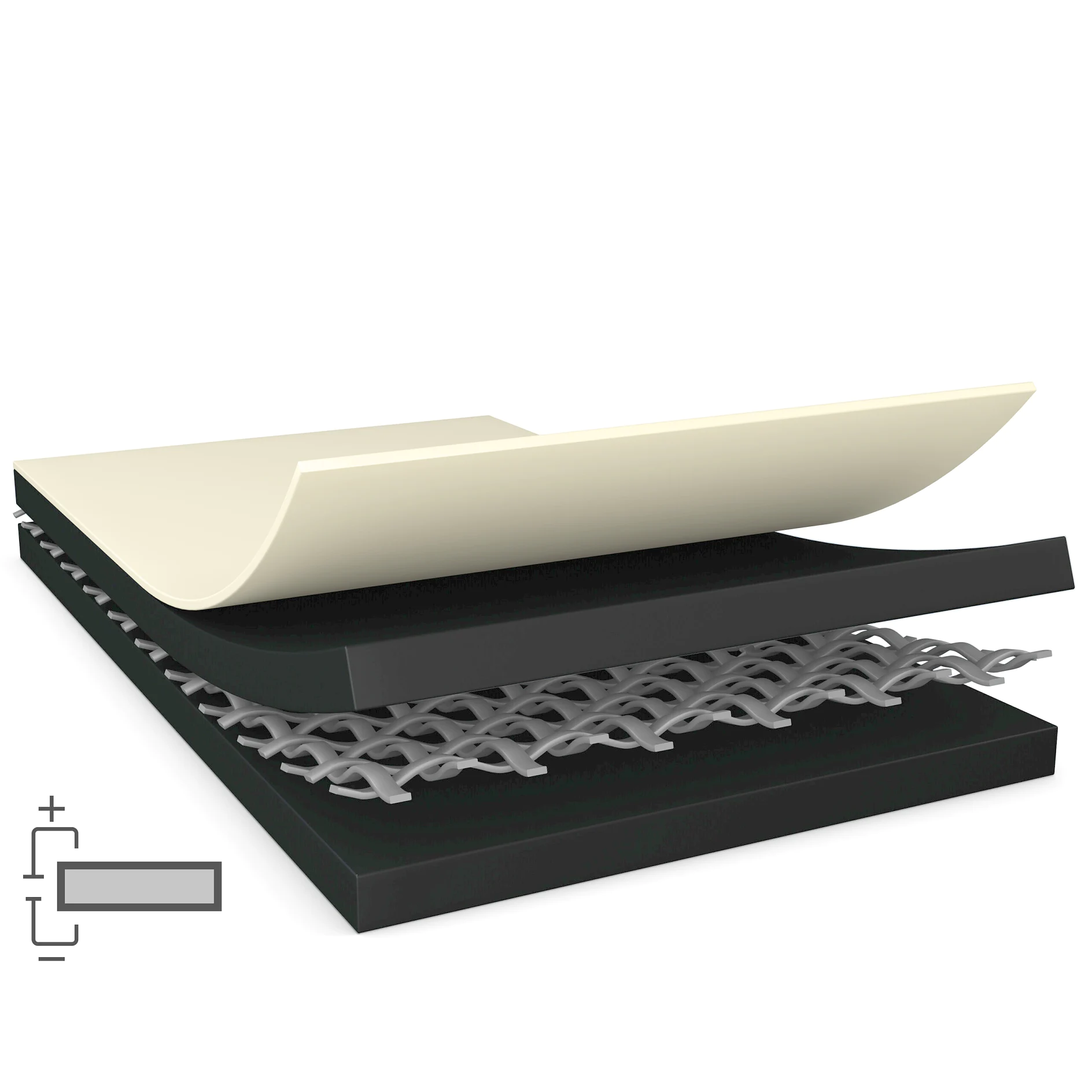

tesa® 60384 is a gray double sided electrically conductive self-adhesive tape. It consists of an electrically conductive woven backing and an electrically conductive acrylic adhesive.
Product details and specifications
Product Features
- High bonding performance with very high peel adhesion level
- Excellent anti-repulsion performance
- Good electrical conductivity in XYZ-direction even at high temperatures and humidity
- Good tear resistance
Application Fields
- EMC applications
- FPC grounding
- Antenna grounding
- Electrostatic discharge applications
Product Construction
| Backing material | conductive woven |
| Colour | grey |
| Colour of liner | transparent |
| Thickness of liner | 23 µm |
| Total thickness | 100 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PET |
Properties / Performance Values
| Surface resistance x-y-direction (adhesive) | 0.3 Ohm / square |
| Static shear resistance at 40°C | very good |
| Release of liner | easy |
| Contact resistance z-direction (initial) | 0.06 Ohm / square inch |
| Temperature resistance short term duration | 180 °C |
Properties / Performance Values
| Surface resistance x-y-direction (adhesive) | 0.3 Ohm / square |
| Static shear resistance at 40°C | very good |
| Release of liner | easy |
| Contact resistance z-direction (initial) | 0.06 Ohm / square inch |
| Temperature resistance short term duration | 180 °C |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 10 N/cm |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 10 N/cm |
Additional Info
- 50µm tight release liner (outside of the roll)
- 23µm easy release liner
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
