Product Construction
Backing material | PET film |
Colour | transparent |
Colour of liner | red |
Thickness of liner | 80 µm |
Total thickness | 205 µm |
Type of adhesive | tackified acrylic |
Type of liner | MOPP |
Weight of liner | 72 g/m² |

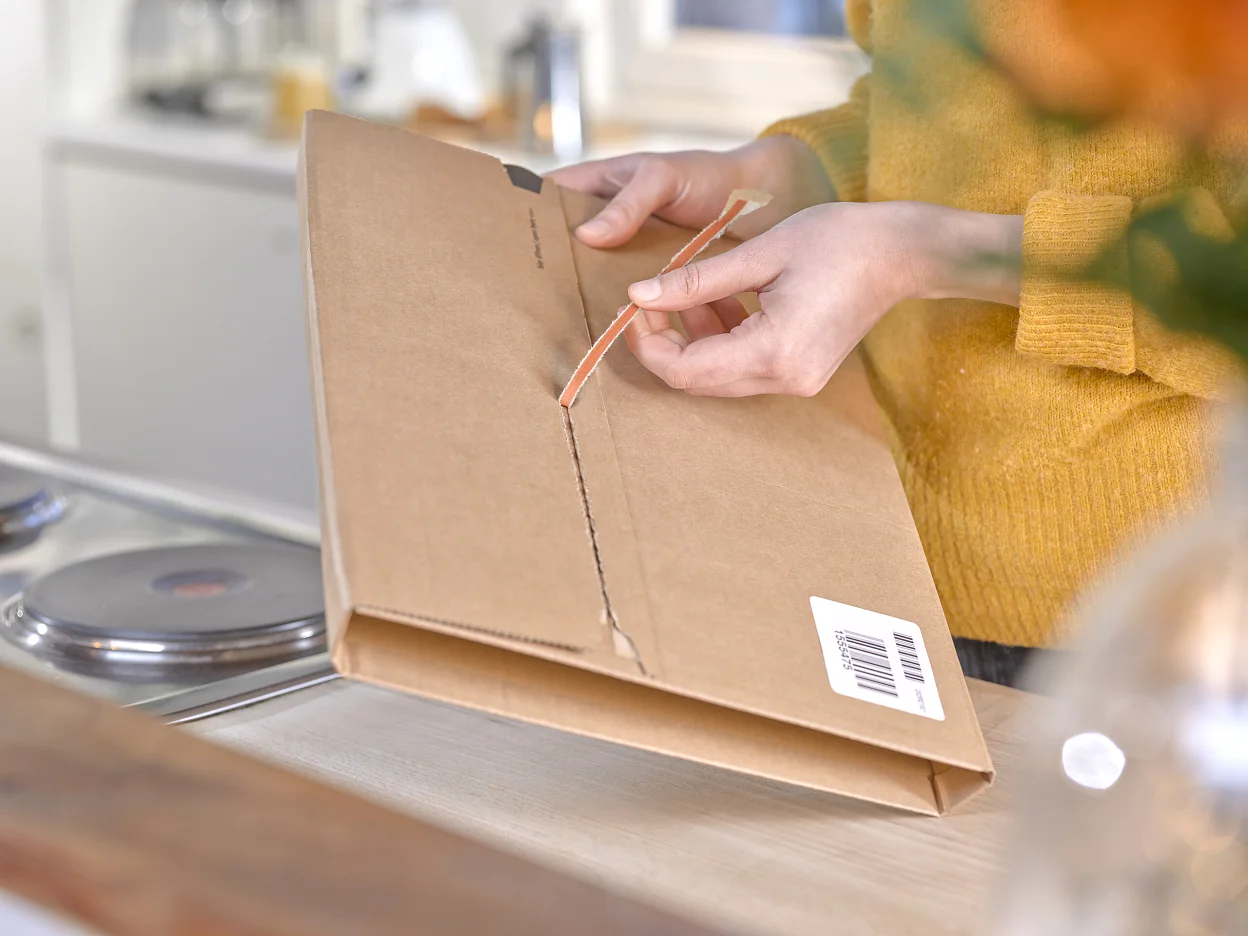

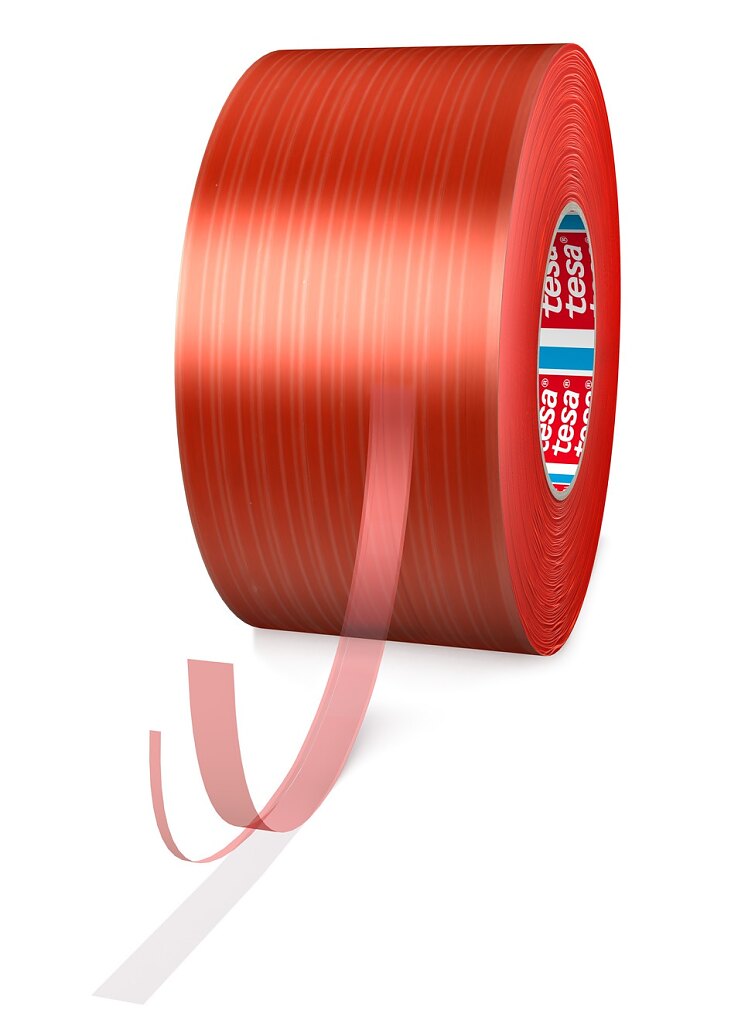

Double-sided filmic box sealing tape with integrated tear-tape

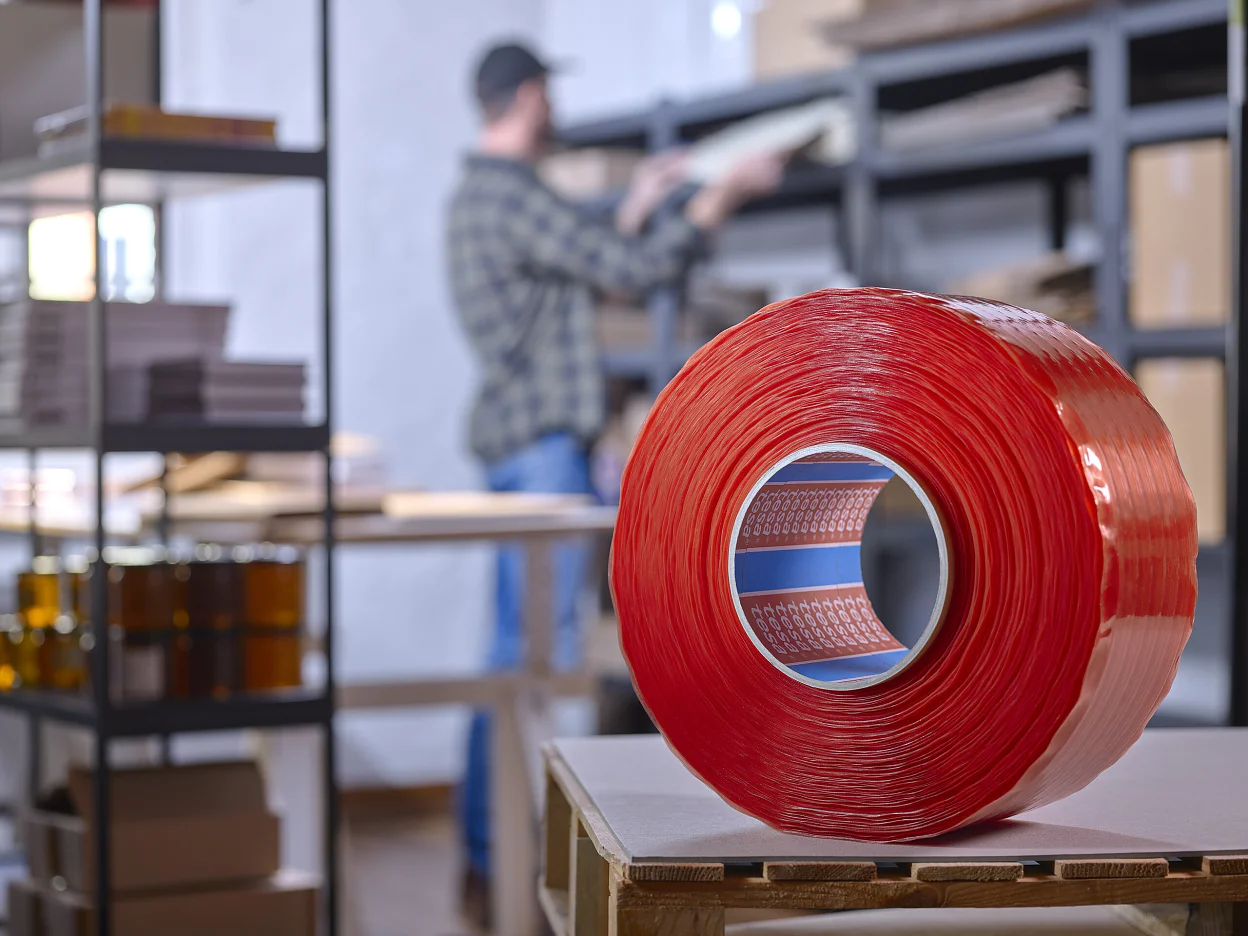

tesa® Combitape is a transparent double-sided tape consisting of a PET-film backing and a tackified acrylic adhesive. tesa® Combitape is supplied with fingerlift (extended liner) and integrated tear-tape.
tesa® Combitape has been designed for corrugated board cartons and features:
Backing material | PET film |
Colour | transparent |
Colour of liner | red |
Thickness of liner | 80 µm |
Total thickness | 205 µm |
Type of adhesive | tackified acrylic |
Type of liner | MOPP |
Weight of liner | 72 g/m² |
Backing material | PET film |
Colour | transparent |
Colour of liner | red |
Thickness of liner | 80 µm |
Total thickness | 205 µm |
Type of adhesive | tackified acrylic |
Type of liner | MOPP |
Weight of liner | 72 g/m² |
Elongation at break | 30 % |
Tensile strength | 130 N/cm |
Humidity resistance | very good |
Static shear resistance at 23°C | very good |
Temperature resistance short term duration | 200 °C |
Ageing resistance (UV) | good |
Tack | good |
Temperature resistance long term duration | 100 °C |
Chemical resistance | good |
Softener resistance | good |
Temperature resistance min. | -40 °C |
Static shear resistance at 40°C | very good |
Elongation at break | 30 % |
Tensile strength | 130 N/cm |
Humidity resistance | very good |
Static shear resistance at 23°C | very good |
Temperature resistance short term duration | 200 °C |
Ageing resistance (UV) | good |
Tack | good |
Temperature resistance long term duration | 100 °C |
Chemical resistance | good |
Softener resistance | good |
Temperature resistance min. | -40 °C |
Static shear resistance at 40°C | very good |
Adhesion to ABS (initial) | 10.3 N/cm |
Adhesion to ABS (after 14 days) | 12 N/cm |
Adhesion to Aluminium (initial) | 9.2 N/cm |
Adhesion to Aluminium (after 14 days) | 10.6 N/cm |
Adhesion to PC (initial) | 12.6 N/cm |
Adhesion to PC (after 14 days) | 14 N/cm |
Adhesion to PE (initial) | 5.8 N/cm |
Adhesion to PE (after 14 days) | 6.9 N/cm |
Adhesion to PET (initial) | 9.2 N/cm |
Adhesion to PET (after 14 days) | 9.5 N/cm |
Adhesion to PP (initial) | 6.8 N/cm |
Adhesion to PP (after 14 days) | 7.9 N/cm |
Adhesion to PS (initial) | 10.6 N/cm |
Adhesion to PS (after 14 days) | 12 N/cm |
Adhesion to PVC (initial) | 8.7 N/cm |
Adhesion to PVC (after 14 days) | 13 N/cm |
Adhesion to Steel (initial) | 11.5 N/cm |
Adhesion to Steel (after 14 days) | 11.8 N/cm |
Adhesion to ABS (initial) | 10.3 N/cm |
Adhesion to ABS (after 14 days) | 12 N/cm |
Adhesion to Aluminium (initial) | 9.2 N/cm |
Adhesion to Aluminium (after 14 days) | 10.6 N/cm |
Adhesion to PC (initial) | 12.6 N/cm |
Adhesion to PC (after 14 days) | 14 N/cm |
Adhesion to PE (initial) | 5.8 N/cm |
Adhesion to PE (after 14 days) | 6.9 N/cm |
Adhesion to PET (initial) | 9.2 N/cm |
Adhesion to PET (after 14 days) | 9.5 N/cm |
Adhesion to PP (initial) | 6.8 N/cm |
Adhesion to PP (after 14 days) | 7.9 N/cm |
Adhesion to PS (initial) | 10.6 N/cm |
Adhesion to PS (after 14 days) | 12 N/cm |
Adhesion to PVC (initial) | 8.7 N/cm |
Adhesion to PVC (after 14 days) | 13 N/cm |
Adhesion to Steel (initial) | 11.5 N/cm |
Adhesion to Steel (after 14 days) | 11.8 N/cm |
Download the files below for more technical details and information on this product.
