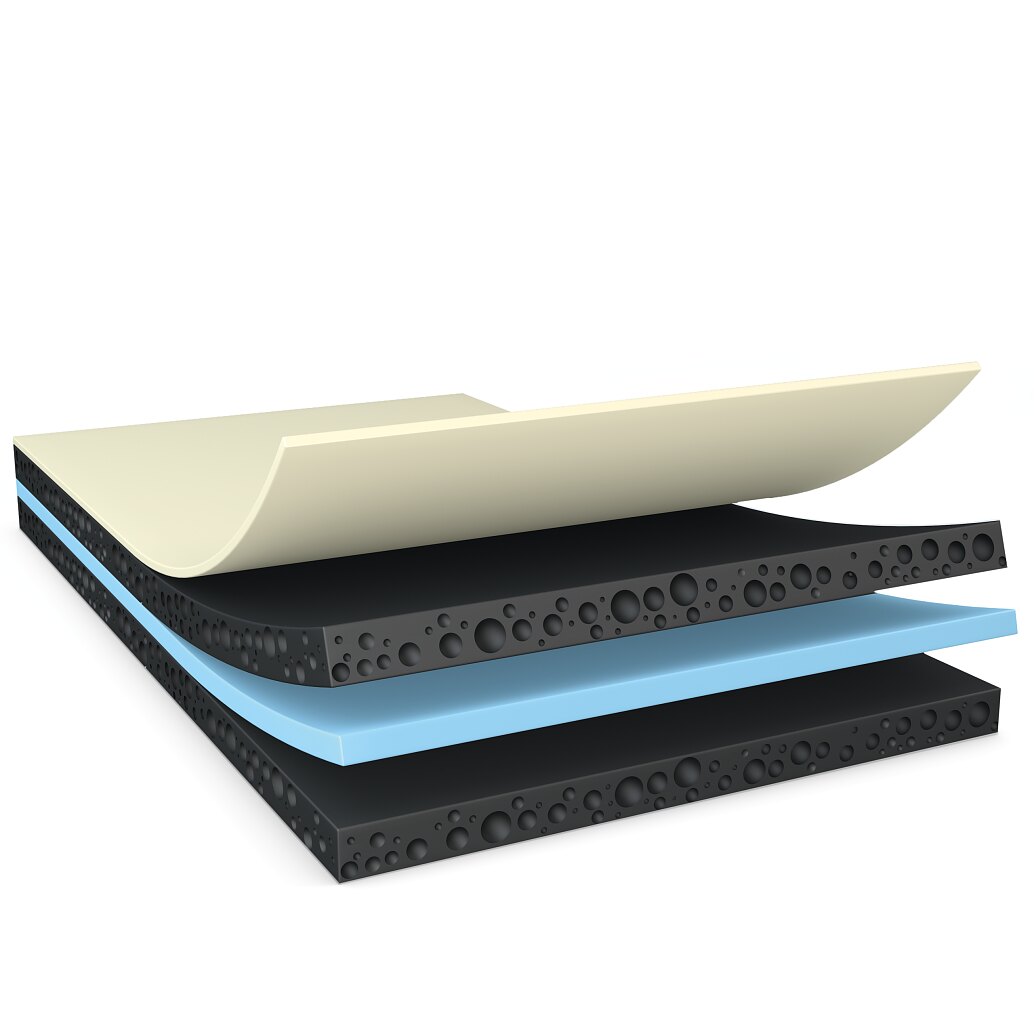

Product Construction
Backing material | PE foam |
Colour | black |
Total thickness | 300 µm |
Type of adhesive | tackified acrylic |
Type of liner | PET film |
Backing material | PE foam |
Colour | black |
Total thickness | 300 µm |
Type of adhesive | tackified acrylic |
Type of liner | PET film |
Backing material | PE foam |
Colour | black |
Total thickness | 300 µm |
Type of adhesive | tackified acrylic |
Type of liner | PET film |
Elongation at break | 240 % |
Tensile strength | 11.5 N/cm |
Static shear resistance at 40°C | good |
Static shear resistance at 23°C | good |
Humidity resistance | good |
Ageing resistance (UV) | good |
Elongation at break | 240 % |
Tensile strength | 11.5 N/cm |
Static shear resistance at 40°C | good |
Static shear resistance at 23°C | good |
Humidity resistance | good |
Ageing resistance (UV) | good |
Adhesion to ABS (initial) | 9.2 N/cm |
Adhesion to ABS (after 14 days) | 11.5 N/cm |
Adhesion to Aluminium (initial) | 9.2 N/cm |
Adhesion to Aluminium (after 14 days) | 12.3 N/cm |
Adhesion to Glass (initial) | 13 N/cm |
Adhesion to Glass (after 14 days) | 13.8 N/cm |
Adhesion to PC (initial) | 12.4 N/cm |
Adhesion to PC (after 14 days) | 15.5 N/cm |
Adhesion to PE (initial) | 6 N/cm |
Adhesion to PE (after 14 days) | 6.5 N/cm |
Adhesion to PMMA (initial) | 12.9 N/cm |
Adhesion to PMMA (after 14 days) | 16.4 N/cm |
Adhesion to Steel (initial) | 12.5 N/cm |
Adhesion to Steel (after 14 days) | 14.4 N/cm |
Adhesion to ABS (initial) | 9.2 N/cm |
Adhesion to ABS (after 14 days) | 11.5 N/cm |
Adhesion to Aluminium (initial) | 9.2 N/cm |
Adhesion to Aluminium (after 14 days) | 12.3 N/cm |
Adhesion to Glass (initial) | 13 N/cm |
Adhesion to Glass (after 14 days) | 13.8 N/cm |
Adhesion to PC (initial) | 12.4 N/cm |
Adhesion to PC (after 14 days) | 15.5 N/cm |
Adhesion to PE (initial) | 6 N/cm |
Adhesion to PE (after 14 days) | 6.5 N/cm |
Adhesion to PMMA (initial) | 12.9 N/cm |
Adhesion to PMMA (after 14 days) | 16.4 N/cm |
Adhesion to Steel (initial) | 12.5 N/cm |
Adhesion to Steel (after 14 days) | 14.4 N/cm |
Download the files below for more technical details and information on this product.
