Product Construction
| Backing material | PVC film |
| Total thickness | 181 µm |
| Type of adhesive | natural rubber |

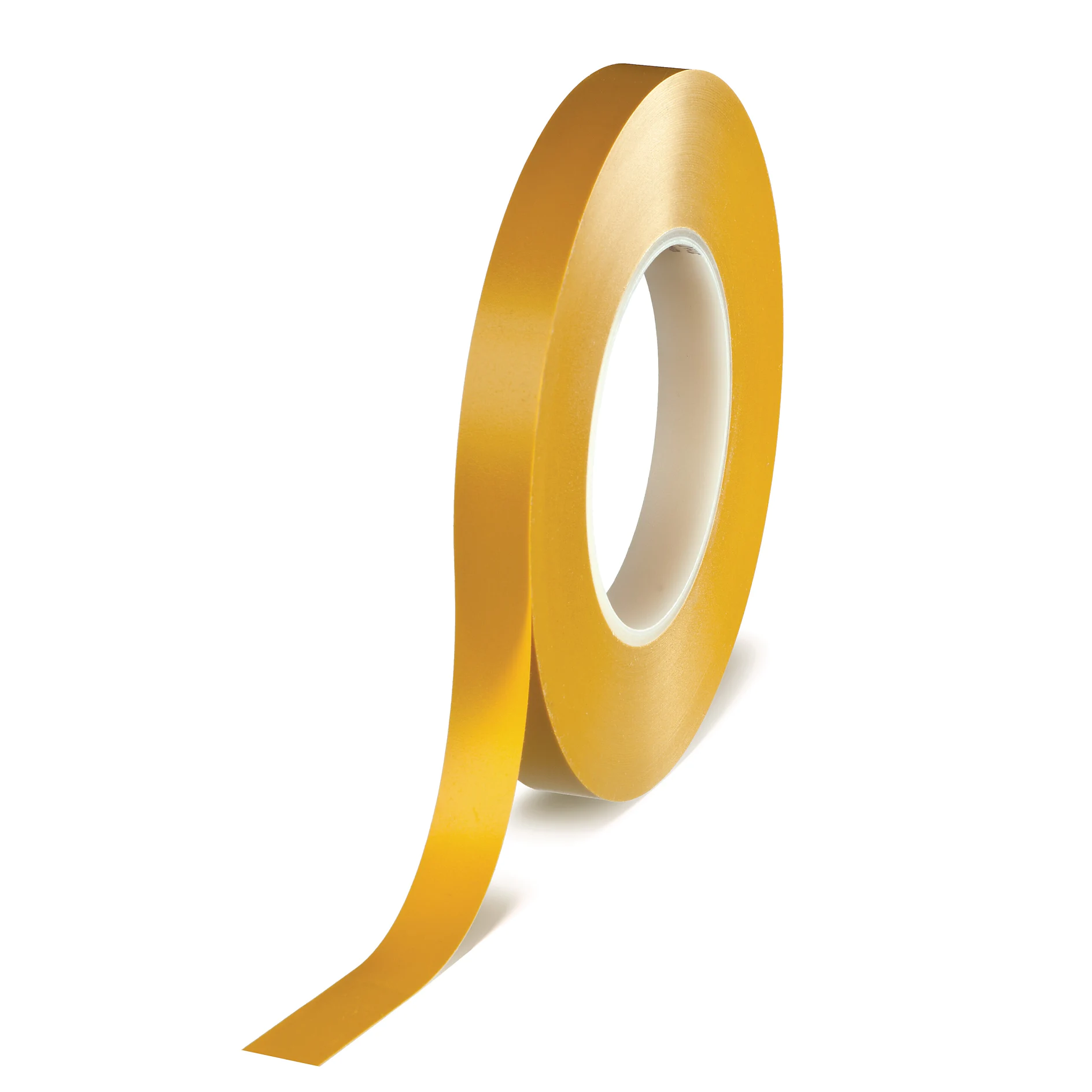

tesa® 7140 PV3
Window flange masking tape for the automotive industry
Product description
tesa® 7140 consists of a laminate of PVC film with a PET film. It combines the durability of a PVC film and the high tensile modulus of a PET film.
This product allows the window panes to be applied directly to the e-coated window flange area without using a primer. tesa® 7140 is highly compatible with all relevant e-coats, fillers and window glues. After demasking, the panes can be applied directly on the e-coat without pretreatment of the surface.
Product details and specifications
Application Fields
Protection of the window flange from paint
Product Construction
| Backing material | PVC film |
| Total thickness | 181 µm |
| Type of adhesive | natural rubber |
Properties / Performance Values
| Elongation at break | 130 % |
| Tensile strength | 140 N/cm |
| Hand tearability | no |
| Easy to remove | yes |
| Temperature resistance | very good |
Properties / Performance Values
| Elongation at break | 130 % |
| Tensile strength | 140 N/cm |
| Hand tearability | no |
| Easy to remove | yes |
| Temperature resistance | very good |
Adhesion to Values
| Adhesion to steel | 4 N/cm |
Adhesion to Values
| Adhesion to steel | 4 N/cm |
Additional Info
The product design of tesa® 7140 allows convenient application both by hand and robot and is also suitable for converting and die-cutting.
In case of fully automatic applications the best-before-date for spools is max. 12 months under recommended storage conditions.
In case of fully automatic applications the best-before-date for spools is max. 12 months under recommended storage conditions.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
