Product Construction
| Backing material | foamed acrylic |
| Colour | deep black |
| Total thickness | 1200 µm |
| Type of adhesive | modified acrylic |
| Type of liner | PE/PP protection film |

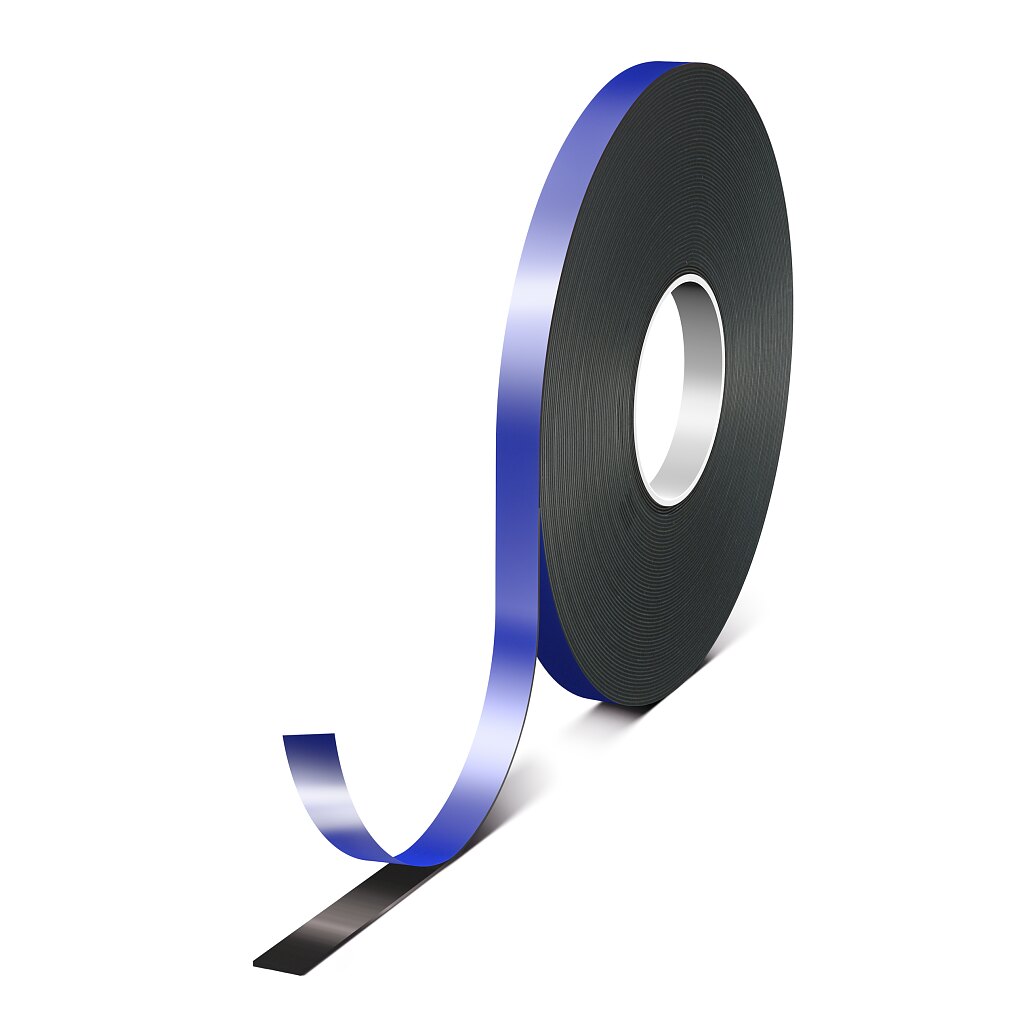

tesa® ACXplus 7812 Black Line
tesa® ACXplus Acrylic Foam Tape Black Line 1200µm
Product description
tesa® ACXplus 7812 is a deep black acrylic foam tape for exterior attachment part mounting.
Its outstanding cold shock resistance is based on a modified acrylic foam core, which assures a reliable bond even at extreme low temperatures. Being visco-elastic, tesa® ACXplus 7812 optimally absorbs and dissipates dynamic and static loads. This exceptional capability enables tesa® ACXplus 7812 to compensate for extreme physical stress caused by different thermal elongation of bonded parts in rapidly changing temperatures.
Features:
- Visco-elastic acrylic foam core to compensate for different thermal elongation of bonded parts
- Excellent cold shock performance
- Deep black colour for enhanced appearance and high design flexibility
- Closed cell acrylic foam core for reliable sealing to prevent water penetration
- High humidity and UV resistance
Product details and specifications
Application Fields
Permanent exterior mounting of
- Body side moldings and decorative trims
- Emblems
- Spoilers
- Antennas
- Pillar appliques
Product Construction
| Backing material | foamed acrylic |
| Colour | deep black |
| Total thickness | 1200 µm |
| Type of adhesive | modified acrylic |
| Type of liner | PE/PP protection film |
Properties / Performance Values
| Elongation at break | 1400 % |
| Humidity resistance | very good |
| Ageing resistance (UV) | very good |
Properties / Performance Values
| Elongation at break | 1400 % |
| Humidity resistance | very good |
| Ageing resistance (UV) | very good |
Adhesion to Values
| Adhesion to ABS (after 3 days) | 24 N/cm |
| Adhesion to Steel (after 3 days) | 32 N/cm |
Adhesion to Values
| Adhesion to ABS (after 3 days) | 24 N/cm |
| Adhesion to Steel (after 3 days) | 32 N/cm |
Additional Info
PV 24 = Blue siliconised HDPE filmic liner
PV 25 = White siliconised PE-coated paper liner
PV 25 = White siliconised PE-coated paper liner
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
