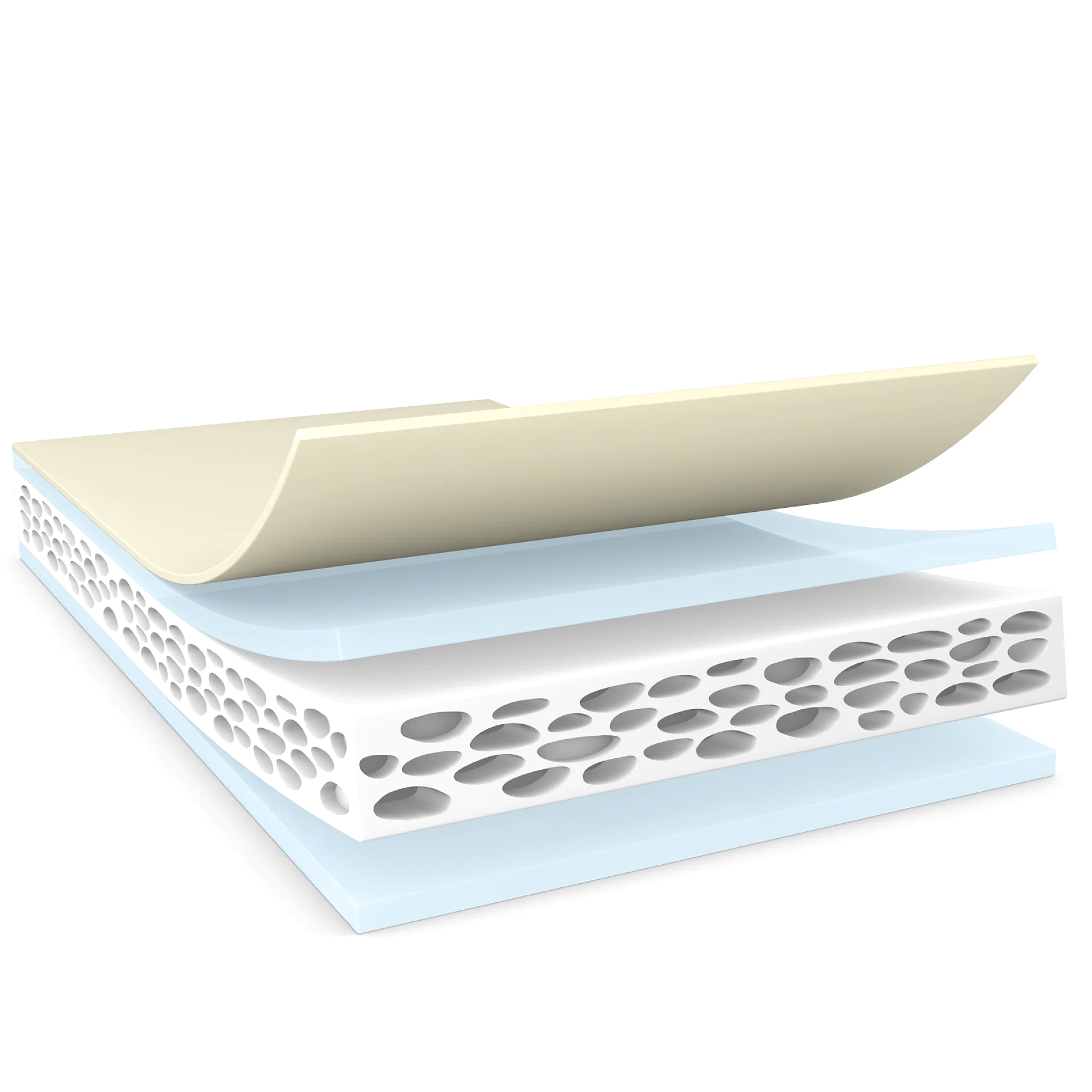

Product Construction
| Backing material | FR PE foam |
| Colour | white |
| Total thickness | 1000 µm |
| Type of adhesive | FR acrylic |
| Type of liner | plain red |

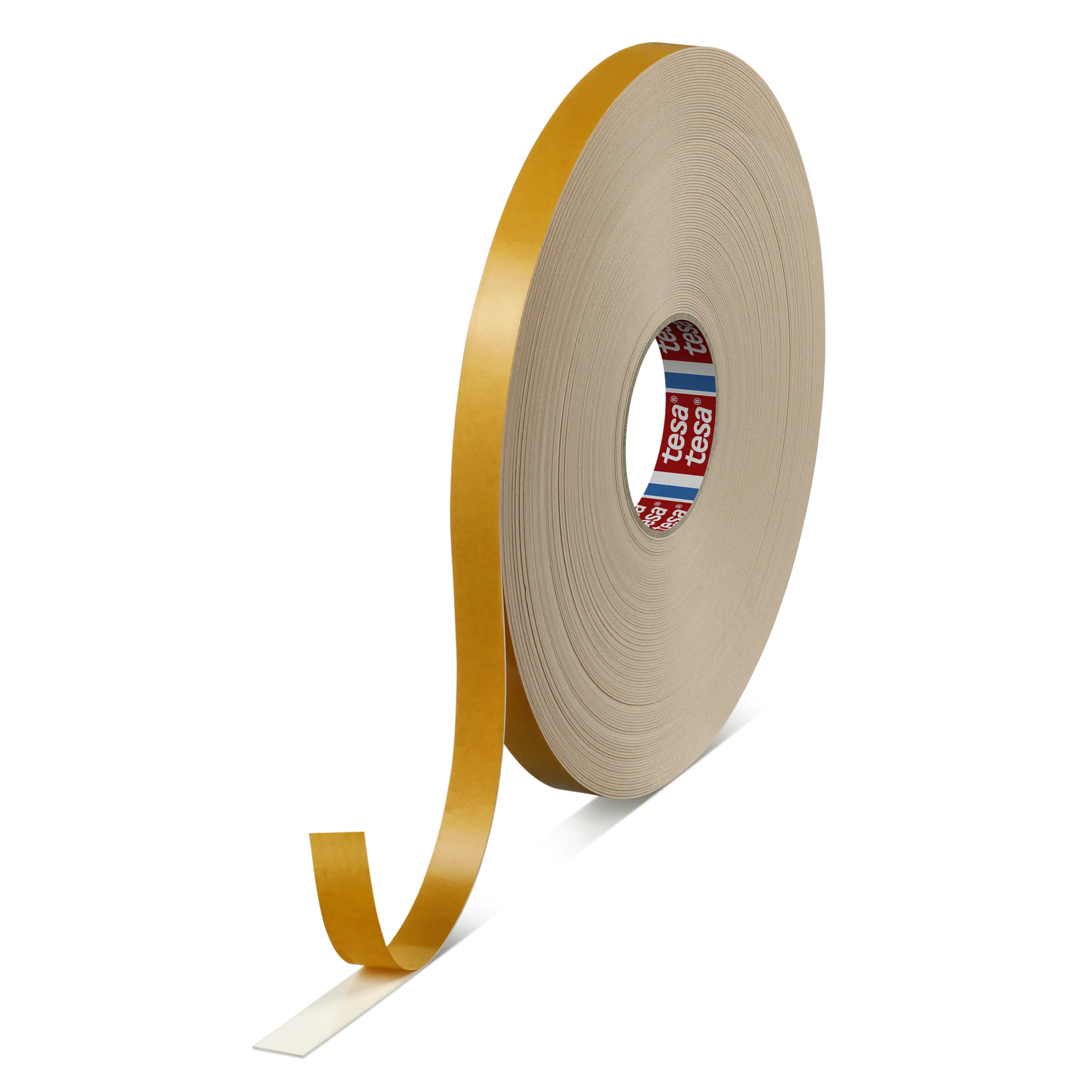

tesa® flameXtinct 45001
1000 µm Flame Retardant PE-Foam Tape
Product description
The tesa® flameXtinct product family comprises a variety of high performance adhesive tape solutions for mounting applications. The tesa® flameXtinct assortment, and thus all contained products are clearly defined by following characteristics:
- Flame retardant
- Halogen-free
- High performance adhesives
- Wide product portfolio
- Proven flame retardant characteristics according to FAR 25.853(a) app. F part1 and UL 94 HBF - HF1
- Excellent adhesion characteristics on a variety of surfaces
- High conformability and gap filling properties
- Shock absorbing
- Extremely light weight compared to alternative flame retardant bonding opportunities
Product details and specifications
Application Fields
- Mounting in elevator
- Bonding in aircraft cabin interior
- Assemblies in trains
- Marine applications
- Automotive
Product Construction
| Backing material | FR PE foam |
| Colour | white |
| Total thickness | 1000 µm |
| Type of adhesive | FR acrylic |
| Type of liner | plain red |
Properties / Performance Values
| Temperature resistance short term duration | 80 °C |
| Temperature resistance long term duration | 80 °C |
| Static shear resistance at 40°C | good |
Properties / Performance Values
| Temperature resistance short term duration | 80 °C |
| Temperature resistance long term duration | 80 °C |
| Static shear resistance at 40°C | good |
Adhesion to Values
| Adhesion to Aluminium (initial) | 16.6 N/cm |
| Adhesion to Aluminium (after 14 days) | 21.8 N/cm |
| Adhesion to Steel (initial) | 19.2 N/cm |
| Adhesion to Steel (after 14 days) | 22 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 16.6 N/cm |
| Adhesion to Aluminium (after 14 days) | 21.8 N/cm |
| Adhesion to Steel (initial) | 19.2 N/cm |
| Adhesion to Steel (after 14 days) | 22 N/cm |
Additional Info
PV6 = red MOPP liner (80µm)
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
