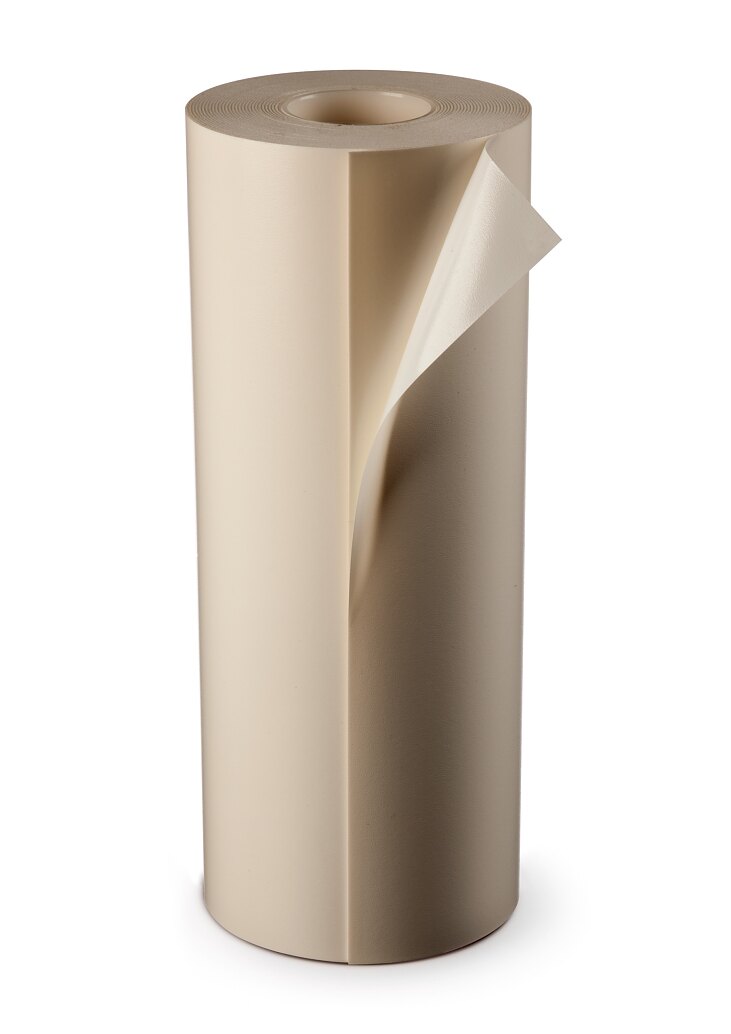

tesa® Softprint 52060 BigFoam

Foam plate mounting tape for flexographic printing

Product description

tesa® 52060 Softprint BigFoam is a 1500µm double-coated foam tape designed specifically for mounting photopolymer plates in wide-web film and paper flexographic printing.

Due to its medium hardness foam it is particularly suited for high quality combination of half-tone and solid work.

tesa® Softprint BigFoam offers the following benefits:

tesa® Softprint BigFoam is highly compressible and therefore offers improved print quality and higher running speeds
tesa® Softprint's BigFoam unique construction ensures that print quality is maintained even on extended print runs

The special adhesive ensures simple mounting, easy repositioning, and demounting of plate and tape without residues
During printing a very good bond of tape and plate is achieved. Plates stay securely in place with no edge lifting and no plate movement
The structured PP-liner prevents the formation of air pockets when plate mounting

Product details and specifications

Application Fields

tesa® 52060 Softprint BigFoam is a 1500µm (60 mil) category double-coated foam tape, designed specifically for mounting photopolymer plates in wide-web film and paper flexographic printing.

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® Softprint 52060_en-GB 51 kB

Contact us

Thank you for your message.

We will conctact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

Name of product	tesa® Softprint 52060 BigFoam	tesa® Softprint 73324 TP-X (EA), Medium	tesa® Softprint 73322 TP-X (EA), Soft	tesa® Softprint 73326 TP-X (EA), Medium-Hard	tesa® Softprint 52814 SEC	tesa® Softprint 52015 Steel Master	tesa® Softprint 72228 Softprint® Sleevemaster	tesa® Softprint 72420 FE	tesa® Softprint 72028 Steelmaster	tesa® Softprint 73126 Steelmaster TP	tesa® Softprint 72328 TP-X
Type of adhesive	tackified acrylic	tackified acrylic	tackified acrylic	tackified acrylic	tackified acrylic	tackified acrylic	tackified acrylic	tackified acrylic	tackified acrylic	tackified acrylic	tackified acrylic
Backing material	PE foam	PE foam with film lamination	PE foam with film lamination	PE foam with film lamination	PE foam with film lamination	PE foam with film lamination	PE foam with film lamination	PE foam with film lamination	PE foam with film lamination	PE foam with film lamination	PE foam with film lamination
Thickness category	1500	500	500	500	380	380	500	500	500	500	500
Hardness	medium	medium	soft	medium-hard	hard	medium-hard	hard	extra soft	hard	medium-hard	hard
Type of liner	PP	PP	PP	PP	PP	PP	PP	PP	PP	PP	PP
Total thickness		550 µm	550 µm	550 µm	430 µm	430 µm	550 µm	550 µm	550 µm	550 µm	550 µm
Colour of foam		purple	red	blue
