Common flexo challenges and tips to avoid them
Every experienced print operator knows that no two presses are quite the same. There are many variables that can impact efficiency and quality. That's why our technical team has put together a list of best practices to avoid problems before they start.

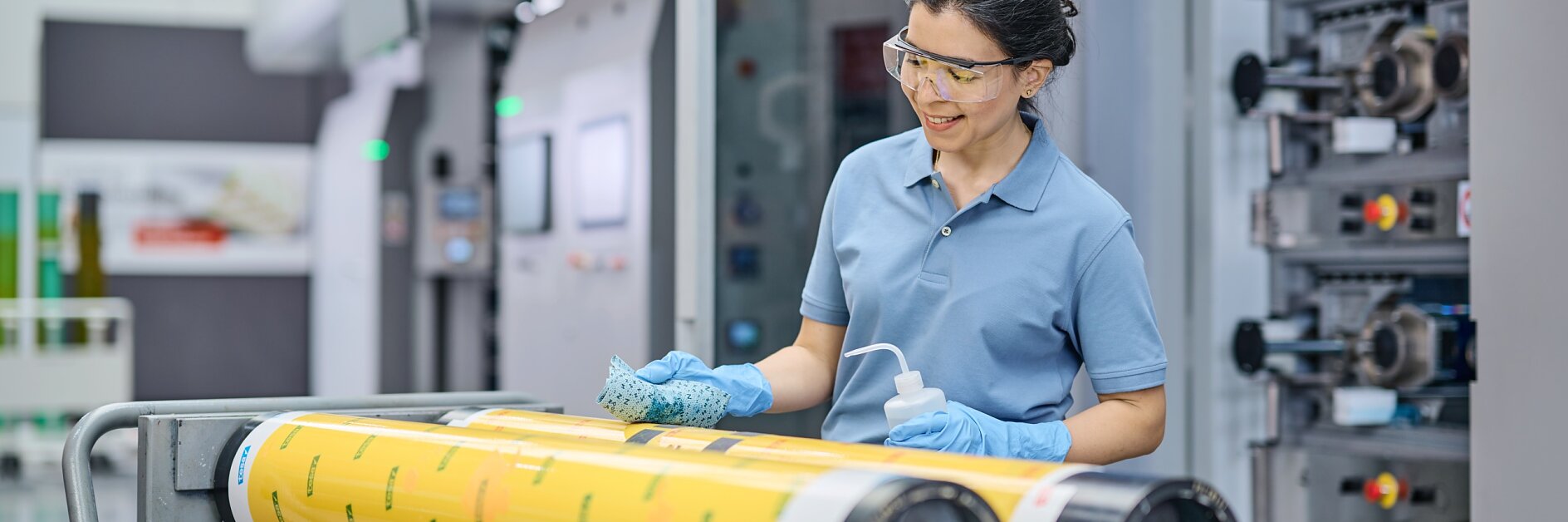

Unclean components are the enemies of the pressroom. There are so many problems they can cause, including plate lift during printing, plate damage upon removal, and air collection between sleeve and tape. Choosing the correct solvents for cleaning sleeves and plates is crucial too. And then it’s also important to allow time for cleaning agents to dry properly before mounting plates. Otherwise, they can evaporate after plate mounting and create air bubbles and plate lift.

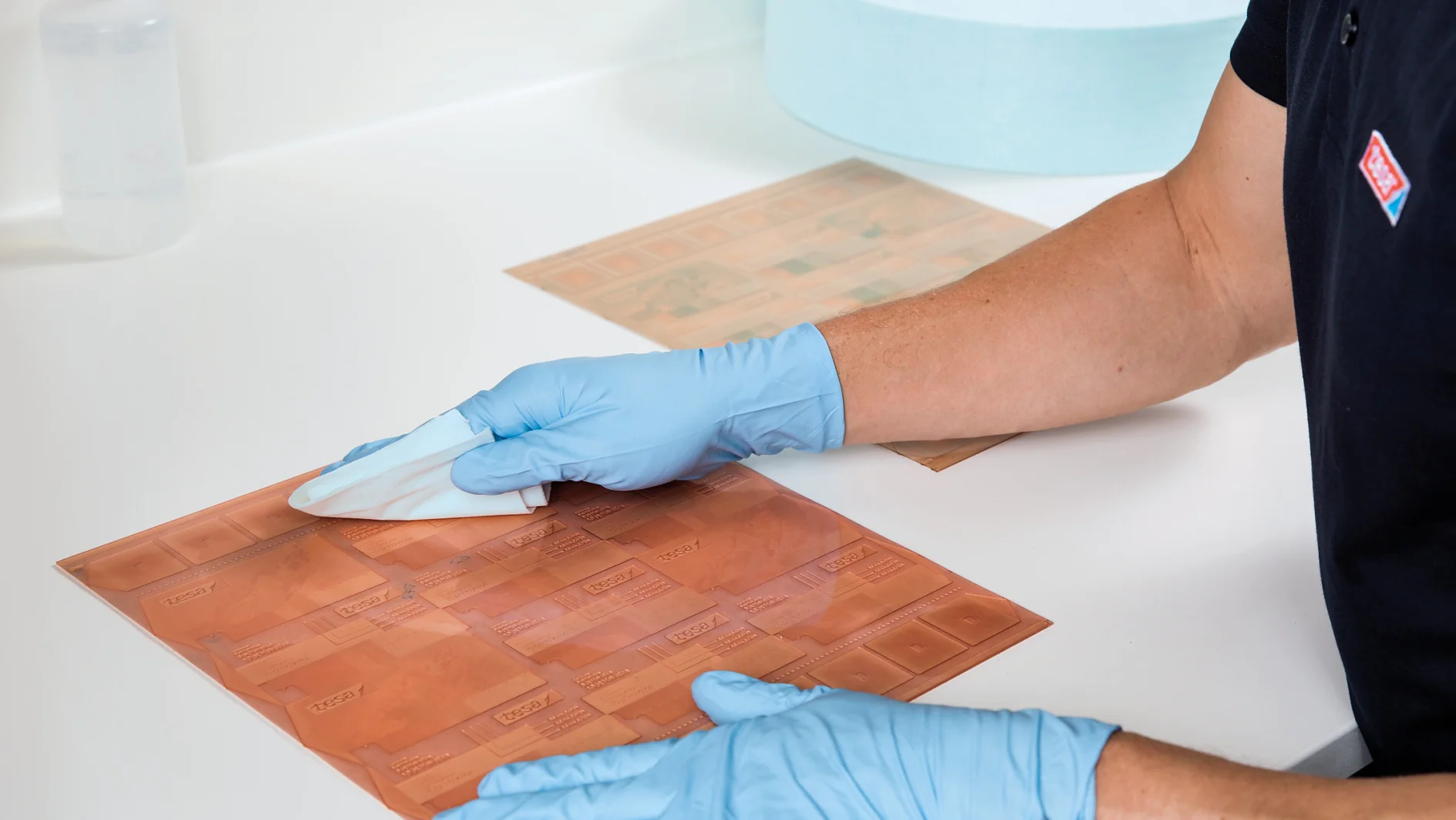

We recommend cleaning the backside of plates with either a 100 percent IPA or using up to 20 percent Acetate in the IPA solution. This should be done prior to mounting and ideally before storing too. Even the cleanest looking plates can hold ink residue that affects plate lift and ultimately print quality, as well as ease of plate de-mounting. Choosing the right plate mounting solution, as well as process tapes and tools for your particular circumstances avoids problems, and our support team is on hand to advise with this.
Temperature and humidity
Slight changes in the atmospheric conditions in your print room can make significant differences to your processes. Did you know that your tape, plate, and sleeve should be at similar temperatures when mounting? This prevents humidity from becoming trapped between the components which can lead to insufficient bonds and plate lift.
Temperature, humidity, and air circulation can also affect the quality of ink transfer. Water and alcohol-based inks especially can dry too fast or too slowly, so keeping a consistent atmosphere or adjusting the dryer power can help. To achieve the best results is a balancing act of many variables, from the conditions to the choice of products you use.
Pressure
When mounting tape and plates, remember that the adhesive is pressure sensitive, especially when handling low-tack adhesives. So, any area of the tape or plate that gets less pressure—or worse, no pressure—will not stick. These areas are where air bubbles will begin to form. The bad news is, any area that doesn’t stick well at the beginning can grow bigger, as the tape will pull up areas around it.

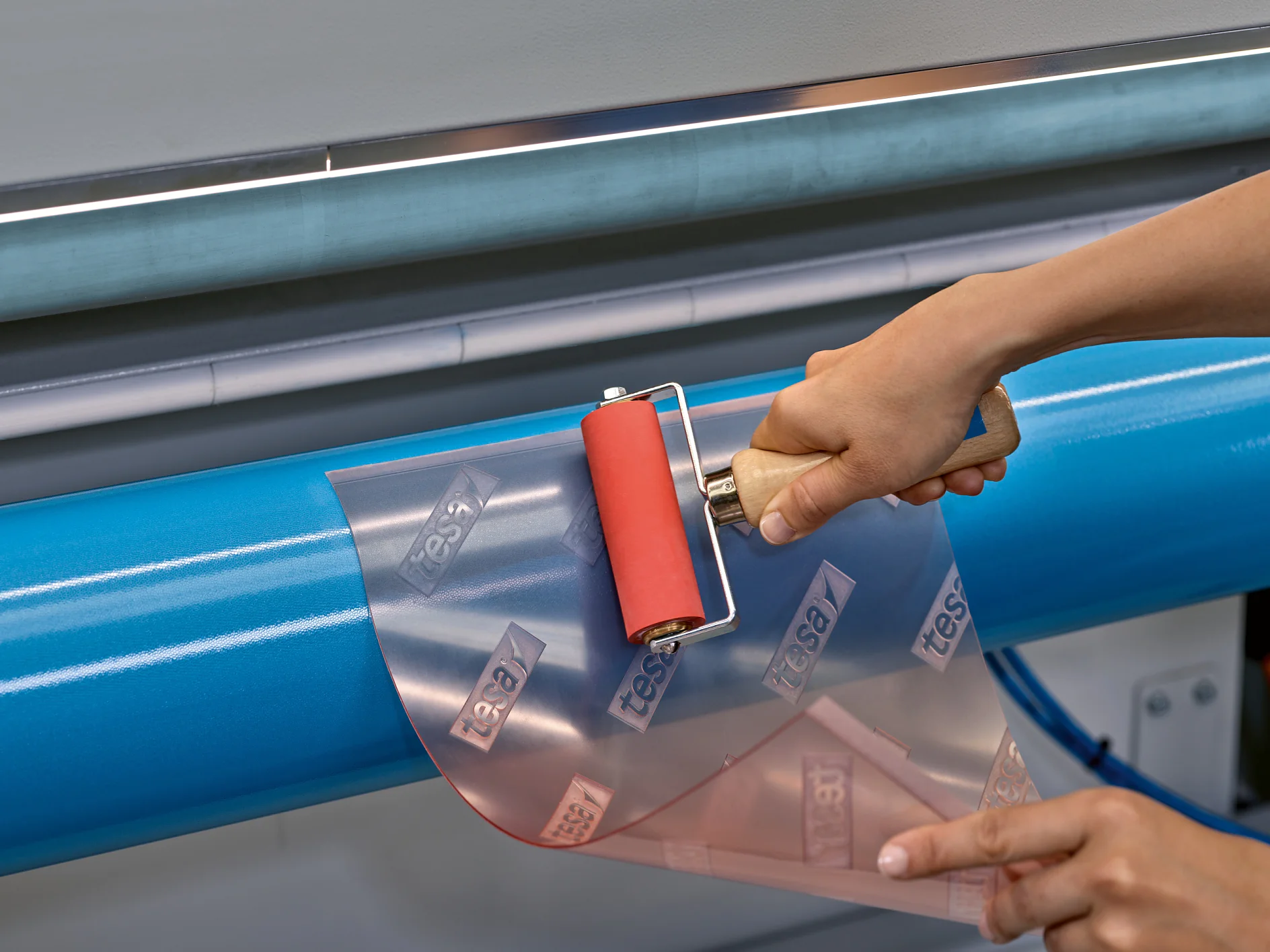

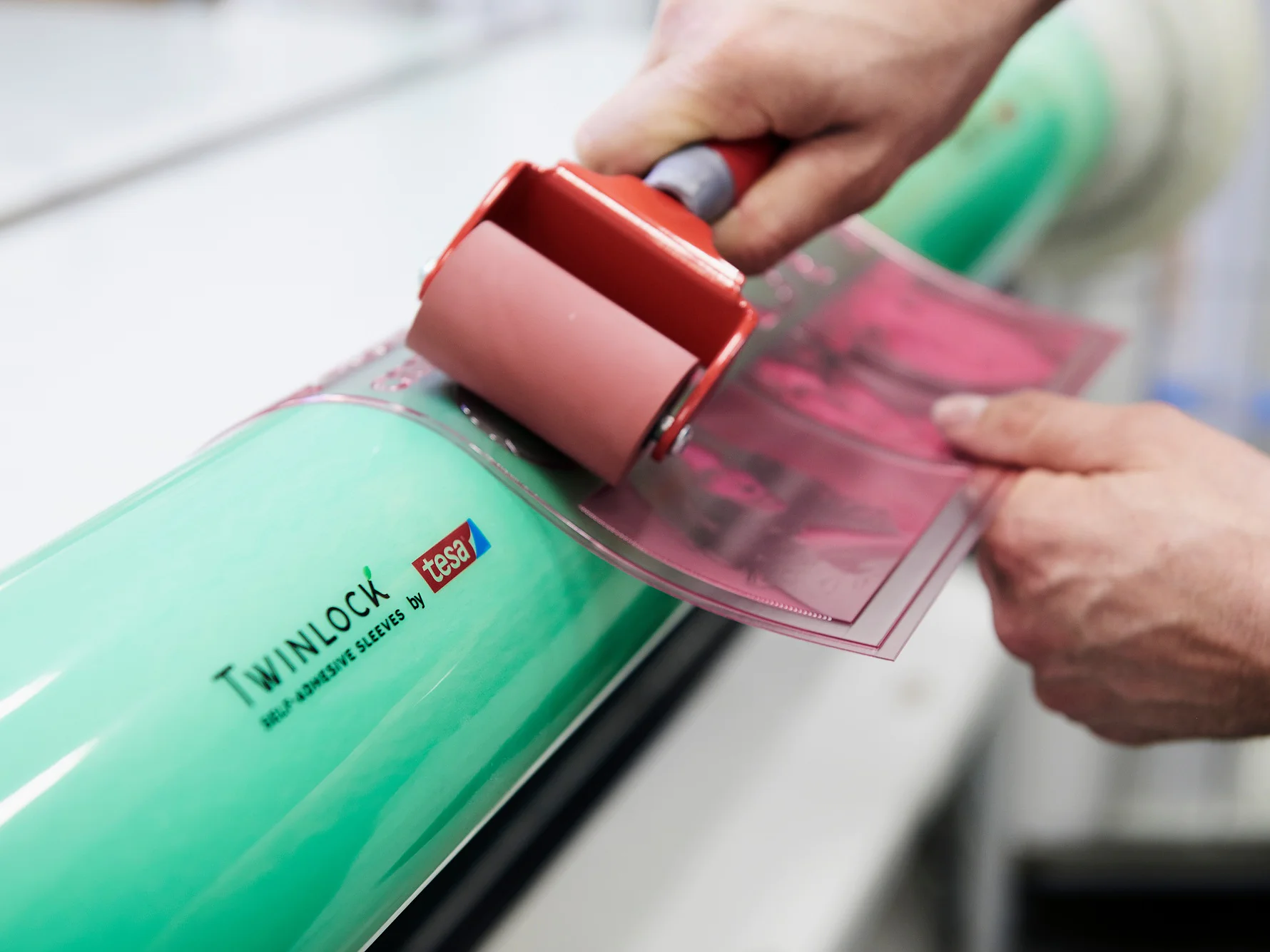

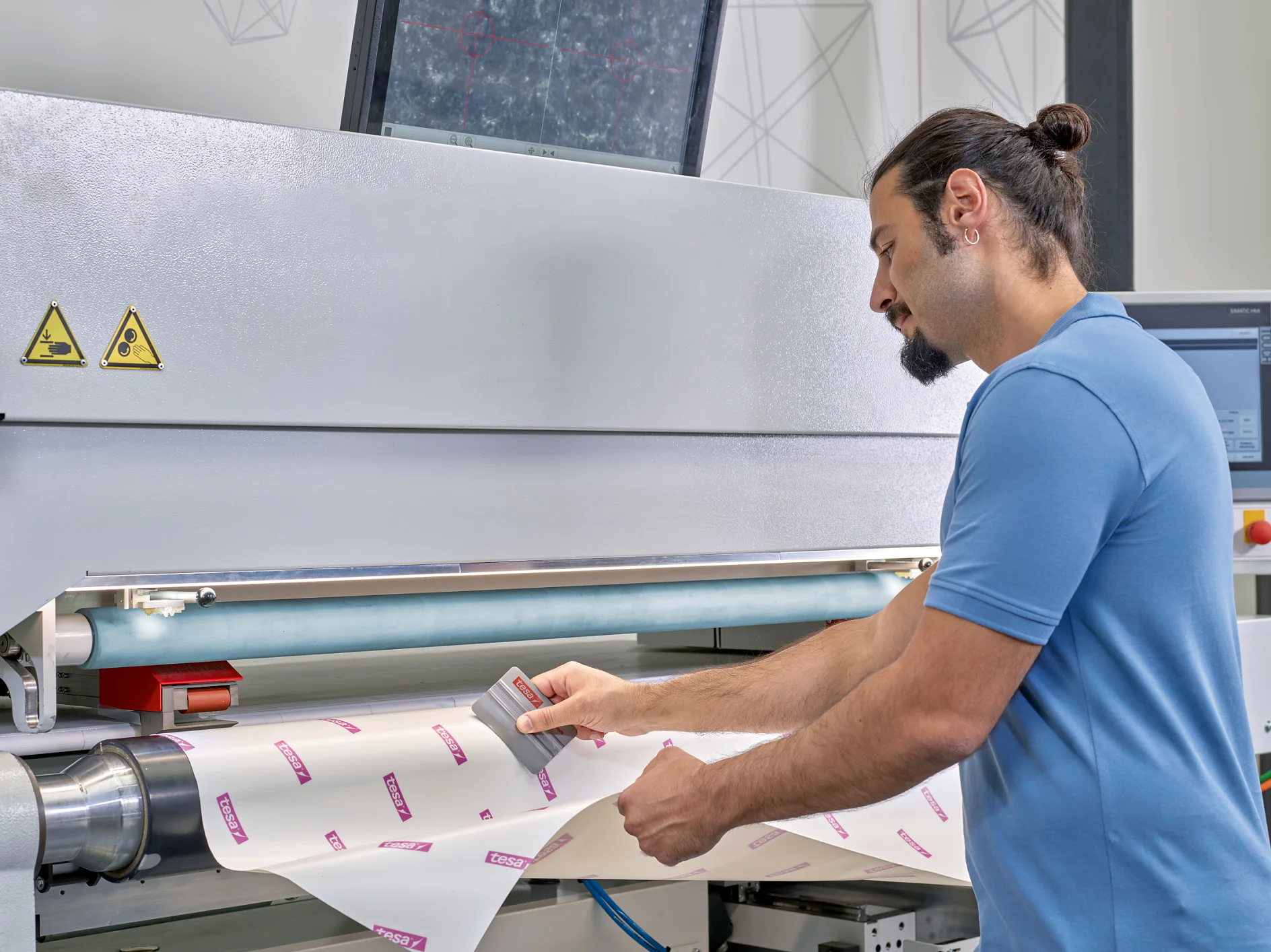

So always remember to apply sufficient pressure, for example by using squeegees during tape mounting, or rubber rollers during plate mounting. And adjust the pressure on mounting machines as needed, use lay-on rollers when available for a balanced, fast, and high-pressure application.
Storage

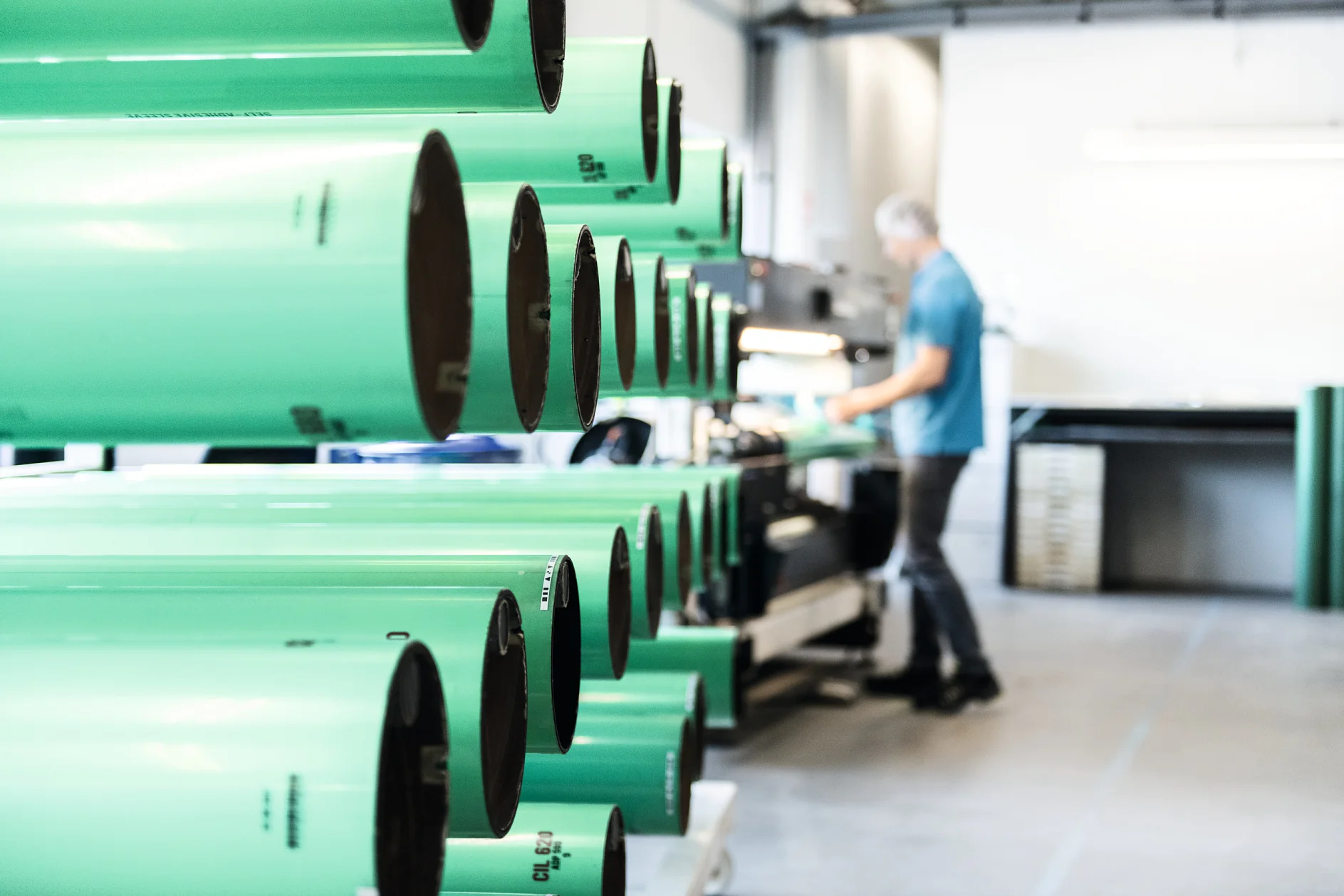

Plates, tapes, and sleeves should be stored at the same temperature levels, so that no condensation occurs on any components. Trapped humidity e.g. between sleeve and tape will result in weaker adhesion levels. We suggest storing our tesa® Softprint and tesa® Twinlock plate mounting solutions within a temperature range of 15-35 °C (60-95 °F), at a relative humidity level of 40-60%.
We also recommend cleaning the backside of the plates before storing. Allowing contamination to stay on the plate any longer than necessary only makes it harder to clean later.
With decades of experience in the industry, we have worked with printing leaders to solve their issues and develop new solutions, picking up plenty of knowledge along the way. Here we present some of the hints and tips we have been frequently facing, in one useful place.
Frequently asked questions about flexo plate mounting
We have specialists around the globe who will be happy to help you meet your flexo demands and challenges. If you have a specific question today, take a look at our FAQ or get in touch directly.
