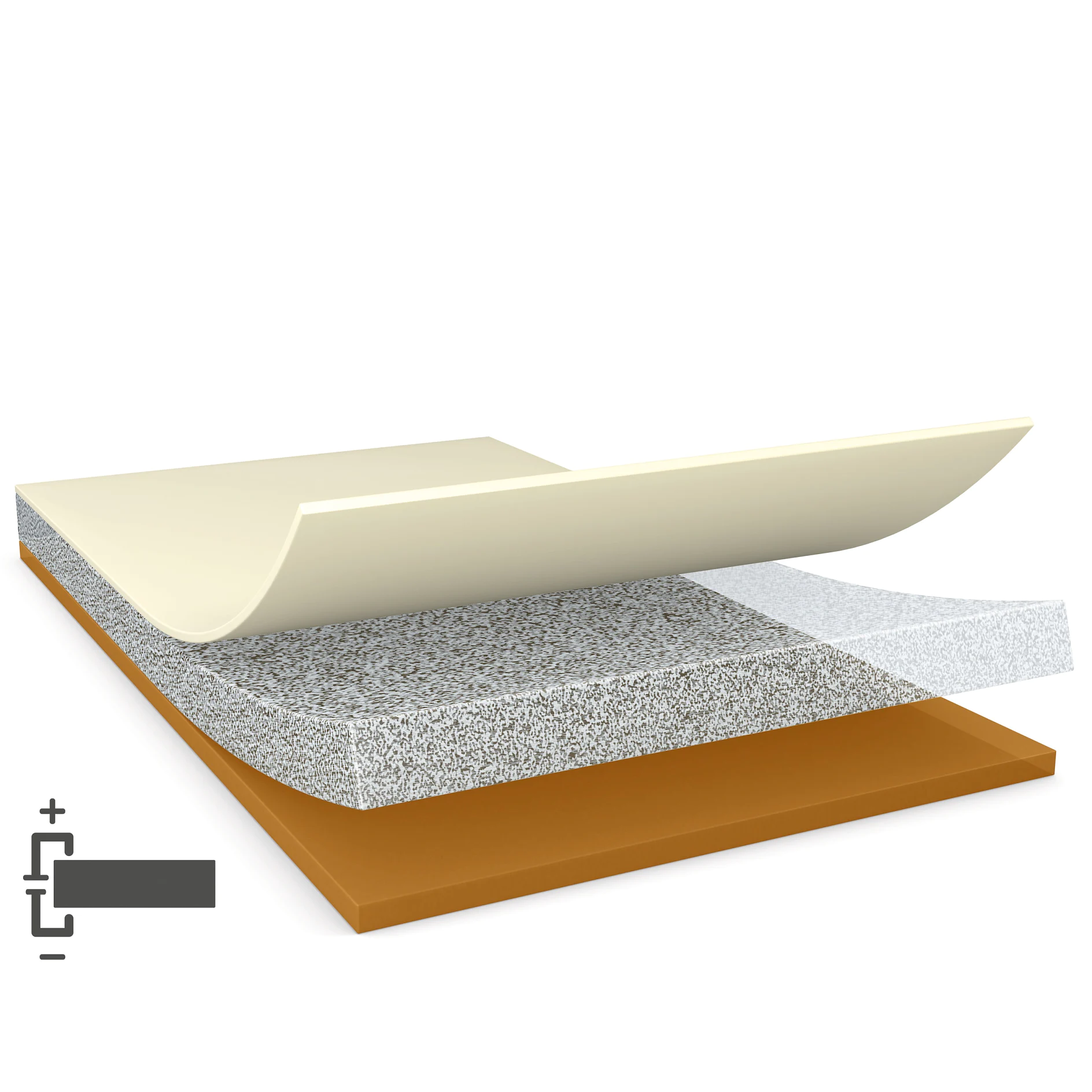

Product Construction
Backing material | copper film |
Color | ส้ม |
Color of liner | โปร่งใส |
Thickness of liner | 50 µm |
Total thickness | 30 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PET film |
Backing material | copper film |
Color | ส้ม |
Color of liner | โปร่งใส |
Thickness of liner | 50 µm |
Total thickness | 30 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PET film |
Backing material | copper film |
Color | ส้ม |
Color of liner | โปร่งใส |
Thickness of liner | 50 µm |
Total thickness | 30 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PET film |
แนวต้านแกน xyz (50g) | 38 mOhm |
แนวต้านแกน xyz (2 kg) | 33 mOhm |
ความต้านทานการสัมผัสแนวแกน Z (50g) | 21 mOhm |
ความต้านทานการสัมผัสแนวแกน Z | 18 mOhm |
Release of liner | ลอกง่าย |
แนวต้านแกน xyz (50g) | 38 mOhm |
แนวต้านแกน xyz (2 kg) | 33 mOhm |
ความต้านทานการสัมผัสแนวแกน Z (50g) | 21 mOhm |
ความต้านทานการสัมผัสแนวแกน Z | 18 mOhm |
Release of liner | ลอกง่าย |
การยึดเกาะบนโลหะ (50 กรัม; หลัง 14 วัน) | 4.7 N/cm |
การยึดเกาะบนโลหะ (50 กรัม; ค่าเริ่มต้น) | 3 N/cm |
การยึดเกาะบนโลหะ (2 กิโลกรัม; หลัง 14 วัน) | 5.3 N/cm |
การยึดเกาะบนโลหะ (2 กิโลกรัม; ค่าเริ่มต้น) | 4.6 N/cm |
การยึดเกาะบนโลหะ (50 กรัม; หลัง 14 วัน) | 4.7 N/cm |
การยึดเกาะบนโลหะ (50 กรัม; ค่าเริ่มต้น) | 3 N/cm |
การยึดเกาะบนโลหะ (2 กิโลกรัม; หลัง 14 วัน) | 5.3 N/cm |
การยึดเกาะบนโลหะ (2 กิโลกรัม; ค่าเริ่มต้น) | 4.6 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
