Product Construction
Backing material | conductive non-woven |
Color | สีเทา |
Color of liner | โปร่งใส |
Thickness of liner | 23 µm |
Total thickness | 50 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PET |

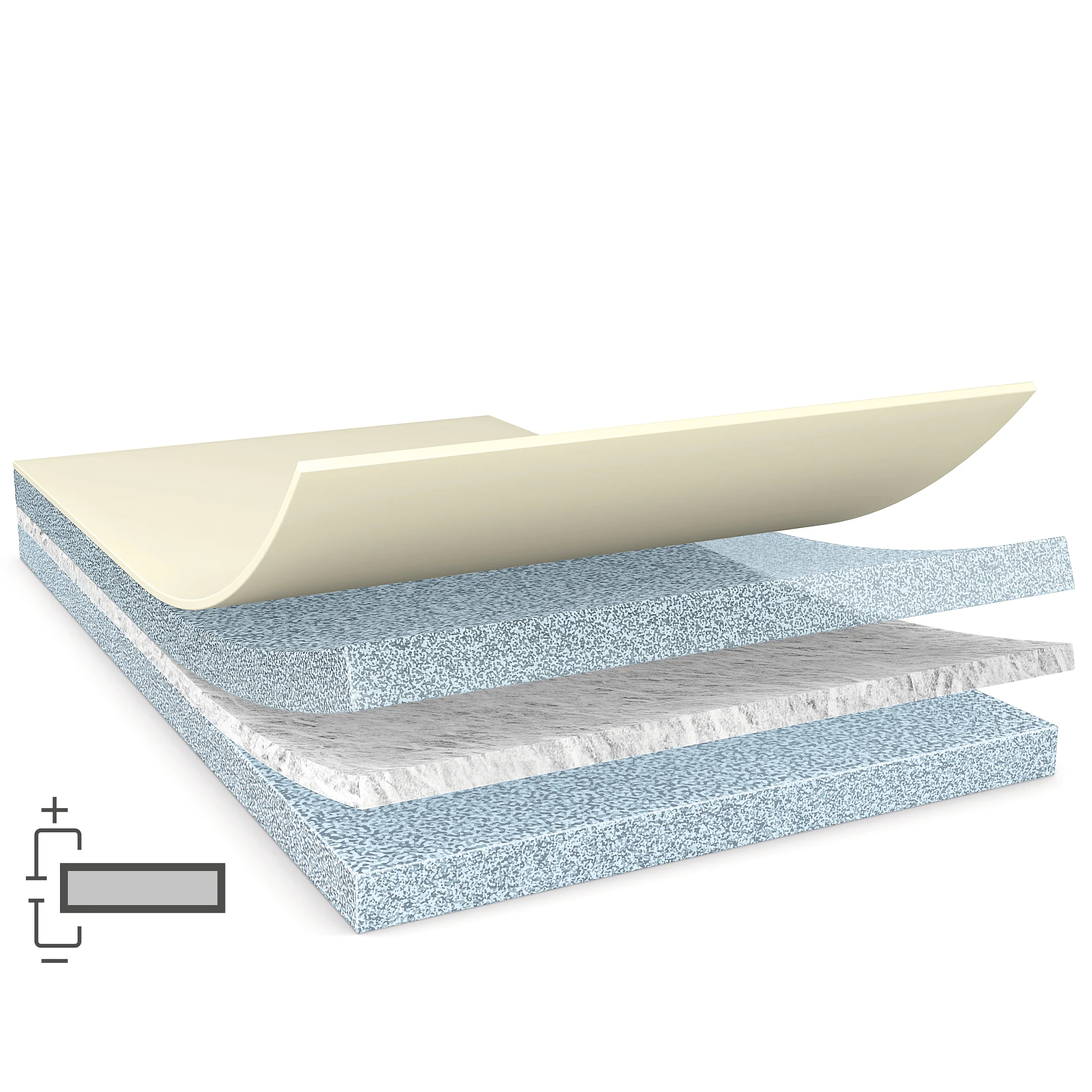

tesa® 60382 คือเทปกาวสองหน้าที่เป็นสื่อกระแสไฟฟ้าในตัวสีเทา ประกอบด้วยแผ่นรองหลังแบบทอที่เป็นสื่อกระแสไฟฟ้าและกาวอะคริลิกที่เป็นสื่อกระแสไฟฟ้า
มีคุณสมบัติ:
Backing material | conductive non-woven |
Color | สีเทา |
Color of liner | โปร่งใส |
Thickness of liner | 23 µm |
Total thickness | 50 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PET |
Backing material | conductive non-woven |
Color | สีเทา |
Color of liner | โปร่งใส |
Thickness of liner | 23 µm |
Total thickness | 50 µm |
Type of adhesive | type: conductive acrylic |
Type of liner | type: PET |
Release of liner | ลอกง่าย |
แรงต้านพื้นผิวบนแนวแกน xyz | 0.3 mOhm |
Contact resistance z-direction (initial) | 0.06 Ohm / square inch |
การทนต่ออุณหภูมิระยะเวลาสั้น | 200 °C |
Static shear resistance at 40°C | ดีมาก |
Release of liner | ลอกง่าย |
แรงต้านพื้นผิวบนแนวแกน xyz | 0.3 mOhm |
Contact resistance z-direction (initial) | 0.06 Ohm / square inch |
การทนต่ออุณหภูมิระยะเวลาสั้น | 200 °C |
Static shear resistance at 40°C | ดีมาก |
Adhesion to Steel (after 14 days) | 10 N/cm |
Adhesion to Steel (after 14 days) | 10 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
