Product Construction
Backing material | PE foam |
Color | สีดำ |
Total thickness | 800 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: paper |

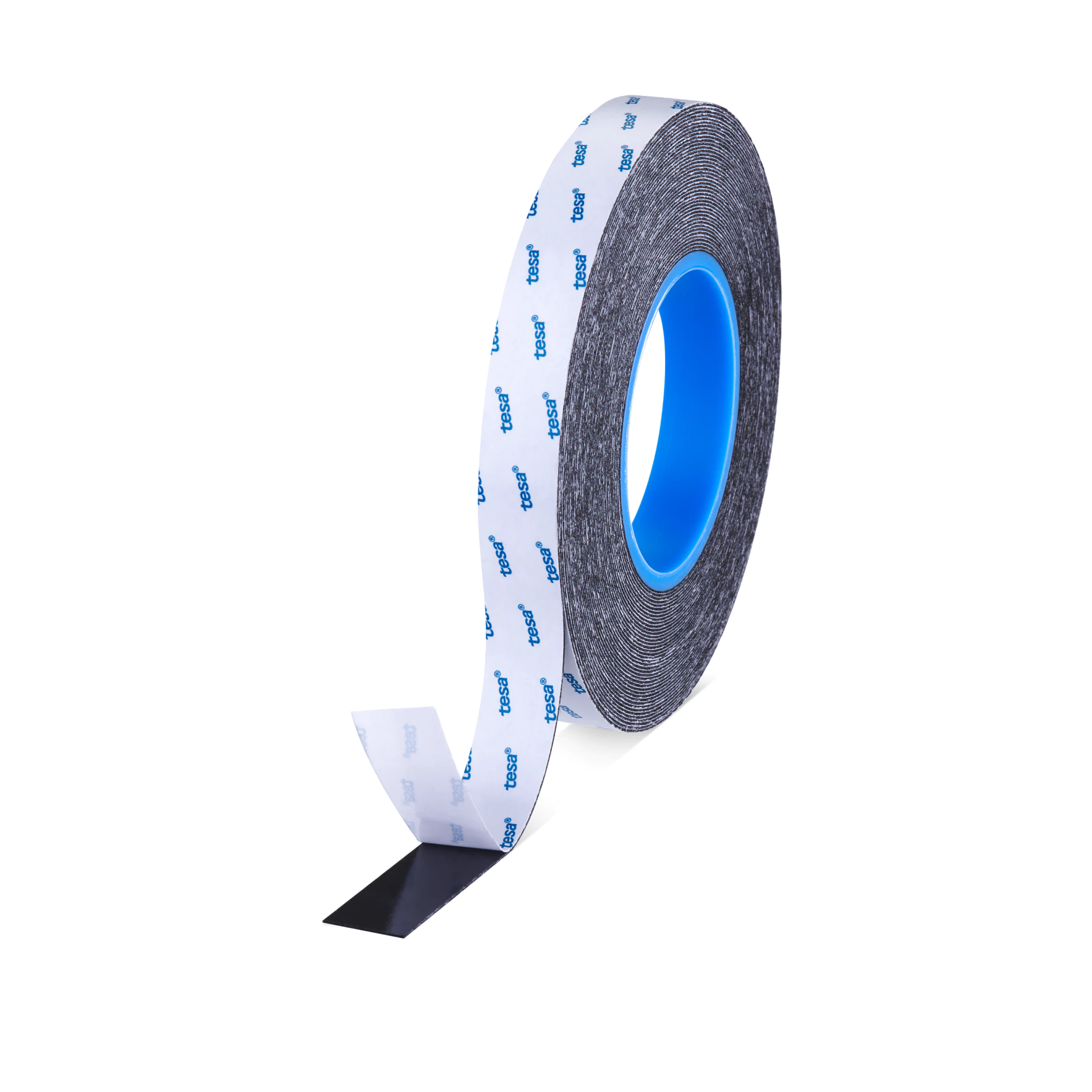

tesa® 66108 เป็นเทปกาวสองหน้า ประกอบด้วย backing โฟม PE และกาว tackified acrylic ด้วยความหนา 0.8 มม. จึงเหมาะอย่างยิ่งที่จะติดกระจกมองข้างรถยนต์ที่มีหรือไม่มีองค์ประกอบความร้อนบนแผ่นฐาน
กาว tackified acrylic มีความแข็งแรงในการยึดเกาะเริ่มต้นและสูงสุด โดยเฉพาะอย่างยิ่งกับ ABS และ ABS/PC และทนต่ออุณหภูมิได้ดี
เนื่องจากมีความเข้ารูปได้สูง เทปจึงรับประกันการยึดเกาะที่เหนือกว่าและชดเชยความทนทานต่อการออกแบบที่นำไปสู่การยึดเกาะที่เชื่อถือได้โดยเฉพาะอย่างยิ่งสำหรับกระจกไฟฟ้าที่มีน้ำหนักและกระจกเงาของรถบรรทุกเบาและรถบรรทุกหนักและรถบัสที่มีขนาดใหญ่กว่า และมีความโค้งเพิ่มขึ้น สิ่งนี้ยังนำไปสู่ประสิทธิภาพที่ยอดเยี่ยมในการป้องกันการแตกเป็นชิ้นเล็กชิ้นน้อย และการต้านทานความเย็น
คุณสมบัติหลัก
Backing material | PE foam |
Color | สีดำ |
Total thickness | 800 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: paper |
Backing material | PE foam |
Color | สีดำ |
Total thickness | 800 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: paper |
Elongation at break | 190 % |
Tensile strength | 8 N/cm |
Static shear resistance at 70°C | ดี |
Ageing resistance (UV) | ดี |
Static shear resistance at 23°C | ดีมาก |
Humidity resistance | ดี |
การทนต่ออุณหภูมิระยะเวลาสั้น | 80 °C |
Tack | ดีมาก |
การทนต่ออุณหภูมิระยะเวลายาว | 80 °C |
Elongation at break | 190 % |
Tensile strength | 8 N/cm |
Static shear resistance at 70°C | ดี |
Ageing resistance (UV) | ดี |
Static shear resistance at 23°C | ดีมาก |
Humidity resistance | ดี |
การทนต่ออุณหภูมิระยะเวลาสั้น | 80 °C |
Tack | ดีมาก |
การทนต่ออุณหภูมิระยะเวลายาว | 80 °C |
Adhesion to ABS (initial) | 10 N/cm |
Adhesion to ABS (after 14 days) | 10 N/cm |
Adhesion to PC (initial) | 10 N/cm |
Adhesion to PC (after 14 days) | 10 N/cm |
Adhesion to PET (initial) | 10 N/cm |
Adhesion to PET (after 14 days) | 10 N/cm |
Adhesion to PP (initial) | 1.7 N/cm |
Adhesion to PP (after 14 days) | 10 N/cm |
Adhesion to Steel (initial) | 10 N/cm |
Adhesion to Steel (after 14 days) | 10 N/cm |
Adhesion to ABS (initial) | 10 N/cm |
Adhesion to ABS (after 14 days) | 10 N/cm |
Adhesion to PC (initial) | 10 N/cm |
Adhesion to PC (after 14 days) | 10 N/cm |
Adhesion to PET (initial) | 10 N/cm |
Adhesion to PET (after 14 days) | 10 N/cm |
Adhesion to PP (initial) | 1.7 N/cm |
Adhesion to PP (after 14 days) | 10 N/cm |
Adhesion to Steel (initial) | 10 N/cm |
Adhesion to Steel (after 14 days) | 10 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
