Product Construction
Backing material | non-woven |
Color | โปร่งแสง |
Color of liner | logo สีขาว/น้ำเงิน |
Thickness of liner | 130 µm |
Total thickness | 120 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: PE-coated paper |

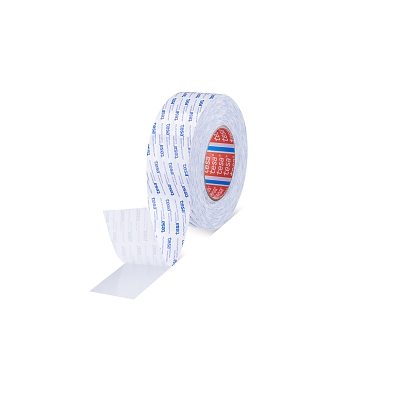

เทปเยื่อกระดาษเคลือบสองชั้น 120 ไมครอน
tesa® 88642 เป็นเทปเยื่อกระดาษเคลือบสองชั้นขนาด 120 ไมครอนซึ่งประกอบด้วยเนื้อเยื่อกระดาษ และกาวอะคริลิก
คุณสมบัติ:
Backing material | non-woven |
Color | โปร่งแสง |
Color of liner | logo สีขาว/น้ำเงิน |
Thickness of liner | 130 µm |
Total thickness | 120 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: PE-coated paper |
Backing material | non-woven |
Color | โปร่งแสง |
Color of liner | logo สีขาว/น้ำเงิน |
Thickness of liner | 130 µm |
Total thickness | 120 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: PE-coated paper |
Tack | ดี |
การทนต่ออุณหภูมิระยะเวลายาว | 70 °C |
Static shear resistance at 70°C | ดีมาก |
การทนต่ออุณหภูมิระยะเวลาสั้น | 160 °C |
Tack | ดี |
การทนต่ออุณหภูมิระยะเวลายาว | 70 °C |
Static shear resistance at 70°C | ดีมาก |
การทนต่ออุณหภูมิระยะเวลาสั้น | 160 °C |
Adhesion to ABS (initial) | 8.5 N/cm |
Adhesion to ABS (after 3 days) | 10.2 N/cm |
Adhesion to Glass (initial) | 7.5 N/cm |
Adhesion to Glass (after 3 days) | 9.5 N/cm |
Adhesion to PC (initial) | 9.1 N/cm |
Adhesion to PC (after 3 days) | 11.7 N/cm |
Adhesion to PE (initial) | 4.4 N/cm |
Adhesion to PE (after 3 days) | 5 N/cm |
Adhesion to PET (initial) | 6.7 N/cm |
Adhesion to PP (initial) | 5.8 N/cm |
Adhesion to PP (after 3 days) | 7 N/cm |
Adhesion to PVC (initial) | 6.5 N/cm |
Adhesion to Steel (initial) | 7.5 N/cm |
Adhesion to Steel (after 3 days) | 10.1 N/cm |
Adhesion to ABS (initial) | 8.5 N/cm |
Adhesion to ABS (after 3 days) | 10.2 N/cm |
Adhesion to Glass (initial) | 7.5 N/cm |
Adhesion to Glass (after 3 days) | 9.5 N/cm |
Adhesion to PC (initial) | 9.1 N/cm |
Adhesion to PC (after 3 days) | 11.7 N/cm |
Adhesion to PE (initial) | 4.4 N/cm |
Adhesion to PE (after 3 days) | 5 N/cm |
Adhesion to PET (initial) | 6.7 N/cm |
Adhesion to PP (initial) | 5.8 N/cm |
Adhesion to PP (after 3 days) | 7 N/cm |
Adhesion to PVC (initial) | 6.5 N/cm |
Adhesion to Steel (initial) | 7.5 N/cm |
Adhesion to Steel (after 3 days) | 10.1 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
