Product Construction
| Backing material | non-woven |
| Colour | white |
| Total thickness | 160 µm |
| Type of adhesive | acrylic |

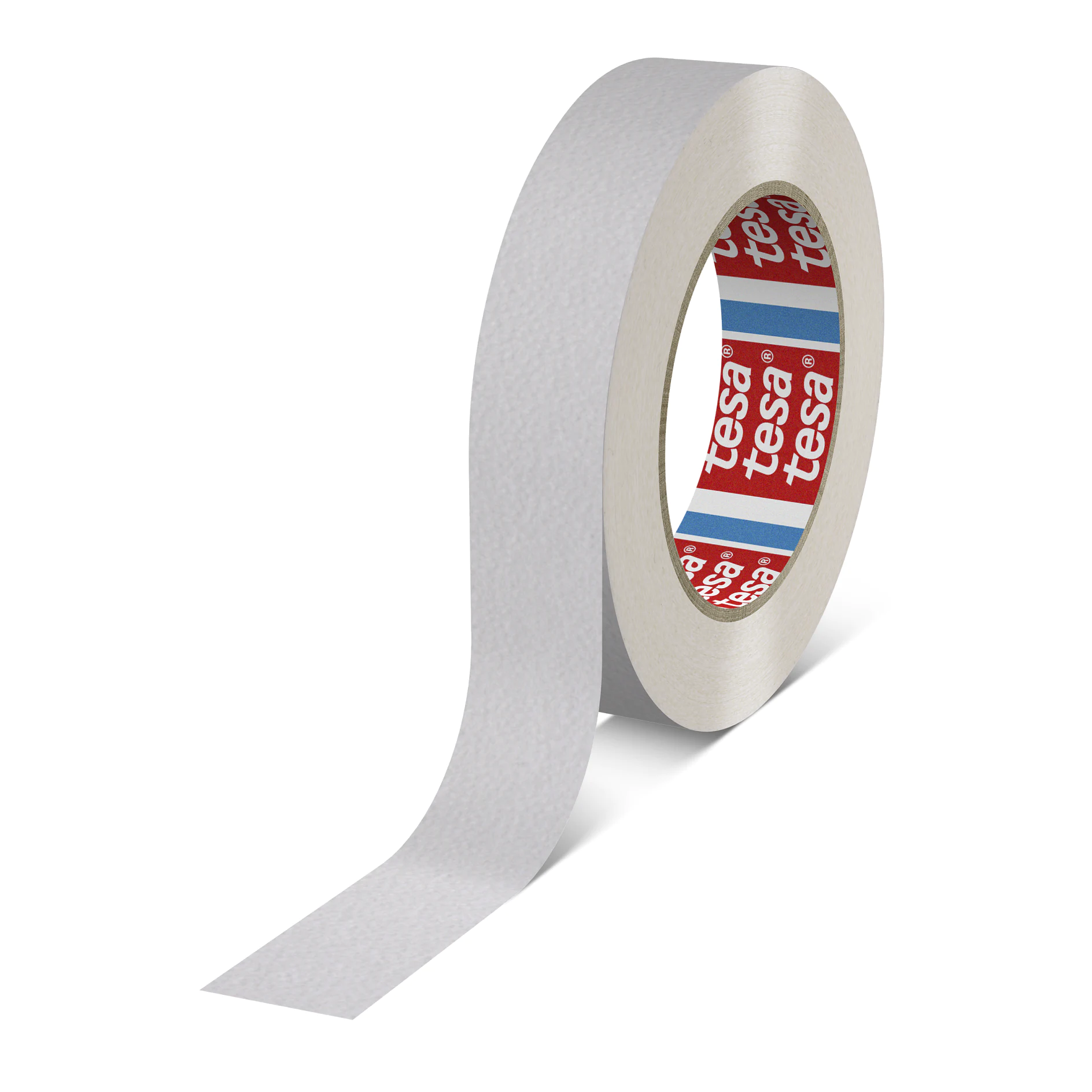

tesa® 4580 Highly Permeable
Venting tape
Product description
tesa® 4580 is a premium single sided Venting Tape. It is based on a non-woven fabric coated with an acrylic dispersion adhesive. Venting Tape is mainly used to cover (temporary) holes during foaming processes in several industries.
This product has a high and homogeneous air permeability. Due to dotted adhesive coating the backing is only selective but not fully covered by adhesive.
Features:
- Excellent air permeability due to extraordinary type of adhesive coating
- Special acrylic dispersion adhesive with well-balanced properties
- Very good unwinding properties for fast application
- Conformable and elastic
- Excellent barrier function against various polymeric foams/polyurethans
- Very conformable and elastic
- Easy to tear by hand
Product details and specifications
Product Construction
| Backing material | non-woven |
| Colour | white |
| Total thickness | 160 µm |
| Type of adhesive | acrylic |
Properties / Performance Values
| Elongation at break | 8 % |
| Tensile strength | 35 N/cm |
| Operation temperature up to | 160 °C |
| Low unwinding force | very good |
| Ageing resistance (UV) | very good |
| Hand tearability | good |
| Air permeability | 52 cm³/cm²xs |
| Solvent free | yes |
Properties / Performance Values
| Elongation at break | 8 % |
| Tensile strength | 35 N/cm |
| Operation temperature up to | 160 °C |
| Low unwinding force | very good |
| Ageing resistance (UV) | very good |
| Hand tearability | good |
| Air permeability | 52 cm³/cm²xs |
| Solvent free | yes |
Adhesion to Values
| Adhesion to ABS (initial) | 1.4 N/cm |
| Adhesion to PE (initial) | 0.3 N/cm |
| Adhesion to PS (initial) | 1.1 N/cm |
| Adhesion to steel | 1.5 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 1.4 N/cm |
| Adhesion to PE (initial) | 0.3 N/cm |
| Adhesion to PS (initial) | 1.1 N/cm |
| Adhesion to steel | 1.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
