Product Construction
| Backing material | black-coated copper |
| Colour | matte black |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 45 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PET |
tesa® 60238
45µm single sided matte black electrically conductive tape
Product Features
- Excellent EMI shielding performance
- Excellent electrical conductivity in XYZ-direction for very good grounding performance
- High adhesion level even at harsh environmental conditions avoids edge lifting
Product description
tesa® 60238 is a matte black single sided xyz conductive EMI shielding tape.
It consists of matte black electrically conductive copper backing which is coated with electrically conductive acrylic adhesive. Designed for EMI shielding and ESD grounding for display and other components applications.
Product details and specifications
Product Features
- Excellent EMI shielding performance
- Excellent electrical conductivity in XYZ-direction for very good grounding performance
- High adhesion level even at harsh environmental conditions avoids edge lifting
- Outstanding heat spreading performance
- Matte black surface (low gloss) with anti-finger print and solvent resistant characteristic
Application Fields
- Edge wrapping for display
- Matte black covering over components for shielding and ESD grounding
- Light management on display
- Heat management on various components

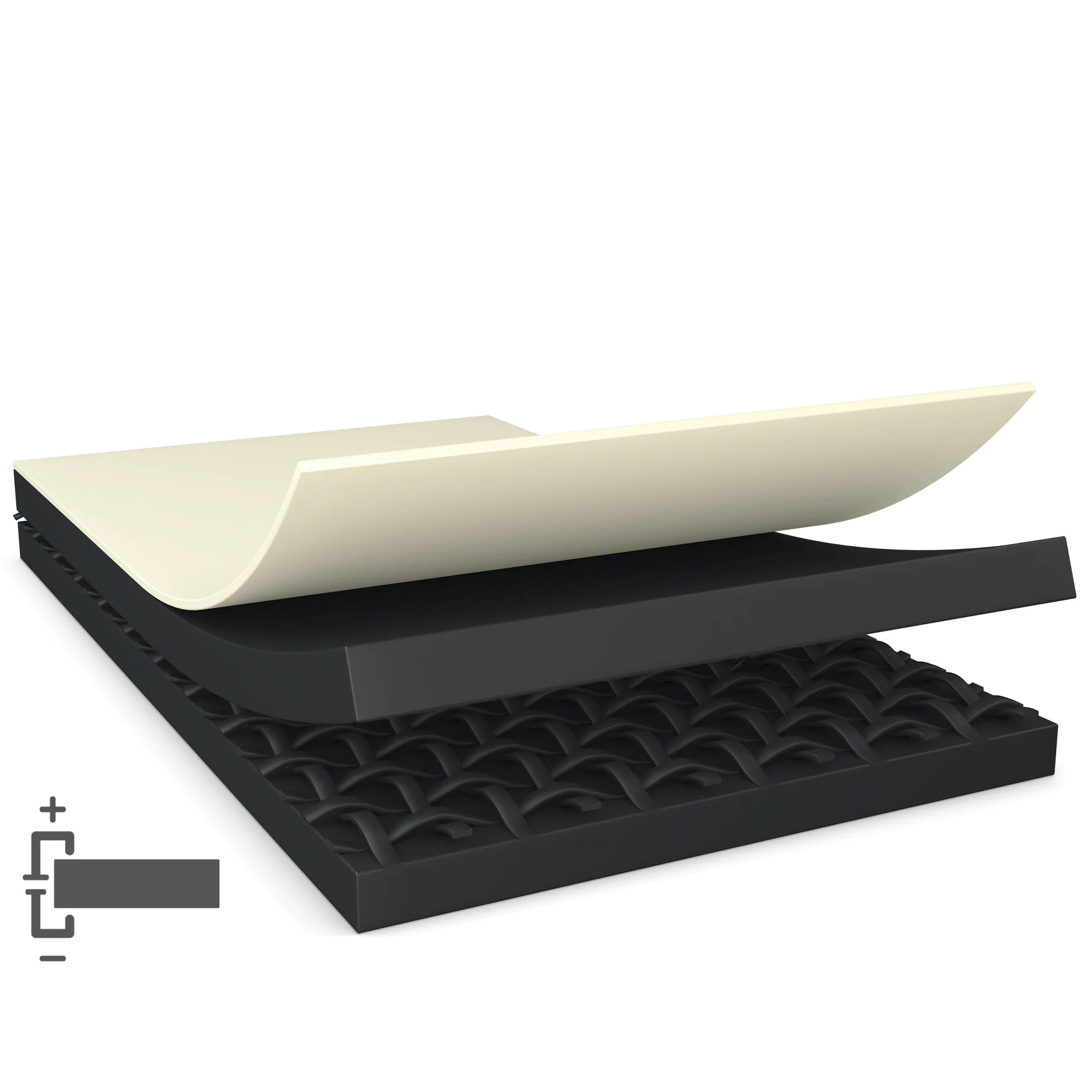

Product Construction
| Backing material | black-coated copper |
| Colour | matte black |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 45 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PET |
Properties / Performance Values
| Static shear resistance at 40°C | good |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
| Surface resistance x-y-direction (adhesive) | 0.2 Ohm / square |
| Surface resistance x-y-direction (backing) | 0.4 Ohm / square |
| Temperature resistance short term duration | 200 °C |
Properties / Performance Values
| Static shear resistance at 40°C | good |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
| Surface resistance x-y-direction (adhesive) | 0.2 Ohm / square |
| Surface resistance x-y-direction (backing) | 0.4 Ohm / square |
| Temperature resistance short term duration | 200 °C |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 7 N/cm |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 7 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
