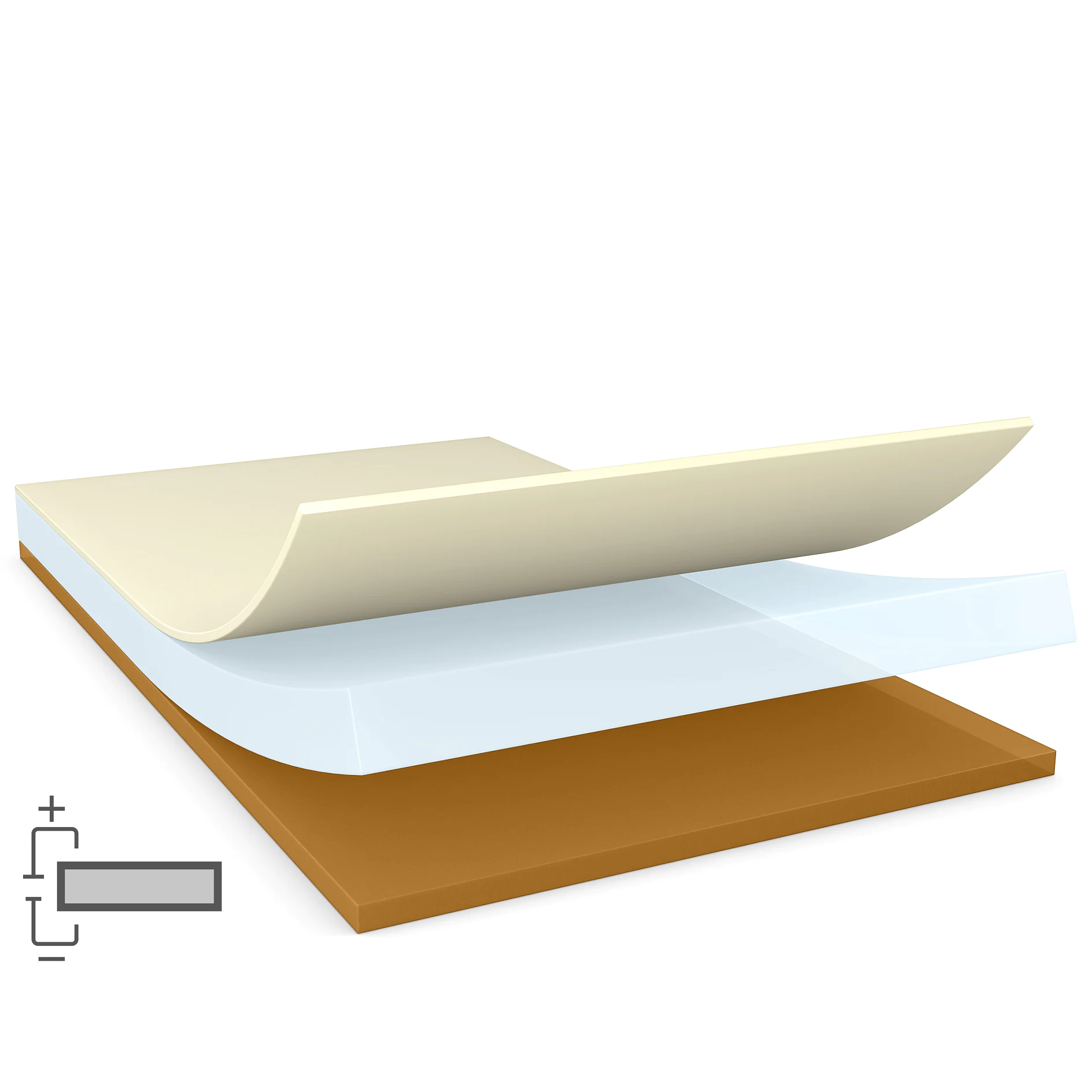

Product Construction
| Backing material | copper film |
| Colour | orange |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 50 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PET |
tesa® 60538
50µm single sided electrically conductive copper tape
Product Features
- Excellent EMI shielding performance
- Excellent electrical conductivity in XYZ-direction for very good grounding performance
- High adhesion level
Product description
tesa® 60538 is a single sided electrically conductive self adhesive tape. It consists of an electrically conductive copper backing and an electrically conductive acrylic adhesive. Designed for EMI shielding and ESD grounding for display and other components applications.
Product details and specifications
Product Features
- Excellent EMI shielding performance
- Excellent electrical conductivity in XYZ-direction for very good grounding performance
- High adhesion level
Application Fields
- EMI shielding and grounding applications
- Electrostatic discharge applications
- FPC shielding
Product Construction
| Backing material | copper film |
| Colour | orange |
| Colour of liner | transparent |
| Thickness of liner | 50 µm |
| Total thickness | 50 µm |
| Type of adhesive | conductive acrylic |
| Type of liner | PET |
Properties / Performance Values
| Release of liner | easy |
| Static shear resistance at 40°C | good |
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Temperature resistance short term duration | 200 °C |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
Properties / Performance Values
| Release of liner | easy |
| Static shear resistance at 40°C | good |
| Surface resistance x-y-direction | 0.2 Ohm / square |
| Temperature resistance short term duration | 200 °C |
| Contact resistance z-direction (initial) | 0.05 Ohm / square inch |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 7.5 N/cm |
Adhesion to Values
| Adhesion to Steel (after 14 days) | 7.5 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
