Product Construction
| Backing material | PVC film |
| Type of adhesive | natural rubber |
| Type of liner | , |
tesa® 64602
Plate mounting in flexographic printing, especially corrugated board postprint
Product description

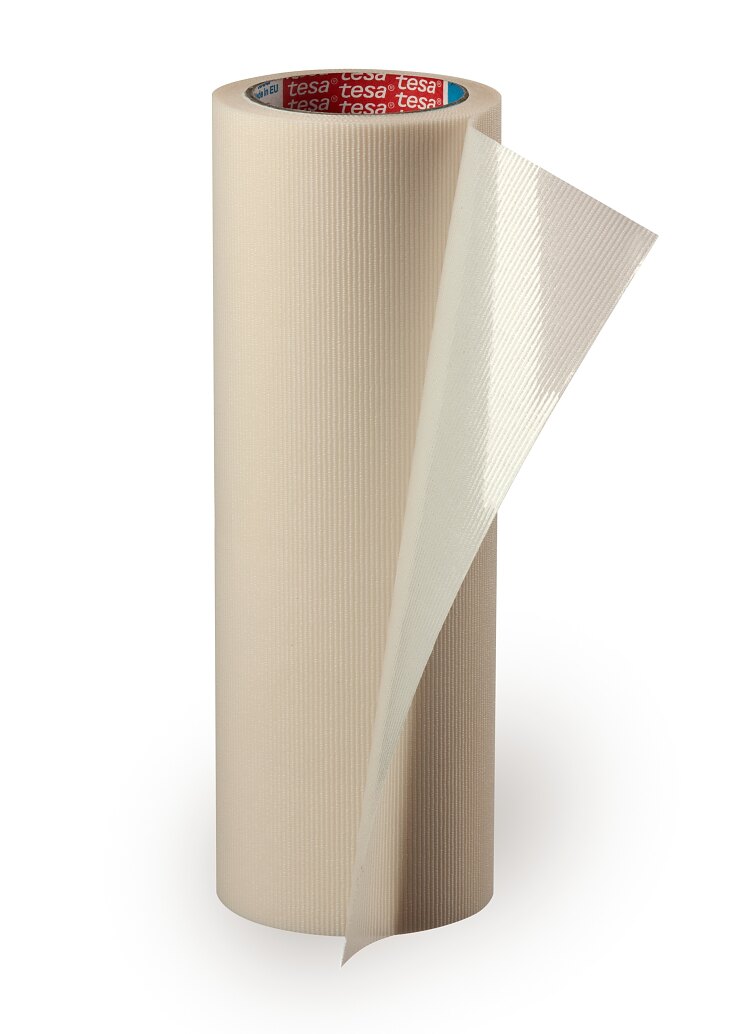

tesa® 64602 PV2 is a transparent, double-sided, self adhesive tape of 100 µm / 4 mil thickness, comprising a PVC backing and a rubber adhesive mass system.
tesa® 64602 PV2 is specifically designed for the mounting of photopolymer plates in the flexographic printing industry. Due to its characteristics, tesa® 64602 PV2 is an especially ideal solution for applying the tape to the plate before mounting the whole composite on the cylinder or Mylar film sheet, common practice in corrugated board postprint.
Adhesive:
• High adhesion values and shear resistance for reliable application, even when the mounted plates are stored for longer periods
• High adhesion and shear also ensure that there is no edge lifting, even on longer print runs and at higher speeds
• Due to the specially optimised adhesive properties, the tape and plate can be easily repositioned during mounting
Backing:
• Transparent backing makes register marks clearly visible
Liner:
• The creped liner prevents air entrapment and tape curling
• Siliconised for easy application and removal
Product details and specifications
Application Fields
tesa® 64602 PV2 is specifically designed for the mounting of photopolymer plates in the flexographic printing industry, especially in corrugated board postprint.
Product Construction
| Backing material | PVC film |
| Type of adhesive | natural rubber |
| Type of liner | , |
Properties / Performance Values
| Thickness category | 100 |
Properties / Performance Values
| Thickness category | 100 |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
