Product Construction
| Backing material | none |
| Colour | transparent |
| Colour of liner | brown/blue logo |
| Thickness of liner | 71 µm |
| Thickness of tape | 220 µm |
| Type of adhesive | water-based acrylic |
| Type of liner | glassine |
tesa® 66022 Ultra Low VOC

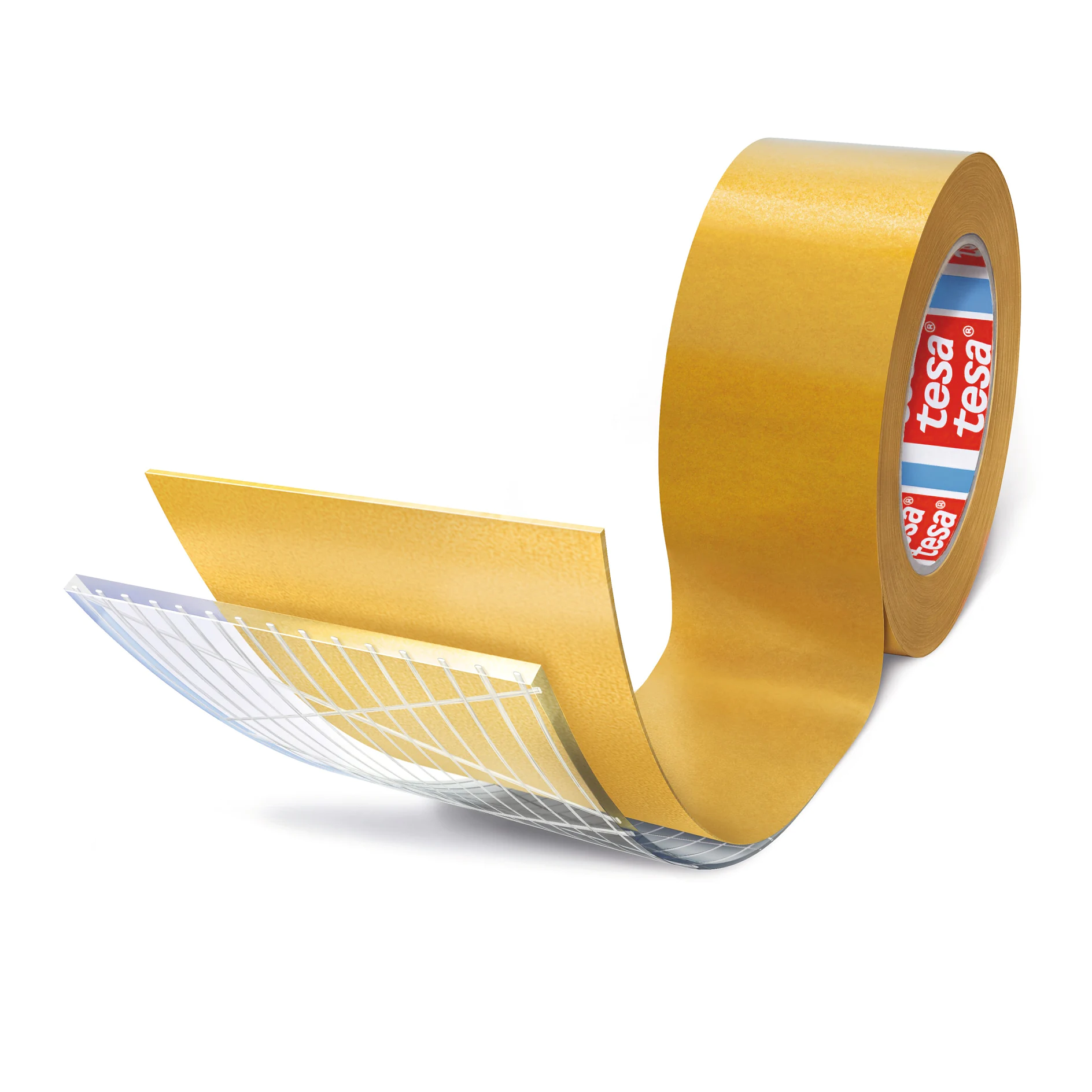

220 µm reinforced water-based acrylic adhesive layer with PET scrim for mounting applications in automotive interiors
Product description
tesa® 66022 is a conformable, water-based acrylic adhesive tape with a thickness of 220 µm, reinforced by a PET scrim. This tape has especially been developed for all kinds of demanding lamination and mounting applications. Due to its low VOC property it is particularly designed to meet automotive interior requirements.
tesa® 66022 is suitable for laminating all kinds of foam, fleece, and felt substrates and mounting light interior components.
This product is also available in 75 µm (tesa® 66007)and 130 µm (tesa® 66013).
Main features
- Highly conformable to follow difficult 3-D shapes
- Low VOC (acc. GB 27630) – no critical substances detectable
- Reinforcement supports converting efficiency
- Very low total VOC values
- High initial tack and peel adhesion
- Excellent initial adhesion to a wide variety of interior substrates
- Secure mounting even to nonpolar plastics (PP) and composites (recycled materials)
Product details and specifications
Application Fields
tesa® 66022 is suitable for various types of mounting and lamination applications.
Example applications are:
To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.
Example applications are:
- Mounting of light interior trims (plastics, LSE surfaces)
- FPC (flexible printed circuits) mounting
- Lamination of insulation materials
- Laminates for NVH (noise, vibration, and harshness) and BSR (buzz, squeak, and rattle) prevention
- Lamination of decorative fabrics
- Lamination of foam for HVAC (heating, ventilation, and air conditioning) seals
- Mounting of flooring systems
To ensure the highest performance possible, our aim is to fully understand your application (including the substrates involved) in order to provide the right product recommendation.
Product Construction
| Backing material | none |
| Colour | transparent |
| Colour of liner | brown/blue logo |
| Thickness of liner | 71 µm |
| Thickness of tape | 220 µm |
| Type of adhesive | water-based acrylic |
| Type of liner | glassine |
Properties / Performance Values
| Fogging | very good |
| Suitable for rough surfaces | very good |
| Temperature resistance max. | 200 °C |
| Low VOC | very good |
| Suitable for die cutting | yes |
| Temperature resistance min. | -40 °C |
| Tack | very good |
Properties / Performance Values
| Fogging | very good |
| Suitable for rough surfaces | very good |
| Temperature resistance max. | 200 °C |
| Low VOC | very good |
| Suitable for die cutting | yes |
| Temperature resistance min. | -40 °C |
| Tack | very good |
Adhesion to Values
| Adhesion to ABS (initial) | 17 N/cm |
| Adhesion to ABS (after 3 days) | 18 N/cm |
| Adhesion to PC (initial) | 19.1 N/cm |
| Adhesion to PC (after 3 days) | 19.4 N/cm |
| Adhesion to PE (initial) | 9.2 N/cm |
| Adhesion to PE (after 3 days) | 9 N/cm |
| Adhesion to PET (initial) | 16.2 N/cm |
| Adhesion to PET (after 3 days) | 18.1 N/cm |
| Adhesion to PET fleece Headliner A (after 3 days) | 8 N/cm |
| Adhesion to PET fleece Headliner A (initial) | 6 N/cm |
| Adhesion to PP (initial) | 14 N/cm |
| Adhesion to PP (after 3 days) | 16 N/cm |
| Adhesion to PS (initial) | 17.7 N/cm |
| Adhesion to PS (after 3 days) | 18.2 N/cm |
| Adhesion to PVC (initial) | 12 N/cm |
| Adhesion to PVC (after 3 days) | 19.3 N/cm |
| Adhesion to Steel (initial) | 12.3 N/cm |
| Adhesion to Steel (after 3 days) | 17.3 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 17 N/cm |
| Adhesion to ABS (after 3 days) | 18 N/cm |
| Adhesion to PC (initial) | 19.1 N/cm |
| Adhesion to PC (after 3 days) | 19.4 N/cm |
| Adhesion to PE (initial) | 9.2 N/cm |
| Adhesion to PE (after 3 days) | 9 N/cm |
| Adhesion to PET (initial) | 16.2 N/cm |
| Adhesion to PET (after 3 days) | 18.1 N/cm |
| Adhesion to PET fleece Headliner A (after 3 days) | 8 N/cm |
| Adhesion to PET fleece Headliner A (initial) | 6 N/cm |
| Adhesion to PP (initial) | 14 N/cm |
| Adhesion to PP (after 3 days) | 16 N/cm |
| Adhesion to PS (initial) | 17.7 N/cm |
| Adhesion to PS (after 3 days) | 18.2 N/cm |
| Adhesion to PVC (initial) | 12 N/cm |
| Adhesion to PVC (after 3 days) | 19.3 N/cm |
| Adhesion to Steel (initial) | 12.3 N/cm |
| Adhesion to Steel (after 3 days) | 17.3 N/cm |
Additional Info
According to VDA278 analysis, our 66022-tapes does not contain any single substances restricted by the drafted GB regulations (China) as well as the indoor concentration guideline by Health, Labour and Welfare Ministry (Japan).
Ultra low total VOC concentration according to VDA 278 analysis
Adhesion values to:
PVC
PP
ABS
PC
PET
PS
PE
Are not part of the product specification
PV20 brown glassine liner / blue tesa logo
other liner version possible - on request
Ultra low total VOC concentration according to VDA 278 analysis
Adhesion values to:
PVC
PP
ABS
PC
PET
PS
PE
Are not part of the product specification
PV20 brown glassine liner / blue tesa logo
other liner version possible - on request
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
