Product Construction
Backing material | foamed acrylic |
Colour | grey |
Total thickness | 800 µm |
Type of adhesive | LSE |
0.8 mm double-sided acrylic foam tape for mounting of automotive exterior attachment parts

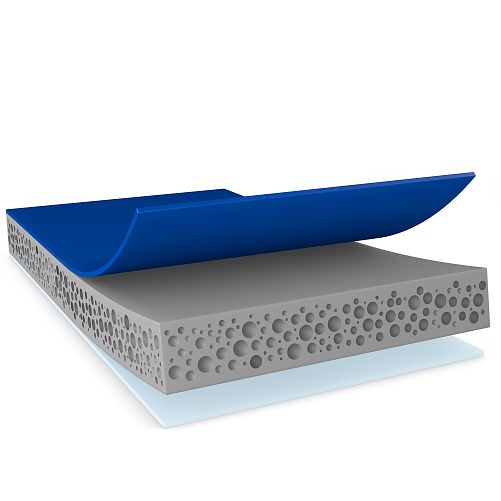

tesa® ACXplus 77708 is a 0.8 mm acrylic foam tape with an unique double-layer asymmetrically designed product, coated on open side with LSE adhesive. It can help eliminate the primer in the process. Its high-performance LSE adhesive creates an efficient and secure bond to typical automotive attachment parts made of LSE (like PP and PP/EPDM) and MSE (like ABS) plastics without primer.
In addition, our product has excellent adhesive properties when it comes to easy-to-bond OEM clear coats.
Also available in 1.1 mm and 1.5 mm thicknesses.
LSE: low surface energy, MSE: medium surface energy
Backing material | foamed acrylic |
Colour | grey |
Total thickness | 800 µm |
Type of adhesive | LSE |
Backing material | foamed acrylic |
Colour | grey |
Total thickness | 800 µm |
Type of adhesive | LSE |
Temperature range | -40 to +80 |
Humidity resistance | very good |
Ageing resistance (UV) | good |
Temperature range | -40 to +80 |
Humidity resistance | very good |
Ageing resistance (UV) | good |
Adhesion to ABS (initial) | 23 N/cm |
Adhesion to ABS (after 3 days) | 28 N/cm |
Adhesion to ABS (covered side, initial) | 8 N/cm |
Adhesion to ABS (covered side, after 3 days) | 12 N/cm |
Adhesion to PP (initial) | 24 N/cm |
Adhesion to PP (after 3 days) | 30 N/cm |
Adhesion to Steel (initial) | 25 N/cm |
Adhesion to Steel (covered side, after 3 days) | 25 N/cm |
Adhesion to Steel (after 3 days) | 31 N/cm |
Adhesion to Steel (covered side, initial) | 12 N/cm |
Adhesion to ABS (initial) | 23 N/cm |
Adhesion to ABS (after 3 days) | 28 N/cm |
Adhesion to ABS (covered side, initial) | 8 N/cm |
Adhesion to ABS (covered side, after 3 days) | 12 N/cm |
Adhesion to PP (initial) | 24 N/cm |
Adhesion to PP (after 3 days) | 30 N/cm |
Adhesion to Steel (initial) | 25 N/cm |
Adhesion to Steel (covered side, after 3 days) | 25 N/cm |
Adhesion to Steel (after 3 days) | 31 N/cm |
Adhesion to Steel (covered side, initial) | 12 N/cm |
Download the files below for more technical details and information on this product.
