Product Construction
| Backing material | PE foam with film lamination |
| Total thickness | 430 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PP |

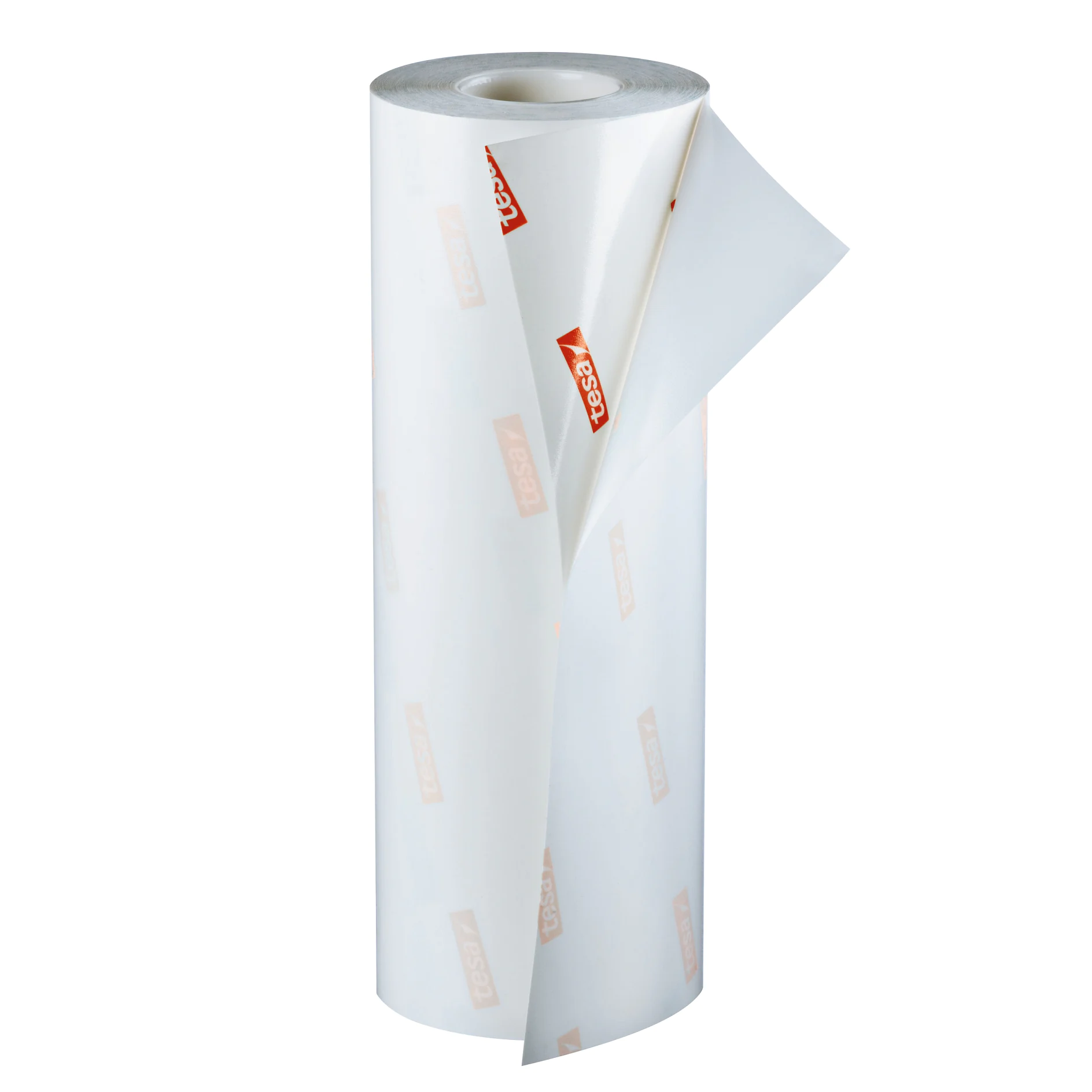

tesa® Softprint 52017 Steel Master
Foam plate mounting tape (soft) for printing combinations & screens
Product description
tesa® 52017 Softprint Steel Master is a double-coated foam tape, designed specifically for mounting photopolymer plates with a thickness of 1.70mm (0.067") or 2.54mm (0.100") in flexographic label printing.
The soft foam makes this the ideal solution for printing combinations and screens.
Foam properties:
- Highly compressible foam, with superior recovery for excellent print quality
- Long lasting recovery characteristics for extended and high speed print runs
- Low thickness tolerances for quick print preparation and reduced waste
Adhesive properties:
- High bonding on open side to steel cylinder or sleeve to avoid plate movement
- High bonding to plate to avoid edge lifting or plate movement
- No increase in bond allowing for easy repositioning and especially for easy demounting of plate and tape
- Very cohesive adhesive structure for demounting without adhesive residues
Additional properties:
- The structured PP-liner prevents the formation of air pockets when plate mounting
- Red colour marking indicates soft foam
Product details and specifications
Application Fields
tesa® 52017 Softprint Steel Master is a 380µm (15 mil) category double-coated foam tape, designed specifically for mounting photopolymer plates with a thickness of 1.70mm (0.067") or 2.54mm (0.100") in flexographic label printing.
Product Construction
| Backing material | PE foam with film lamination |
| Total thickness | 430 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | PP |
Properties / Performance Values
| Logo colour | red |
| Hardness | soft |
| Thickness category | 380 |
Properties / Performance Values
| Logo colour | red |
| Hardness | soft |
| Thickness category | 380 |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
