Product Construction
| Adhesive Type | acrylic |
| Backing material | PET film |
| Color | transparent |
| Total thickness | 1.97 mils
50 µm |

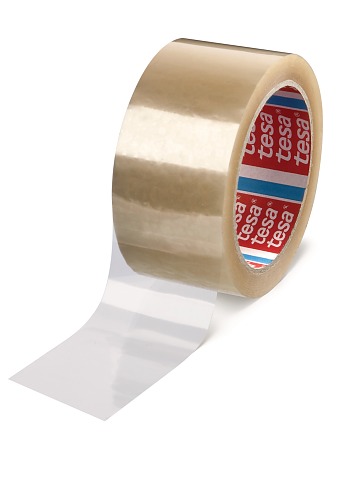

tesa® 4129
Single-Sided Tape
Product description
tesa® 4129 is a transparent tape with a PET backing. Its acrylic adhesive system combines good initial tack with high shear strength. The product is resistant to humidity and most chemicals.
Product details and specifications
Application Fields
tesa® 4129 is particularly suitable for
- Splicing of filmic materials
- Edge protection and reinforcement
- Splicing of photographic negatives
- Litho mounting
Product Construction
| Adhesive Type | acrylic |
| Backing material | PET film |
| Color | transparent |
| Total thickness | 1.97 mils
50 µm |
Properties / Performance Values
| Elongation at break | 140 % |
Properties / Performance Values
| Elongation at break | 140 % |
Adhesion to Values
| Adhesion to Steel | 1.31 lbs/in
2.3 N/cm |
Adhesion to Values
| Adhesion to Steel | 1.31 lbs/in
2.3 N/cm |
Additional Info
- Temperature resistance (short term): 200°C/392°F
- Dielectric Strength: 90,4 kV/mm
- Surface resistivity 4,45E+14 Ω
- Volume resistivity 7,36E+15 Ωcm
- Dielectric strength according to DIN EN 60243-1
- Surface / Volume resistivity according to DIN IEC 60093
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
