Product Construction
| Adhesive Type | biomass-balanced tackified acrylic |
| Backing material | Post consumer recycled PET |
| Color | transparent |
| Color of liner | red |
| Liner Type | TPP |
| Thickness of liner | 3.15 mils
80 µm |
| Total thickness | 8.07 mils
205 µm |

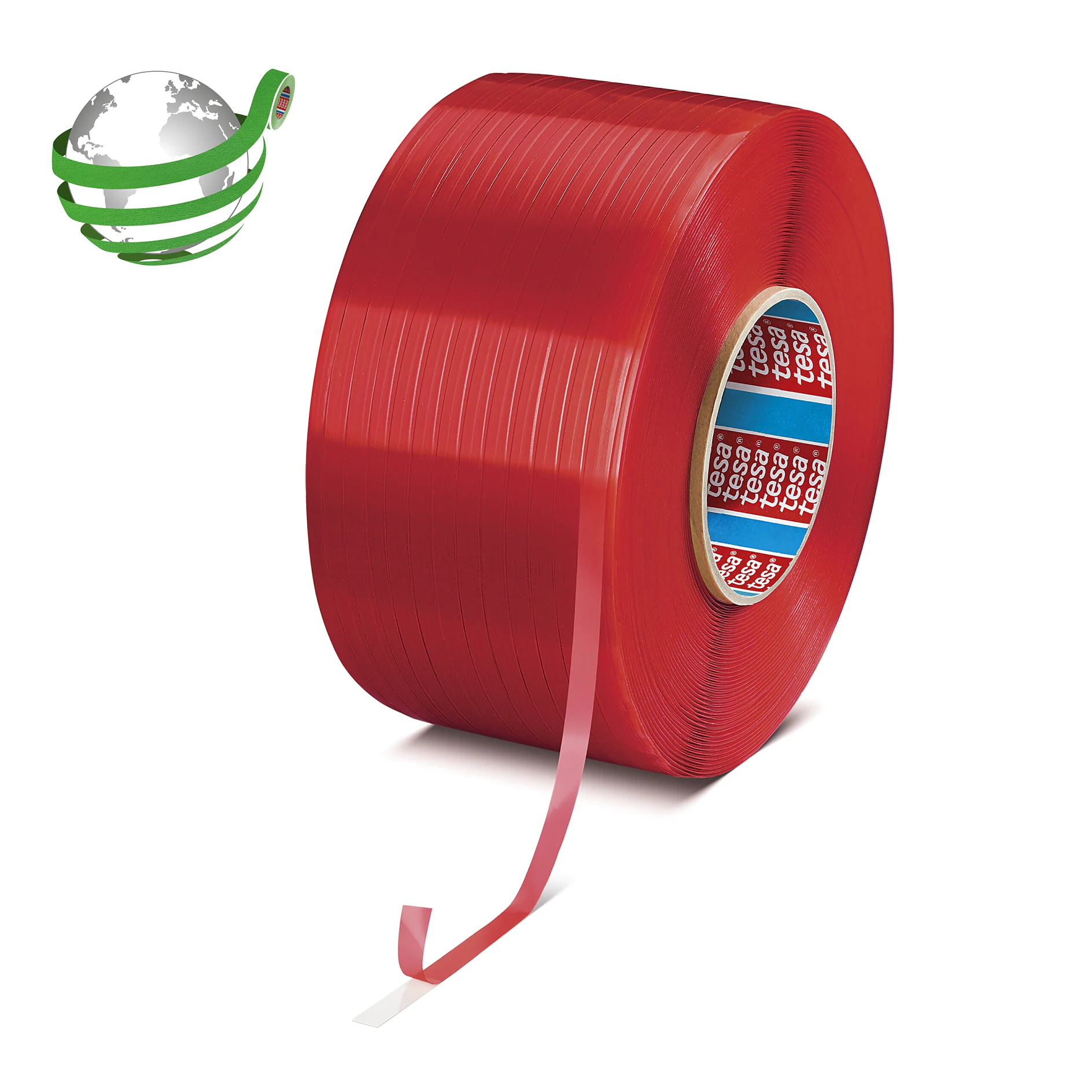

tesa® 4965 Original Next Gen
205µm/8.1 mils double-sided transparent PET film tape
Sustainable Aspects
- tesa® 4965 Original Next Gen with -40% CO₂ emissions compared to tesa® 4965 Original
- Biomass balanced tackified acrylic adhesive
- 90% PCR PET in the backing
- Suitability for critical demands such as heavy stress and high temperatures
- Skin contact certification according to ISO 10993-5 and ISO 10993-10
- In accordance with UL standard 969. UL file: MH 18055
Product description
tesa® 4965 Original is a transparent, double-sided industrial mounting tape consisting of a PET backing and a tackified acrylic adhesive. Its adhesive technology is based on a patented and protected product formulation. Across all industries, tesa® 4965 Original is used to improve processes and applications. Based on tesa® 4965's patented and protected technology, its unique performance is demonstrated through outstanding qualities such as versatility, durability, and safety. The double-sided industrial mounting tape is able to withstand numerous environmental factors such as humidity, UV light, and temperatures of up to 200°C / 392°F for limited periods of time. The tackified acrylic adhesive offers excellent hold on various surfaces, high tack, and good shear strength.
Several products are equipped with this unique and high-performing product design. Together, these products make up Team 4965. This double-sided film tape assortment helps to easily select the most efficient tape based on customer demands, products, and processes. Explore the benefits of the full tesa® 4965 assortment here: https://www.tesa.com/en-us/industry/general-applications/mounting/team-4965-assortment.
Product details and specifications
Product Features
- Suitability for critical demands such as heavy stress and high temperatures
- Skin contact certification according to ISO 10993-5 and ISO 10993-10
- In accordance with UL standard 969. UL file: MH 18055
- Reliable bond even on low surface energy surfaces
- Immediate usability right after assembly
- Certified according to DIN EN 45545-2 fulfilling 2R1+HL3
Application Fields
- tesa® 4965 Original is used across all industries
- ABS plastics-parts mounting for the car industry
- Self-adhesive mounting for rubber/EPDM profiles

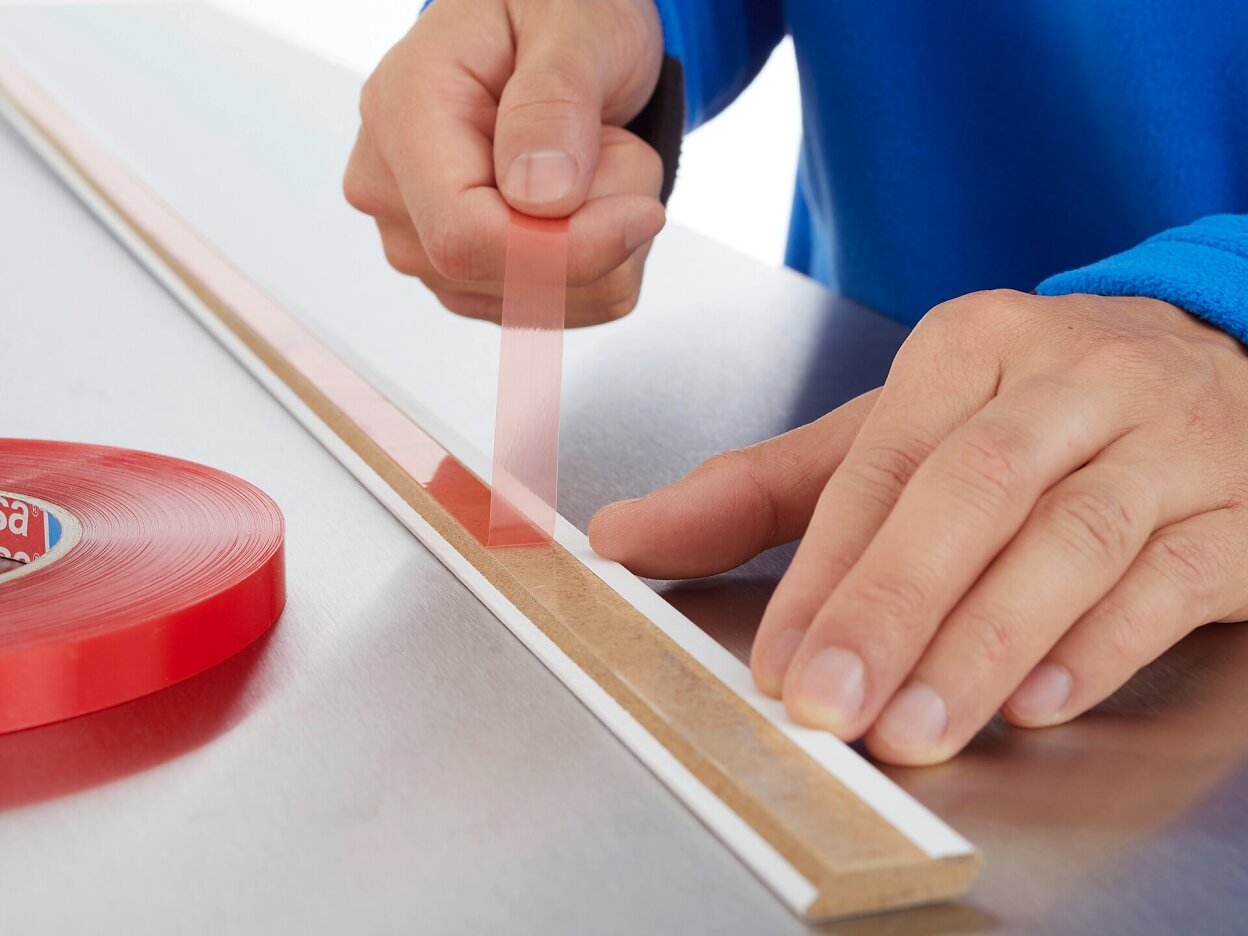

- Decorative molding and profile mounting in the furniture industry
- Battery pack, lens, and touch-screen mounting for electronic devices
Sustainable Aspects
- tesa® 4965 Original Next Gen with -40% CO₂ emissions compared to tesa® 4965 Original
- Biomass balanced tackified acrylic adhesive
- 90% PCR PET in the backing
Product Construction
| Adhesive Type | biomass-balanced tackified acrylic |
| Backing material | Post consumer recycled PET |
| Color | transparent |
| Color of liner | red |
| Liner Type | TPP |
| Thickness of liner | 3.15 mils
80 µm |
| Total thickness | 8.07 mils
205 µm |
Properties / Performance Values
| Elongation at break | 50 % |
| Tensile strength | 11.42 lbs/in
20 N/cm |
| Chemical Resistance | good |
| Static shear resistance at 40°C | very good |
| Temperature resistance min. | -40 °F
-40 °C |
| Softener resistance | good |
| Temperature resistance short term | 392 °F
200 °C |
| Ageing resistance (UV) | good |
| Humidity resistance | very good |
| Static shear resistance at 23°C | very good |
| Tack | good |
| Temperature resistance long term | 212 °F
100 °C |
Properties / Performance Values
| Elongation at break | 50 % |
| Tensile strength | 11.42 lbs/in
20 N/cm |
| Chemical Resistance | good |
| Static shear resistance at 40°C | very good |
| Temperature resistance min. | -40 °F
-40 °C |
| Softener resistance | good |
| Temperature resistance short term | 392 °F
200 °C |
| Ageing resistance (UV) | good |
| Humidity resistance | very good |
| Static shear resistance at 23°C | very good |
| Tack | good |
| Temperature resistance long term | 212 °F
100 °C |
Adhesion to Values
| Adhesion to ABS (initial) | 5.88 lbs/in
10.3 N/cm |
| Adhesion to ABS (after 14 days) | 6.85 lbs/in
12 N/cm |
| Adhesion to Aluminium (initial) | 5.25 lbs/in
9.2 N/cm |
| Adhesion to Aluminium (after 14 days) | 6.05 lbs/in
10.6 N/cm |
| Adhesion to PC (initial) | 7.19 lbs/in
12.6 N/cm |
| Adhesion to PC (after 14 days) | 7.99 lbs/in
14 N/cm |
| Adhesion to PE (initial) | 3.31 lbs/in
5.8 N/cm |
| Adhesion to PE (after 14 days) | 3.94 lbs/in
6.9 N/cm |
| Adhesion to PET (initial) | 5.25 lbs/in
9.2 N/cm |
| Adhesion to PET (after 14 days) | 5.42 lbs/in
9.5 N/cm |
| Adhesion to PP (initial) | 3.88 lbs/in
6.8 N/cm |
| Adhesion to PP (after 14 days) | 4.51 lbs/in
7.9 N/cm |
| Adhesion to PS (initial) | 6.05 lbs/in
10.6 N/cm |
| Adhesion to PS (after 14 days) | 6.85 lbs/in
12 N/cm |
| Adhesion to PVC (initial) | 4.97 lbs/in
8.7 N/cm |
| Adhesion to PVC (after 14 days) | 7.42 lbs/in
13 N/cm |
| Adhesion to Steel (initial) | 6.57 lbs/in
11.5 N/cm |
| Adhesion to Steel (after 14 days) | 6.74 lbs/in
11.8 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 5.88 lbs/in
10.3 N/cm |
| Adhesion to ABS (after 14 days) | 6.85 lbs/in
12 N/cm |
| Adhesion to Aluminium (initial) | 5.25 lbs/in
9.2 N/cm |
| Adhesion to Aluminium (after 14 days) | 6.05 lbs/in
10.6 N/cm |
| Adhesion to PC (initial) | 7.19 lbs/in
12.6 N/cm |
| Adhesion to PC (after 14 days) | 7.99 lbs/in
14 N/cm |
| Adhesion to PE (initial) | 3.31 lbs/in
5.8 N/cm |
| Adhesion to PE (after 14 days) | 3.94 lbs/in
6.9 N/cm |
| Adhesion to PET (initial) | 5.25 lbs/in
9.2 N/cm |
| Adhesion to PET (after 14 days) | 5.42 lbs/in
9.5 N/cm |
| Adhesion to PP (initial) | 3.88 lbs/in
6.8 N/cm |
| Adhesion to PP (after 14 days) | 4.51 lbs/in
7.9 N/cm |
| Adhesion to PS (initial) | 6.05 lbs/in
10.6 N/cm |
| Adhesion to PS (after 14 days) | 6.85 lbs/in
12 N/cm |
| Adhesion to PVC (initial) | 4.97 lbs/in
8.7 N/cm |
| Adhesion to PVC (after 14 days) | 7.42 lbs/in
13 N/cm |
| Adhesion to Steel (initial) | 6.57 lbs/in
11.5 N/cm |
| Adhesion to Steel (after 14 days) | 6.74 lbs/in
11.8 N/cm |
Certificates
- tesa® 4965 Original Next Gen contains a total of 62% biocarbon content (including red MOPP liner)
- which is composed of 20% bio-based carbon content directly derived from biological sources and 42% bio-attributed carbon content from the use of biomass balanced adhesive components that are ISCC PLUS certified. The double-sided mounting tape contains a 90% recycled PET backing
- resulting in an average of 5% post-consumer recycled content (including red MOPP liner) in the tape. This is a third-party environmental claim validated against the UL Environmental Claim Validation Procedure 2809 for recycled content. The UL Environmental Claim Validation Program falls under UL’s ISO/IEC 17025 accreditation.
Additional Info
Liner variants:
According to VDA278 analysis, tesa® 4965 does not contain any single substances restricted by the drafted GB regulations (China) as well as the indoor concentration guideline by Health, Labour and Welfare Ministry (Japan).
- PV0: red MOPP-film (80 µm / 3.1 mils; 72g/m²)
- PV1: brown glassine paper (69 µm / 2.7 mils; 80g/m²)
- PV2: brown glassine paper (78 μm / 3.1 mils; 90g/m²)
- PV4: branded white paper liner (104 μm / 4.1 mils; 120g/m²)
- PV8: white MOPP friction liner (80 μm / 3.1 mils; 72g/m²)
According to VDA278 analysis, tesa® 4965 does not contain any single substances restricted by the drafted GB regulations (China) as well as the indoor concentration guideline by Health, Labour and Welfare Ministry (Japan).
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
