Double-sided 5mil non-woven tape

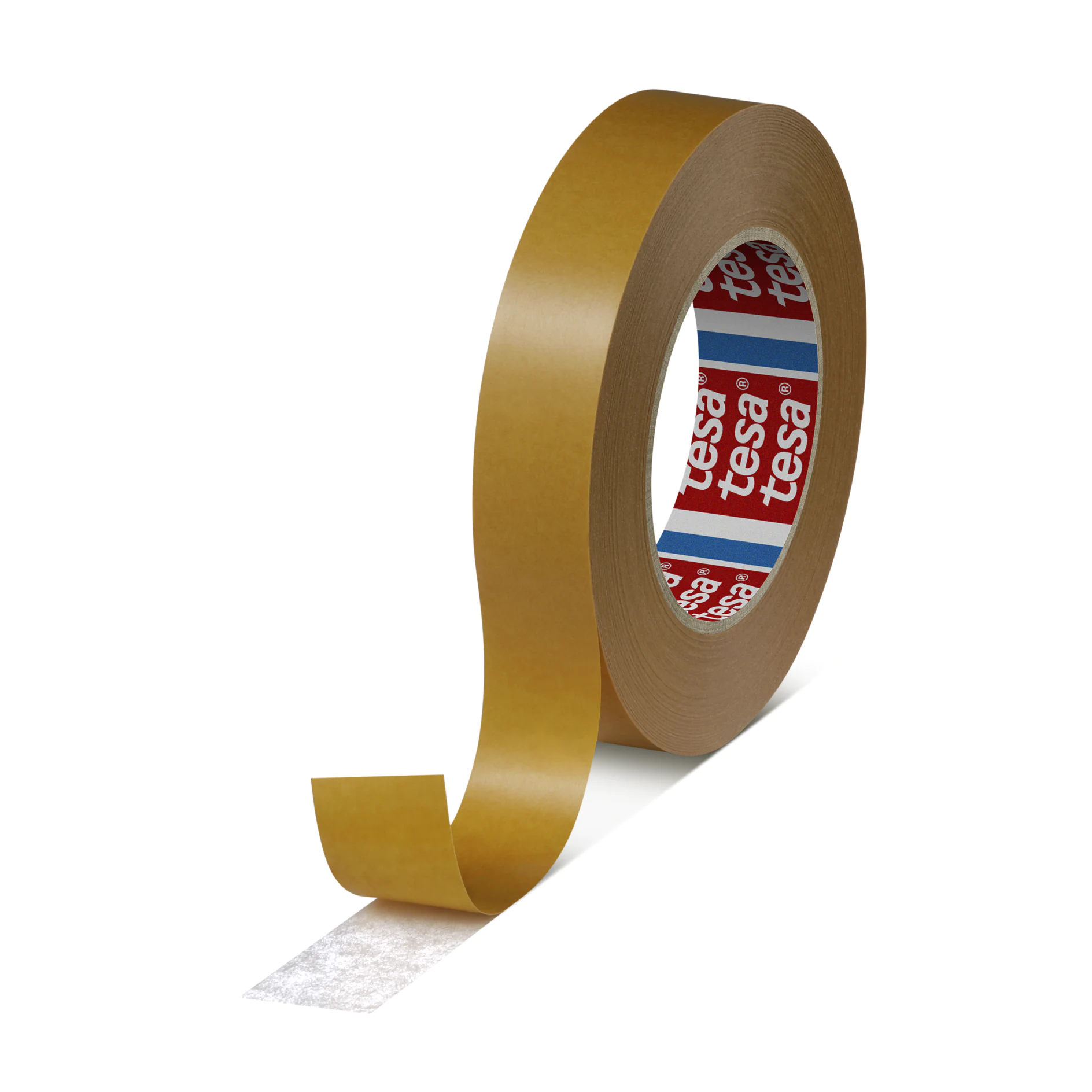

tesa® 4987 is a translucent double-sided self-adhesive tape consisting of a non-woven backing and a tackified acrylic adhesive.
tesa® 4987 features especially:
| Adhesive Type | tackified acrylic |
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white |
| Liner Type | glassine |
| Thickness of liner | 3.31 mils
84 µm |
| Total thickness | 4.92 mils
125 µm |
| Weight of liner | 142.23 lbs/in²
100 g/m² |
| Adhesive Type | tackified acrylic |
| Backing material | non-woven |
| Color | translucent |
| Color of liner | white |
| Liner Type | glassine |
| Thickness of liner | 3.31 mils
84 µm |
| Total thickness | 4.92 mils
125 µm |
| Weight of liner | 142.23 lbs/in²
100 g/m² |
| Elongation at break | 3 % |
| Tensile strength | 4.57 lbs/in
8 N/cm |
| Static shear resistance at 40°C | medium |
| Chemical Resistance | good |
| Ageing resistance (UV) | good |
| Temperature resistance long term | 176 °F
80 °C |
| Tack | good |
| Temperature resistance min. | -40 °F
-40 °C |
| Static shear resistance at 23°C | good |
| Temperature resistance short term | 392 °F
200 °C |
| Softener resistance | medium |
| Humidity resistance | good |
| Elongation at break | 3 % |
| Tensile strength | 4.57 lbs/in
8 N/cm |
| Static shear resistance at 40°C | medium |
| Chemical Resistance | good |
| Ageing resistance (UV) | good |
| Temperature resistance long term | 176 °F
80 °C |
| Tack | good |
| Temperature resistance min. | -40 °F
-40 °C |
| Static shear resistance at 23°C | good |
| Temperature resistance short term | 392 °F
200 °C |
| Softener resistance | medium |
| Humidity resistance | good |
| Adhesion to ABS (initial) | 4.57 lbs/in
8 N/cm |
| Adhesion to ABS (after 14 days) | 6.17 lbs/in
10.8 N/cm |
| Adhesion to Aluminium (initial) | 4.4 lbs/in
7.7 N/cm |
| Adhesion to Aluminium (after 14 days) | 5.77 lbs/in
10.1 N/cm |
| Adhesion to PC (initial) | 5.31 lbs/in
9.3 N/cm |
| Adhesion to PC (after 14 days) | 5.94 lbs/in
10.4 N/cm |
| Adhesion to PE (initial) | 2.34 lbs/in
4.1 N/cm |
| Adhesion to PE (after 14 days) | 2.74 lbs/in
4.8 N/cm |
| Adhesion to PET (initial) | 3.94 lbs/in
6.9 N/cm |
| Adhesion to PET (after 14 days) | 4.97 lbs/in
8.7 N/cm |
| Adhesion to PP (initial) | 3.2 lbs/in
5.6 N/cm |
| Adhesion to PP (after 14 days) | 3.54 lbs/in
6.2 N/cm |
| Adhesion to PS (initial) | 4.85 lbs/in
8.5 N/cm |
| Adhesion to PS (after 14 days) | 5.88 lbs/in
10.3 N/cm |
| Adhesion to PVC (initial) | 4 lbs/in
7 N/cm |
| Adhesion to PVC (after 14 days) | 6.51 lbs/in
11.4 N/cm |
| Adhesion to Steel (initial) | 5.14 lbs/in
9 N/cm |
| Adhesion to Steel (after 14 days) | 6.4 lbs/in
11.2 N/cm |
| Adhesion to ABS (initial) | 4.57 lbs/in
8 N/cm |
| Adhesion to ABS (after 14 days) | 6.17 lbs/in
10.8 N/cm |
| Adhesion to Aluminium (initial) | 4.4 lbs/in
7.7 N/cm |
| Adhesion to Aluminium (after 14 days) | 5.77 lbs/in
10.1 N/cm |
| Adhesion to PC (initial) | 5.31 lbs/in
9.3 N/cm |
| Adhesion to PC (after 14 days) | 5.94 lbs/in
10.4 N/cm |
| Adhesion to PE (initial) | 2.34 lbs/in
4.1 N/cm |
| Adhesion to PE (after 14 days) | 2.74 lbs/in
4.8 N/cm |
| Adhesion to PET (initial) | 3.94 lbs/in
6.9 N/cm |
| Adhesion to PET (after 14 days) | 4.97 lbs/in
8.7 N/cm |
| Adhesion to PP (initial) | 3.2 lbs/in
5.6 N/cm |
| Adhesion to PP (after 14 days) | 3.54 lbs/in
6.2 N/cm |
| Adhesion to PS (initial) | 4.85 lbs/in
8.5 N/cm |
| Adhesion to PS (after 14 days) | 5.88 lbs/in
10.3 N/cm |
| Adhesion to PVC (initial) | 4 lbs/in
7 N/cm |
| Adhesion to PVC (after 14 days) | 6.51 lbs/in
11.4 N/cm |
| Adhesion to Steel (initial) | 5.14 lbs/in
9 N/cm |
| Adhesion to Steel (after 14 days) | 6.4 lbs/in
11.2 N/cm |
Download the files below for more technical details and information on this product.
