Product Construction
| Adhesive Type | acrylic |
| Backing material | PET fleece |
| Color | black/white |
| Color of liner | yellow |
| Liner Type | glassine |
| Thickness of liner | 2.95 mils
75 µm |
| Thickness of tape | 21.26 mils
540 µm |
| Weight of liner | 128.01 lbs/in²
90 g/m² |
tesa® 50118 PV1
Conformable thick PET fleece tape for cable mounting in automotive interiors
Product description
tesa® 50118 PV1 is a conformable thick PET fleece tape with a new designed acrylic adhesive for applications in automotive interiors.
Features:
- high initial wet out
- excellent damping properties
- good peel resistance
- suitable for common irregular, rough and critical interior surfaces
- often suitable without any kind of surface pretreatments
- can be used with automatic tape dispensers
Product details and specifications
Application Fields

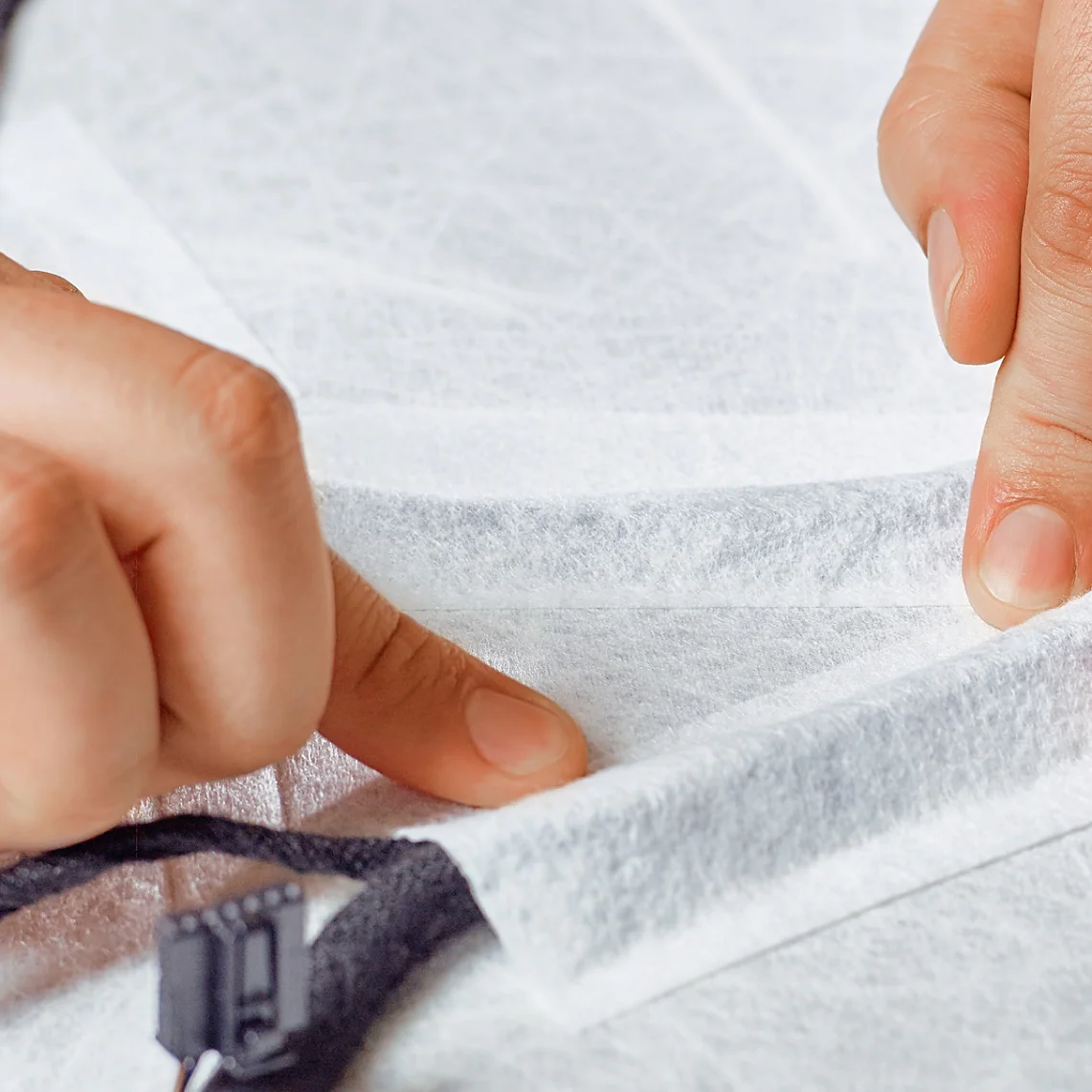

Cable mounting
For quick and secure fixation of flat and round cables with excellent damping properties
For quick and secure fixation of flat and round cables with excellent damping properties
Product Construction
| Adhesive Type | acrylic |
| Backing material | PET fleece |
| Color | black/white |
| Color of liner | yellow |
| Liner Type | glassine |
| Thickness of liner | 2.95 mils
75 µm |
| Thickness of tape | 21.26 mils
540 µm |
| Weight of liner | 128.01 lbs/in²
90 g/m² |
Properties / Performance Values
| Elongation at break | 70 % |
| Tensile strength | 17.7 lbs/in
31 N/cm |
| Hand tearability | low |
| Static shear resistance | very good |
| Noise damping (LV312) | Class C |
| Temperature resistance short term | 320 °F
160 °C |
| Tack | very good |
| Suitable for rough surfaces | very good |
| Low VOC | very good |
Properties / Performance Values
| Elongation at break | 70 % |
| Tensile strength | 17.7 lbs/in
31 N/cm |
| Hand tearability | low |
| Static shear resistance | very good |
| Noise damping (LV312) | Class C |
| Temperature resistance short term | 320 °F
160 °C |
| Tack | very good |
| Suitable for rough surfaces | very good |
| Low VOC | very good |
Adhesion to Values
| Adhesion to PET (initial) | 4.85 lbs/in
8.5 N/cm |
| Adhesion to PET fleece Headliner A (initial) | 2.23 lbs/in
3.9 N/cm |
| Adhesion to PET fleece surface (after 3 days) | 2.97 lbs/in
5.2 N/cm |
| Adhesion to PET fleece Headliner A (after 3 days) | 3.37 lbs/in
5.9 N/cm |
| Adhesion to PET fleece surface (initial) | 2.97 lbs/in
5.2 N/cm |
| Adhesion to PET (after 3 days) | 5.2 lbs/in
9.1 N/cm |
Adhesion to Values
| Adhesion to PET (initial) | 4.85 lbs/in
8.5 N/cm |
| Adhesion to PET fleece Headliner A (initial) | 2.23 lbs/in
3.9 N/cm |
| Adhesion to PET fleece surface (after 3 days) | 2.97 lbs/in
5.2 N/cm |
| Adhesion to PET fleece Headliner A (after 3 days) | 3.37 lbs/in
5.9 N/cm |
| Adhesion to PET fleece surface (initial) | 2.97 lbs/in
5.2 N/cm |
| Adhesion to PET (after 3 days) | 5.2 lbs/in
9.1 N/cm |
Additional Info
1 Kiss-cut solutions or die-cuts are available under tesa® 54118PV1 (white and black) tesa’s automation and application department provides customized equipment and self-designed application tools to enhance productivity
Adhesion values to:
PET
PET fleece surface
PET fleece Headliner A
Are not part of the product specification
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
