Product Construction
| Adhesive Type | rubber based |
| Backing material | PET cloth |
| Total thickness | 12.6 mils
320 µm |

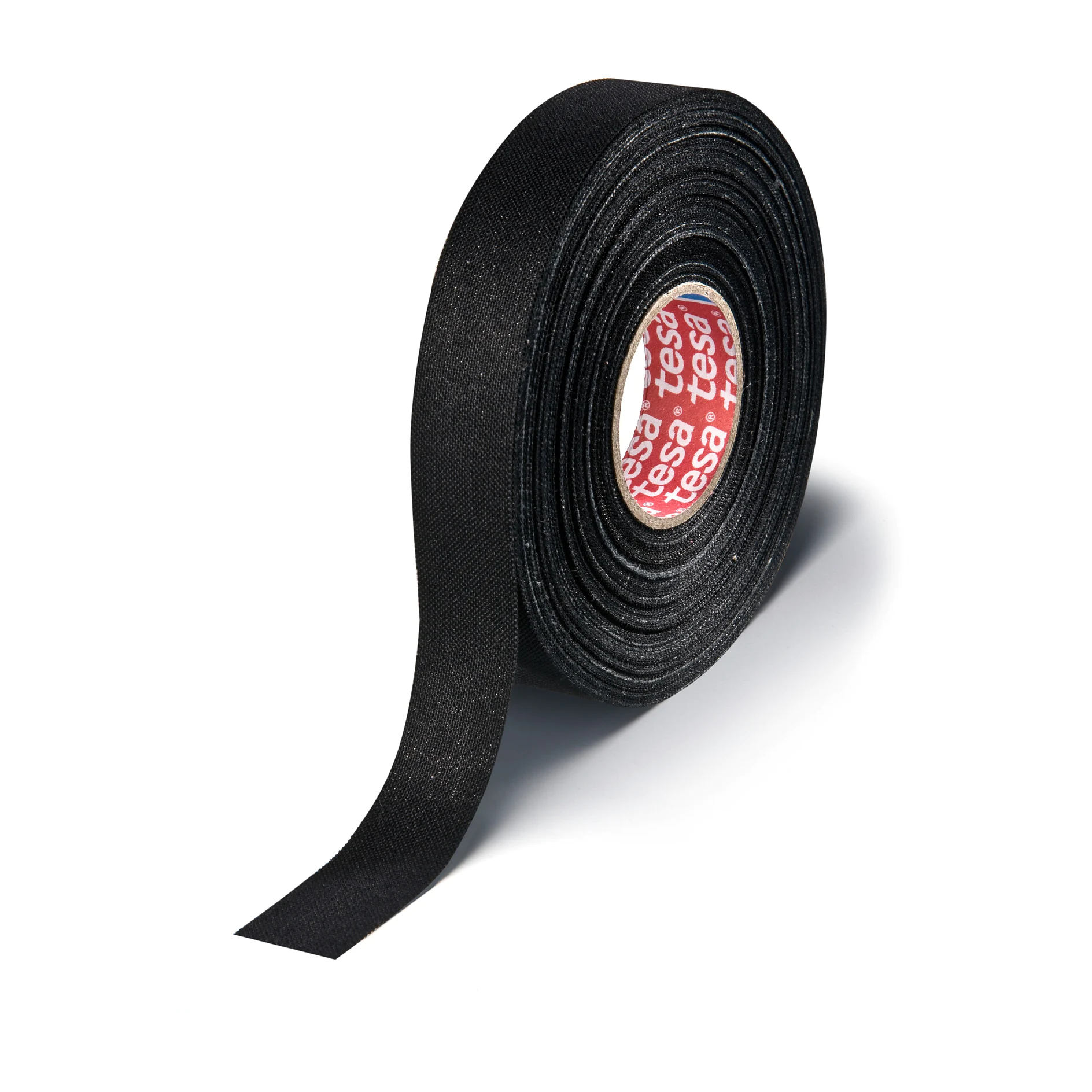

tesa® 51007
PET cloth tape for abrasion protection of automotive harnesses
Product description
tesa® 51007 is a PET cloth tape with a rubber-based adhesive providing reliable abrasion protection of automotive harnesses. The unwind force is adapted for automatic bundling and allows high processing speeds.
The high adhesion and good flag resistance ensure secure harness bundling. The temperature resistance depends on the insulation material.
Main features:
- Resistant to abrasion
- High initial tack and adhesion
- Optimized for automatic wrapping
- Flag-resistant
- Can withstand environmental influences
- Constant unwind force – optimized for automatic application
- Aging-resistant
- Flame-retardant
- Flexible and smooth
Product details and specifications
Application Fields
tesa® 51007 has been specially designed for bundling and wire protection against abrasion. The main application field is the engine compartment of a car, with demanding temperature-related and environmental conditions.
Product Construction
| Adhesive Type | rubber based |
| Backing material | PET cloth |
| Total thickness | 12.6 mils
320 µm |
Properties / Performance Values
| Elongation at break | 22 % |
| Tensile strength | 99.93 lbs/in
175 N/cm |
| Abrasion resistance (5mm mandrel, LV312) | Class B |
| Temperature resistance max. | 302 °F
150 °C |
| Temperature resistance min. | -40 °F
-40 °C |
| Unwind force (roll width > 9mm) | 6 N/roll (30 m/min) |
| Noise damping (LV312) | Class A |
| Unwind force (roll width < 9mm) | 6 N/roll (30 m/min) |
| Abrasion resistance (10mm mandrel, LV312) | Class C |
Properties / Performance Values
| Elongation at break | 22 % |
| Tensile strength | 99.93 lbs/in
175 N/cm |
| Abrasion resistance (5mm mandrel, LV312) | Class B |
| Temperature resistance max. | 302 °F
150 °C |
| Temperature resistance min. | -40 °F
-40 °C |
| Unwind force (roll width > 9mm) | 6 N/roll (30 m/min) |
| Noise damping (LV312) | Class A |
| Unwind force (roll width < 9mm) | 6 N/roll (30 m/min) |
| Abrasion resistance (10mm mandrel, LV312) | Class C |
Adhesion to Values
| Adhesion to Steel | 2.57 lbs/in
4.5 N/cm |
Adhesion to Values
| Adhesion to Steel | 2.57 lbs/in
4.5 N/cm |
Additional Info
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 50 m
1 On ETFE wires. Other insulation materials to be tested.
Standard lengths: 50 m
- Most combinations of width and length are possible
- Further dimensions are available upon request
- Standard core diameter: 76 mm
- Applicable for red ring assembly aid
1 On ETFE wires. Other insulation materials to be tested.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
