Product Construction
Adhesive Type | acrylic |
Backing material | PE foam |
Color | white |
Liner Type | PE-coated paper |
Total thickness | 47.24 mils
1200 µm |

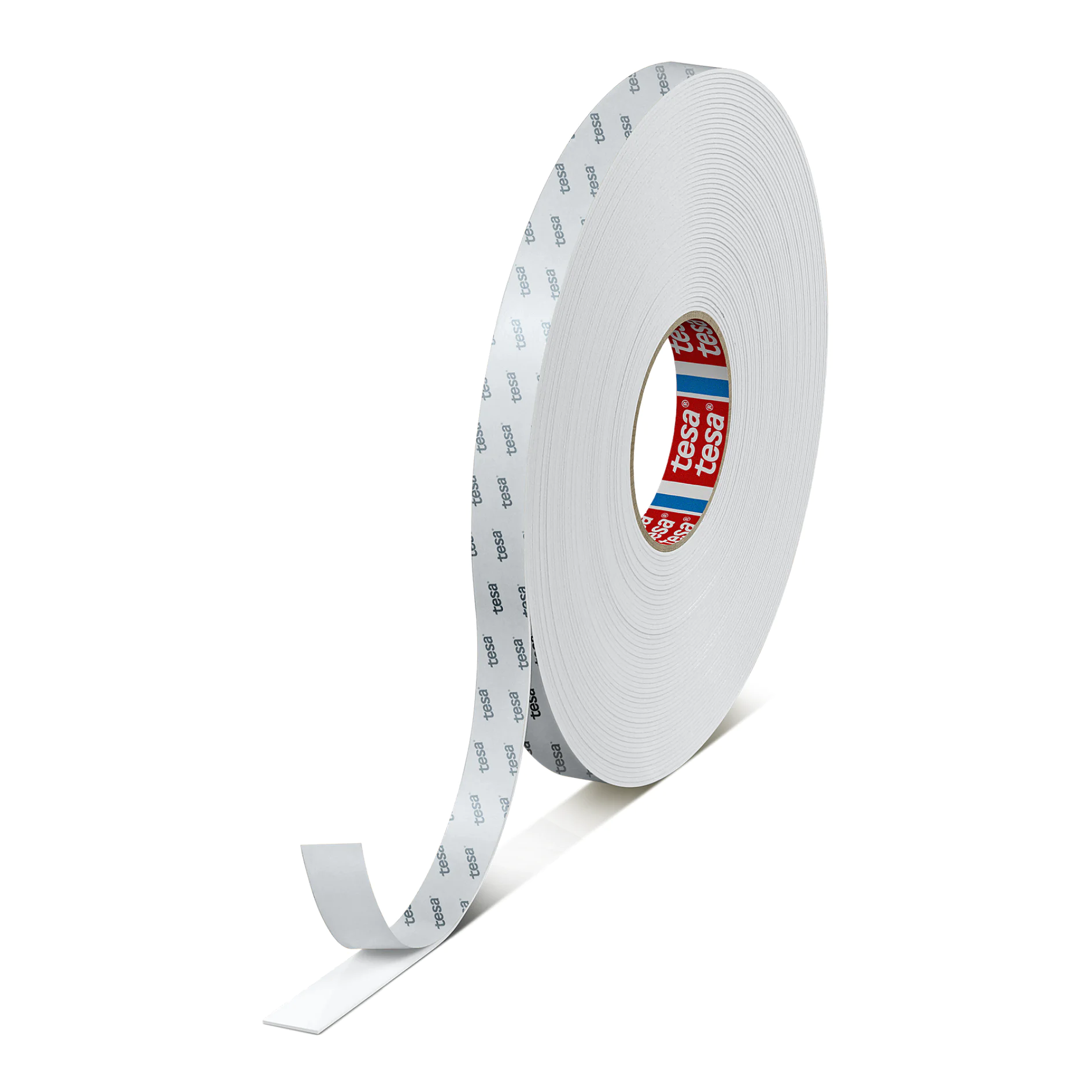

1200 µm / 47.3 mils double sided PE foam tape
tesa® 55576 is a double-sided PE foam tape for light duty mounting applications. It consists of a PE foam backing and a tackified acrylic adhesive.
Adhesive Type | acrylic |
Backing material | PE foam |
Color | white |
Liner Type | PE-coated paper |
Total thickness | 47.24 mils
1200 µm |
Adhesive Type | acrylic |
Backing material | PE foam |
Color | white |
Liner Type | PE-coated paper |
Total thickness | 47.24 mils
1200 µm |
Temperature resistance long term | 140 °F
60 °C |
Temperature resistance short term | 176 °F
80 °C |
Temperature resistance long term | 140 °F
60 °C |
Temperature resistance short term | 176 °F
80 °C |
Adhesion to Aluminium (initial) | 3.65 lbs/in
6.4 N/cm |
Adhesion to PE (initial) | 0.8 lbs/in
1.4 N/cm |
Adhesion to PVC (initial) | 1.71 lbs/in
3 N/cm |
Adhesion to Steel (initial) | 3.14 lbs/in
5.5 N/cm |
Adhesion to Aluminium (initial) | 3.65 lbs/in
6.4 N/cm |
Adhesion to PE (initial) | 0.8 lbs/in
1.4 N/cm |
Adhesion to PVC (initial) | 1.71 lbs/in
3 N/cm |
Adhesion to Steel (initial) | 3.14 lbs/in
5.5 N/cm |
Download the files below for more technical details and information on this product.
