Product Construction
Adhesive Type | tackified acrylic |
Backing material | PET film |
Color | transparent |
Total thickness | 1.97 mils
50 µm |
50µm d/s filmic tape
tesa® 68542 is a transparent, double-sided self-adhesive tape consisting of a PET backing and a tackified acrylic adhesive.
tesa® 68542 features:
Adhesive Type | tackified acrylic |
Backing material | PET film |
Color | transparent |
Total thickness | 1.97 mils
50 µm |
Adhesive Type | tackified acrylic |
Backing material | PET film |
Color | transparent |
Total thickness | 1.97 mils
50 µm |
Elongation at break | 50 % |
Tensile strength | 11.42 lbs/in
20 N/cm |
Tack | good |
Ageing resistance (UV) | very good |
Softener resistance | very good |
Temperature resistance long term | 212 °F
100 °C |
Temperature resistance short term | 392 °F
200 °C |
Humidity resistance | very good |
Static shear resistance at 23°C | medium |
Elongation at break | 50 % |
Tensile strength | 11.42 lbs/in
20 N/cm |
Tack | good |
Ageing resistance (UV) | very good |
Softener resistance | very good |
Temperature resistance long term | 212 °F
100 °C |
Temperature resistance short term | 392 °F
200 °C |
Humidity resistance | very good |
Static shear resistance at 23°C | medium |
Adhesion to ABS (initial) | 2.86 lbs/in
5 N/cm |
Adhesion to ABS (after 14 days) | 3.48 lbs/in
6.1 N/cm |
Adhesion to Aluminium (initial) | 2.86 lbs/in
5 N/cm |
Adhesion to Aluminium (after 14 days) | 3.43 lbs/in
6 N/cm |
Adhesion to PC (initial) | 3.03 lbs/in
5.3 N/cm |
Adhesion to PC (after 14 days) | 3.77 lbs/in
6.6 N/cm |
Adhesion to PE (initial) | 1.14 lbs/in
2 N/cm |
Adhesion to PE (after 14 days) | 1.6 lbs/in
2.8 N/cm |
Adhesion to PET (initial) | 2.97 lbs/in
5.2 N/cm |
Adhesion to PET (after 14 days) | 3.31 lbs/in
5.8 N/cm |
Adhesion to PP (initial) | 1.14 lbs/in
2 N/cm |
Adhesion to PP (after 14 days) | 3.03 lbs/in
5.3 N/cm |
Adhesion to PVC (initial) | 2.97 lbs/in
5.2 N/cm |
Adhesion to PVC (after 14 days) | 4.51 lbs/in
7.9 N/cm |
Adhesion to Steel (initial) | 2.86 lbs/in
5 N/cm |
Adhesion to Steel (after 14 days) | 4.11 lbs/in
7.2 N/cm |
Adhesion to ABS (initial) | 2.86 lbs/in
5 N/cm |
Adhesion to ABS (after 14 days) | 3.48 lbs/in
6.1 N/cm |
Adhesion to Aluminium (initial) | 2.86 lbs/in
5 N/cm |
Adhesion to Aluminium (after 14 days) | 3.43 lbs/in
6 N/cm |
Adhesion to PC (initial) | 3.03 lbs/in
5.3 N/cm |
Adhesion to PC (after 14 days) | 3.77 lbs/in
6.6 N/cm |
Adhesion to PE (initial) | 1.14 lbs/in
2 N/cm |
Adhesion to PE (after 14 days) | 1.6 lbs/in
2.8 N/cm |
Adhesion to PET (initial) | 2.97 lbs/in
5.2 N/cm |
Adhesion to PET (after 14 days) | 3.31 lbs/in
5.8 N/cm |
Adhesion to PP (initial) | 1.14 lbs/in
2 N/cm |
Adhesion to PP (after 14 days) | 3.03 lbs/in
5.3 N/cm |
Adhesion to PVC (initial) | 2.97 lbs/in
5.2 N/cm |
Adhesion to PVC (after 14 days) | 4.51 lbs/in
7.9 N/cm |
Adhesion to Steel (initial) | 2.86 lbs/in
5 N/cm |
Adhesion to Steel (after 14 days) | 4.11 lbs/in
7.2 N/cm |

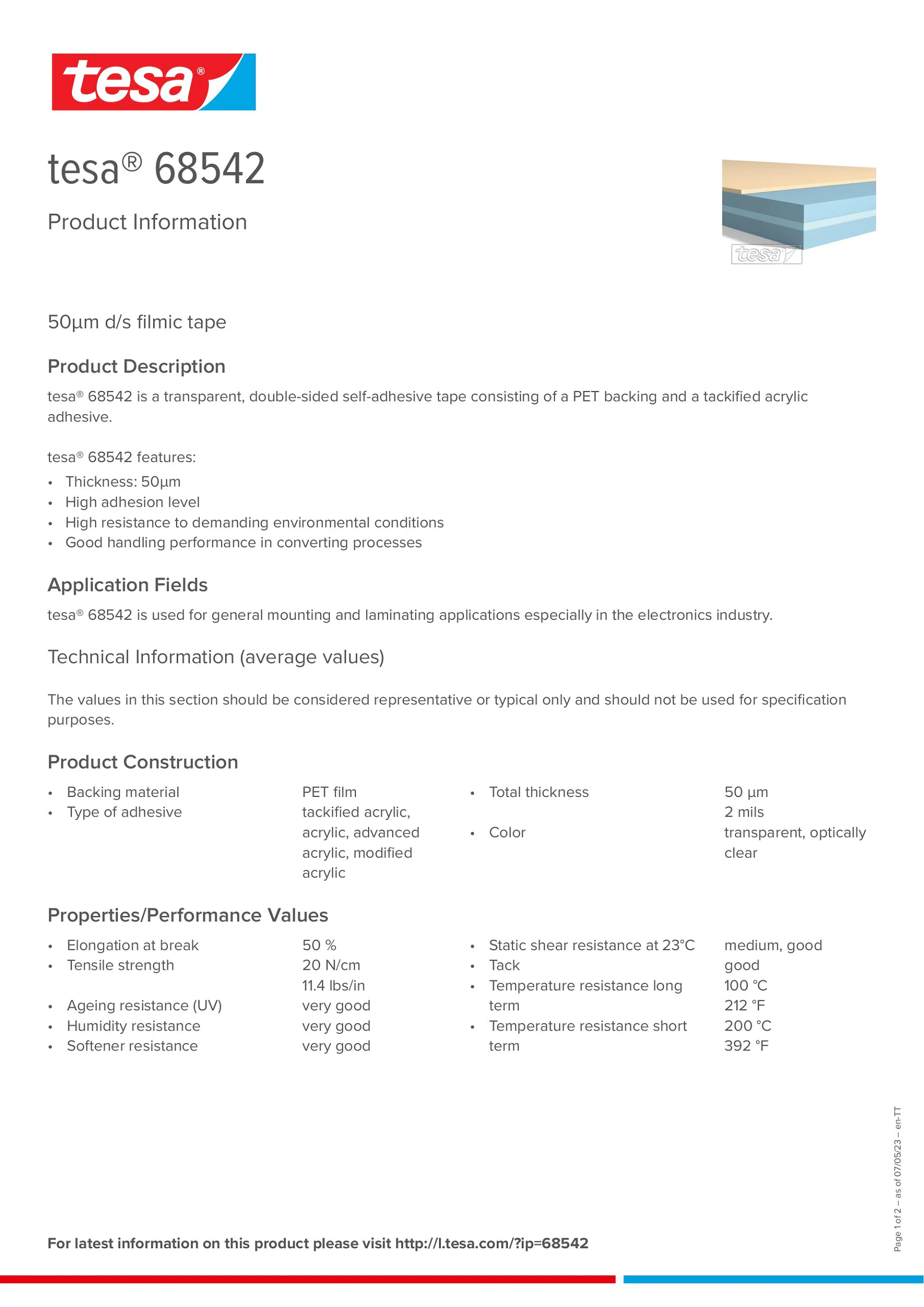

Download the files below for more technical details and information on this product.
