Product Construction
| Adhesive Type | specialty |
| Backing material | none |
| Color | transparent |
| Liner Type | glassine |
| Total thickness | 5.91 mils
150 µm |
tesa® 70315
150µm double-sided transparent Bond & Detach tape
Product description

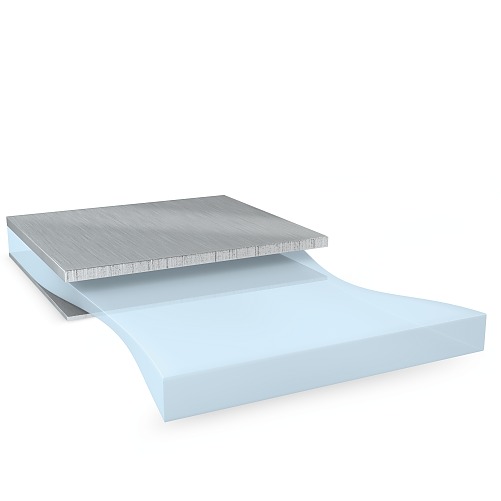

tesa® 70315 is a double-sided mounting tape which can be removed by stretching the adhesive in the bond plane (stripping).
tesa® 70315 features:
- Thickness: 150µm
- Very high bonding strength
- Superior push out and shock resistance
- Easy removability even after long bonding time by stretching the adhesive
Product details and specifications
Application Fields
- Temporary fixation of components in electronic devices during the production process
- Permanent mounting of components in electronic devices with the option to remove the parts for repairing or recycling
- Secure mounting of decorative parts, signs and plates
Product Construction
| Adhesive Type | specialty |
| Backing material | none |
| Color | transparent |
| Liner Type | glassine |
| Total thickness | 5.91 mils
150 µm |
Properties / Performance Values
| Static shear resistance at 23°C | very good |
| Removability after 14 days (23°C) | very good |
| Residue-free removability | yes |
| Static shear resistance at 40°C | very good |
Properties / Performance Values
| Static shear resistance at 23°C | very good |
| Removability after 14 days (23°C) | very good |
| Residue-free removability | yes |
| Static shear resistance at 40°C | very good |
Adhesion to Values
| Adhesion to Glass (initial) | 6.28 lbs/in
11 N/cm |
| Adhesion to Glass (after 14 days) | 6.28 lbs/in
11 N/cm |
| Adhesion to PC (initial) | 3.43 lbs/in
6 N/cm |
| Adhesion to PC (after 14 days) | 3.43 lbs/in
6 N/cm |
| Adhesion to PE (initial) | 4 lbs/in
7 N/cm |
| Adhesion to PE (after 14 days) | 4 lbs/in
7 N/cm |
| Adhesion to Steel (initial) | 6.85 lbs/in
12 N/cm |
| Adhesion to Steel (after 14 days) | 6.85 lbs/in
12 N/cm |
Adhesion to Values
| Adhesion to Glass (initial) | 6.28 lbs/in
11 N/cm |
| Adhesion to Glass (after 14 days) | 6.28 lbs/in
11 N/cm |
| Adhesion to PC (initial) | 3.43 lbs/in
6 N/cm |
| Adhesion to PC (after 14 days) | 3.43 lbs/in
6 N/cm |
| Adhesion to PE (initial) | 4 lbs/in
7 N/cm |
| Adhesion to PE (after 14 days) | 4 lbs/in
7 N/cm |
| Adhesion to Steel (initial) | 6.85 lbs/in
12 N/cm |
| Adhesion to Steel (after 14 days) | 6.85 lbs/in
12 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
