Product Construction
| Adhesive Type | tackified acrylic |
| Backing material | none |
| Color | transparent |
| Color of liner | brown/blue logo |
| Liner Type | glassine |
| Thickness of tape | 2.95 mils
75 µm |
| Total thickness | 2.95 mils
75 µm |

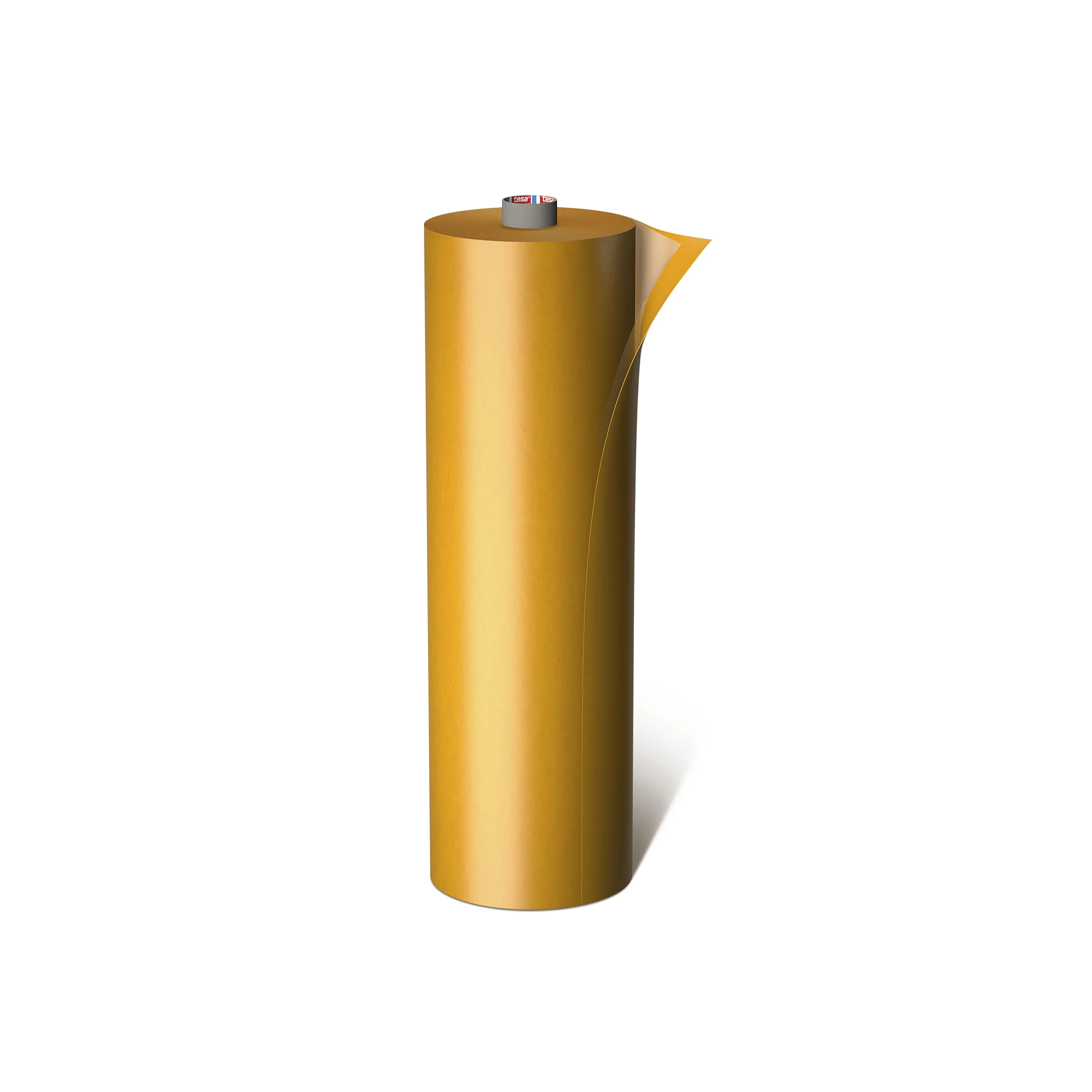

tesa® 75007 low VOC
75µm reinforced tackified acrylic adhesive layer with PET scrim for mounting in automotive interiors
Product description
tesa® 75007 is a conformable transparent adhesive layer of tackified acrylic reinforced with a PET scrim mesh.
Features:
1 low VOC - no critical substances detectable
1 high initial tack and peel adhesion
1 high conformable design following 3D shapes
1 provides excellent conformability and stability
1 provides excellent initial adhesion to a wide variety of interior substrates
1 suitable for the bonding to nonpolar plastics, foams, felts and fabrics
1 the scrim provides a reinforcement of flexible substrates for improving converting efficiency and handling
Product details and specifications
Application Fields
mounting of plastics as well LSE plastics
1 with difficult wet-out
1 permanent low load
Lamination or mounting of critical, soft, light and smooth surfaces / sheets
1 immediate and secure bending around the edge
1 with difficult wet-out
1 permanent low load
Lamination or mounting of critical, soft, light and smooth surfaces / sheets
1 immediate and secure bending around the edge
Product Construction
| Adhesive Type | tackified acrylic |
| Backing material | none |
| Color | transparent |
| Color of liner | brown/blue logo |
| Liner Type | glassine |
| Thickness of tape | 2.95 mils
75 µm |
| Total thickness | 2.95 mils
75 µm |
Properties / Performance Values
| Fogging | good |
| Suitable for rough surfaces | very good |
| Tack | very good |
| Temperature resistance min. | -40 °F
-40 °C |
| Temperature resistance max. | 338 °F
170 °C |
| Suitable for die cutting | yes |
| Low VOC | very good |
Properties / Performance Values
| Fogging | good |
| Suitable for rough surfaces | very good |
| Tack | very good |
| Temperature resistance min. | -40 °F
-40 °C |
| Temperature resistance max. | 338 °F
170 °C |
| Suitable for die cutting | yes |
| Low VOC | very good |
Adhesion to Values
| Adhesion to ABS (initial) | 5.14 lbs/in
9 N/cm |
| Adhesion to ABS (after 3 days) | 5.71 lbs/in
10 N/cm |
| Adhesion to PC (initial) | 5.94 lbs/in
10.4 N/cm |
| Adhesion to PC (after 3 days) | 6.45 lbs/in
11.3 N/cm |
| Adhesion to PE (initial) | 2.57 lbs/in
4.5 N/cm |
| Adhesion to PE (after 3 days) | 2.8 lbs/in
4.9 N/cm |
| Adhesion to PET (initial) | 3.14 lbs/in
5.5 N/cm |
| Adhesion to PET (after 3 days) | 3.37 lbs/in
5.9 N/cm |
| Adhesion to PP (initial) | 2.86 lbs/in
5 N/cm |
| Adhesion to PP (after 3 days) | 3.43 lbs/in
6 N/cm |
| Adhesion to PS (initial) | 4.4 lbs/in
7.7 N/cm |
| Adhesion to PS (after 3 days) | 5.08 lbs/in
8.9 N/cm |
| Adhesion to PVC (initial) | 2.23 lbs/in
3.9 N/cm |
| Adhesion to PVC (after 3 days) | 5.02 lbs/in
8.8 N/cm |
| Adhesion to Steel (initial) | 4.17 lbs/in
7.3 N/cm |
| Adhesion to Steel (after 3 days) | 4.91 lbs/in
8.6 N/cm |
Adhesion to Values
| Adhesion to ABS (initial) | 5.14 lbs/in
9 N/cm |
| Adhesion to ABS (after 3 days) | 5.71 lbs/in
10 N/cm |
| Adhesion to PC (initial) | 5.94 lbs/in
10.4 N/cm |
| Adhesion to PC (after 3 days) | 6.45 lbs/in
11.3 N/cm |
| Adhesion to PE (initial) | 2.57 lbs/in
4.5 N/cm |
| Adhesion to PE (after 3 days) | 2.8 lbs/in
4.9 N/cm |
| Adhesion to PET (initial) | 3.14 lbs/in
5.5 N/cm |
| Adhesion to PET (after 3 days) | 3.37 lbs/in
5.9 N/cm |
| Adhesion to PP (initial) | 2.86 lbs/in
5 N/cm |
| Adhesion to PP (after 3 days) | 3.43 lbs/in
6 N/cm |
| Adhesion to PS (initial) | 4.4 lbs/in
7.7 N/cm |
| Adhesion to PS (after 3 days) | 5.08 lbs/in
8.9 N/cm |
| Adhesion to PVC (initial) | 2.23 lbs/in
3.9 N/cm |
| Adhesion to PVC (after 3 days) | 5.02 lbs/in
8.8 N/cm |
| Adhesion to Steel (initial) | 4.17 lbs/in
7.3 N/cm |
| Adhesion to Steel (after 3 days) | 4.91 lbs/in
8.6 N/cm |
Additional Info
Is designed to fulfill the low VOC (Volatile Organic Compounds) automotive requirements set forth by the Japanese Ministry of Health, Labor and Welfare (MHLW) and the Japanese Automobile Manufacturers Association (JAMA) limit of concentrations of 13 toxic chemistries. Acc. Toyota TSK0508G our assortment is conform Japanese automotive requirements
Adhesion vaules to:
PVC
PP
ABS
PC
PET
PS
PE
Are not part of the product specification
PV20 brown glassine liner / blue tesa logo
other liner version possible - on request
Adhesion vaules to:
PVC
PP
ABS
PC
PET
PS
PE
Are not part of the product specification
PV20 brown glassine liner / blue tesa logo
other liner version possible - on request
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
