Product Construction
| Adhesive Type | pure acrylic |
| Backing material | foamed acrylic |
| Color | black |
| Total thickness | 94.49 mils
2400 µm |

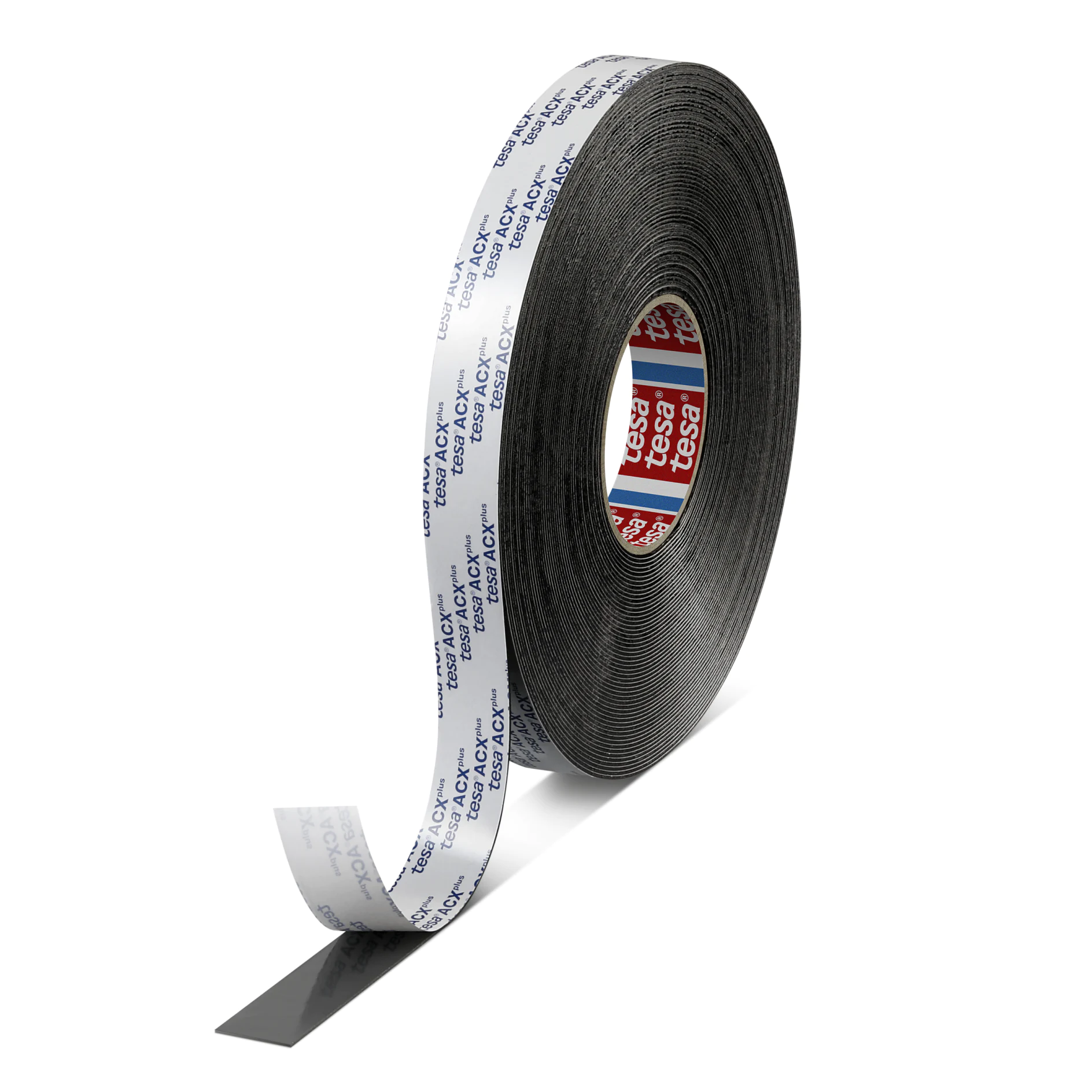

tesa® ACXplus 70725 High Resistance
2,400µm/94.5 mils double-sided acrylic foam tape
Product Features
- Due to its thickness ideal for gap filling requirements
- Compensation of thermal elongation of different materials
Product description
The tesa® ACXplus 707xx series is suitable for a wide range of bonding applications. For powerful long-lasting bonds, even on material with different surface characteristics. Three thicknesses are available (2400 µm – 3900µm) and the product is ideal for mounting applications with larger gap filling requirements.
As being part of the tesa® ACXplus 707x product group, tesa® ACXplus 70725 can compensate thermal elongations of bonded components with temperature cycles from -20 °C to 80 °C (-4 °F to 176 °F).
Product details and specifications
Product Features
- Due to its thickness ideal for gap filling requirements
- Compensation of thermal elongation of different materials
Application Fields
Exemplary mounting applications in different industries (e.g. windows & doors, elevator, transportation, appliances, interior fit-out) include:
- Partition Wall (glass-to-glass)
Product Construction
| Adhesive Type | pure acrylic |
| Backing material | foamed acrylic |
| Color | black |
| Total thickness | 94.49 mils
2400 µm |
Properties / Performance Values
| Temperature resistance short term | 428 °F
220 °C |
| Temperature resistance long term | 248 °F
120 °C |
Properties / Performance Values
| Temperature resistance short term | 428 °F
220 °C |
| Temperature resistance long term | 248 °F
120 °C |
Adhesion to Values
| Adhesion to Steel (after 3 days) | 21.13 lbs/in
37 N/cm |
Adhesion to Values
| Adhesion to Steel (after 3 days) | 21.13 lbs/in
37 N/cm |
Additional Info
The product is recommended for indoor usage. For permanent outdoor applications with load-bearing requirements, our product offer is tesa® ACXplus 707x series. To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) to provide the best product recommendation.
Liner options:
Liner options:
- PV24: Blue film liner – unbranded
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

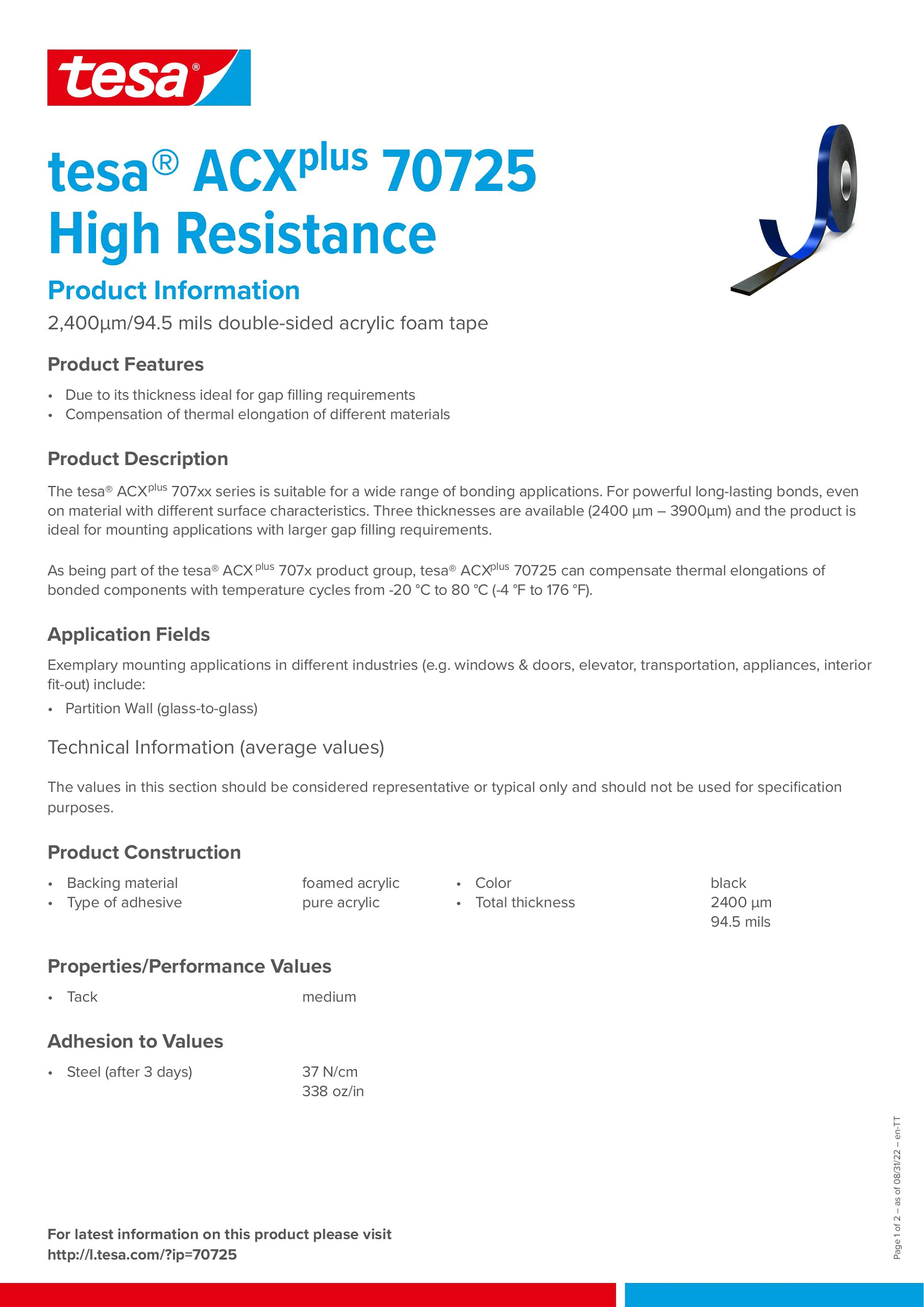

Downloads
Download the files below for more technical details and information on this product.
