Product Construction
| Adhesive Type | acrylic |
| Backing material | PET cloth |
| Total thickness | 8.66 mils
220 µm |

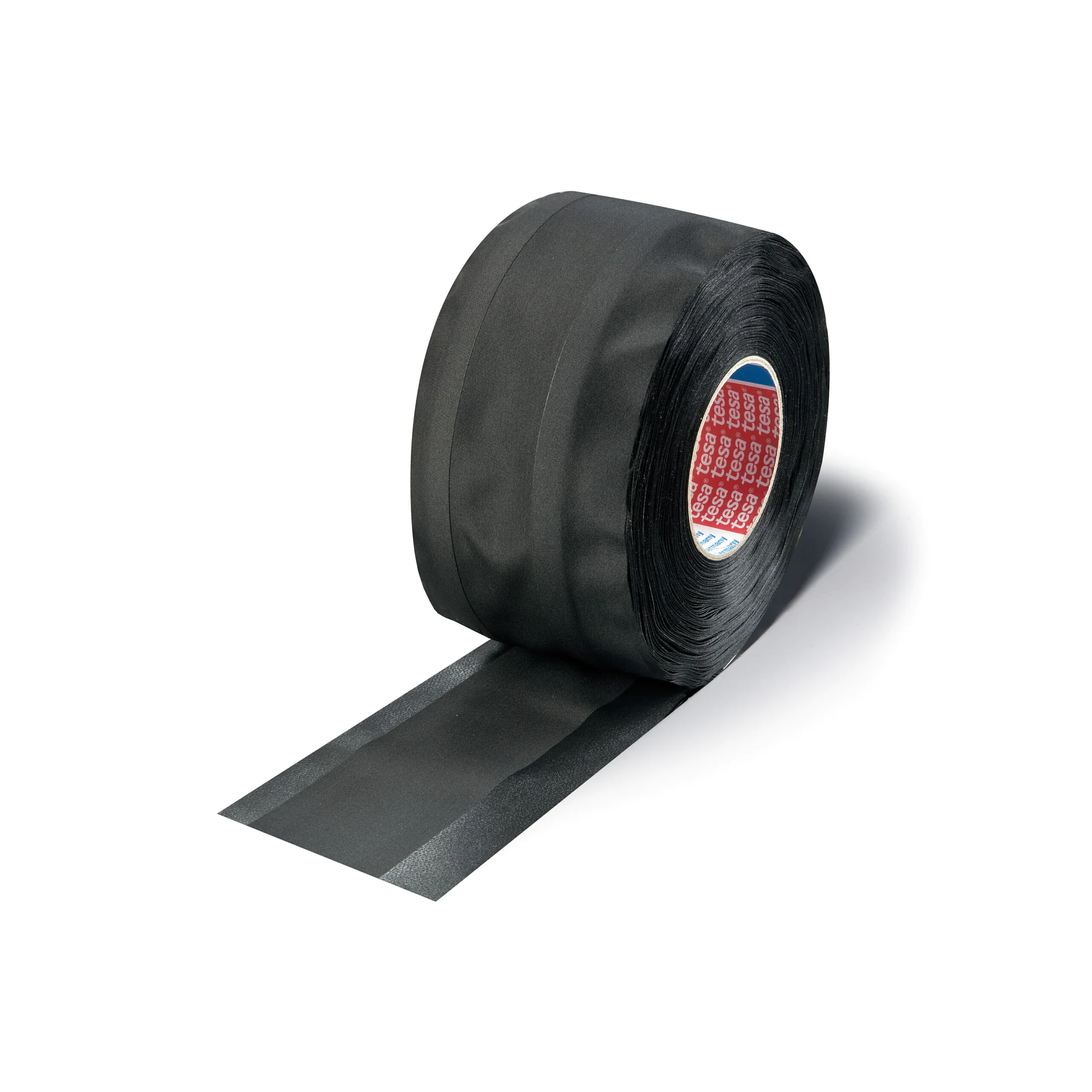

tesa® Sleeve 51026 PV9
PET cloth Sleeve® for enhanced harness flexibility in the automotive engine compartment
Product Features
- High temperature resistance
- High flexibility
- Excellent cable compatibility
Product description
tesa Sleeve® 51026 PV9 is a PET cloth wire harness sleeve with a solvent-free acrylic adhesive. It withstands high temperatures and demanding environmental conditions.
Its acrylic adhesive is compatible with new halogen-free cable jacketing materials (PE/PP) and provides enhanced durability at high temperatures. tesa Sleeve® 51026 PV9 is specifically designed for easy and efficient lengthwise application. The Sleeve® product construction ensures minimum adhesive contact with the wires to provide maximum harness.
Customized length-specific perforation for fast and clean tearing is available on request.
Main features:
- High temperature resistance
- High flexibility
- Abrasion resistance
- Easy and efficient lengthwise application
- Excellent cable compatibility
- Ageing-resistant
- Resistant to environmental influences
- Flame-retardant
- Fogging-free
- Halogen-free
- Tear-resistant
- Flexible and smooth
Color: Black and orange
Product details and specifications
Product Features
- High temperature resistance
- High flexibility
- Excellent cable compatibility
- Resistant to ageing
- Resistant to environmental influences
- Flame retardant
- Fogging-free
- Halogen-free
- Tear resistant
- Flexible and smooth
Application Fields
tesa Sleeve® 51026 PV9 has been developed for bundling wire harness areas subject to exacting requirements for temperature resistance as well as harness flexibility. The main application field is the automotive engine compartment with demanding temperatures and environmental conditions.
Product Construction
| Adhesive Type | acrylic |
| Backing material | PET cloth |
| Total thickness | 8.66 mils
220 µm |
Properties / Performance Values
| Abrasion resistance (5mm mandrel, LV312) | Class B |
| Temperature resistance min. | -40 °F
-40 °C |
| Temperature resistance max. | 302 °F
150 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class C |
| Noise damping (LV312) | Class A |
Properties / Performance Values
| Abrasion resistance (5mm mandrel, LV312) | Class B |
| Temperature resistance min. | -40 °F
-40 °C |
| Temperature resistance max. | 302 °F
150 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class C |
| Noise damping (LV312) | Class A |
Adhesion to Values
| Adhesion to Steel | 3.14 lbs/in
5.5 N/cm |
Adhesion to Values
| Adhesion to Steel | 3.14 lbs/in
5.5 N/cm |
Additional Info
Standard widths: 78, 100, 130, 155, 195 mm
Standard lengths: 50 m
Harness diameter / tesa Sleeve® width recommendation
Ø 13 mm – 16 mm / 78 mm
Ø 16 mm - 23 mm / 100 mm
Ø 23 mm – 33 mm / 130 mm
Ø 33 mm – 41 mm / 155 mm
Ø 41 mm – 54 mm / 195 mm
Standard lengths: 50 m
- Most combinations of width and length are possible
- Standard perforation length: 100-200 mm (in increments of 10 mm); 200-1000 mm (in increments of 20 mm)
- Further dimensions are available on request
Harness diameter / tesa Sleeve® width recommendation
Ø 13 mm – 16 mm / 78 mm
Ø 16 mm - 23 mm / 100 mm
Ø 23 mm – 33 mm / 130 mm
Ø 33 mm – 41 mm / 155 mm
Ø 41 mm – 54 mm / 195 mm
- Standard core diameter: 76 mm
- " = RAL 2007. Some color fadings can occur under continous strong heat conditions. A standard for color is not specified
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
