Product Construction
| Adhesive Type | advanced acrylic |
| Backing material | PET cloth |
| Total thickness | 20.87 mils
530 µm |
tesa® Supersleeve 51036 PV6
Double layer PET cloth sleeve for abrasion
protection and enhanced harness flexibility in the automotive engine compartment
Product Features
- Superior abrasion resistance
- High temperature resistance
- High flexibility
Product description
tesa Supersleeve® 51036 PV6 is a PET cloth wire harness sleeve with a solvent-free advanced acrylic adhesive. It provides superior abrasion protection and withstands high temperatures and demanding environmental conditions.
Its acrylic adhesive is compatible with new halogen-free cable jacketing materials (PE/PP) and provides enhanced durability at high temperatures. tesa Supersleeve® 51036 PV6 is specifically designed for easy and efficient lengthwise application. The Supersleeve® product construction ensures minimum adhesive contact with the wires to provide maximum harness flexibility and the adhesive-to-adhesive closure system guarantees secure bonding without additional spot wraps.
Customized length-specific perforation for fast and clean tearing is available on request.
Main features:
- Superior abrasion resistance
- High temperature resistance
- High flexibility
- Easy and efficient lengthwise application
- Adhesive-to-adhesive closure system
- Secure bonding without additional spot wraps
- Excellent cable compatibility
- Ageing-resistant
- Resistant to environmental influences
- Flame-retardant
- Fogging-free
- Halogen-free
- Tear-resistant
- Available in black and orange
Product details and specifications
Product Features
- Superior abrasion resistance
- High temperature resistance
- High flexibility
- Easy and efficient lengthwise application
- Adhesive-to-adhesive closure system
- Secure bonding without additional spot wraps
- Excellent cable compatibility
- Ageing-resistant
- Resistant to environmental influences
- Flame-retardant
- Fogging-free
- Halogen-free
- Tear-resistant
Application Fields
tesa Supersleeve® 51036 PV6 has been developed for bundling wire harness areas that require temperature and abrasion resistance as well as harness flexibility. The main application field is the automotive engine compartment with demanding temperatures and environmental conditions.
Product Construction
| Adhesive Type | advanced acrylic |
| Backing material | PET cloth |
| Total thickness | 20.87 mils
530 µm |
Properties / Performance Values
| Noise damping (LV312) | Class B |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Temperature resistance min. | -40 °F
-40 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class E |
| Temperature resistance max. | 302 °F
150 °C |
Properties / Performance Values
| Noise damping (LV312) | Class B |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Temperature resistance min. | -40 °F
-40 °C |
| Abrasion resistance (10mm mandrel, LV312) | Class E |
| Temperature resistance max. | 302 °F
150 °C |
Adhesion to Values
| Adhesion to Steel | 2.86 lbs/in
5 N/cm |
Adhesion to Values
| Adhesion to Steel | 2.86 lbs/in
5 N/cm |
Additional Info
Standard widths: 67, 85, 100, 115, 130, 145, 160, 180, 195 mm
Standard lengths: 50 m
Also available with customized perforation (perforation lengths between 100-940 mm)
Standard perforation lengths:
Further dimensions are available on request (range between 50 mm up to 940 mm), but:
Harness diameter / tesa Supersleeve® width recommendation
< Ø 12 mm / 67 mm
Ø 12 mm – 16 mm / 85 mm
Ø 16 mm – 19 mm / 100 mm
Ø 19 mm – 24 mm / 115 mm
Ø 24 mm – 29 mm / 130 mm
Ø 29 mm – 33 mm / 145 mm
Ø 33 mm – 38 mm / 160 mm
Ø 38 mm – 45 mm / 180 mm
Ø 45 mm – 49 mm / 195 mm
Standard lengths: 50 m
- Most combinations of width and length are possible
Also available with customized perforation (perforation lengths between 100-940 mm)
Standard perforation lengths:
- Sleeve length between 100 mm and 200 mm in 10 mm increments.
- Sleeve length between 200 mm and 500 mm in 20 mm increments.
Further dimensions are available on request (range between 50 mm up to 940 mm), but:
- Perforations
- Perforations >500 mm are not recommended due to handling and therefore the perforation should be split into two (example: 600 mm required length = 300 mm perforation increments).
Harness diameter / tesa Supersleeve® width recommendation
< Ø 12 mm / 67 mm
Ø 12 mm – 16 mm / 85 mm
Ø 16 mm – 19 mm / 100 mm
Ø 19 mm – 24 mm / 115 mm
Ø 24 mm – 29 mm / 130 mm
Ø 29 mm – 33 mm / 145 mm
Ø 33 mm – 38 mm / 160 mm
Ø 38 mm – 45 mm / 180 mm
Ø 45 mm – 49 mm / 195 mm
- Standard core diameter: 76 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

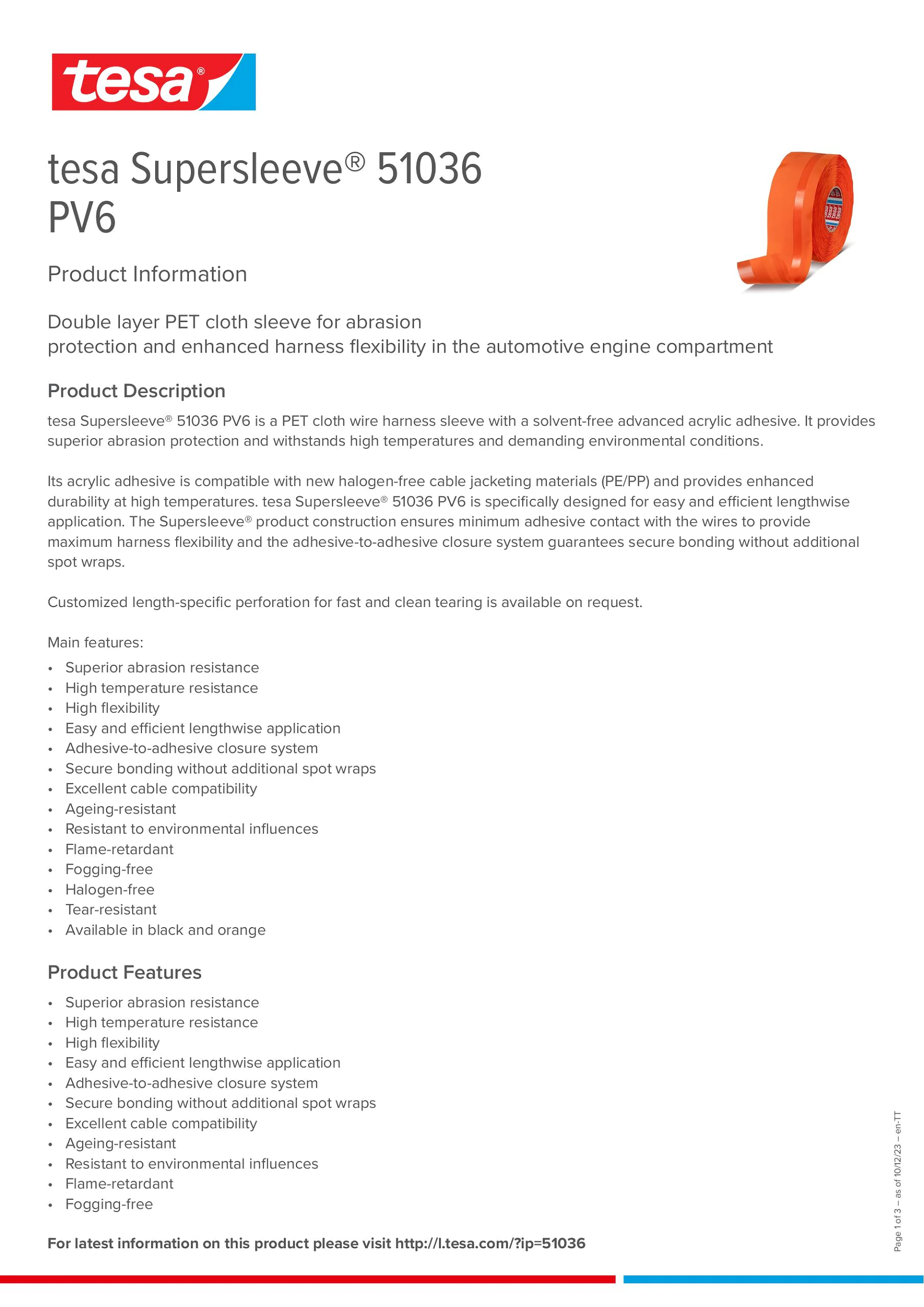

Downloads
