Product Construction
Adhesive Type | tackified acrylic |
Backing material | PET film |
Color | transparent |
Total thickness | 48 µm |

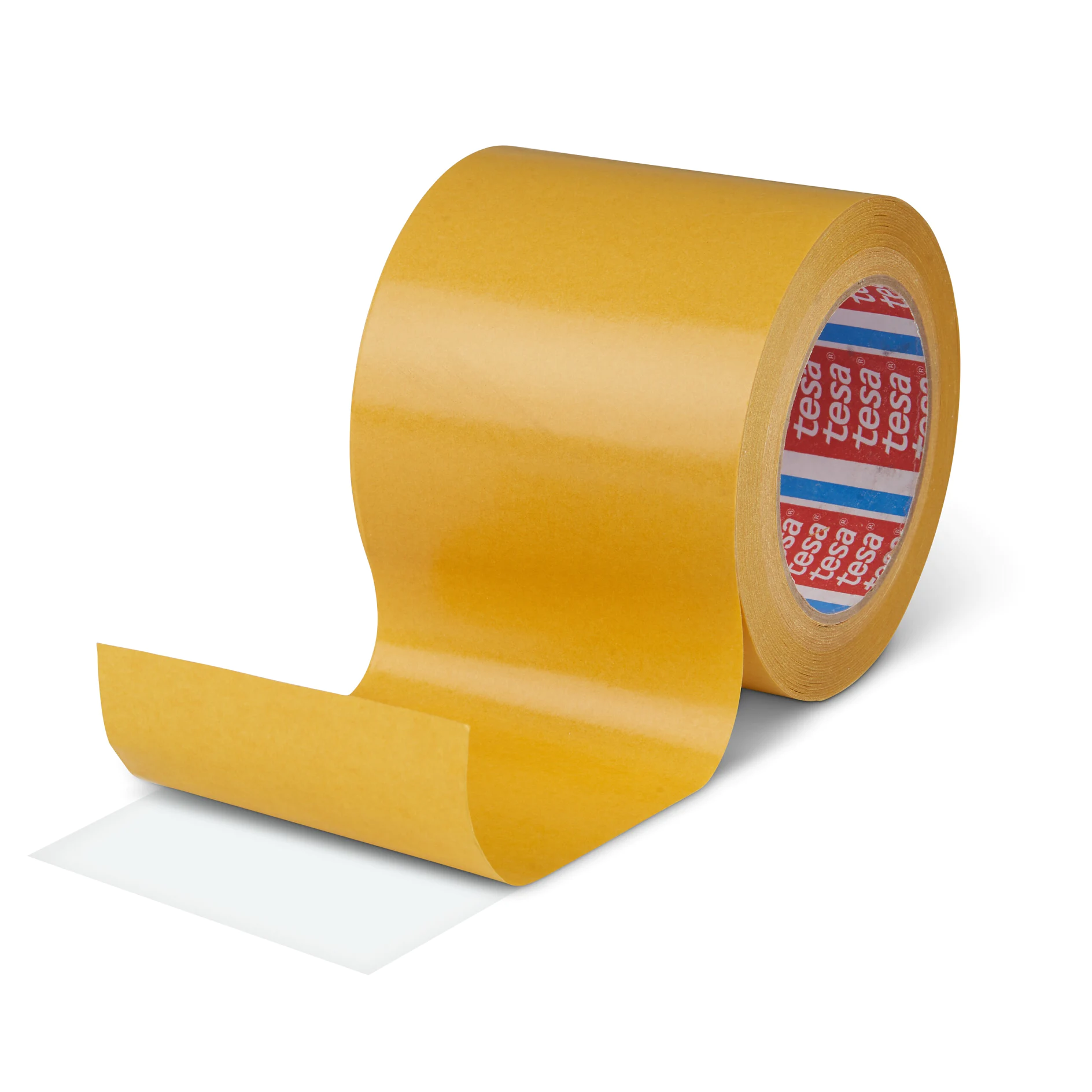

48µm double sided transparent filmic tape
tesa® 4972 is a transparent, double-sided self-adhesive tape consisting of a PET backing and a tackified acrylic adhesive.
Adhesive Type | tackified acrylic |
Backing material | PET film |
Color | transparent |
Total thickness | 48 µm |
Adhesive Type | tackified acrylic |
Backing material | PET film |
Color | transparent |
Total thickness | 48 µm |
Elongation at break | 50 % |
Tensile strength | 20 N/cm |
Chemical Resistance | good |
Tack | very good |
Ageing resistance (UV) | good |
Temperature resistance short term | 200 °C |
Static shear resistance at 23°C | good |
Softener resistance | good |
Humidity resistance | very good |
Temperature resistance long term | 100 °C |
Static shear resistance at 40°C | good |
Elongation at break | 50 % |
Tensile strength | 20 N/cm |
Chemical Resistance | good |
Tack | very good |
Ageing resistance (UV) | good |
Temperature resistance short term | 200 °C |
Static shear resistance at 23°C | good |
Softener resistance | good |
Humidity resistance | very good |
Temperature resistance long term | 100 °C |
Static shear resistance at 40°C | good |
Adhesion to ABS (initial) | 5.3 N/cm |
Adhesion to ABS (after 14 days) | 6.5 N/cm |
Adhesion to Aluminium (initial) | 5.2 N/cm |
Adhesion to Aluminium (after 14 days) | 7.7 N/cm |
Adhesion to PC (initial) | 6.5 N/cm |
Adhesion to PC (after 14 days) | 8.6 N/cm |
Adhesion to PE (initial) | 3.1 N/cm |
Adhesion to PE (after 14 days) | 3.5 N/cm |
Adhesion to PET (initial) | 5.3 N/cm |
Adhesion to PET (after 14 days) | 7 N/cm |
Adhesion to PP (initial) | 3 N/cm |
Adhesion to PP (after 14 days) | 4.8 N/cm |
Adhesion to PS (initial) | 5.4 N/cm |
Adhesion to PS (after 14 days) | 7.1 N/cm |
Adhesion to PVC (initial) | 5.7 N/cm |
Adhesion to PVC (after 14 days) | 9.4 N/cm |
Adhesion to Steel (initial) | 7 N/cm |
Adhesion to Steel (after 14 days) | 9.6 N/cm |
Adhesion to ABS (initial) | 5.3 N/cm |
Adhesion to ABS (after 14 days) | 6.5 N/cm |
Adhesion to Aluminium (initial) | 5.2 N/cm |
Adhesion to Aluminium (after 14 days) | 7.7 N/cm |
Adhesion to PC (initial) | 6.5 N/cm |
Adhesion to PC (after 14 days) | 8.6 N/cm |
Adhesion to PE (initial) | 3.1 N/cm |
Adhesion to PE (after 14 days) | 3.5 N/cm |
Adhesion to PET (initial) | 5.3 N/cm |
Adhesion to PET (after 14 days) | 7 N/cm |
Adhesion to PP (initial) | 3 N/cm |
Adhesion to PP (after 14 days) | 4.8 N/cm |
Adhesion to PS (initial) | 5.4 N/cm |
Adhesion to PS (after 14 days) | 7.1 N/cm |
Adhesion to PVC (initial) | 5.7 N/cm |
Adhesion to PVC (after 14 days) | 9.4 N/cm |
Adhesion to Steel (initial) | 7 N/cm |
Adhesion to Steel (after 14 days) | 9.6 N/cm |
Download the files below for more technical details and information on this product.
