Product Construction
| Adhesive Type | acrylic |
| Backing material | PET cloth |
| Total thickness | 260 µm |

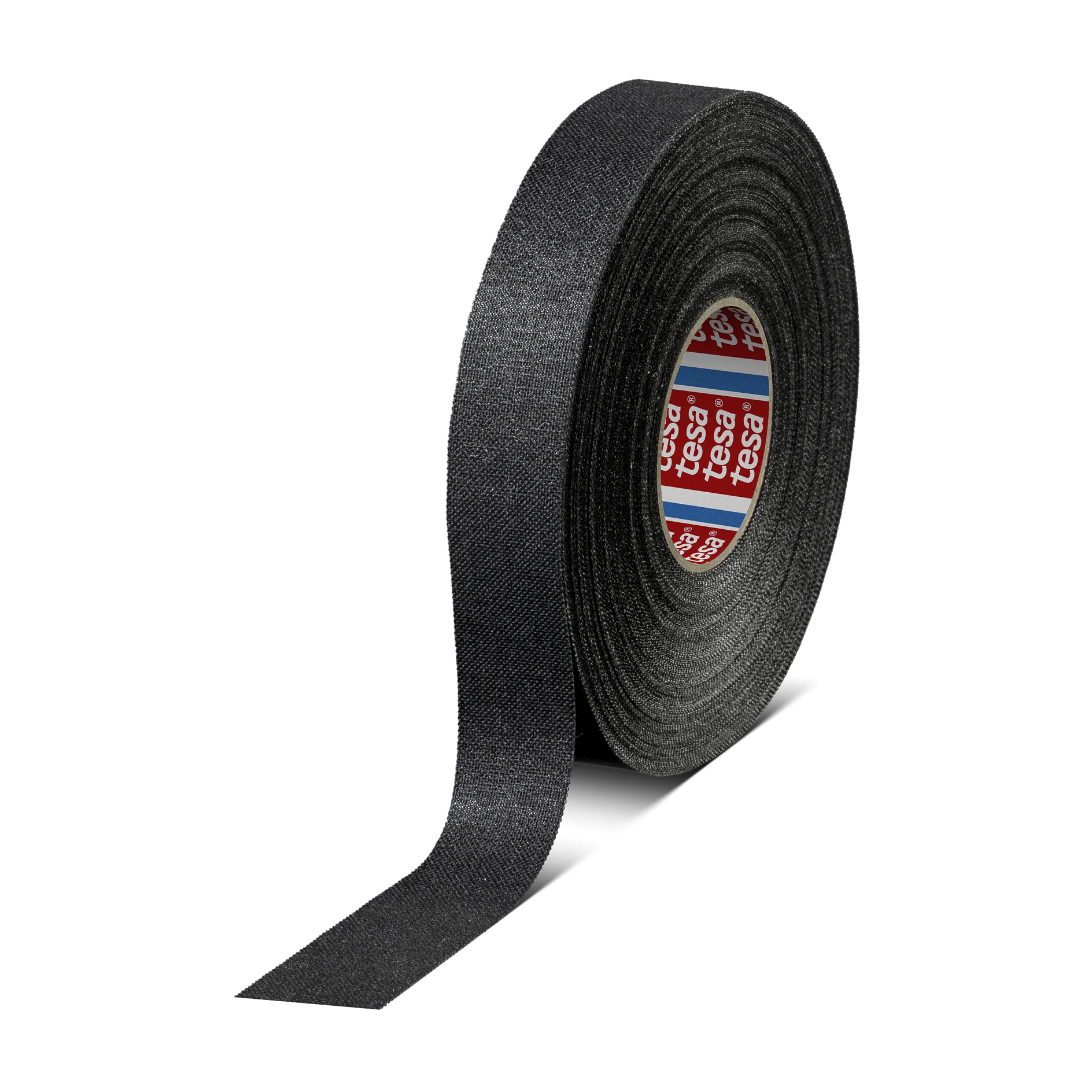

tesa® 51026
PET cloth tape for high abrasion protection of automotive harnesses
Product Features
- High abrasion resistance
- High temperature resistance
- Excellent cable compatibility
Product description
tesa® 51026 is a PET cloth tape with a solvent-free acrylic adhesive. It provides excellent abrasion protection of automotive harnesses and withstands high temperatures and demanding environmental conditions.
Its acrylic adhesive is compatible with new halogen-free cable jacketing materials (PE/PP) and provides enhanced durability at high temperatures.
Product details and specifications
Product Features
- High abrasion resistance
- High temperature resistance
- Excellent cable compatibility
- Resistant to aging
- Can withstand environmental influences
- Can be used for manual and automatic application
- Flame retardant
- Fogging-free
- Halogen-free
- Tear-resistant
- Constant unwind force
- Flexible and smooth
Application Fields
tesa® 51026 has been specially designed for bundling and wire protection against abrasion of automotive harnesses. The main application field is the engine compartment of a car, with demanding temperature-related and environmental conditions.
Product Construction
| Adhesive Type | acrylic |
| Backing material | PET cloth |
| Total thickness | 260 µm |
Properties / Performance Values
| Elongation at break | 40 % |
| Tensile strength | 275 N/cm |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Noise damping (LV312) | Class A |
| Unwind force (roll width > 9mm) | 11 N/roll (30 m/min) |
| Temperature resistance min. | -40 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Unwind force (roll width < 9mm) | 11 N/roll (30 m/min) |
| Temperature resistance max. | 150 °C |
Properties / Performance Values
| Elongation at break | 40 % |
| Tensile strength | 275 N/cm |
| Abrasion resistance (10mm mandrel, LV312) | Class D |
| Noise damping (LV312) | Class A |
| Unwind force (roll width > 9mm) | 11 N/roll (30 m/min) |
| Temperature resistance min. | -40 °C |
| Abrasion resistance (5mm mandrel, LV312) | Class D |
| Unwind force (roll width < 9mm) | 11 N/roll (30 m/min) |
| Temperature resistance max. | 150 °C |
Adhesion to Values
| Adhesion to Steel | 5.5 N/cm |
Adhesion to Values
| Adhesion to Steel | 5.5 N/cm |
Additional Info
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 25 m
Standard lengths: 25 m
- Most combinations of width and length are possible
- Further dimensions are available upon request
- Standard core diameter: 38 mm
- Applicable for red ring assembly aid
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
